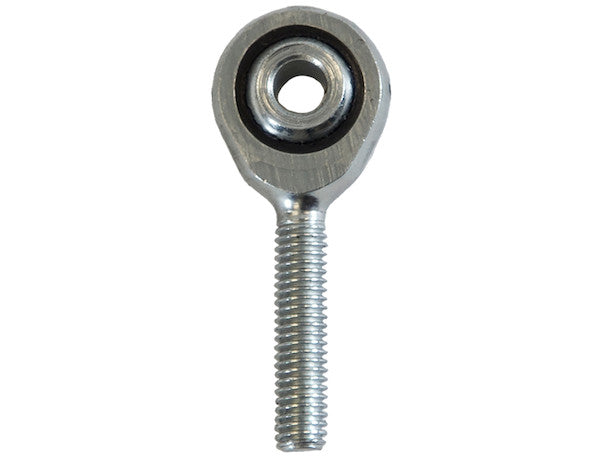

BRE82M - 1/2 Inch Rod End Bearing - Male Thread

The Buyers Products Rod End Bearing Male Thread is constructed from steel and available in five sizes.

Specifications

Comprehensive Technical Overview: 1/2 Inch Rod End Bearing - Male Thread

This technical description provides an in-depth analysis of the 1/2 Inch Rod End Bearing with Male Thread, a critical component engineered for the precise transmission of dynamic forces and angular motion in a multitude of mechanical systems. Manufactured by Buyers Products, this particular rod end bearing exemplifies robust construction, dimensional accuracy, and material integrity, ensuring reliable performance under demanding operational conditions. Its design facilitates a pivotal connection, accommodating misalignment between connected parts while effectively transmitting tensile and compressive loads.

Fundamental Principles of Rod End Bearings

Rod end bearings, often referred to as spherical plain bearings or Heim joints, are self-aligning mechanical components designed to provide a universal swivel action. They typically consist of a spherical inner ring with a bore that fits around a shaft or stud, housed within an outer ring (the rod end body). The spherical surface of the inner ring, also known as the ball, allows for angular movement relative to the outer ring, thereby compensating for angular misalignment, oscillatory motion, and slow rotational movements. This inherent flexibility makes them indispensable in applications where precise alignment between components is difficult to maintain or where dynamic angular changes are an operational requirement. The male thread variant, as presented here, features an external thread on the rod end body, facilitating direct attachment to a mating female threaded component, such as a clevis, lever, or connecting rod.

Material Selection and Construction: Steel Engineering

The selection of steel as the primary construction material for this rod end bearing is a deliberate engineering choice, reflecting a balance of strength, durability, and cost-effectiveness. Steel, an alloy of iron and carbon, is renowned for its high tensile strength, yield strength, and hardness, properties that are crucial for components subjected to significant mechanical stress. Depending on the specific steel alloy utilized (e.g., carbon steel, alloy steel, or stainless steel), additional properties such as corrosion resistance, fatigue strength, and impact resistance can be optimized. For the Buyers Products Rod End Bearing, the implication of "steel construction" suggests a robust, high-strength material capable of enduring substantial loads and resisting wear over its operational lifespan. The specific treatment of the steel, such as heat treatment (e.g., hardening and tempering) or surface coatings (e.g., zinc plating for corrosion resistance), would further enhance its performance characteristics, contributing to the bearing's overall resilience and longevity in various environmental conditions.

Detailed Dimensional Analysis and Operational Parameters

The provided specifications offer a precise dimensional blueprint of the 1/2 Inch Rod End Bearing, critical for engineers and designers in integrating this component into their systems. Each dimension plays a vital role in determining the bearing's fit, function, and load-carrying capabilities. Let's delve into each parameter:

Socket Flats: 0.748 inches

The "Socket Flats" dimension refers to the width across the flats of the hex nut or wrenching feature on the body of the rod end. At 0.748 inches, this dimension is crucial for the proper engagement of a standard wrench during installation or removal. Accurate measurement of this feature ensures that appropriate tools can be used to achieve the specified torque values for secure mounting, preventing loosening due to vibration or dynamic loads. This dimension indirectly reflects the structural integrity of the rod end's housing in the area where torsional forces are applied during assembly.

Center to Stud End: 2.438 inches

This measurement, "Center to Stud End," represents the distance from the center of the spherical ball's bore (the pivot point) to the very end of the male threaded stud. This parameter is fundamental in determining the overall effective length of the linkage or assembly in which the rod end is integrated. It is critical for kinematic analysis and ensuring correct geometric configuration within the mechanical system. Precision in this dimension affects lever arm lengths, actuator strokes, and the overall spatial arrangement of interconnected components, directly influencing the accuracy and functionality of the mechanism.

Overall Length: 3.094 inches

The "Overall Length" of 3.094 inches encompasses the total linear extent of the rod end bearing, from the extreme end of the threaded section to the opposite end of the bearing body. This dimension is vital for space claim assessments, packaging considerations, and ensuring that the component fits within the allocated physical envelope of the assembly. It is a critical parameter for mechanical designers when calculating clearances and ensuring interference-free operation within confined spaces.

Movement Cone: 50 degrees

The "Movement Cone" specification, articulated as 50 degrees, denotes the maximum angular displacement or articulation achievable by the spherical ball within the rod end body. This angle represents the total included angle of freedom the ball has to pivot from its central axis. A 50-degree movement cone indicates a substantial range of angular motion, allowing for significant misalignment compensation and flexibility in dynamic systems. This is a key performance metric for applications involving considerable angular changes between linked components, such as in steering linkages, suspension systems, or control mechanisms where precise, yet adaptable, connections are required. A larger movement cone offers greater tolerance for misalignment, reducing stress on the bearing and adjacent components.

Socket Diameter: 1.307 inches

The "Socket Diameter" refers to the internal diameter of the housing that encases the spherical ball. This dimension is critical as it dictates the fit and retention of the ball within the rod end body. A precisely machined socket diameter ensures a proper bearing fit, minimizing play while allowing for smooth angular movement. Deviations from this tolerance can lead to excessive looseness, premature wear, or binding, all of which compromise the bearing's performance and lifespan. It is also an indicator of the overall strength and robustness of the bearing housing.

Ball Diameter: 0.937 inches

The "Ball Diameter" of 0.937 inches refers to the external diameter of the spherical inner ring. This dimension is crucial for the bearing's load-carrying capacity and its interface with the socket. The larger the ball diameter, generally, the greater the surface area for load distribution and the higher the static and dynamic load ratings the bearing can withstand. The precision of the ball's spherical surface finish and its dimensional accuracy are paramount for smooth, low-friction operation and extended service life.

Thread: 1/2-20

The "Thread" specification of 1/2-20 indicates the nominal diameter and pitch of the male thread. "1/2" refers to a nominal diameter of 0.5 inches, and "20" denotes 20 threads per inch (TPI). This is a standard Unified National Fine (UNF) thread specification. UNF threads are characterized by a finer pitch compared to coarse threads (UNC), offering greater resistance to loosening under vibration, finer adjustment capabilities, and often higher shear strength for a given material due to a larger minor diameter. This thread type is commonly selected for applications requiring secure fastening and precise adjustment. The use of a standard thread specification ensures interchangeability and compatibility with a wide range of mating components and fasteners.

Thread Depth: 1.500 inches

The "Thread Depth" of 1.500 inches specifies the length of the threaded portion of the rod end stud. This dimension is vital for ensuring sufficient thread engagement with the mating component, which directly impacts the strength and security of the connection. Adequate thread depth prevents stripping, allows for appropriate clamping force, and distributes tensile loads effectively across multiple thread pitches. For critical applications, minimum thread engagement requirements are often specified to prevent premature failure of the threaded joint under operational loads.

Applications and Operational Environments

Given its robust steel construction, precise dimensions, and substantial movement cone, this 1/2 Inch Rod End Bearing is suitable for a diverse array of industrial and mechanical applications. These include, but are not limited to:

• Automotive and Heavy Equipment: Steering linkages, suspension components, shift linkages, and hydraulic cylinder mounts where angular motion and load transmission are essential. The steel construction ensures durability in demanding environments.
• Agricultural Machinery: Control rods for implements, linkage systems for hydraulic cylinders on tractors, and other farm equipment that experience significant shock loads and exposure to environmental elements.
• Industrial Automation and Robotics: End effectors, linear actuators, and various articulated joints in robotic arms or automated machinery that require precise, yet flexible, connections.
• Marine Applications: Control systems for rudders and throttles, where corrosion resistance (if specific steel alloy or coating is applied) and robust load handling are critical.
• Material Handling Equipment: Linkages in forklifts, conveyor systems, and lifting apparatus where reliable pivotal connections are needed.
• Off-Highway Vehicles: Components in ATVs, UTVs, and construction vehicles that require high strength and ability to articulate under severe conditions.

The steel construction ensures suitability for environments where high static and dynamic loads are prevalent. However, for highly corrosive environments, supplementary surface treatments or the use of specific corrosion-resistant steel alloys would be recommended to maintain optimal performance and extend service life.

Performance Considerations and Engineering Best Practices

When integrating this 1/2 Inch Rod End Bearing into a design, several engineering considerations are paramount to ensure optimal performance and longevity:

• Load Capacity: While the steel construction implies high strength, specific static and dynamic load ratings should be consulted from the manufacturer's data sheets to ensure the bearing is not subjected to forces exceeding its design limits. Load types (radial, axial, combined) and their magnitudes are critical factors.
• Lubrication: Depending on the bearing's internal construction (e.g., presence of liners, seals, or grease fittings), a lubrication strategy may be required. Proper lubrication reduces friction, prevents wear, and dissipates heat, significantly extending the bearing's operational life.
• Environmental Factors: Temperature extremes, exposure to contaminants (dust, dirt, moisture), and corrosive agents can significantly impact bearing performance. Selecting appropriate materials, seals, and protective coatings is essential for harsh environments.
• Fatigue Life: Bearings subjected to repetitive loads and oscillatory motion are prone to fatigue. Understanding the expected load cycles and applying appropriate safety factors is crucial for predicting and extending fatigue life.
• Alignment and Misalignment: While rod ends accommodate misalignment, extreme or continuous misalignment beyond the specified movement cone can induce excessive stress and accelerate wear. The 50-degree movement cone offers substantial flexibility, but proper initial alignment remains beneficial.
• Thread Engagement: Ensuring full and proper thread engagement (as dictated by the 1.500-inch thread depth and 1/2-20 specification) is vital for the integrity of the threaded connection. Inadequate engagement can lead to thread stripping or reduced load-carrying capacity.
• Installation Torque: Adhering to manufacturer-specified torque values for mounting the rod end is critical. Over-torquing can damage the thread or deform the bearing body, while under-torquing can lead to loosening and failure.
• Vibration and Shock: Applications involving significant vibration or shock loads may require additional fastening measures (e.g., lock nuts, thread-locking compounds) to prevent loosening.

Conclusion

The Buyers Products 1/2 Inch Rod End Bearing with Male Thread is a meticulously engineered component, designed for reliability and performance in a broad spectrum of mechanical systems. Its robust steel construction, coupled with precise dimensional specifications such as the 0.748-inch socket flats, 2.438-inch center to stud end, 3.094-inch overall length, and a substantial 50-degree movement cone, underscore its capability to transmit loads and accommodate angular motion effectively. The 1/2-20 UNF thread with a 1.500-inch depth ensures secure and adjustable integration into mating components. By understanding and applying the detailed technical specifications and adhering to sound engineering practices, designers and engineers can confidently deploy this rod end bearing to enhance the functionality, durability, and operational efficiency of their mechanical assemblies.
