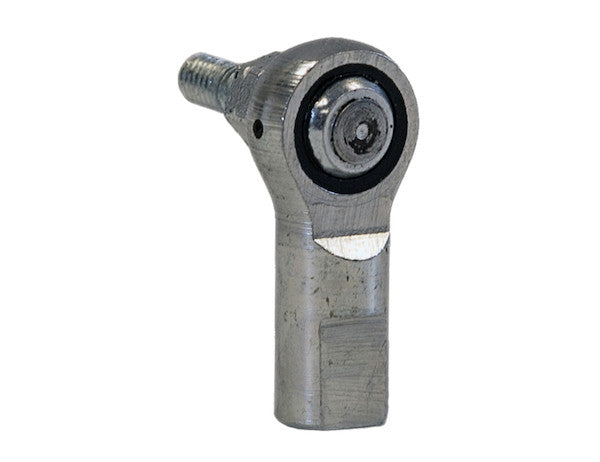

BRE82S - 1/2 Inch Rod End Bearing with Stud

The Buyers Products Rod End Bearing with Stud is constructed from steel and available in five sizes.

Specifications

Center to Stud Shoulder	0.875 "
Center to Socket Face	2.125 "
Thread	1/2-20
Socket Diameter	0.875 "
Thread Depth	1.187 "
Stud Length from Shoulder	1.125
Overall Length	2.781 "
Movement Cone	50
Ball Diameter	0.937 "

Advanced Technical Overview: 1/2 Inch Rod End Bearing with Stud

The 1/2 Inch Rod End Bearing with Stud, as offered by Buyers Products, represents a critical component in mechanical linkage systems requiring precise angular movement and robust load transmission. This technical exposition aims to delve into the intrinsic design, material science, operational principles, and application considerations of this specific bearing, providing a comprehensive understanding for engineers, designers, and maintenance professionals.

I. Design and Construction Excellence

At its core, this rod end bearing is a sophisticated spherical plain bearing integrated into a threaded housing, featuring a permanently attached stud for direct connection. The construction from steel is fundamental to its mechanical integrity and long-term performance across diverse operational environments. Steel offers an optimal balance of tensile strength, yield strength, hardness, and fatigue resistance, properties crucial for components subjected to dynamic loads and repeated stress cycles.

A. Material Science: The Choice of Steel

The selection of steel as the primary construction material is not arbitrary. Depending on the specific variant or "size" (though the provided specifications detail a single 1/2 inch thread size, indicating a specific model within a range), the steel alloy could range from low-carbon steels for general applications to higher-grade alloy steels (e.g., AISI 4140, 4340) for enhanced strength, wear resistance, and toughness. The choice often reflects a balance between cost-effectiveness and performance requirements. Surface treatments such as black oxide coating, zinc plating, or even more advanced nickel-chrome plating might be applied to enhance corrosion resistance and reduce friction, thereby extending the bearing's service life, especially in outdoor or corrosive environments. Heat treatment processes, including hardening and tempering, are typically employed to optimize the steel's microstructure, enhancing its load-bearing capacity and resistance to brinelling and fatigue failure.

B. Key Dimensional Specifications Analysis

The provided specifications are paramount for integration into mechanical designs:

• Center to Stud Shoulder (0.875"): This dimension is critical for determining the effective length of the linkage and ensuring proper clearance with mating components. It specifies the distance from the spherical center of the bearing to the load-bearing face of the stud.
• Center to Socket Face (2.125"): This measurement defines the overall projection of the housing from the spherical center, important for determining the installation envelope and potential interference with adjacent structures.
• Thread (1/2-20): This is a Unified National Fine (UNF) thread, indicating a nominal diameter of 1/2 inch and 20 threads per inch. UNF threads are known for their fine pitch, which provides increased resistance to loosening under vibration and higher shear strength compared to coarse threads, making them suitable for applications requiring secure fastening and precise adjustment. The thread class (e.g., 2A, 3A) would further define manufacturing tolerances, though not specified here. Proper thread engagement and torque are vital for preventing premature failure.
• Socket Diameter (0.875"): This refers to the inner diameter of the housing that encapsulates the spherical ball. The precise tolerance and surface finish of this socket are critical for smooth operation and preventing excessive play.
• Thread Depth (1.187"): This specifies the usable depth of the internal thread within the rod end housing. It dictates the maximum engagement length for the mating threaded rod or shaft, ensuring adequate load distribution across the threads and preventing stripping under tension.
• Stud Length from Shoulder (1.125"): This is the effective working length of the stud, from its load-bearing shoulder to its tip. It informs the design of mating components, such as levers or brackets, that attach to the stud.
• Overall Length (2.781"): This dimension provides the total linear extent of the component, crucial for space allocation and packaging within an assembly.
• Movement Cone (50 degrees): This is a critical functional specification. It represents the maximum angular displacement (total included angle) that the stud can achieve relative to the rod end housing without binding or exceeding the bearing's operational limits. A 50-degree movement cone indicates significant angular flexibility, allowing for substantial misalignment compensation and dynamic motion in linkages. This value implies 25 degrees of articulation from the bearing's neutral axis in any direction.
• Ball Diameter (0.937"): This refers to the diameter of the spherical inner ring (the "ball") that houses the stud. The precision of this ball's sphericity and surface finish directly impacts the bearing's rotational smoothness, load distribution, and wear characteristics. It interfaces with the socket, forming the spherical plain bearing.

II. Operational Principles and Performance Characteristics

The primary function of a rod end bearing is to accommodate angular misalignment between connected components while simultaneously transmitting radial and axial loads. The integrated stud design simplifies connections where a clevis-type attachment is not feasible or desired.

A. Load Transmission and Distribution

Loads are primarily transmitted from the attached component through the stud, into the spherical ball, and then distributed across the spherical interface to the housing. The large surface area of the spherical plain bearing design helps to distribute loads effectively, reducing localized stress concentrations compared to simpler pivot points. The steel construction ensures high static and dynamic load capacities, crucial for applications involving heavy forces or shock loads.

B. Angular Motion and Misalignment Compensation

The spherical geometry of the ball and socket allows for multi-directional angular articulation. The 50-degree movement cone is particularly beneficial in applications where:

1. Components undergo significant relative angular displacement during operation (e.g., suspension systems, control linkages).
2. Manufacturing tolerances or assembly inaccuracies result in inherent misalignment that needs to be absorbed without inducing bending moments on shafts or excessive stress on other components.
3. Dynamic systems require continuous angular adjustments without binding or premature wear.

This capability reduces the need for extremely precise alignment of connecting components, simplifying assembly and reducing overall system stress.

C. Friction and Wear

While often operating with boundary lubrication or dry, the specific friction characteristics depend on the surface finish of the ball and socket, and the presence (or absence) of a liner. For steel-on-steel contact, these bearings typically require periodic lubrication for optimal performance and extended life, especially under oscillating or high-load conditions. Some designs might incorporate self-lubricating liners (e.g., PTFE-based) to reduce friction, eliminate the need for maintenance, and enhance performance in dusty or inaccessible environments, though the current description suggests a basic steel construction without explicit mention of such liners.

III. Application Spectrum

The 1/2 Inch Rod End Bearing with Stud is a versatile component found in a multitude of industrial, automotive, agricultural, and specialized machinery applications where robust, articulating linkages are required.

• Automotive and Transportation: Commonly used in steering linkages, shifter mechanisms, suspension components (e.g., sway bar end links), and brake linkages in heavy-duty trucks, trailers, and utility vehicles. Their ability to handle high loads and accommodate misalignment is crucial for vehicle stability and control.
• Agricultural Machinery: Essential for control linkages in tractors, combines, plows, and other implements. They facilitate the precise positioning and movement of hydraulic cylinders, levers, and arms in demanding, often dirty, environments.
• Construction Equipment: Found in the control systems of excavators, loaders, bulldozers, and cranes, enabling the articulation of hydraulic rams and various operating mechanisms.
• Material Handling Equipment: Utilized in conveyor systems, lift trucks, and robotic arms where accurate and reliable movement of components is paramount.
• Industrial Machinery: Integrated into packaging machines, printing presses, textile machinery, and other automated systems requiring precise motion transfer and robust connections.
• Marine Applications: In marine steering systems, engine controls, and other linkage applications, often requiring additional corrosion protection (e.g., stainless steel variants or specialized coatings).
• Specialized Actuators and Robotics: In advanced robotic systems and custom actuators, these bearings provide flexible and strong pivot points for complex movements.

IV. Installation and Maintenance Considerations

Proper installation and routine maintenance are critical for maximizing the service life and ensuring the reliable operation of the rod end bearing.

A. Installation Best Practices

• Thread Engagement: Ensure full and proper thread engagement (as defined by the 1.187" thread depth) with the mating component to distribute loads evenly and prevent thread stripping. Under-engagement can lead to premature failure.
• Torque Specifications: Adhere to recommended torque specifications for tightening the mating threaded component into the rod end. Overtorquing can damage threads or distort the housing, while undertorquing can lead to loosening and vibration-induced wear.
• Alignment during Assembly: While the bearing accommodates misalignment, minimizing initial assembly misalignment reduces the continuous stress on the bearing and enhances its lifespan.
• Securing the Stud: When attaching components to the stud, use appropriate fasteners (nuts, washers) and ensure proper clamping force to prevent movement between the stud shoulder and the attached part. Consider using lock nuts or thread-locking compounds for vibration-prone applications.

B. Maintenance Guidelines

• Lubrication: For steel-on-steel designs without self-lubricating liners, periodic lubrication with appropriate grease is essential. The frequency depends on the operating conditions (load, speed, environment) and should follow manufacturer recommendations. Some rod ends feature grease zerks (nipples) for easy relubrication.
• Inspection: Regularly inspect bearings for signs of wear, such as increased play (looseness), corrosion, deformation of the housing or stud, and cracking. Excessive play often indicates wear in the spherical interface and necessitates replacement.
• Environmental Protection: In harsh environments (e.g., dusty, wet, corrosive), consider using protective boots or seals to prevent contaminants from entering the spherical joint, which can accelerate wear and necessitate more frequent maintenance.

V. Conclusion

The 1/2 Inch Rod End Bearing with Stud from Buyers Products is a robust, precision-engineered component designed to provide reliable articulation and load transmission in demanding mechanical systems. Its steel construction, detailed dimensional specifications, and generous 50-degree movement cone make it suitable for a wide array of applications requiring strength, flexibility, and longevity. A thorough understanding of its design principles, operational characteristics, and proper installation and maintenance practices is essential for engineers and technicians to leverage its full potential, ensuring optimal system performance and extended service life. The availability in "five sizes" (referring to a range of products where this 1/2-20 thread version is one specific offering) further underscores its adaptability across various design requirements, making it a staple component in mechanical engineering.
