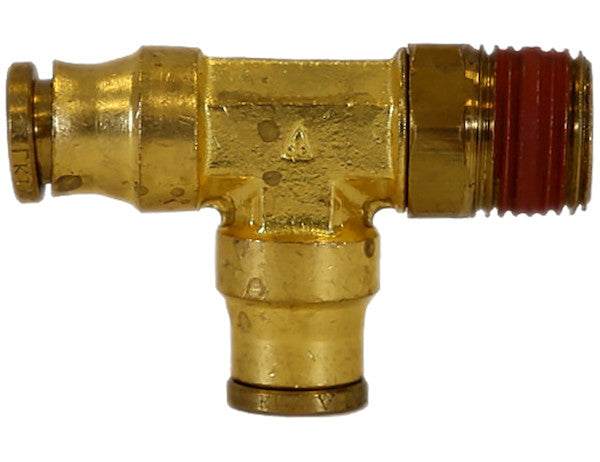

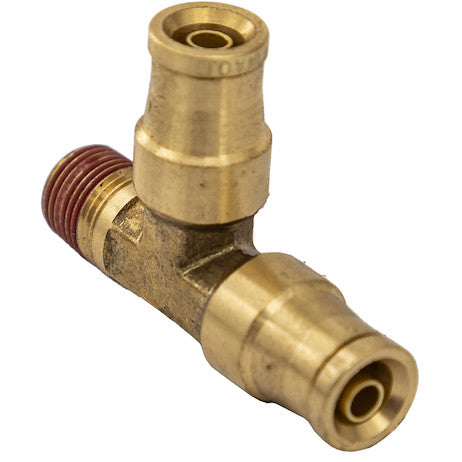

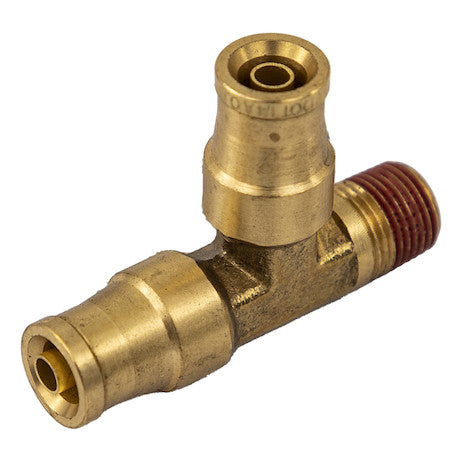

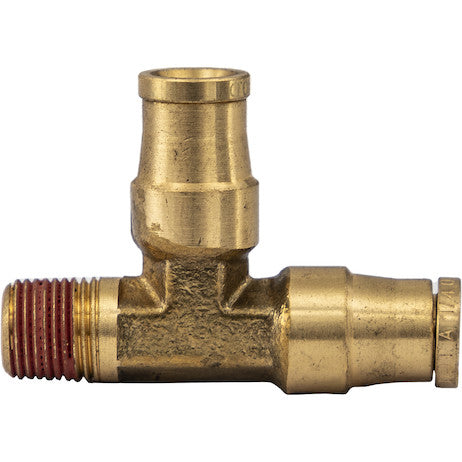

Buyers Products Male Run Tees are made of long lasting corrosion- resistant brass. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.
Specifications
| Color | Natural |
|---|---|
| Finish | Plain |
| Fitting Shape | Run Tee |
| Male/Female/Union | Male |
| Material | Brass |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | 1/8 NPT |
| Swivel (y/n) | No |
| Works with Tube Outer Diameter | 1/4 |
Precision Engineered Brass DOT Push-In Male Run Tee for Critical Air Brake Systems
The Brass DOT Push-In Male Run Tee, specifically designed for 1/4 Inch Tube O.D. and featuring a 1/8 Inch Pipe Thread, represents a cornerstone component in the construction and maintenance of robust and compliant air brake systems. Engineered to meet the stringent demands of DOT FMVSS 571.106 air brake performance specifications, this fitting offers an unparalleled combination of durability, ease of installation, and reliable performance. Its sophisticated design integrates the inherent benefits of brass construction with the efficiency of push-in technology, culminating in a solution that optimizes system integrity and operational safety for commercial vehicles.
Material Excellence: The Advantages of Brass in Air Brake Fittings
The selection of brass as the primary material for this fitting is a deliberate choice rooted in its exceptional metallurgical properties, which are critically advantageous for applications within air brake systems. Brass, an alloy primarily composed of copper and zinc, exhibits superior corrosion resistance, making it highly suitable for environments where moisture, road salts, and various atmospheric contaminants are prevalent. Unlike steel or other ferrous alloys, brass does not rust, significantly extending the operational lifespan of the fitting and reducing the risk of system failure due to material degradation. This inherent resistance to corrosion ensures consistent performance and minimizes maintenance requirements over the long term.
Beyond its corrosion resistance, brass possesses excellent strength and ductility. These properties allow the fitting to withstand the cyclical pressures and constant vibrations inherent in commercial vehicle air brake systems without succumbing to fatigue cracking or permanent deformation. Its ductility also facilitates precise machining, enabling the intricate tolerances required for effective push-in sealing mechanisms and accurate threading. Furthermore, brass demonstrates good thermal conductivity and a low coefficient of thermal expansion relative to other metals, which contributes to stable performance across a wide range of operating temperatures, from extreme cold to intense heat. This thermal stability is vital for maintaining consistent seal integrity and mechanical strength under varying environmental conditions. The material's natural finish, as specified, highlights its raw, unadulterated quality, signifying a product where form follows function without reliance on superficial coatings that could chip or degrade over time. The "Plain" finish implies that the material is presented in its natural state, free from additional chemical treatments or platings, emphasizing its intrinsic durability and resistance to environmental factors.
Innovative Design: The Push-In Connection Mechanism
The core of this fitting's operational efficiency lies in its push-in connection mechanism. This innovative design offers substantial advantages over traditional compression or threaded fittings, particularly in terms of installation speed, ease, and consistency. A push-in fitting typically comprises a sturdy brass body, an internal grab ring (often stainless steel), and a robust O-ring seal (usually made from an elastomeric material such as EPDM or NBR, selected for its resistance to air and temperature variations). When a properly prepared tube is inserted into the fitting, the grab ring automatically secures the tube against pull-out forces, while the O-ring creates a hermetic seal against the tube's outer diameter.
The benefits of this design are multi-faceted. First, installation is remarkably quick and straightforward, requiring no specialized tools beyond a tube cutter and deburring tool. This significantly reduces installation time and labor costs, particularly in complex assemblies or field repairs. Second, the push-in mechanism provides a highly reliable and leak-proof connection, critical for maintaining the operational efficiency and safety of air brake systems. The seal's integrity is maintained under both static and dynamic pressure conditions, as well as during periods of vibration and mechanical stress. Third, the ability to rapidly connect and disconnect tubing facilitates easier system modifications, troubleshooting, and component replacement. While designed for secure engagement, the demounting process—typically involving depressing a release collar—allows for efficient maintenance without damaging the fitting or the tube, provided proper tube preparation and removal techniques are followed.
Understanding the Male Run Tee Configuration
The "Male Run Tee" configuration of this fitting denotes a specific and highly versatile plumbing design. A "tee" fitting is characterized by its three ports, allowing for the branching of a fluid line. In a "run tee" configuration, two of these ports are aligned in a straight line, forming the "run," while the third port branches off perpendicularly. The term "Male" refers to the threaded connection, indicating an external thread designed to screw into a female port on another component, such as an air tank, valve, or manifold. This specific fitting features two push-in ports for 1/4 inch O.D. (Outer Diameter) tubing along the run, and one 1/8 inch NPT (National Pipe Taper) male pipe thread port branching off. The 1/4 inch tube O.D. is a common standard size for air lines in commercial vehicle applications, offering a balance between air flow capacity and flexibility. The 1/8 inch NPT male thread provides a compact and standard interface for connecting to smaller ports on system components. This combination makes the fitting ideal for diverting air from a main 1/4 inch line to a pressure gauge, sensor, auxiliary air accessory, or another critical system component while maintaining the flow through the primary run. Its "No Swivel" characteristic means that once the pipe thread is tightened, the orientation of the push-in ports is fixed, requiring careful planning during installation to ensure correct tube routing and alignment.
Adherence to DOT FMVSS 571.106: The Pinnacle of Safety and Performance
Perhaps the most critical attribute of this Brass DOT Push-In Male Run Tee is its full compliance with DOT FMVSS 571.106. This Federal Motor Vehicle Safety Standard No. 106 specifically governs Brake Hoses, Brake Hose Assemblies, and Brake Fittings for motor vehicles. Its primary objective is to ensure the reliability and safety of air brake components, which are indispensable for the safe operation of heavy-duty trucks, buses, and trailers. Compliance with FMVSS 106 is not merely a regulatory formality; it is a testament to the fitting's engineered integrity and its ability to perform under the most demanding operational conditions.
FMVSS 106 outlines a series of rigorous tests and performance criteria that air brake fittings must satisfy. These include, but are not limited to:
- Burst Strength Test: Fittings must withstand extremely high internal pressures without failure, ensuring system integrity even under peak operational loads or pressure surges.
- Pull-Out Resistance Test: This test verifies the secure engagement of the push-in mechanism, ensuring that the tubing cannot be inadvertently dislodged from the fitting under significant axial forces, which can occur during vehicle operation due to vibration or mechanical stress.
- Vibration Resistance Test: Simulates the constant vibration experienced by vehicle components, ensuring the fitting maintains its sealing and structural integrity over extended periods of exposure to dynamic stress.
- Heat Aging and Cold Impact Tests: These tests assess the material's and seal's ability to retain their properties and prevent leakage across a wide spectrum of temperatures, from extreme heat to sub-zero conditions, and to withstand sudden impacts at low temperatures without brittle fracture.
- Leakage Test: Perhaps the most fundamental test, ensuring that no air escapes from the fitting under specified operating pressures, which is crucial for maintaining proper brake system pressure and responsiveness.
- Corrosion Resistance: Although brass inherently provides excellent corrosion resistance, the standard may involve specific environmental exposure tests to ensure long-term reliability.
Diverse Applications in Commercial and Industrial Settings
While primarily engineered for air brake systems in commercial heavy-duty vehicles, the robust design and DOT compliance of this Brass Push-In Male Run Tee make it suitable for a broader range of demanding pneumatic applications. In trucks, buses, and trailers, its core function involves distributing compressed air from the main reservoir to various brake components such as brake chambers, air valves, and anti-lock braking system (ABS) modules. It can be strategically placed to tap into existing air lines for pressure gauges, auxiliary air supply lines for trailer connections, or for integrating complex pneumatic control systems.
Beyond braking, its reliability extends to other on-board pneumatic systems in commercial vehicles, including air suspension systems, air-operated doors, and auxiliary equipment like air horns or tire inflation systems, where maintaining a leak-free and secure air supply is paramount. In industrial settings, while not always strictly requiring DOT certification, the fitting's adherence to such high standards translates directly into enhanced reliability for stationary pneumatic machinery, robotics, and automation systems that operate under similar pressure and vibration conditions. Its ease of installation can be a significant advantage in manufacturing plants or maintenance shops where rapid repairs or system modifications are necessary to minimize downtime.
Installation Best Practices for Optimal Performance
Proper installation is paramount to leveraging the full benefits of this Brass DOT Push-In Male Run Tee and ensuring long-term system integrity. While push-in fittings simplify the process, adherence to best practices is crucial:
- Tube Preparation: Always use a sharp, specialized tube cutter to ensure a clean, square cut. Irregular or angled cuts can compromise the seal. Deburr both the inside and outside edges of the tube to remove any sharp burrs that could damage the O-ring or scratch the internal components of the fitting. Ensure the tube is free of dirt, debris, or any contaminants.
- Insertion: Push the tube firmly and completely into the fitting until it bottoms out. A slight resistance will be felt as the tube passes the O-ring, followed by the positive engagement of the grab ring. A common mistake is not pushing the tube in far enough, which can lead to leaks or blow-outs under pressure.
- Verification: After insertion, give the tube a gentle tug to ensure it is securely seated. The grab ring should prevent it from pulling out.
- Threaded Connection: For the 1/8 inch NPT male pipe thread, apply an appropriate thread sealant (such as PTFE tape or a liquid pipe sealant compatible with air systems) to the male threads. Start threading by hand to avoid cross-threading, then tighten with a wrench to the manufacturer's recommended torque specifications. Avoid overtightening, which can damage the threads of both the fitting and the mating port.
- System Compatibility: Ensure that the selected tubing material (e.g., nylon, polyurethane) is compatible with the fitting and the operating pressures and temperatures of the system.
- Orientation Planning: Since the fitting does not swivel, plan the orientation of the run (the two 1/4 inch push-in ports) before fully tightening the 1/8 inch NPT male pipe thread.
Maintenance, Inspection, and Longevity
The inherent durability of brass combined with the robust design of this fitting contributes to a long service life with minimal maintenance. However, periodic inspection is always recommended for any critical air brake component. Technicians should visually inspect fittings for any signs of damage, such as cracks, severe abrasions, or unusual corrosion. Special attention should be given to the tube-to-fitting interface for any evidence of air leakage (audible hiss, soapy water test). The brass material's resistance to corrosion means that external degradation is less likely than with other metals, but seal integrity should always be verified. In the event of a leak, it is crucial to diagnose whether the issue stems from improper tube insertion, a damaged O-ring (which can sometimes be replaced if the fitting is designed for it, or the entire fitting replaced), or tube damage. With proper installation and routine checks, this Brass DOT Push-In Male Run Tee is designed to provide reliable, leak-free service for many years, contributing significantly to reduced vehicle downtime and lower operating costs over its lifecycle.
Interpreting Technical Specifications for Precision
A deeper look into the provided specifications reveals the meticulous engineering behind this product:
- Color & Finish (Natural, Plain): As discussed, these indicate the raw, unadulterated brass, signaling inherent quality without cosmetic overlays.
- Fitting Shape (Run Tee): Clearly defines its branching capability with a straight-through run.
- Male/Female/Union (Male): Confirms the external thread for the pipe connection.
- Material (Brass): Reinforces its corrosion resistance and durability.
- Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (Yes): The definitive marker for critical safety applications.
- Pipe Thread Size (1/8 NPT): Specifies the National Pipe Taper thread standard for the male branch, ensuring compatibility with standard female pipe ports. NPT threads are tapered, providing a mechanical seal when tightened.
- Swivel (No): Important for installation planning, as the orientation is fixed upon tightening the threaded connection.
- Works with Tube Outer Diameter (1/4): Crucial for tube selection, ensuring a precise fit for the push-in connections.
Conclusion: A Foundation of Reliability for Air Brake Systems
The Brass DOT Push-In Male Run Tee, with its 1/4 Inch Tube O.D. and 1/8 Inch Pipe Thread, stands as an exemplary component for any air brake or demanding pneumatic application. Its construction from high-grade, corrosion-resistant brass, coupled with an efficiently designed push-in connection mechanism, ensures both longevity and ease of use. Crucially, its rigorous compliance with DOT FMVSS 571.106 specifications underscores its uncompromised commitment to safety and performance within the critical operational environments of commercial vehicles. This fitting represents a smart investment in the reliability and efficiency of pneumatic systems, offering peace of mind to operators and technicians alike by providing a secure, leak-proof, and durable connection solution that withstands the test of time and demanding conditions. Choosing this product means opting for a component that not only meets but exceeds industry standards for performance and safety, thereby safeguarding operational continuity and vehicle integrity.
