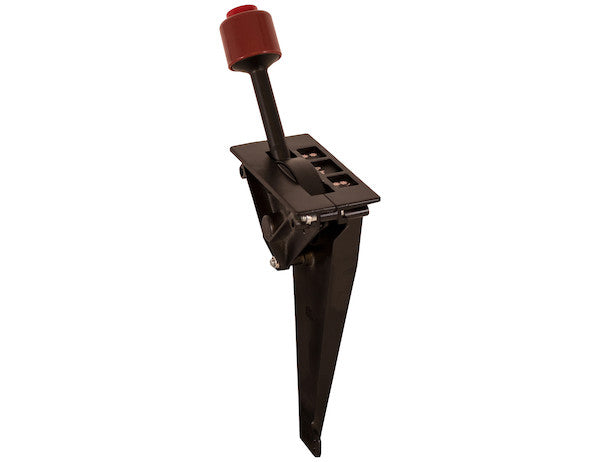

The B Series Single Lever Control from Buyers Products is ideal for any PTO application. Constructed from durable, corrosion-resistant zinc alloy castings, it features a hardened steel gate plate with safety detents. It can be used with all 3 in. travel, clamp type push-pull cables. Choose either a 2-position/in-out with end detent (PTO) or a 3-position/raise-hold-lower with center detent (hoist) lever control. Levers and consoles are sold separately.
Specifications
| Backlight | Yes |
| Number of Levers | 1 |
| Series | B-Series |
| Detent Type | Center |
| Works w/ Cable Type | 5200 Series |
| Air PTO | No |
| Material | Aluminum |
| Knob Material | Polymer |
| Cable Travel (in.) | 3 " |
| Works w/ Cable Thread Size | 1/4-28 " |
Advanced Technical Overview: Hoist B-Series Single Lever Control with Center Detent
The Hoist B-Series Single Lever Control, specifically engineered with a center detent mechanism, represents a cornerstone in the precise and reliable operation of auxiliary hydraulic systems within commercial and industrial vehicle applications. Designed to interface seamlessly with 1/4-28 threaded push-pull cables, this control unit from Buyers Products delivers an unparalleled combination of robust construction, ergonomic design, and functional precision, making it an indispensable component for demanding hoist operations and other mechanically controlled auxiliary functions.
Engineered for Precision: Core Functionality and Application
At its core, the B-Series Single Lever Control is a highly specialized mechanical interface, converting manual operator input into precise mechanical actuation of a connected system. While the B-Series platform offers versatility for various Power Take-Off (PTO) applications, this specific configuration, highlighted by its center detent, is optimally tailored for hoist operations. In the context of heavy-duty vehicles such as dump trucks, refuse vehicles, and utility trucks, the ability to control a hoist mechanism with absolute certainty and repeatable positioning is paramount for operational efficiency and safety. The single-lever design streamlines the control process, reducing operator fatigue and simplifying complex tasks. Its compatibility with standard 3-inch travel, clamp-type push-pull cables, particularly those within the robust 5200 Series, ensures a wide range of integration possibilities and dependable performance across diverse equipment fleets.
Uncompromising Construction: Materials and Durability
The structural integrity and long-term reliability of the B-Series Single Lever Control are directly attributable to its meticulously selected materials and advanced manufacturing processes. The primary housing is constructed from durable, corrosion-resistant zinc alloy castings. Zinc alloys are chosen for their excellent castability, high strength-to-weight ratio, and inherent resistance to corrosion, which is critical in outdoor, often harsh, operational environments where exposure to moisture, road salt, and various chemicals is common. This robust material ensures the control unit maintains its structural integrity and aesthetic appearance over extended periods of heavy use.
Complementing the zinc alloy casting is a hardened steel gate plate. This component is central to the precise action of the lever and the engagement of the detent mechanism. Hardened steel offers exceptional wear resistance, ensuring that the critical contact surfaces within the control unit retain their dimensional accuracy and functional characteristics even after hundreds of thousands of actuation cycles. This mitigates the risk of slop or imprecise engagement developing over time, thereby preserving the precise control required for hoisting applications. While the primary structural components are zinc alloy, other elements within the assembly, or for specific sub-components, may incorporate robust materials like aluminum, optimizing the overall strength-to-weight profile without compromising durability, as indicated in the specifications. The polymer knob, designed for ergonomic comfort and tactile feedback, further enhances operator experience while offering chemical and environmental resistance.
The Center Detent Advantage: Precision in Hoist Operations
The defining characteristic of this particular B-Series control is its center detent mechanism. In the realm of hoist applications, the operational paradigm typically involves three distinct positions: "raise," "hold," and "lower." The center detent is engineered to provide a positive, tactile "hold" position, which is critical for safety and operational efficiency. When the lever is moved to the center position, the detent mechanism engages, securing the lever firmly in place. This prevents unintended movement of the hoist mechanism, ensuring that a load remains static at a desired height without constant manual input from the operator.
This "raise-hold-lower" functionality, facilitated by the center detent, offers several significant advantages:
- Enhanced Safety: The positive hold eliminates the risk of inadvertent hoist movement when the operator's attention might be momentarily diverted or during vehicle transit, significantly reducing the potential for accidents involving suspended loads.
- Increased Efficiency: Operators can position a load precisely and then release the lever, allowing them to perform other tasks while the load remains stable. This hands-free "hold" capability optimizes workflow and reduces operational time.
- Reduced Operator Fatigue: Eliminating the need for continuous manual pressure to maintain a hoist position significantly lessens physical strain on the operator, contributing to greater comfort and sustained productivity throughout a shift.
- Precision Positioning: The distinct feel of the detent allows operators to confidently locate the neutral position, ensuring smooth transitions between raising and lowering, and precise stopping points.
By contrast, an end detent (typically used for PTO "in-out" functions) only locks the lever at its extreme positions. For hoist control, the intermediary "hold" is indispensable, underscoring the purpose-built design of this center detent variant.
Cable Compatibility and Interface: The 1/4-28 Threaded Standard
Effective and reliable control is contingent upon a robust interface with the actuating cable. This B-Series control is specifically designed to work with cables featuring 3 inches of travel and a 1/4-28 threaded connection. The 3-inch travel specification is critical as it dictates the range of motion the control unit can impart to the connected mechanical system. This standard travel length is common for many industrial valves, clutches, and other components requiring a distinct ON/OFF or variable engagement range.
The "clamp type" connection method for the cable ensures secure and straightforward installation, allowing for precise adjustment of cable length and tension. More critically, the 1/4-28 threaded cable size refers to the specific thread pitch and diameter required for the cable end fitting that connects to the control lever mechanism. This standardized threading ensures a secure, vibration-resistant mechanical link between the control and the cable. The "1/4-28" designation indicates a nominal diameter of 1/4 inch with 28 threads per inch, a fine thread commonly used where strong, precise connections are needed and resistance to loosening under dynamic conditions is paramount. This robust mechanical connection minimizes backlash and ensures that every input from the lever is accurately transmitted to the cable, and subsequently, to the controlled component.
Furthermore, the specified compatibility with "5200 Series" cables points to a particular class of push-pull cables known for their durability, low-friction operation, and suitability for heavy-duty applications. These cables are typically constructed with robust outer conduits and internal wires designed to withstand high compressive and tensile forces, making them ideal partners for the B-Series control in demanding industrial environments.
Detailed Specification Breakdown and Technical Significance
Each specification item for the Hoist B-Series Single Lever Control offers crucial insight into its design, functionality, and intended operational environment:
- Backlight: Yes - The inclusion of backlighting significantly enhances visibility in low-light conditions, during nighttime operations, or in dimly lit cab environments. This feature improves operator situational awareness, reduces the potential for erroneous inputs, and contributes to overall operational safety and efficiency during extended shifts.
- Number of Levers: 1 - A single-lever design emphasizes simplicity and intuitive control. For applications like hoist operation, a dedicated lever for the primary function streamlines the operator interface, reducing cognitive load and accelerating response times compared to multi-lever or complex button arrays.
- Series: B-Series - Being part of the established B-Series signifies adherence to a specific design philosophy and quality standard from Buyers Products. This implies potential for modularity, consistent component quality, and proven field performance within a family of related control products.
- Detent Type: Center - As extensively discussed, the center detent is the defining feature for hoist applications, providing a positive "hold" position for raise-hold-lower functionality. This is critical for safety, precision, and minimizing operator interaction time with the control.
- Works w/ Cable Type: 5200 Series - This specification confirms compatibility with a specific, high-performance series of push-pull cables. 5200 Series cables are renowned for their robust construction, low-friction operation, and exceptional durability in harsh, dynamic environments, ensuring reliable mechanical linkage.
- Air PTO: No - This clarifies that the B-Series control is a purely mechanical or direct-acting control unit, not an air-actuated or pneumatic control for a Power Take-Off. This is important for system designers to understand the type of input signal (mechanical pull/push) it generates.
- Material: Aluminum - While the main description highlights durable zinc alloy castings for the primary structural housing, the "Material: Aluminum" specification indicates that certain components or the overall assembly may incorporate aluminum. Aluminum offers an excellent strength-to-weight ratio, corrosion resistance, and good machinability, contributing to the control's robust yet manageable physical characteristics without adding unnecessary bulk.
- Knob Material: Polymer - The use of a polymer for the control knob ensures a comfortable, ergonomic grip that remains thermally stable across a range of temperatures (avoiding extreme hot or cold touch). Polymer materials are also highly durable, resistant to oils, greases, and common industrial chemicals, ensuring longevity and maintaining tactile quality.
- Cable Travel (in.): 3" - This critical dimension specifies the total linear displacement the control lever can impart to the connected push-pull cable. This 3-inch stroke is a standard requirement for fully actuating many hydraulic valves, PTOs, or other mechanical components, ensuring complete engagement or disengagement.
- Works w/ Cable Thread Size: 1/4-28" - This precise thread specification ensures proper mechanical attachment of the cable end to the control unit. The 1/4-28 UNF (Unified Fine) thread provides a strong, secure, and vibration-resistant connection, essential for maintaining the integrity and responsiveness of the control system under dynamic operating conditions.
Operational Principles, Ergonomics, and Reliability
The operational philosophy of the B-Series control centers on providing the operator with intuitive and precise command over auxiliary functions. The single lever simplifies the user interface, allowing for quick and accurate movements. The tactile feedback provided by the center detent ensures that operators can feel the "hold" position, minimizing the need for visual confirmation and allowing them to focus on the task at hand.
Ergonomics play a vital role in operator comfort and safety. The carefully shaped polymer knob is designed for a comfortable grip, reducing hand fatigue during prolonged operation. The smooth, yet firm, action of the lever, facilitated by the hardened steel gate plate and precision internal mechanisms, ensures that movements are fluid and require appropriate effort, preventing both accidental actuation and excessive strain.
Reliability in harsh operational environments is a hallmark of Buyers Products. The B-Series control is engineered to withstand the rigors of heavy-duty commercial use. Its corrosion-resistant materials and robust construction ensure consistent performance despite exposure to moisture, dust, dirt, temperature extremes, and vibration. This resilience translates directly into reduced downtime and lower maintenance costs over the lifetime of the equipment.
Integration into Complex Systems and Broad Applications
The Hoist B-Series Single Lever Control is designed as a foundational component within larger, more complex vehicle systems. It acts as the critical human-machine interface for actuating hydraulic pumps, engaging PTOs, or controlling other mechanical linkages essential for the vehicle's specialized functions. Its compatibility with standard cable types and thread sizes simplifies integration into existing vehicle architectures or new equipment designs.
Primary applications include, but are not limited to:
- Dump Trucks: Controlling the raising and lowering of the dump bed.
- Refuse Vehicles: Operating various compaction or lifting mechanisms.
- Service and Utility Trucks: Actuating cranes, winches, or other specialized tools.
- Agricultural Equipment: Managing various implements requiring precise positioning.
- Construction Machinery: Controlling auxiliary hydraulic functions on excavators, loaders, and other heavy equipment.
The mechanical nature of this control makes it robust and less susceptible to electromagnetic interference or complex electronic system failures, offering a reliable alternative or complement to electronic controls in environments where simplicity and mechanical robustness are prioritized.
Installation and Maintenance Considerations
While levers and consoles are sold separately, allowing for flexible mounting solutions, the installation of the B-Series control is designed for straightforward integration. Proper cable routing is paramount to ensure smooth operation and prevent premature wear. Cables should be routed with generous bend radii and secured to prevent chafing or interference with moving parts. The clamp-type cable connection facilitates easy adjustment for optimal throw and tension. Regular inspection of the cable, connection points, and the lever's action will ensure continued peak performance and longevity.
Conclusion: The Standard for Robust Hoist Control
The Hoist B-Series Single Lever Control with Center Detent for 1/4-28 Threaded Cable stands as a testament to engineering excellence in mechanical control systems. Its combination of durable zinc alloy and aluminum construction, hardened steel components, ergonomic polymer knob, and the critical center detent mechanism delivers unparalleled precision, safety, and reliability for hoist and other demanding auxiliary functions. Optimized for the 5200 Series of 3-inch travel push-pull cables, and featuring essential enhancements like backlighting, this control unit from Buyers Products is the definitive choice for professionals seeking a robust, long-lasting, and highly functional human-machine interface for their heavy-duty equipment. It epitomizes a commitment to performance and durability in the most challenging operational environments.
