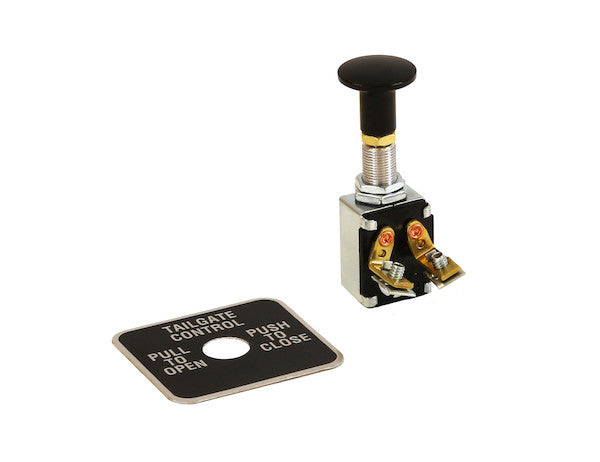

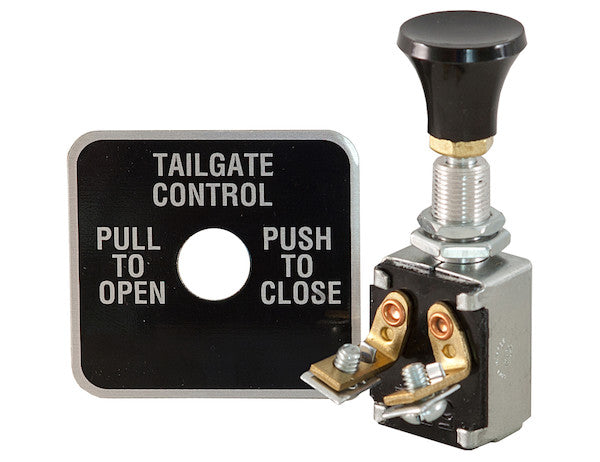

Buyers Products Push-Pull Switch can be mounted in dashboards or consoles for easy, convenient operation. The switch is designed to operate tailgate solenoid valves and can be used with Buyers Products BAV050SA Solenoid Valve. The switch includes a tailgate control face plate.
Specifications
| Color | Black |
|---|---|
| Continuous Current Rating | - |
| Description | Push-Pull Switch, for use with BAV050SA |
| Finish | Plain |
| Material | Plastic |
| Mount Style | Panel |
| Number of Functions | 1 |
| Pre-fused (y/n) | No |
| Pre-Wired (y/n) | No |
| Surge Current Rating | - |
| Switch Style | Push/Pull |
Advanced Technical Overview: Buyers Products Push-Pull Switch for BAV050SA Solenoid Valve
The Buyers Products Push-Pull Switch represents a critical electromechanical interface component designed for the precise and reliable control of specific vehicle-mounted hydraulic or pneumatic systems, particularly those utilizing solenoid valves such as the Buyers Products BAV050SA. This device is engineered for seamless integration into vehicle dashboards or control consoles, prioritizing both operational convenience and robust performance in demanding commercial environments. Its fundamental role is to provide a direct, operator-initiated control input to energize or de-energize a solenoid valve, thereby actuating a connected function, most commonly related to tailgate operations in utility, commercial, and heavy-duty vehicles.
Functional Principles and Electromechanical Characteristics
At its core, the Buyers Products Push-Pull Switch employs a maintained action mechanism. Unlike momentary switches, which return to their original state upon release, a push-pull switch maintains its actuated position (either "on" or "off") until manually returned to the alternate position. This design is highly advantageous for applications where a continuous state change is required, such as the sustained activation of a hydraulic circuit to raise or lower a tailgate. The "Push/Pull" style provides a distinct tactile and visual indication of the switch's current state, enhancing operator awareness and reducing the likelihood of accidental actuation or misoperation.
From an electrical perspective, this switch is designed for a single function, implying a simple single-pole, single-throw (SPST) contact configuration. In this arrangement, the switch either completes or breaks a single electrical circuit, directly controlling the power flow to the connected load. For solenoid valve applications, this typically means connecting or disconnecting the positive voltage supply to the solenoid coil. While specific continuous and surge current ratings are not provided in the primary specifications, it is imperative to understand that in vehicular applications, such switches must be capable of handling the current draw of the solenoid valve they control. Solenoids, particularly those used in hydraulic systems, can exhibit significant inrush current (surge current) upon initial energization, followed by a lower, stable continuous current draw. The absence of specific ratings necessitates careful evaluation by the installer to ensure compatibility with the BAV050SA's electrical characteristics and to prevent premature switch failure or potential safety hazards. Typically, such switches are rated for 12VDC or 24VDC vehicle electrical systems.
Integration with the BAV050SA Solenoid Valve
The explicit design for use with the Buyers Products BAV050SA Solenoid Valve highlights a critical system-level integration. The BAV050SA is presumed to be an electromechanical valve, likely a 2-way, 2-position or similar configuration, used to control the flow of hydraulic fluid or pneumatic air within a specific circuit. In the context of a tailgate system, this valve would typically govern the pressure or return lines to a hydraulic cylinder responsible for lifting or lowering the tailgate, or it might control a pneumatic actuator for a locking mechanism. When the Push-Pull Switch is actuated to the "on" position, it completes the electrical circuit, supplying power to the BAV050SA solenoid coil. This energization generates a magnetic field within the solenoid, which then mechanically shifts a plunger or spool within the valve body, altering the fluid or air path. Conversely, switching to the "off" position de-energizes the coil, allowing internal spring forces or system pressure to return the valve to its default state.
The precise timing and reliability of this electromechanical interaction are paramount for safe and efficient operation of the tailgate. A robust switch ensures consistent power delivery to the solenoid, preventing intermittent operation or control failures. The single-function nature of the switch aligns perfectly with the common requirement to simply activate or deactivate a specific valve, making the control intuitive for the operator and simplifying the electrical wiring scheme.
Design and Construction for Durability in Commercial Environments
The Push-Pull Switch is constructed from plastic, a material choice driven by several technical advantages pertinent to its application. Plastic offers excellent electrical insulation properties, crucial for preventing short circuits and ensuring operator safety, especially in exposed dashboard environments. Furthermore, engineering-grade plastics exhibit good resistance to common automotive fluids, chemicals, and cleaning agents, which are frequently encountered in commercial vehicle cabins. Their inherent corrosion resistance is superior to many metals, ensuring long-term aesthetic and functional integrity even in humid or chemically aggressive atmospheres. The "Plain" finish and "Black" color contribute to a professional, unobtrusive appearance that integrates well with most vehicle interiors, while also providing UV stability to resist fading and material degradation over time when exposed to sunlight.
The "Panel" mount style is standard for vehicle control components, offering a secure and aesthetically pleasing installation. This typically involves cutting a precise aperture into the dashboard or console, through which the switch body is inserted and then secured from the rear using a retaining nut or similar mechanism. This method provides a stable mounting, resistant to vibration and shock encountered during vehicle operation, thereby maintaining the switch's functionality and preventing it from becoming dislodged. The inclusion of a dedicated "tailgate control face plate" further enhances usability, providing clear labeling that identifies the switch's specific function, reducing operator confusion and improving operational efficiency and safety.
Critical Considerations for Installation and Electrical Integration
A significant aspect of the Buyers Products Push-Pull Switch's technical specification is that it is explicitly "Not Pre-Wired" and "Not Pre-Fused." These details underscore the necessity for professional and technically informed installation practices. The "Not Pre-Wired" status indicates that the switch is supplied with terminals (e.g., spade, screw, or wire lead terminals for crimping) that require the installer to connect appropriate wiring. This approach offers flexibility in installation, allowing for custom wire lengths and routing to suit specific vehicle configurations. However, it places the onus on the installer to select the correct wire gauge, ensuring it is adequately rated for the anticipated continuous and surge current of the BAV050SA solenoid valve, as well as the overall circuit length and voltage drop considerations. Improper wire sizing can lead to overheating, voltage drops affecting solenoid performance, or even fire hazards. High-quality connectors, such as crimped terminals with proper insulation, are essential to ensure reliable electrical contact and resistance to vibration.
The "Not Pre-Fused" characteristic is equally, if not more, critical. This means the switch itself does not incorporate an internal fuse, and thus, external circuit protection is absolutely mandatory. Fusing is a fundamental safety requirement in any electrical system, particularly in vehicles, to protect the wiring, components, and the vehicle itself from overcurrent conditions caused by short circuits, overloads, or component failures. The installer must incorporate an appropriately sized fuse (e.g., ATO/ATC blade fuse or Maxi fuse) into the primary power feed circuit of the switch. The fuse rating must be carefully calculated based on the maximum continuous operating current of the BAV050SA solenoid valve and the wire gauge used, ensuring it is sufficient to allow normal operation while blowing quickly in the event of an overcurrent. Placing the fuse as close as possible to the power source (e.g., battery or main power distribution point) is a best practice to protect the entire circuit run. Failure to install a proper fuse exposes the system to severe risks, including wiring fires, permanent damage to the solenoid valve, and significant safety hazards.
Professional installation should also account for proper grounding, ensuring a secure and low-resistance path to the vehicle's chassis ground. Polarity must be strictly observed when connecting to the BAV050SA solenoid valve, although most DC solenoids are not polarity-sensitive for their activation, consistent wiring practice is paramount for diagnostic ease and system integrity. Wiring harnesses should be routed away from sharp edges, high-heat areas, and moving parts, secured with cable ties or clips, and protected with conduit or loom to prevent abrasion, pinching, or heat damage over the operational lifespan of the vehicle.
Applications and Industry Relevance
While specifically highlighted for tailgate solenoid valves, the utility of a robust, panel-mounted push-pull switch extends across a broad spectrum of commercial vehicle applications. Vehicles such as dump trucks, utility service trucks, refuse vehicles, snowplows, and various types of trailers frequently employ hydraulic or pneumatic systems that require simple, reliable on/off control. Beyond tailgates, this switch could theoretically control functions like auxiliary lighting, air compressors, PTO engagement for hydraulic pumps, work light activation, or other single-function auxiliary circuits, provided the current ratings are respected. Its mechanical durability and simple operation make it ideal for environments where operators may be wearing gloves or need to quickly actuate a function without complex button sequences. The specific "tailgate control face plate" further enhances its value proposition, offering a plug-and-play solution for this common function, significantly reducing installation time and ensuring clear, unambiguous control for the operator.
Longevity, Maintenance, and Troubleshooting
The operational lifespan of an electromechanical switch is typically measured in mechanical and electrical cycles. While not specified, high-quality industrial switches like this one are designed for tens of thousands, if not hundreds of thousands, of cycles, ensuring long-term reliability in daily commercial use. Due to its solid-state construction (internally, the moving contacts) and protective plastic housing, the Buyers Products Push-Pull Switch generally requires minimal maintenance. Periodic inspection of the connections for corrosion, looseness, or damage is advisable, especially in environments subject to moisture, salt, or vibration. The exterior of the switch can be cleaned with standard vehicle interior cleaning agents, avoiding harsh solvents that could degrade the plastic.
In the event of a system malfunction (e.g., the tailgate not responding to switch actuation), basic troubleshooting steps would include:
- Verify the switch is in the correct operating position (pushed or pulled).
- Check for power delivery to the switch (using a voltmeter or test light).
- Confirm power output from the switch when actuated.
- Inspect the fuse in the circuit for continuity; replace if blown, but investigate the cause of the blown fuse before simply replacing it.
- Check the wiring between the switch and the BAV050SA solenoid valve for continuity or damage.
- Finally, inspect the solenoid valve itself for electrical or mechanical issues.
The inherent simplicity of a push-pull switch greatly aids in diagnosing system faults, making it a preferred component for critical, straightforward control tasks.
Conclusion
The Buyers Products Push-Pull Switch for the BAV050SA Solenoid Valve embodies a technically sound and operationally essential component for commercial vehicle systems. Its robust plastic construction, simple yet reliable push-pull mechanism, and panel-mount design ensure longevity and ease of use. While its "Not Pre-Wired" and "Not Pre-Fused" status necessitates professional installation and meticulous attention to electrical safety standards, these characteristics provide installers with the flexibility required for custom vehicle integrations. By providing a dependable interface for controlling critical functions like tailgate operation, this switch contributes significantly to the overall efficiency, safety, and operational integrity of the vehicle. Its specific design for the BAV050SA ensures optimal compatibility and seamless performance within its intended application.
