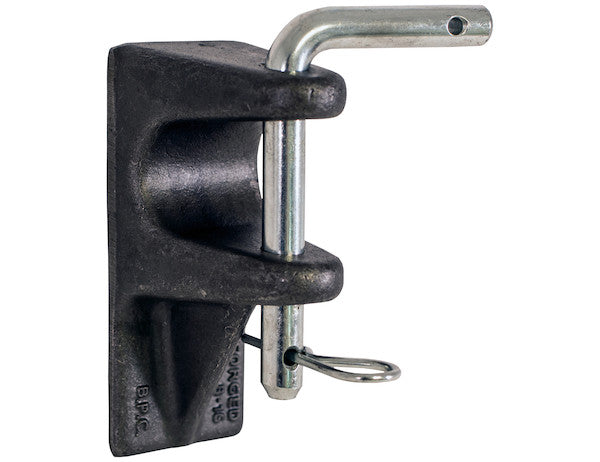

Buyers Products Upper Tailgate Bracket acts as a hinge point for the tailgate. It is drop-forged for strength and durability and works with 1-1/4 in. diameter tailgate posts. It comes complete with a removable 1/2 in. diameter "L" pin and hairpin cotter.
Specifications
| Back Brkt to Front Brkt (in.) | 2.95 |
|---|---|
| Bracket Finish | Plain |
| Bracket Height (in.) | 5.08 |
| Bracket Material | Forged Steel |
| Bracket Width (in.) | 2.00 |
| Pin Diameter (in.) | 0.50 |
| Tailgate Post Dia (in.) | 1.25 |
| Use With | 1-1/4in Tailgate Post |
The Buyers Products Upper Tailgate Bracket represents a critical component in the secure and reliable operation of commercial and heavy-duty vehicle tailgates. Engineered with precision and manufactured from robust materials, this bracket serves as the essential hinge point, facilitating the controlled movement of tailgates while withstanding the rigorous demands of various applications. Its design is specifically tailored for compatibility with 1-1/4 inch diameter tailgate posts, a common standard in many industrial and utility vehicles, ensuring broad applicability and ease of integration into existing or newly fabricated systems.
At the core of this product's exceptional performance is its manufacturing process: drop-forging. This technique involves shaping solid steel through compressive forces at elevated temperatures, leading to a superior metallurgical structure. Unlike casting, which can introduce internal voids and inconsistent grain structures, or machining from plate, which often cuts through the material's inherent grain flow, drop-forging refines the grain structure of the steel. This refinement results in a continuous grain flow that conforms to the bracket's shape, enhancing its inherent strength, impact resistance, and fatigue life. The forged steel construction significantly boosts the material's tensile strength and yield strength, crucial properties for a component subjected to dynamic loads, vibrations, and potential impacts during daily operation. This inherent robustness ensures that the bracket can reliably support the weight of heavy tailgates, accommodate cargo shifting, and endure the repetitive stress cycles of opening and closing, thereby minimizing the risk of structural failure and extending the operational lifespan of the entire tailgate assembly.
The specification of "Forged Steel" as the Bracket Material is paramount. Forged steel offers an unparalleled combination of strength, toughness, and ductility compared to other forms of steel. This material choice allows the bracket to absorb significant shock loads without fracturing, a critical characteristic for components used in demanding environments such as construction sites, agricultural fields, or waste management operations. The internal grain flow achieved through forging improves resistance to impact fatigue, meaning the bracket can withstand repeated stresses over its operational life without developing microscopic cracks that could propagate into larger failures. Furthermore, the material's density and uniformity, direct benefits of the forging process, contribute to its dimensional stability and resistance to deformation under load, maintaining precise alignment for the tailgate's smooth operation.
The bracket's design for 1-1/4 inch diameter tailgate posts underscores a commitment to industry standards and reliable fitment. A precise fit is not merely a convenience but a safety and performance imperative. An ill-fitting bracket can lead to excessive wear, premature failure, or compromise the stability of the tailgate, creating hazardous conditions. By adhering to a widely recognized post diameter, Buyers Products ensures that this bracket can serve as a direct replacement or a robust upgrade for a vast array of existing equipment, including dump trucks, utility trailers, flatbed trailers with removable sides, and various types of agricultural machinery. This dimensional compatibility is critical for maintaining the structural integrity of the tailgate system, ensuring smooth pivot action, and preventing unwanted lateral movement or binding that could impede the tailgate's function.
Integral to the functionality of this upper tailgate bracket is the inclusion of a removable 1/2 inch diameter "L" pin and a hairpin cotter. The "L" pin, typically manufactured from high-strength steel to match the durability of the bracket, provides the primary articulation point for the tailgate. Its 0.50-inch diameter is engineered to offer substantial shear strength, capable of bearing the rotational and static loads exerted by the tailgate. The "L" shape of the pin facilitates easy insertion and removal, a practical feature for operators who may need to detach the tailgate for specialized loading, cleaning, or maintenance. The hairpin cotter plays a vital role in securing the "L" pin in place, preventing accidental dislodgement due to vibrations, bumps, or operational forces. This simple yet effective locking mechanism ensures continuous engagement of the tailgate to its hinge point, enhancing safety and operational reliability. The removability of the pin system also highlights the product's design for serviceability, allowing for straightforward replacement of worn pins or complete tailgate detachment without specialized tools, thereby reducing downtime and maintenance complexity.
Delving into the specific dimensions provided in the specifications table reveals further insights into the bracket's engineering:
- Back Bracket to Front Bracket (in.): 2.95: This measurement defines the effective reach or offset of the bracket. It is critical for ensuring proper clearance between the tailgate and the truck or trailer body, allowing the tailgate to pivot freely without interference. This dimension also plays a role in establishing the leverage arm for the tailgate, influencing the forces exerted on the bracket during opening and closing cycles.
- Bracket Finish: Plain: A "Plain" finish indicates that the bracket is delivered in its raw, forged steel state, without additional coatings like paint, powder coat, or galvanization. This choice is deliberate and offers several advantages. Firstly, it ensures optimal weldability, as no pre-existing coatings need to be removed or managed during the welding process, leading to stronger, cleaner welds. Secondly, it provides flexibility for the end-user or fabricator to apply a custom finish or protective coating (e.g., matching the vehicle's paint, specialized rust inhibitors, or highly durable industrial coatings) after installation, catering to specific aesthetic or environmental requirements. This raw state emphasizes the product's utilitarian, robust nature, designed for performance over superficiality.
- Bracket Height (in.): 5.08: The overall height of the bracket contributes to its structural rigidity and load distribution capabilities. A taller bracket can offer greater stability and distribute stress over a larger area, reducing localized strain. This dimension is also important for aesthetic integration and ensuring it clears other components in the tailgate assembly area.
- Bracket Width (in.): 2.00: This measurement dictates the physical footprint of the bracket and its attachment points. A sufficient width ensures adequate surface area for secure mounting, whether through welding or bolting (if applicable to the specific application). It also contributes to the overall stability and resistance to twisting forces.
- Pin Diameter (in.): 0.50: As previously discussed, the 1/2-inch pin diameter is a robust choice for handling the typical loads associated with commercial vehicle tailgates. This dimension is carefully selected to provide a balance between strength and ease of handling, aligning with common tooling and replacement part availability.
- Tailgate Post Dia (in.): 1.25 / Use With: 1-1/4in Tailgate Post: These specifications reiterate the paramount compatibility requirement. The internal bore of the bracket is precisely machined or formed to accept a 1-1/4 inch diameter post, ensuring a snug yet functional fit that minimizes play and maximizes the efficiency of the hinge mechanism. This precise mating is essential for longevity and smooth operation.
The operational environment for which the Buyers Products Upper Tailgate Bracket is designed is characterized by extreme conditions. From heavy construction equipment operating in dusty, abrasive environments to municipal vehicles enduring harsh weather and corrosive road salts, components must possess inherent resilience. The forged steel construction, with its high density and uniform structure, is inherently resistant to wear, abrasion, and fatigue, which are common failure modes in less robust materials. The absence of internal defects, a hallmark of forging, means there are fewer initiation sites for cracks, even under repetitive stress or localized impacts. This makes the bracket exceptionally suited for applications where downtime is costly and reliability is paramount.
Installation of the Buyers Products Upper Tailgate Bracket typically involves welding it to the vehicle's frame or tailgate structure. The "Plain" finish is particularly advantageous for this, as it allows for direct, strong, and uncompromised welds. Professional installation is highly recommended to ensure correct alignment, secure attachment, and optimal performance of the tailgate assembly. Proper welding techniques, guided by industry standards, are crucial to harness the full strength and durability of the forged steel. Once installed, the bracket requires minimal maintenance, primarily limited to periodic inspection of the "L" pin and hairpin cotter for wear or damage. The simplicity of the pin-and-cotter system facilitates quick inspections and easy replacement of these consumable parts, contributing to the overall serviceability and extended life of the tailgate system.
In summary, the Buyers Products Upper Tailgate Bracket is not merely a piece of hardware; it is a precisely engineered component designed for critical performance in demanding applications. Its drop-forged steel construction provides unparalleled strength, durability, and resistance to fatigue and impact, directly translating into enhanced safety and extended operational life for tailgates. The meticulous attention to dimensional compatibility, particularly for 1-1/4 inch diameter tailgate posts, ensures seamless integration and reliable function. Complemented by a robust and easily removable 1/2 inch "L" pin and hairpin cotter, this bracket delivers a secure, adaptable, and maintainable hinge solution. For professionals seeking a high-performance, long-lasting, and dependable upper tailgate bracket for their commercial vehicles or heavy equipment, the Buyers Products offering stands as a testament to superior engineering and manufacturing quality, providing an essential foundation for operational efficiency and safety in the toughest environments.
