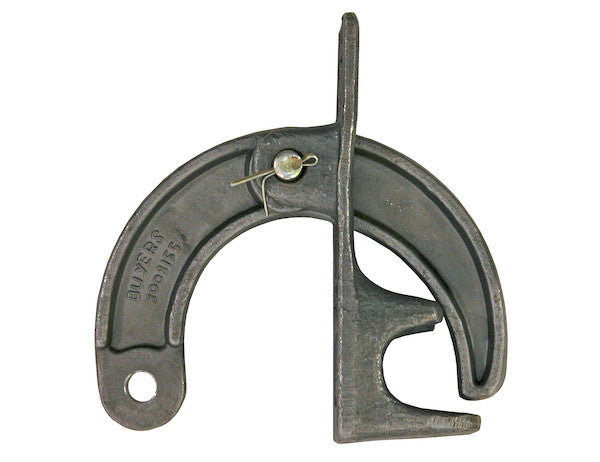

BTL020B2 - 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1 Inch Diameter Post

Buyers Products Dump Hinge Assembly welds to your truck to secure the lower part of the tailgate when in the closed position. Forged from C1045 steel, these heavy duty assemblies have a thicker rib design to offer increased strength and ductility than cast latches. The base of this latch is forged from C1020 steel to make welding easier.

Specifications

Advanced Engineering and Material Science: The Drop Forged Lower Dump Hinge Assembly

The 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1 Inch Diameter Post represents a pinnacle of robust mechanical engineering, specifically designed for the most demanding applications in commercial and industrial transport. This component is not merely a mechanism for securing a tailgate; it is a critical safety and operational element, meticulously engineered from high-grade materials and manufactured through an advanced forging process to ensure unparalleled strength, durability, and reliability. Its primary function is to provide a secure, load-bearing pivot point for a truck's tailgate, maintaining its closed position firmly against the vehicle body while accommodating a standard 1-inch diameter tailgate post.

Precision Material Selection for Optimal Performance

The efficacy and longevity of any heavy-duty component are fundamentally rooted in its material composition and the processes used to shape it. This Dump Hinge Assembly strategically employs two distinct grades of steel, C1045 and C1020, each selected for properties that optimize specific functional requirements within the assembly.

C1045 Steel: The Core of Strength and Durability

The primary load-bearing elements of this hinge assembly, particularly those subject to direct stress and wear, are forged from C1045 steel. This material is a medium-carbon steel, renowned for its superior mechanical properties. With a carbon content typically ranging from 0.43% to 0.50%, C1045 offers an exceptional balance of strength, hardness, and toughness, especially when compared to lower carbon steels or alternative manufacturing methods like casting. Its key attributes include:

• High Tensile Strength: C1045 exhibits a high resistance to being pulled apart, crucial for components that sustain significant static and dynamic loads, such as a dump truck tailgate under the stress of contained material or operational forces.
• Enhanced Hardness: The material’s ability to resist indentation and abrasion directly translates to a longer service life, particularly in environments where components are exposed to friction or particulate matter.
• Good Wear Resistance: Its inherent hardness and microstructure contribute to excellent resistance against wear and tear, reducing the need for frequent replacement and maintenance.
• Superior Ductility (Forged): While medium carbon steels are generally less ductile than low carbon steels, the forging process significantly refines the grain structure of C1045, enhancing its ductility and toughness, thereby allowing it to deform plastically under extreme loads before fracture, a critical safety feature.
• Fatigue Strength: The optimized microstructure resulting from forging C1045 provides excellent resistance to fatigue failure, which is paramount for components subjected to cyclical loading, such as the repeated opening and closing of a heavy tailgate.

This careful selection ensures that the hinge assembly maintains structural integrity and operational reliability even under the most strenuous conditions, effectively countering the dynamic stresses inherent in dump truck operations.

C1020 Steel: Optimizing Weldability and Structural Integration

In contrast to the high-strength demands placed on the hinge arm, the base of this assembly, which interfaces directly with the truck frame, is forged from C1020 steel. C1020 is a low-carbon steel, typically containing 0.18% to 0.23% carbon, and is primarily selected for its outstanding weldability. The rationale behind this dual-material strategy is purely technical and aims to simplify installation while guaranteeing a robust bond to the vehicle chassis:

• Exceptional Weldability: The low carbon content of C1020 minimizes the formation of hard, brittle microstructures in the heat-affected zone (HAZ) during welding, drastically reducing the risk of cracking and making it highly amenable to common welding processes. This ensures a strong, reliable, and durable weld joint.
• Good Ductility: C1020 possesses high ductility and formability, which, while not directly critical for the base's functional strength in this application, further enhances its ease of processing and ensures it can withstand thermal stresses during welding without compromise.

By using C1020 for the weld-on base, the assembly not only facilitates easier and more effective attachment to the truck's structure but also ensures that the weld itself becomes a point of strength rather than a potential point of failure.

The Unrivaled Advantages of Drop Forging

The manufacturing method employed for this hinge assembly – drop forging – is a defining characteristic that elevates its performance far beyond that of cast components. Forging involves the plastic deformation of metal at elevated temperatures using localized compressive forces, shaping it into the desired configuration. Drop forging, specifically, utilizes a series of dies and impact forces to achieve this transformation. The technical advantages of drop forging over traditional casting methods are profound and directly contribute to the superior characteristics of this product:

• Continuous Grain Flow: Unlike casting, where molten metal solidifies with a random, non-directional grain structure, drop forging mechanically deforms the metal, aligning the internal grain structure to follow the contours of the component. This continuous grain flow enhances the material's strength, toughness, and resistance to fatigue and impact along the most critical stress points.
• Elimination of Internal Defects: The immense compressive forces applied during forging effectively eliminate internal gas pockets, shrinkage voids, porosity, and segregation often found in cast components. This results in a much denser, more homogeneous microstructure, free from internal flaws that can initiate cracks under stress.
• Increased Strength-to-Weight Ratio: Forged parts typically exhibit higher mechanical properties (tensile strength, yield strength, impact strength) than their cast counterparts of the same material and geometry. This allows for designs that are lighter yet possess superior strength, optimizing vehicle payload capacity and fuel efficiency without compromising structural integrity.
• Superior Fatigue Resistance: Components in dump truck applications are subjected to relentless cyclical loading. The enhanced grain structure and freedom from internal defects in forged steel significantly improve its fatigue life, meaning the hinge can withstand many more load cycles before showing signs of material fatigue.
• Enhanced Impact Strength and Toughness: The refined and directed grain structure of a forged component vastly improves its ability to absorb energy before fracturing. This is critical for components that may experience sudden impacts or shock loads during operation, providing an additional margin of safety and durability.
• Consistent Mechanical Properties: The controlled nature of the drop forging process ensures a high degree of uniformity in the mechanical properties throughout each component and across entire production batches. This consistency guarantees reliable performance and predictable behavior under load.
• Reduced Machining Requirements: Drop forging can produce parts closer to net shape than casting, leading to less material waste and reduced machining time, which contributes to the overall precision and cost-effectiveness of the component.

The "thicker rib design" mentioned in the original description is further amplified by the forging process. While a thicker rib provides inherent structural benefits, forging ensures that the material within that rib is optimally dense, defect-free, and boasts a grain structure that maximizes the benefits of the design, leading to increased strength and ductility that far exceeds that of a comparable cast component.

Engineered Design for Maximum Performance and Compatibility

Beyond material and manufacturing, the precise engineering dimensions of this hinge assembly are crucial for its functionality, stability, and secure integration into heavy-duty vehicle systems.

Strategic Dimensions and Structural Reinforcement

• Bracket Width (2.52 in.): The generous 2.52-inch width of the bracket provides a substantial surface area for welding to the truck frame. This broad base not only distributes the attachment stresses over a larger area but also enhances the lateral stability of the hinge, resisting torsional forces and ensuring the tailgate remains securely aligned.
• Bracket Height (7.00 in.): A height of 7.00 inches offers ample leverage and a robust mounting profile. This dimension ensures that the hinge can adequately support the weight and dynamic forces exerted by the tailgate, providing sufficient vertical rigidity and maintaining the intended pivot geometry.
• Thicker Rib Design: The inclusion of a thicker rib design is a fundamental engineering enhancement. Ribs function as structural stiffeners, effectively increasing the component's moment of inertia without adding excessive mass. This design feature dramatically improves the hinge's resistance to bending and twisting forces, ensuring that it can withstand the extreme stresses of heavy payloads and rugged operational environments. The ribs distribute stress more evenly across the component, significantly reducing localized stress concentrations that could lead to premature failure.

Precision Tailgate Post and Pin Integration

• Tailgate Post Diameter (1.00 in. / Use With 1in Tailgate Post): This hinge assembly is specifically engineered for precise compatibility with a standard 1-inch diameter tailgate post. This critical dimension ensures a snug fit, minimizing slop and play in the hinge mechanism. A precise fit is paramount for both operational efficiency and safety, as it reduces wear on the hinge components, prevents excessive movement of the tailgate, and ensures a secure closure. Standardization around a 1-inch post diameter also simplifies maintenance and replacement parts procurement.
• Pin Diameter (0.50 in.): The hinge pivot utilizes a robust 0.50-inch diameter pin. This half-inch pin is sized to provide exceptional shear strength, capable of bearing the rotational and static loads imposed by the tailgate. Given the heavy-duty nature of the application, it is implicitly designed to resist the shear forces generated during opening, closing, and when the tailgate is under tension, preventing deformation or failure of the pivot point. The interaction between the pin and the hinge eyes is critical, and the robust pin diameter minimizes bearing stresses within the forged C1045 steel.

Installation, Application, and Operational Considerations

The successful deployment and long-term performance of this Drop Forged Lower Dump Hinge Assembly hinge rely not only on its inherent design and material properties but also on proper installation and consideration of its operational environment.

Welding: The Foundation of Integration

As a weld-on assembly, the quality of the installation is paramount. The C1020 steel base is specifically chosen for its superior weldability, facilitating a strong and reliable metallurgical bond to the truck's chassis. However, proper welding procedures are crucial:

• Professional Installation: It is highly recommended that installation be performed by certified welders adhering to industry best practices. This includes appropriate joint preparation, selection of suitable filler materials compatible with C1020 steel, precise control of welding parameters (current, voltage, travel speed), and potentially pre-heating and post-weld treatments to manage residual stresses and ensure optimal weld integrity.
• Structural Integrity: A correctly executed weld ensures that the hinge assembly becomes an integral part of the truck's structure, capable of transferring loads effectively and safely. Improper welding can compromise the entire system, leading to premature failure and significant safety risks.

Demanding Applications and Environments

This hinge assembly is purpose-built for the most arduous duty cycles and environmental exposures. Typical applications include:

• Heavy-Duty Dump Trucks: Transporting aggregates, sand, gravel, demolition debris, and other bulk materials.
• Commercial Utility Vehicles: Service trucks, municipal vehicles, and other specialized fleets requiring robust tailgate security.
• Agricultural Equipment: Wagons and trailers where heavy loads are routinely discharged.
• Construction Equipment: Any mobile or stationary application where heavy-duty tailgate or gate retention is required.

The "Plain" finish indicates that the component is supplied in its natural, uncoated steel state. While this allows for custom finishing by the end-user, it also implies that for prolonged exposure to corrosive elements (moisture, road salts, chemicals), a protective coating such as paint, powder coating, or galvanization will be necessary post-installation to prevent rust and maintain aesthetic and structural integrity over time. This proactive approach to corrosion management is essential for maximizing the lifespan of the forged steel component in harsh outdoor environments.

Uncompromised Performance, Durability, and Safety

The culmination of advanced material science, precision drop forging, and intelligent engineering design results in a lower dump hinge assembly that offers unparalleled performance attributes:

• Exceptional Durability: The inherent strength, toughness, and fatigue resistance of forged C1045 steel, combined with the structural advantages of the thicker rib design, ensure an extended operational life far exceeding that of lesser alternatives. This component is built to endure relentless use and extreme conditions.
• Enhanced Safety: A securely latched tailgate is critical for operational safety. This robust assembly prevents accidental opening, cargo spillage, and potential hazards on roadways or worksites. The strength of the forged assembly ensures that the tailgate remains firmly in place, protecting both personnel and property.
• Reliable Operation: The precise fit for 1-inch tailgate posts and the robust half-inch pivot pin contribute to smooth, consistent operation over thousands of cycles, minimizing wear and tear on adjacent components.
• Reduced Maintenance and Downtime: By significantly prolonging the service interval and reducing the likelihood of unexpected failures, this hinge assembly contributes directly to lower maintenance costs and maximized vehicle uptime, critical factors in commercial operations.

Total Cost of Ownership and Value Proposition

Investing in a high-quality component like the 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly offers substantial long-term economic benefits that extend beyond the initial purchase price. The superior durability, enhanced safety, and reduced maintenance requirements translate into a lower total cost of ownership (TCO) for fleet operators. By minimizing repair and replacement frequencies, preventing costly cargo losses due to tailgate failures, and avoiding potential regulatory fines for unsecured loads, this hinge assembly delivers exceptional value, ensuring continuous and profitable operation of heavy-duty vehicles.

Conclusion

The 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1 Inch Diameter Post is a testament to superior engineering and manufacturing. By leveraging the specific metallurgical advantages of C1045 and C1020 steels, combined with the transformative power of the drop forging process, this component delivers an unrivaled combination of strength, ductility, and fatigue resistance. Its meticulously engineered dimensions and robust design ensure secure, reliable, and safe operation for the most demanding dump truck and heavy-duty vehicle applications. For professionals seeking a dependable and durable solution that stands the test of time and operational rigor, this hinge assembly represents a benchmark in industrial hardware excellence.
