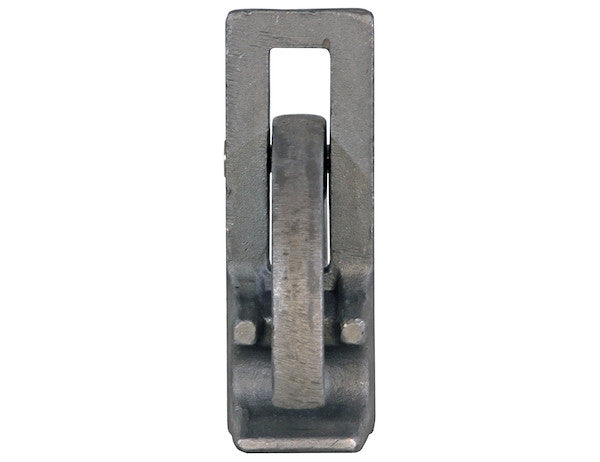

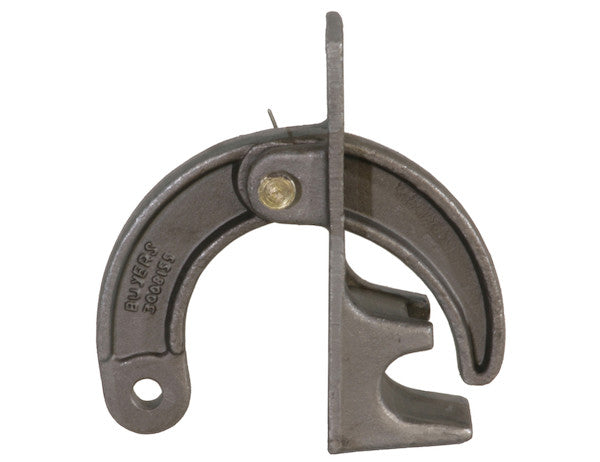

Buyers Products Dump Hinge Assembly welds to your truck to secure the lower part of the tailgate when in the closed position. Forged from C1045 steel, these heavy duty assemblies have a thicker rib design to offer increased strength and ductility than cast latches. The base of this latch is forged from C1020 steel to make welding easier.
Specifications
| Bracket Finish | Plain |
|---|---|
| Bracket Height (in.) | 7.00 |
| Bracket Material | Forged Steel |
| Bracket Width (in.) | 2.52 |
| Material | Steel |
| Pin Diameter (in.) | 0.50 |
| Tailgate Post Dia (in.) | 1.25 |
| Use With | 1-1/4in Tailgate Post |
Advanced Engineering: The 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1.25 Inch Diameter Post
The Buyers Products 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly represents a critical component in the operational integrity and safety of heavy-duty dump bodies, utility trailers, and similar vehicular applications. Engineered for rigorous demands, this hinge assembly is meticulously designed to secure the lower section of a tailgate in its closed position, thereby preventing unintended disengagement during transit or operation. Its robust construction, highlighted by the strategic use of drop-forged C1045 and C1020 steel, in conjunction with an optimized thicker rib design, positions it as a superior alternative to traditional cast components, offering unparalleled strength, durability, and ease of integration.
Material Science and Metallurgy: Optimizing Performance through Steel Selection
The selection of specific steel alloys is fundamental to the exceptional performance characteristics of this dump hinge assembly. The primary structural components of the hinge are forged from C1045 steel, while the mounting base is crafted from C1020 steel. This dual-material approach is a testament to sophisticated engineering, balancing high mechanical strength with superior weldability.
C1045 Medium Carbon Steel: C1045 is a medium carbon steel, typically containing 0.43-0.50% carbon, 0.60-0.90% manganese, and trace amounts of silicon and sulfur. This composition endows C1045 with a formidable combination of strength, hardness, and wear resistance, making it an ideal choice for components subjected to high stress, impact, and fatigue loading. In its forged state, C1045 exhibits significantly enhanced mechanical properties compared to its hot-rolled or cast counterparts. The forging process refines its grain structure, minimizing internal defects and creating a microstructure that effectively resists crack propagation. This inherent strength is crucial for the hinge's ability to withstand the dynamic forces exerted on a dump tailgate, including the weight of material, vibrations during transit, and cyclic loading associated with frequent opening and closing operations.
C1020 Low Carbon Steel: The hinge's base, designed for direct welding to the truck frame or dump body, is constructed from C1020 low carbon steel. C1020 is characterized by its lower carbon content, typically 0.18-0.23% carbon, along with manganese, silicon, and sulfur. This lower carbon equivalent (CE) makes C1020 exceptionally weldable. Its superior ductility and reduced susceptibility to hydrogen-induced cracking ensure that robust, high-integrity welds can be achieved without extensive pre- or post-weld heat treatments. The primary benefit of using C1020 for the base is the simplification of the welding process, allowing for more reliable and efficient installation in various fabrication environments, while still providing ample structural support to the high-strength C1045 hinge body.
The synergistic application of these two steels ensures that the assembly excels in both its functional role as a high-strength pivot and its practical requirement for straightforward and reliable installation. This thoughtful material engineering underscores a commitment to both performance and ease of use.
The Drop Forging Process: A Paradigm of Mechanical Superiority
The designation "drop forged" is not merely a manufacturing descriptor; it signifies a profound enhancement in the mechanical properties and reliability of the hinge assembly. Drop forging is a metalworking process that involves shaping metal by applying localized compressive forces through a series of impacts with a hammer or press. The heated metal billet is placed between open or closed dies, which define the final shape. This process offers several critical advantages over other manufacturing methods, particularly casting:
- Grain Structure Refinement and Alignment: During forging, the metal's internal grain structure is refined and elongated, aligning with the contours of the part. This flow of grain follows the product's shape, resulting in a continuous, uninterrupted grain flow that enhances the material's strength, ductility, and fatigue resistance significantly. In contrast, cast components typically possess a random, coarse, and often porous grain structure, which can lead to stress concentrations and premature failure.
- Elimination of Internal Defects: The immense compressive forces applied during drop forging eliminate internal voids, gas porosity, and shrinkage defects that are common in cast products. This results in a much denser, more homogeneous material with predictable mechanical properties throughout the component, reducing the risk of catastrophic failure under extreme loads.
- Superior Strength-to-Weight Ratio: Forged parts often achieve higher strength levels with less material compared to cast parts. This allows for optimized designs that maintain structural integrity while potentially reducing overall weight, contributing to fuel efficiency and payload capacity.
- Enhanced Impact and Fatigue Resistance: The refined grain structure and absence of internal defects make forged steel highly resistant to sudden impacts and cyclic loading (fatigue). Dump hinges are subjected to constant jarring, vibration, and repetitive stress cycles; therefore, superior fatigue resistance is paramount for long-term operational reliability and safety.
- Improved Machinability: While forged components are harder, their uniform and dense microstructure often leads to more consistent machining characteristics, resulting in better surface finishes and dimensional accuracy.
- Predictable Mechanical Properties: The controlled nature of the forging process ensures a high degree of consistency in mechanical properties from one hinge assembly to the next, guaranteeing reliable performance across all units.
By leveraging the drop forging process, the Buyers Products hinge assembly is inherently stronger, more durable, and significantly more reliable than cast alternatives, providing a critical safety margin and extended service life in demanding applications.
Optimized Design: The Thicker Rib Configuration
A key engineering differentiator of this hinge assembly is its "thicker rib design." Ribs are structural reinforcements incorporated into the component's geometry to enhance its rigidity, strength, and load-bearing capacity without excessively increasing material thickness across the entire part. In the context of a dump hinge, these ribs play a crucial role:
- Stress Distribution: The thicker rib design effectively distributes localized stresses over a broader area, minimizing stress concentration points that could lead to material fatigue or failure. This is particularly important at pivot points and weld zones where forces are most acute.
- Bending and Torsional Stiffness: Dump tailgates exert significant bending and torsional forces on their hinge points. The increased thickness of the ribs substantially augments the hinge's resistance to these deformation modes, ensuring that the tailgate remains securely positioned and operates smoothly under load.
- Impact Absorption: While the entire forged structure contributes to impact resistance, the reinforced rib sections provide additional localized strength to absorb and dissipate energy from sudden impacts, such as those experienced during loading or accidental drops.
- Longevity Compared to Cast Latches: Cast components, due to their manufacturing limitations, often feature less robust or more uniformly thin sections. The ability to precisely control the material distribution and create thicker, optimized rib structures during forging directly translates to a component that can withstand harsher operational environments and significantly outlast its cast counterparts. This design choice directly addresses the need for components that can endure the harsh, dynamic environment of dump applications.
The 2.52-inch bracket width combined with the 7.00-inch height provides a substantial mounting footprint, further enhancing the stability and load distribution characteristics of the assembly, ensuring stable operation for the 1.25-inch diameter tailgate post it is designed to accommodate.
Application and Integration: Tailgate Security and Operational Efficiency
This Lower Dump Hinge Assembly is specifically engineered to interface seamlessly with a 1.25-inch (1-1/4 inch) diameter tailgate post. This precise dimensional compatibility is crucial for ensuring proper function, smooth articulation, and secure closure of the tailgate. The 0.50-inch diameter pin, a critical element in the pivot mechanism, is also crafted to high tolerances, ensuring minimal play and maximizing the mechanical efficiency of the hinge. The primary function—securing the lower part of the tailgate in the closed position—is critical for preventing spills, ensuring cargo containment, and maintaining safety during transport. In the demanding environment of dump truck operations, where tailgates are frequently opened and closed under varying loads, the reliability of this hinge is paramount to operational efficiency and avoidance of costly material loss or accidents.
Installation Best Practices: Leveraging C1020 for Superior Weldability
The use of C1020 steel for the hinge base is a significant advantage for installation. To ensure maximum structural integrity and longevity, proper welding procedures are essential:
- Surface Preparation: The welding surfaces on both the hinge base and the truck frame or dump body must be meticulously cleaned, free of rust, paint, grease, and any other contaminants that could compromise weld quality. Grinding to bright metal is recommended.
- Filler Material: While C1020 offers excellent weldability, selecting an appropriate filler metal is crucial. ER70S-6 is a common choice for welding low carbon steels, offering good strength and ductility.
- Welding Process: Common welding processes such as Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW/MIG), or Flux-Cored Arc Welding (FCAW) can be effectively employed. Given the heavy-duty application, full penetration welds are typically recommended.
- Pre-heating (Optional but Recommended for Thick Sections): While C1020 typically does not require pre-heating, if the mating truck component is significantly thicker or made of higher carbon steel, a mild pre-heat (e.g., 200-300°F) can help prevent thermal shock and improve weld metallurgy.
- Post-Weld Inspection: Visual inspection for defects such as porosity, undercut, and insufficient penetration is critical. For high-stress applications, non-destructive testing (NDT) methods like magnetic particle inspection may be considered to ensure weld integrity.
Proper installation ensures that the hinge assembly performs to its designed specifications, providing a secure and reliable connection between the tailgate and the vehicle body.
Durability, Reliability, and Long-Term Value
The Buyers Products Drop Forged Lower Dump Hinge Assembly is engineered for exceptional durability and long-term reliability. Its plain finish allows for customization, such as painting, to match the aesthetic of the vehicle or to apply specific corrosion-resistant coatings suitable for the operating environment. The inherent strength and metallurgical integrity derived from the drop forging process, combined with the optimized design, translate directly into a reduced total cost of ownership (TCO) for fleet operators and equipment owners. Fewer component failures mean less downtime, lower maintenance costs, and increased operational uptime, contributing to greater productivity and profitability. This assembly is not merely a replacement part; it is an upgrade, offering enhanced performance and a significant increase in the operational lifespan of the tailgate system.
In conclusion, the 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1.25 Inch Diameter Post from Buyers Products is a testament to robust engineering and material science excellence. By meticulously selecting C1045 and C1020 steels, employing the advanced drop forging manufacturing process, and integrating a thicker rib design, this hinge assembly delivers superior strength, ductility, and fatigue resistance unmatched by lesser alternatives. Its precise compatibility with 1.25-inch tailgate posts and excellent weldability ensure straightforward integration and enduring performance. For demanding applications where safety, reliability, and longevity are paramount, this hinge assembly stands as an indispensable component, providing steadfast security and operational efficiency for heavy-duty dump bodies and utility vehicles.
