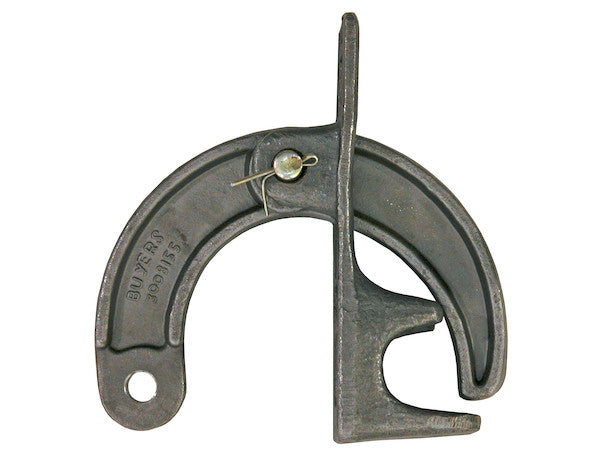

Buyers Products Dump Hinge Assembly welds to your truck to secure the lower part of the tailgate when in the closed position. Forged from C1045 steel, these heavy duty assemblies have a thicker rib design to offer increased strength and ductility than cast latches. The base of this latch is forged from C1020 steel to make welding easier.
Specifications
| Bracket Finish | Plain |
|---|---|
| Bracket Height (in.) | 7.00 |
| Bracket Material | Forged Steel |
| Bracket Width (in.) | 2.52 |
| Pin Diameter (in.) | 0.65 |
| Tailgate Post Dia (in.) | 1.25 |
| Use With | 1-1/4in Tailgate Post |
Advanced Engineering and Performance of the 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly
The 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1.25 Inch Diameter Post represents a pinnacle of robust mechanical engineering designed to meet the rigorous demands of heavy-duty material transport and dumping operations. This critical component is meticulously engineered to provide superior structural integrity, operational reliability, and an extended service life for a wide array of dump trucks, trailers, and utility vehicles. Its primary function is to securely anchor the lower portion of a tailgate in the closed position, a fundamental requirement for containing bulk materials during transit, while simultaneously enabling a controlled pivot point for efficient material discharge during dumping cycles.
Material Science and Manufacturing Excellence: The Power of Drop Forging
Central to the exceptional performance characteristics of this dump hinge assembly is the advanced manufacturing process of drop forging, coupled with the strategic selection of high-grade steel alloys. Unlike conventional casting methods, drop forging involves shaping metal through localized compressive forces using repeated hammer blows or pressing. This process mechanically deforms the metal, aligning its internal grain structure to follow the contour of the part. The resulting grain flow significantly enhances the material's mechanical properties, particularly its tensile strength, impact resistance, and fatigue life. This is a critical distinction, as cast components, while economical, typically possess a random grain structure which can introduce internal voids or stress concentrations, making them more susceptible to brittle fracture under dynamic loads.
C1045 Steel: The Core of Strength and Ductility
The main body of the hinge assembly, responsible for bearing the primary operational stresses, is precision drop-forged from C1045 steel. C1045 is a medium-carbon steel renowned for its excellent balance of strength, hardness, and toughness. With a typical carbon content ranging from 0.43% to 0.50%, it offers significantly higher tensile strength and yield strength compared to lower carbon steels. This specific steel grade is particularly favored in applications requiring robust structural integrity and resistance to wear and deformation under heavy, repetitive loading cycles. The drop forging process further refines its microstructure, eliminating inherent defects and producing a component with superior internal homogeneity. This means that the hinge assembly can withstand substantial shear forces and bending moments encountered during the opening and closing of heavily loaded tailgates, as well as the dynamic impacts associated with dumping operations. The increased ductility, a direct benefit of the forging process, ensures that the component can deform plastically under extreme stress before fracturing, providing a crucial safety margin against sudden catastrophic failure.
C1020 Steel: Optimized for Weldability
The base of the hinge assembly, designed for direct attachment to the truck chassis or dump body through welding, is expertly forged from C1020 steel. C1020 is a low-carbon steel, typically containing 0.18% to 0.23% carbon, making it highly amenable to welding. The lower carbon content minimizes the formation of hard, brittle martensite in the heat-affected zone (HAZ) during the welding process, thereby reducing the risk of cracking and ensuring a strong, ductile weld joint. This careful material selection facilitates easier and more reliable installation, allowing for robust and enduring attachment to various structural steel components of the vehicle. The ease of welding C1020 steel simplifies fabrication procedures for truck body manufacturers and ensures straightforward replacement or repair for maintenance professionals, without compromising the structural integrity of the attachment point.
Enhanced Design: Thicker Rib Configuration
The product's description explicitly highlights a "thicker rib design." This is not a mere aesthetic feature but a deliberate engineering enhancement aimed at optimizing the load distribution and overall rigidity of the hinge assembly. Ribs, or structural reinforcements, are strategically incorporated into the design to increase the section modulus of critical areas. By adding material in specific patterns, particularly along anticipated stress pathways, the thicker rib design effectively distributes forces more evenly across the component. This reduces localized stress concentrations, which are common failure points in lesser-engineered parts. The result is a significantly stronger assembly capable of resisting bending, twisting, and impact loads far more effectively than designs lacking such advanced reinforcement. This design philosophy directly contributes to the hinge's longevity and its ability to maintain structural integrity over thousands of operational cycles in demanding environments.
Functional Design and Precision Engineering
The 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly is a precisely dimensioned component, critical for seamless integration and reliable performance. With a bracket width of 2.52 inches and a height of 7.00 inches, these dimensions are carefully calibrated to provide optimal leverage and support for tailgates of various sizes and weights, particularly those utilizing a 1.25-inch diameter tailgate post. The robust 0.65-inch diameter pin, which serves as the rotational axis, is designed for maximum shear strength, ensuring smooth and controlled pivoting while withstanding the significant forces exerted during dumping.
Interfacing with the 1.25 Inch Diameter Post
The specific designation "for 1.25 Inch Diameter Post" is crucial, indicating a precise fit that minimizes play and maximizes the stability of the tailgate. A secure interface between the hinge assembly and the tailgate post is paramount. Any excessive clearance or misalignment can lead to accelerated wear, increased operational noise, and ultimately, premature component failure. The precision engineering of this hinge ensures a snug yet free-moving fit, which is essential for both the retention of cargo and the smooth actuation of the dumping mechanism. This precise mating minimizes stress on the pin and hinge body, extending the operational life of the entire tailgate system.
Load-Bearing Dynamics in Dump Applications
Dump hinges operate under exceptionally dynamic and often asymmetrical loads. When a dump body is raised, the tailgate supports the entire weight of the material until it clears the top edge or is manually released. During this phase, the lower hinges bear significant tensile and shear loads. Upon release, as the material exits, the hinges experience complex impact and torsional forces. The robust design, coupled with the superior material properties of C1045 and C1020 forged steel, ensures that this assembly can consistently manage these extreme and fluctuating loads without yielding or fracturing. The design's ability to distribute these stresses across the entire structure, facilitated by the thicker rib design, is a testament to its engineering integrity.
Installation, Integration, and Maintenance
The welding-based installation of the Buyers Products Dump Hinge Assembly offers a permanent and highly secure attachment solution, which is critical for heavy-duty applications. The C1020 steel base, optimized for weldability, simplifies the process for skilled fabricators. Proper welding techniques, including appropriate pre-heating, filler material selection, and post-weld cooling, are essential to maximize the strength and durability of the joint. Professional installation ensures that the hinge is correctly aligned, preventing binding and uneven wear, which are common issues with improperly installed components.
While the "Plain" finish indicates an un-coated surface, the inherent corrosion resistance of steel can be further enhanced through standard finishing processes post-installation, such as painting or powder coating, depending on the operational environment and aesthetic requirements. This allows for customization while retaining the foundational strength of the forged material. The robust nature of drop-forged steel also minimizes the need for extensive ongoing maintenance beyond routine visual inspections for wear or damage, a significant advantage in demanding industrial settings where downtime is costly.
Safety, Reliability, and Operational Efficiency
The integrity of a dump tailgate hinge is directly linked to operational safety and efficiency. A failing hinge can lead to catastrophic cargo spills, posing significant hazards to personnel, other vehicles, and the environment. Furthermore, a compromised tailgate can impede efficient material discharge, leading to increased cycle times and operational inefficiencies. This 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly, through its superior material specification, advanced forging process, and optimized design, directly addresses these concerns. It provides:
- Enhanced Safety: By securely retaining cargo during transit and ensuring predictable operation during dumping.
- Maximized Uptime: The inherent durability and resistance to fatigue minimize the likelihood of unexpected failures, reducing maintenance-related downtime.
- Operational Reliability: Consistent performance over a long service life, even under extreme conditions.
- Cost-Effectiveness: While an initial investment in high-quality forged components may be higher than cast alternatives, the extended lifespan and reduced repair costs offer significant long-term savings.
Industry Standards and Application Scope
Components for commercial and industrial vehicles, especially those involved in construction, agriculture, and waste management, must adhere to stringent quality and performance standards. While specific certifications for individual hinge components may vary, the use of ASTM-specified steel grades (C1045 and C1020) and the precision manufacturing process align this product with the best practices for heavy-duty vehicle component manufacturing. These materials are widely recognized and specified for applications requiring high strength, durability, and fatigue resistance in demanding environments.
This hinge assembly is ideally suited for a broad range of applications where robust tailgate securement and reliable dumping mechanisms are essential. This includes, but is not limited to:
- Heavy-Duty Dump Trucks: From tandem axle to tri-axle configurations, handling aggregates, asphalt, dirt, and demolition debris.
- Dump Trailers: Semi-trailers and pup trailers used for bulk material transport.
- Utility and Landscape Dump Bodies: For commercial landscape operations, municipal services, and light construction.
- Agricultural Wagons and Trailers: Applications requiring secure transport and discharge of grains, feed, or produce.
Conclusion: A Commitment to Durability and Performance
The 2.5 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1.25 Inch Diameter Post from Buyers Products stands as a testament to engineering excellence in heavy-duty hardware. By leveraging the inherent advantages of drop forging with meticulously selected C1045 and C1020 steel, and incorporating a structurally reinforced thicker rib design, this assembly transcends the capabilities of standard cast components. It delivers unparalleled strength, ductility, weldability, and resistance to the harsh operational realities of dump applications. For discerning operators and manufacturers who prioritize safety, longevity, and uncompromising performance, this dump hinge assembly offers a technically superior and economically sound investment. Its robust construction ensures that it is not just a component, but a critical guarantor of operational continuity and safety on the job site, providing peace of mind through every loaded haul and every efficient dump cycle. This is a component built to endure, reflecting a deep understanding of the demands placed upon heavy-duty vehicle hardware and a commitment to delivering solutions that exceed industry expectations.
