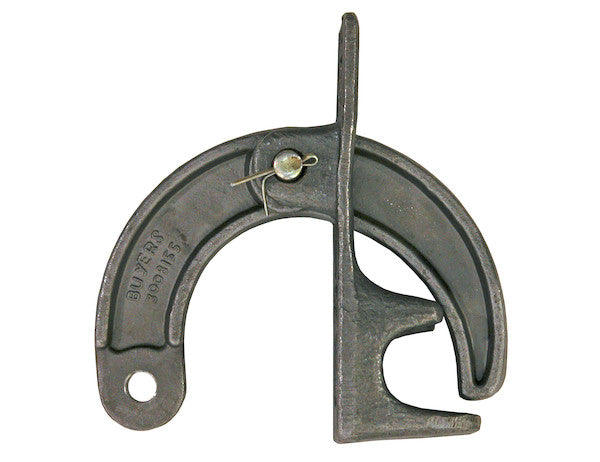

Buyers Products Dump Hinge Assembly welds to your truck to secure the lower part of the tailgate when in the closed position. Forged from C1045 steel, these heavy duty assemblies have a thicker rib design to offer increased strength and ductility than cast latches. The base of this latch is forged from C1020 steel to make welding easier.
Specifications
| Bracket Finish | Plain |
|---|---|
| Bracket Height (in.) | 7.00 |
| Bracket Material | Forged Steel |
| Bracket Width (in.) | 4.00 |
| Pin Diameter (in.) | 0.50 |
| Tailgate Post Dia (in.) | 1.25 |
| Use With | 1-1/4in Tailgate Post |
The 4 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1.25 Inch Diameter Post represents a pinnacle of engineering and material science applied to the demanding requirements of heavy-duty commercial vehicles. This critical component is meticulously designed to provide unparalleled strength, durability, and operational reliability for dump truck tailgates. As a foundational element in the tailgate's mechanical system, it ensures secure closure, smooth pivoting, and safe operation under the most rigorous conditions, making it an indispensable asset for any professional fleet manager or equipment owner seeking to optimize vehicle performance and safety. Its design incorporates advanced metallurgical practices and precise dimensional specifications to deliver a superior product capable of withstanding the extreme stresses inherent in dump applications.
At the core of this assembly's exceptional performance is its drop forged construction. Drop forging is a manufacturing process that plastically deforms metal, typically steel, between dies under immense pressure. Unlike casting, which involves pouring molten metal into a mold, or machining from plate, forging refines the grain structure of the metal, aligning the grain flow in the direction of greatest stress. This creates a part with significantly enhanced mechanical properties, including superior tensile strength, yield strength, fatigue resistance, and impact resistance. The internal structure of a forged part is dense and free from the internal voids, gas pockets, or shrinkage defects commonly associated with cast parts. For a component as critical as a dump hinge, which is subjected to dynamic loading, impact, vibration, and abrasive forces throughout its operational life, the integrity provided by drop forging is paramount. This process ensures that the hinge assembly maintains its structural integrity and functional reliability over extended periods, minimizing the risk of catastrophic failure and ensuring operator safety.
The strategic selection of steel alloys further underscores the technical sophistication of this dump hinge assembly. The primary load-bearing components of the hinge are forged from C1045 steel. C1045 is a medium carbon steel renowned for its excellent balance of strength, hardness, and wear resistance, particularly when heat-treated. With a carbon content typically ranging from 0.43% to 0.50%, it possesses higher strength and hardness compared to lower carbon steels, making it ideal for applications requiring robust structural integrity and resistance to deformation under heavy loads. Its machinability is good in the as-forged or normalized condition, allowing for precise finishing, while its response to hardening processes, such as quenching and tempering, can further elevate its mechanical properties. In the context of this hinge, the inherent strength of C1045, combined with the grain refinement achieved through drop forging, creates a component with exceptional resistance to the shear, bending, and torsional forces encountered during the loading, transport, and dumping cycles of a heavy-duty truck. The "thicker rib design" mentioned in the specifications is engineered to capitalize on these material properties, distributing stress concentrations more effectively across the hinge body and preventing localized fatigue.
Complementing the robust C1045 body, the base of the latch is specifically forged from C1020 steel. This material selection is a deliberate engineering choice to optimize weldability, which is crucial for secure and efficient installation. C1020 is a low carbon steel, typically containing 0.18% to 0.23% carbon. Its lower carbon content significantly improves its weldability by reducing the propensity for hardening in the heat-affected zone (HAZ) during welding, which can lead to embrittlement and cracking in higher carbon steels. This allows for easier and more reliable fusion to the truck's chassis, ensuring a strong, permanent bond without requiring specialized welding procedures that might be necessary for higher carbon or alloy steels. The ductility of C1020 also contributes to its excellent weldability, accommodating thermal expansion and contraction during the welding process with less risk of stress-induced failure. By using C1020 for the base, the manufacturer prioritizes ease of installation and the integrity of the welded joint, recognizing that even the strongest hinge body is only as reliable as its connection to the vehicle.
The dimensional specifications of this hinge assembly are not arbitrary but are the result of meticulous engineering analysis aimed at optimizing performance and compatibility. The 4-inch bracket width provides a substantial footprint for attachment, distributing forces over a larger area of the truck frame, thereby reducing localized stress on both the hinge and the vehicle structure. This wide base contributes to the overall stability of the tailgate system, minimizing lateral movement and enhancing the secure closure mechanism. The 7.00-inch bracket height ensures adequate leverage and structural support for the tailgate, allowing for a robust pivot point that can accommodate the significant weight and dynamic forces generated during operation. Furthermore, the 0.50-inch pin diameter is specifically engineered to provide the necessary shear strength to articulate the tailgate reliably while minimizing wear on both the pin and the corresponding components of the tailgate post. This precise sizing ensures a snug fit, reducing play and extending the lifespan of the entire assembly by preventing excessive friction and premature material fatigue.
A critical aspect of this dump hinge assembly is its compatibility with a 1.25-inch diameter tailgate post. This precise specification highlights the importance of system integration. The hinge is designed to mate perfectly with a standard 1-1/4 inch tailgate post, ensuring a seamless interface that promotes smooth operation and maximum load transfer efficiency. An exact fit minimizes mechanical play, which is crucial for preventing accelerated wear on pivot points and reducing the likelihood of premature component failure. Loose tolerances in a high-stress application like a dump truck tailgate can lead to excessive vibration, impact loading, and eventual structural degradation. By specifying and designing for a 1.25-inch post, the hinge assembly guarantees a secure and stable connection, vital for both the operational integrity of the tailgate and the overall safety of the vehicle and its cargo. This precision engineering reduces operational noise, extends component life, and contributes to a more controlled and predictable dumping action.
The functionality of this lower dump hinge assembly extends beyond mere articulation; it plays a vital role in operational safety and cargo containment. When the tailgate is in the closed position, these lower hinges, in conjunction with the upper latching mechanisms, form a robust barrier that secures the loaded material within the dump body. This prevents spillage during transport, protecting other road users and ensuring compliance with transportation regulations. During the dumping process, the lower hinges bear a significant portion of the dynamic load as the tailgate pivots open, allowing for the controlled discharge of material. The inherent strength and ductility of the C1045 forged steel ensure that these hinges can repeatedly withstand the sudden shifts in weight and the impact forces associated with material discharge, without deforming or failing. The engineering emphasis on a thicker rib design directly supports this function, providing additional material where stress concentrations are highest, enhancing the hinge's ability to absorb and distribute these forces safely and effectively.
Installation of the Buyers Products Dump Hinge Assembly, while involving welding, is facilitated by the careful material selection of the C1020 steel base. Proper welding techniques are paramount to achieve the full performance potential of this assembly. It is recommended that qualified welders follow industry best practices, including appropriate pre-heating, selecting compatible welding consumables (e.g., E7018 electrodes or ER70S-6 wire for GMAW), and ensuring adequate penetration and bead profiles. The low carbon content of the C1020 steel minimizes the risk of cracking in the weld or heat-affected zone, providing a wide processing window for various welding methods. Post-weld inspection, including visual examination for defects such as porosity, undercut, and lack of fusion, is crucial to verify the integrity of the joint. A properly welded hinge assembly ensures a permanent, high-strength connection to the truck frame, becoming an integral part of the vehicle's load-bearing structure, which is essential for both long-term durability and operational safety in demanding environments.
The operational environments for dump trucks are notoriously harsh, involving constant exposure to heavy loads, vibrations, corrosive agents like salt and moisture, abrasive materials, and extreme temperature fluctuations. The "plain" finish of this hinge, while not providing inherent corrosion resistance like a coated finish, signifies that the inherent properties of the forged steel are the primary defense against wear and degradation. The dense, refined grain structure of forged steel, being less porous than cast materials, inherently offers better resistance to the ingress of corrosive elements, which can initiate rust and material degradation. Furthermore, the high strength and hardness of C1045 steel contribute significantly to its resistance against abrasive wear, a common issue in dump applications where material like gravel, sand, or debris can rub against exposed components. While a post-installation coating, such as painting or galvanizing, can be applied to enhance corrosion protection, the foundational durability is built into the material and manufacturing process itself, ensuring a long service life even in the absence of specialized finishes.
Investing in the 4 Inch Wide Drop Forged Lower Dump Hinge Assembly translates into significant economic and operational advantages for heavy-duty fleet operators. The superior durability and reliability stemming from its drop-forged construction and precisely selected steel alloys result in reduced downtime for repairs and replacements. This directly impacts operational efficiency and profitability, as vehicles spend more time on the job and less time in the shop. The enhanced safety features, preventing tailgate failures and securing cargo effectively, mitigate risks of accidents, property damage, and potential legal liabilities, contributing to a lower total cost of ownership. Moreover, the long service life of these hinges means fewer maintenance cycles and replacement parts over the vehicle's lifespan, representing a sound investment in fleet longevity and reliability. For businesses where uptime and safety are paramount, this meticulously engineered hinge assembly offers an unparalleled solution.
In conclusion, the 4 Inch Wide Drop Forged Lower Dump Hinge Assembly for 1.25 Inch Diameter Post stands as a testament to advanced material science and precision engineering in the heavy-duty trucking industry. Its utilization of the drop forging process ensures superior strength, ductility, and fatigue resistance compared to alternative manufacturing methods. The strategic integration of C1045 steel for the main body and C1020 steel for the weldable base exemplifies a design philosophy that optimizes both performance and practical installation. With meticulously engineered dimensions, compatibility with standard 1.25-inch tailgate posts, and a design focused on operational safety and longevity, this hinge assembly is an essential component for any dump truck or heavy-duty trailer. It delivers uncompromising reliability in the most demanding environments, safeguarding cargo, personnel, and overall operational integrity, thus representing a critical investment in the enduring functionality and safety of commercial dump applications.
