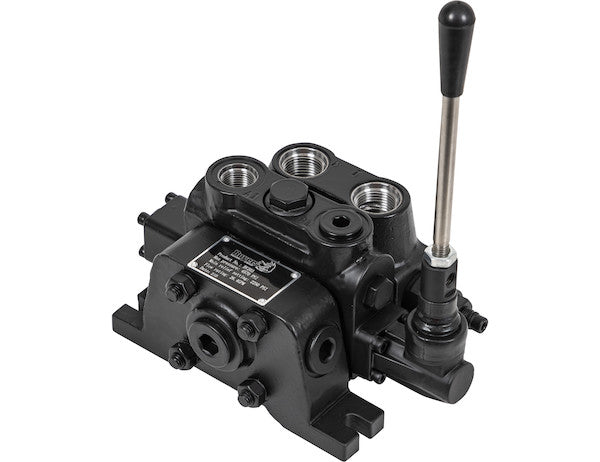

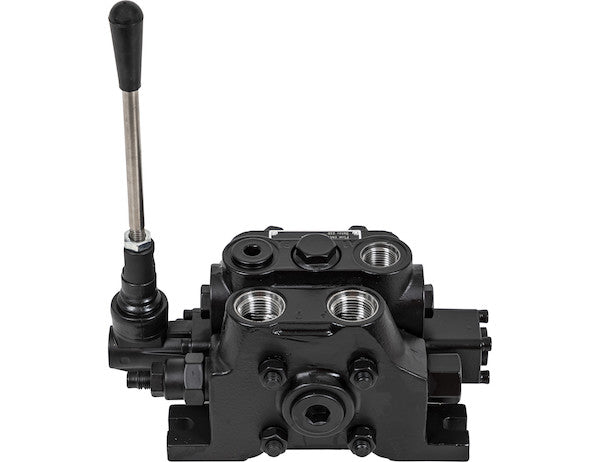

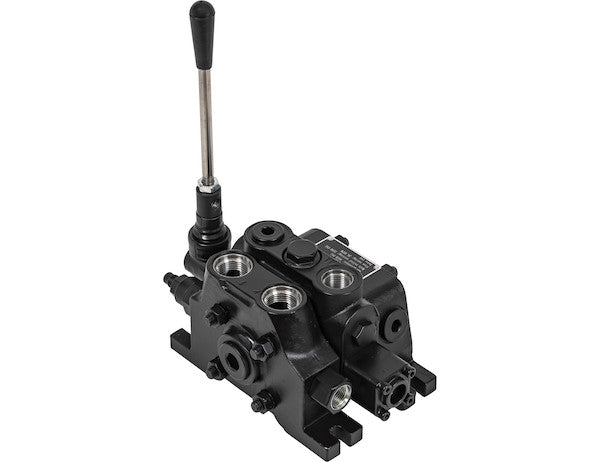

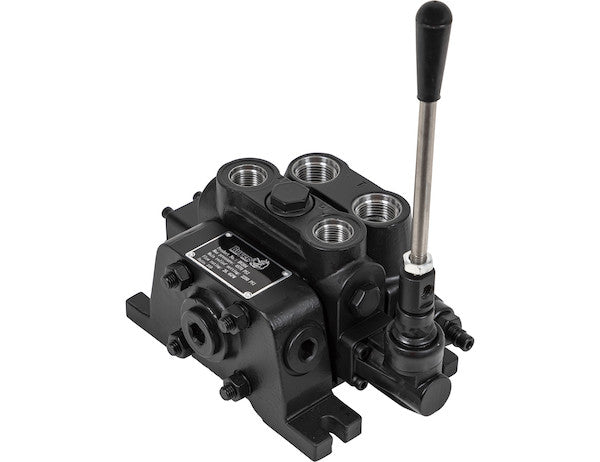

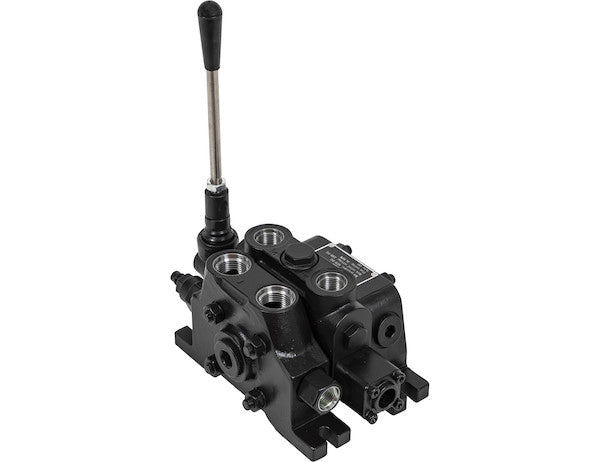

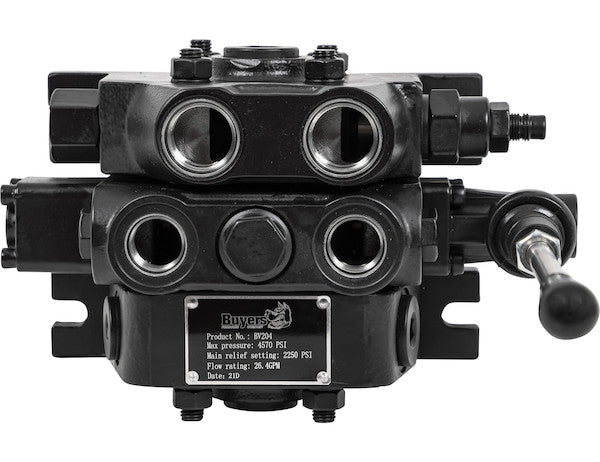

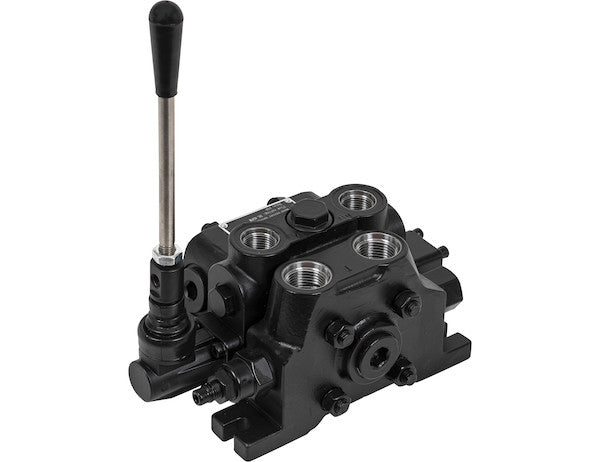

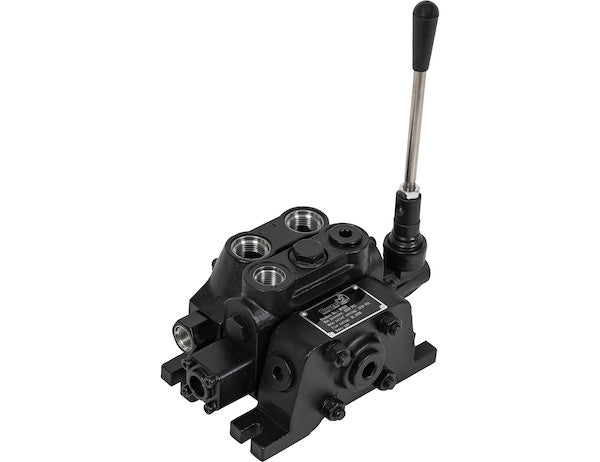

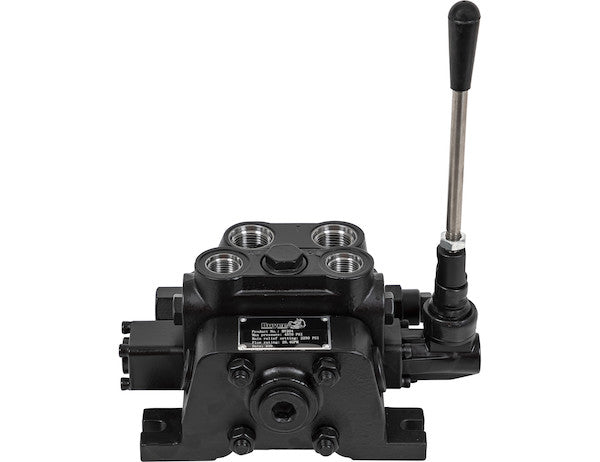

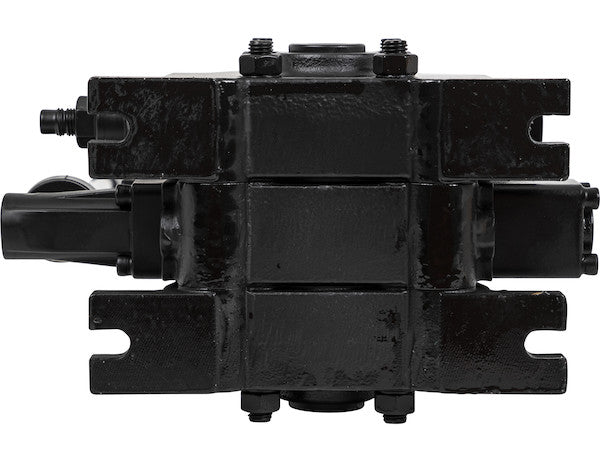

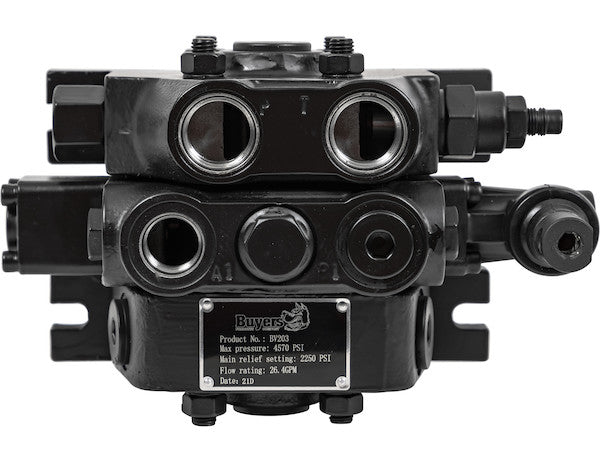

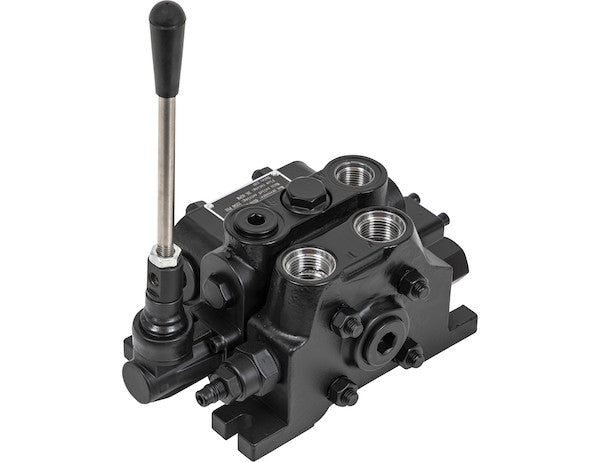

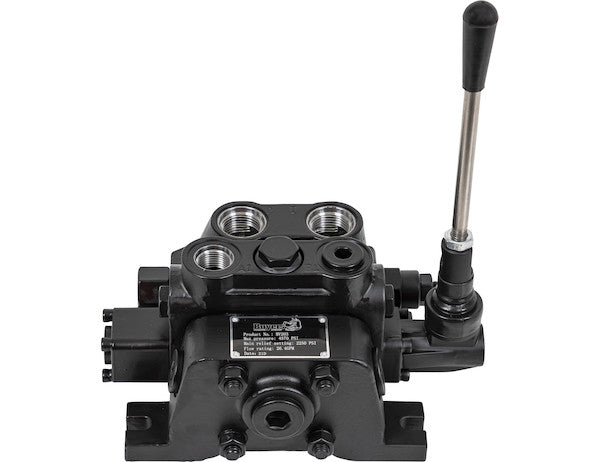

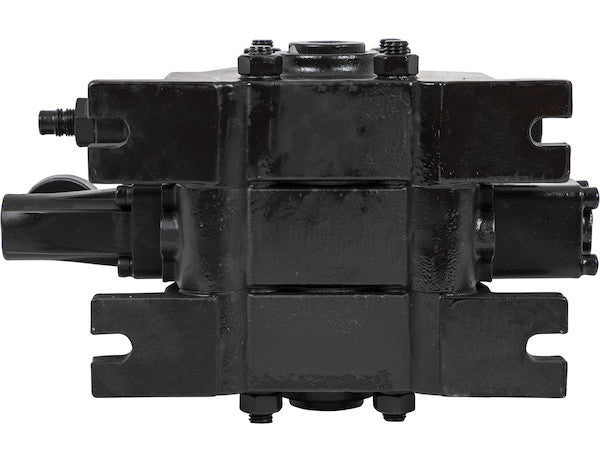

The 21 GPM Valve from Buyers Products is a tough, cast-iron sectional valve you can accommodate handle or cable controls to meet your hydraulic needs. The valve can handle the most demanding jobs, with a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. This sectional valve offers a lot of versatility in spool action and Power Beyond options to configure to your work needs. It can accommodate either handle or cable controls. All valves have cylinder spools. Additional functions and configurations are available. Please contact Customer Service for further information or Hydraulics Technical Support for assistance.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2250 |
| Maximum Flow Rate | 25 |
| Maximum Pressure | 4500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Port Relief (y/n) | No |
| Port Relief Angle | N |
| Port Relief Dump | N |
| Port Type | SAE |
| Power Beyond (y/n) | No |
| Spool Action 1 | Power Up/Gravity Down |
| Work Port Size | 5/8 SAE ORB (-10) |
The Buyers Products 21 GPM 3-Way Valve, engineered without Power Beyond capability, represents a robust and precisely controlled hydraulic solution designed for demanding applications where a dedicated, high-performance single-function control is paramount. This sectional valve, constructed from resilient cast iron, embodies durability and operational integrity, making it an ideal component for severe service environments across various industries. Its design explicitly addresses the need for efficient hydraulic power management in systems that do not require sequential flow to downstream components, focusing instead on optimizing performance for its intended application.
At its core, this hydraulic control valve is characterized by its impressive maximum flow rate capacity of 25 GPM, with optimal operational performance rated at 21 GPM. This distinction is critical for hydraulic system designers, indicating that while the valve is structurally capable of handling transient flow peaks up to 25 GPM, its primary design and performance envelope are centered around a nominal 21 GPM. This ensures efficient power transfer and minimal pressure drop during continuous operation at the specified flow rate. The robust cast-iron construction is instrumental in achieving this high flow and pressure capability, providing exceptional mechanical strength and resistance to hydraulic shock, thermal cycling, and wear over extended periods of heavy use. Cast iron's inherent properties also contribute to superior vibration damping, which reduces noise and fatigue on other hydraulic components, thereby enhancing overall system reliability and longevity.
Pressure management is a critical aspect of any hydraulic system, and this valve excels in this regard. It features a main relief valve that is factory preset at 2250 PSI, although it is fully adjustable within a broad range of 1300 to 3000 PSI. This wide adjustability allows system engineers and technicians to precisely tune the maximum operating pressure to match the specific requirements of the connected actuators and the overall hydraulic circuit, preventing over-pressurization that could lead to component damage or premature wear. The valve's structural integrity is rated for a maximum pressure of 4500 PSI, providing a substantial safety margin above the typical operational pressure range and affirming its capability to withstand the most strenuous operational demands. While the broader valve series offers optional adjustable port reliefs for angle and dump functions, this specific configuration is designed without them. This simplification often suits applications where localized pressure protection at the work ports is either managed by the main relief valve, inherent to the actuator's design, or simply not required, streamlining the valve's functionality for a focused purpose.
The "3-Way" designation in the product title signifies a fundamental aspect of this valve's operational profile. In hydraulic terminology, a 3-way valve typically controls a single-acting cylinder or diverts flow between two paths. The spool action specified for this valve is "Power Up/Gravity Down." This specific spool configuration is ubiquitous in applications requiring controlled lifting and subsequent gravity-assisted lowering. When activated, hydraulic fluid is directed to one side of a single-acting cylinder, extending it (Power Up). Upon deactivation or shifting the spool to a neutral or return position, the fluid is allowed to return from the cylinder, and the load retracts under gravity (Gravity Down). This is particularly advantageous for applications such as snow plows, dump bodies, lift gates, and certain agricultural implements where the return stroke does not require hydraulic power, simplifying the system and enhancing energy efficiency. The inclusion of cylinder spools across all valve sections ensures optimal performance and sealing characteristics for cylinder-based actuation, providing precise control and minimizing internal leakage.
Control of the valve's spool is designed for manual operation, accommodating either handle or cable controls. This non-electrically operated design is a deliberate choice for applications where simplicity, direct mechanical linkage, and immunity to electrical system failures or environmental interference are critical. Handle controls offer direct, tactile feedback and are suitable for operators in close proximity to the valve, providing intuitive control. Cable controls, conversely, enable remote operation, allowing the valve to be positioned optimally within the hydraulic system while the operator controls it from a more convenient or safer location, such as a vehicle cab. This versatility in control options further enhances the adaptability of the valve to diverse equipment configurations and operational preferences.
Porting and connectivity are standardized to ensure broad compatibility and ease of integration into existing hydraulic systems. All ports conform to SAE O-Ring Boss (ORB) standards, which are widely recognized for their superior sealing capabilities, reduced leakage potential compared to pipe thread connections, and ease of assembly and disassembly. The inlet and outlet ports are sized at 3/4 SAE ORB (-12), facilitating adequate flow to and from the valve without excessive pressure drop, even at the maximum rated flow. The work port, designed for connection to the actuator, is sized at 5/8 SAE ORB (-10), optimized for the flow and pressure requirements of typical single-acting hydraulic cylinders. These standardized port sizes simplify component selection and ensure robust, leak-free connections, which are crucial for maintaining system efficiency and environmental compliance.
A defining characteristic of this particular valve is the explicit absence of "Power Beyond" functionality. Understanding this feature is crucial for proper system design. Power Beyond is a common capability in many sectional valves that allows pressurized hydraulic fluid, after passing through one valve section, to be routed to subsequent valve sections or other hydraulic components in series before returning to the reservoir. This enables the operation of multiple hydraulic functions from a single pump circuit. The "No Power Beyond" designation for this 21 GPM valve signifies that its outlet port is designed for direct return to the hydraulic reservoir. This makes the valve ideally suited for applications that involve a single primary hydraulic function, or as the terminal valve in a hydraulic circuit where no further downstream components require pressurized flow. In such configurations, the entire flow from the pump is directed either to the actuator via the work port or back to the tank via the outlet port when the spool is in neutral. This design simplifies plumbing for dedicated functions, potentially reducing system complexity and cost for specific applications, though it necessitates careful consideration if multiple hydraulic functions are required from a single pump source in series.
The selection of cast iron as the primary material for the valve body is a testament to its engineering for longevity and performance in harsh operating conditions. Cast iron offers an excellent balance of strength, rigidity, and machinability. Its high compressive strength and fatigue resistance are critical for enduring the cyclical pressures inherent in hydraulic systems. Furthermore, cast iron possesses good damping characteristics, which helps to mitigate noise and vibration that can be detrimental to system components and operator comfort. The thermal stability of cast iron ensures that the valve's performance remains consistent across a wide range of operating temperatures, an essential consideration for outdoor equipment exposed to varying environmental conditions. Internal components, including the spools, are precision-machined and often heat-treated to resist wear and maintain tight tolerances, ensuring smooth operation and minimal internal leakage throughout the valve's operational life. Advanced sealing technologies, typically involving high-performance O-rings and backup rings, are employed to prevent external leaks and maintain pressure integrity within the valve body, crucial for both operational efficiency and environmental protection.
This 21 GPM 3-Way Valve with no Power Beyond capability finds extensive utility across a broad spectrum of industries and applications. In municipal and utility sectors, it is perfectly suited for controlling functions on snowplows, salt spreaders, and dump bodies, where the "Power Up/Gravity Down" action is standard. For agricultural machinery, it can manage single-acting cylinders on tillers, cultivators, or loaders, providing reliable and straightforward control. In the construction industry, it is applicable for smaller equipment such as mini excavators or skid steers performing specific single-acting tasks like blade control or attachment actuation. Refuse equipment can also benefit from its robust design for compacting or lifting mechanisms. The emphasis on manual controls and the absence of electrical components make it particularly advantageous in environments where electrical systems are susceptible to moisture, debris, or require intrinsic safety. The simplified "No Power Beyond" circuit design makes it an excellent choice for systems where maximizing efficiency for a single, primary function is the main goal, ensuring that all pump flow is dedicated to that task or directly returned to the reservoir without unnecessary routing or pressure drops through subsequent valve sections.
Integrating this valve into a hydraulic system requires careful attention to best practices. Ensuring proper filtration upstream of the valve is paramount to protect its precision-machined internal components from particulate contamination, which is a leading cause of premature wear and malfunction in hydraulic systems. The hydraulic fluid used must meet the manufacturer's specifications regarding viscosity, cleanliness, and additives to ensure optimal performance and component longevity. Correct plumbing, using lines and fittings rated for the maximum system pressure and flow, is essential to prevent leaks and ensure efficient power transmission. The mounting of the valve should be secure and consider accessibility for future adjustments or maintenance. While this specific model is not electrically operated, the precise adjustment of the main relief valve is critical during initial setup to prevent system damage and optimize performance for the specific application. Regular inspections of control linkages, port connections, and the valve body itself for any signs of wear or leakage are recommended as part of a routine maintenance schedule.
In summary, the Buyers Products 21 GPM 3-Way Valve, explicitly designed without Power Beyond functionality, stands as a testament to purpose-built hydraulic engineering. Its heavy-duty cast-iron construction, precise pressure management capabilities, specific Power Up/Gravity Down spool action, and adaptable manual control options converge to deliver a high-performance, reliable solution for dedicated single-function hydraulic applications. While the broader product line offers extensive customization and additional features such as port reliefs and Power Beyond options, this specific configuration provides a streamlined, robust, and dependable control valve for systems where simplicity, durability, and focused hydraulic power delivery are the highest priorities. For specialized configurations or detailed technical guidance, Buyers Products’ Customer Service and Hydraulics Technical Support remain readily available to assist in optimizing system design and performance.
