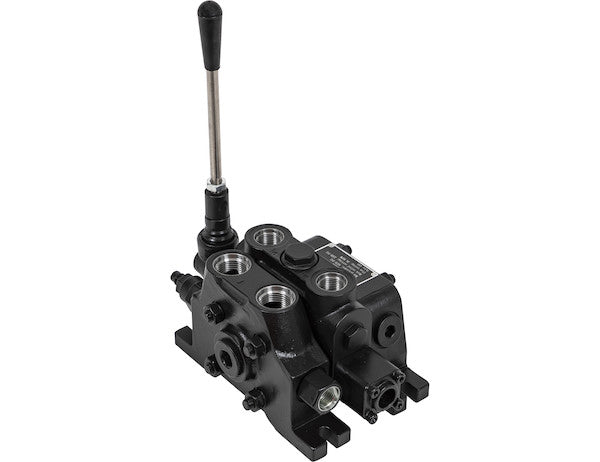

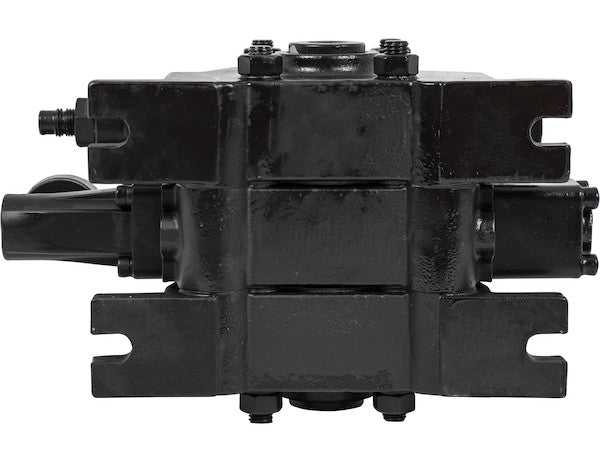

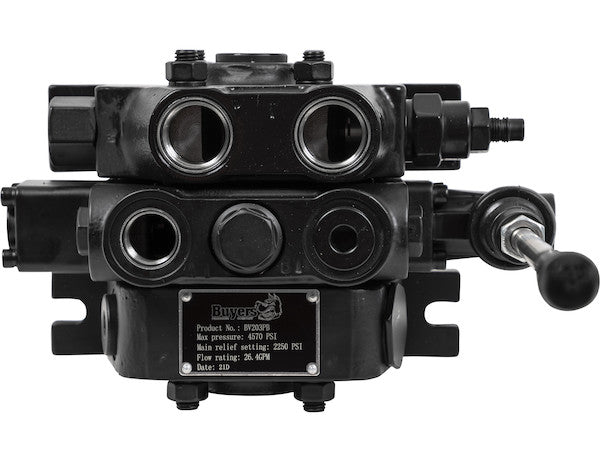

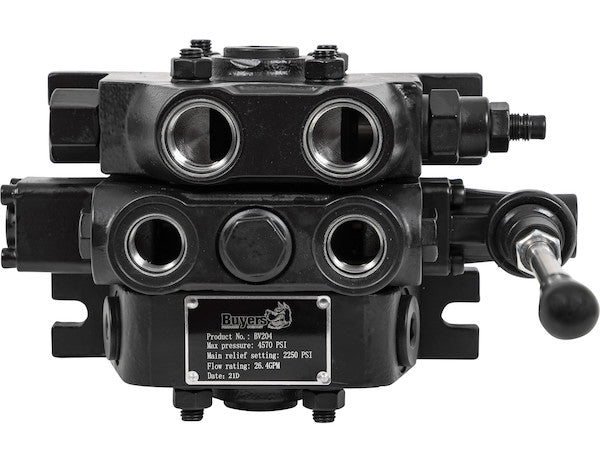

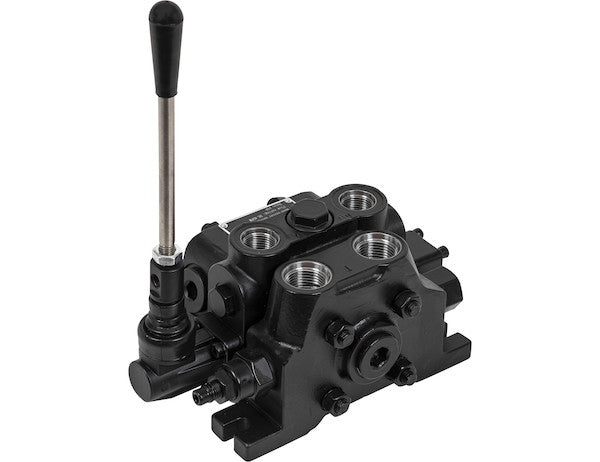

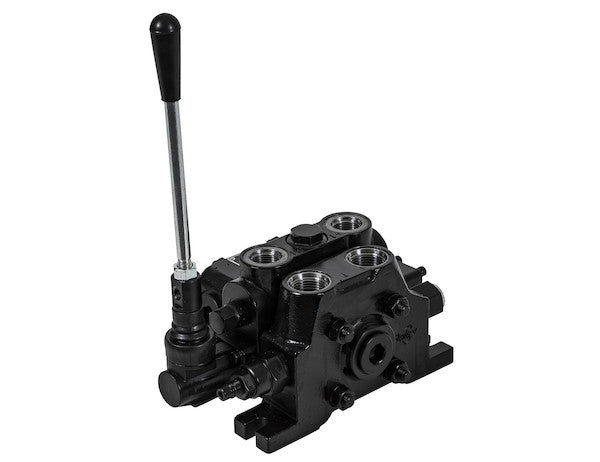

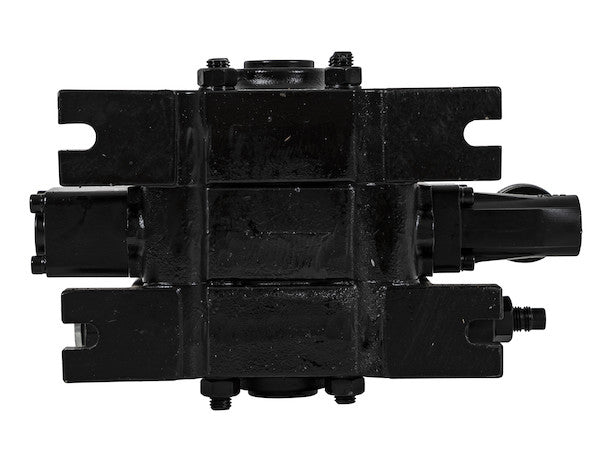

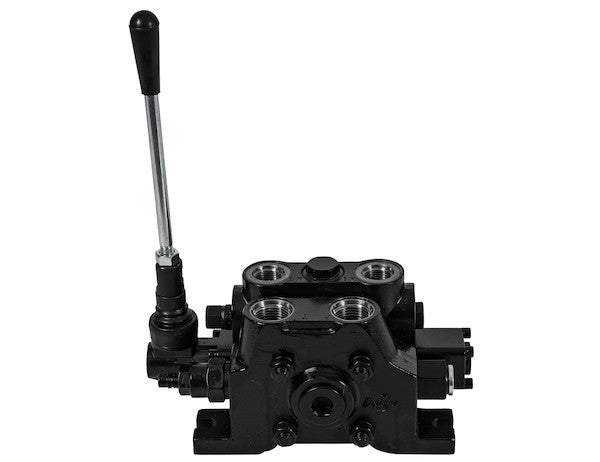

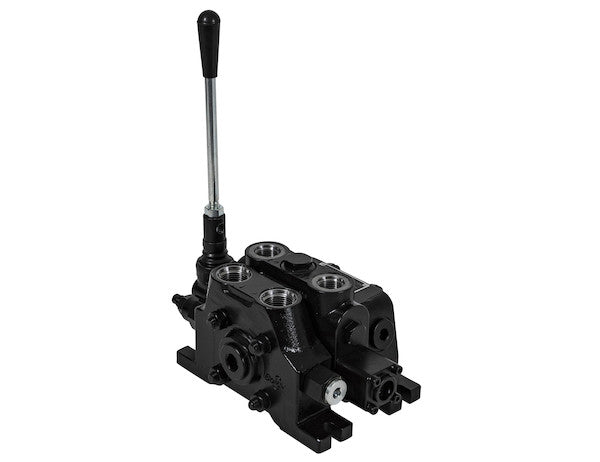

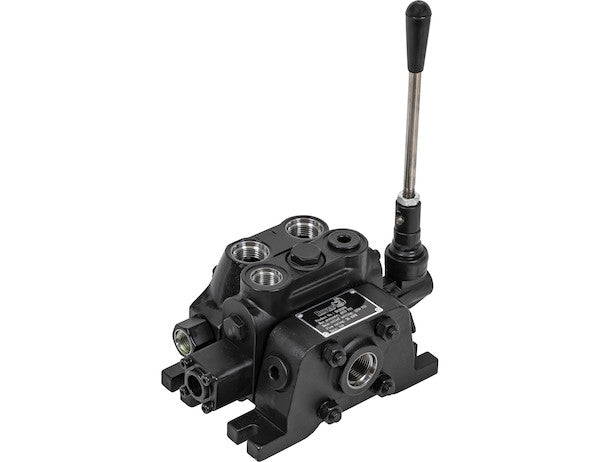

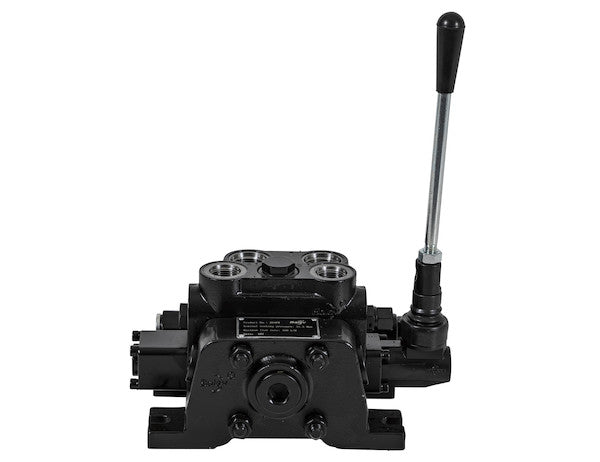

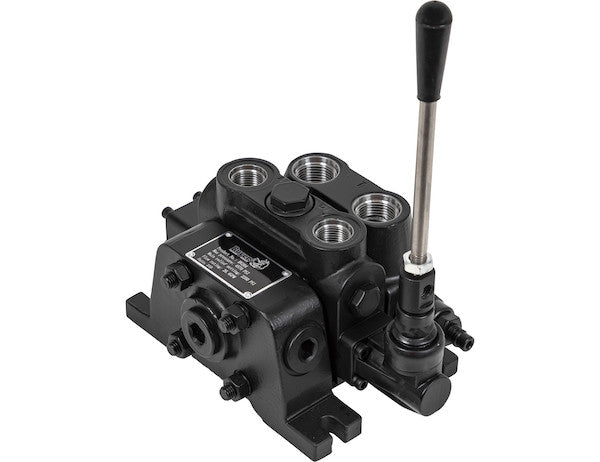

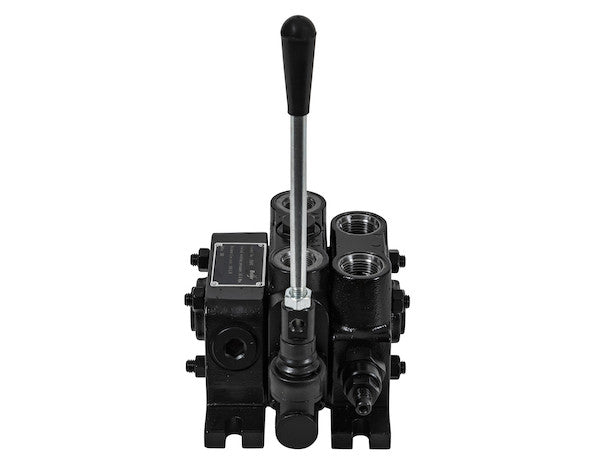

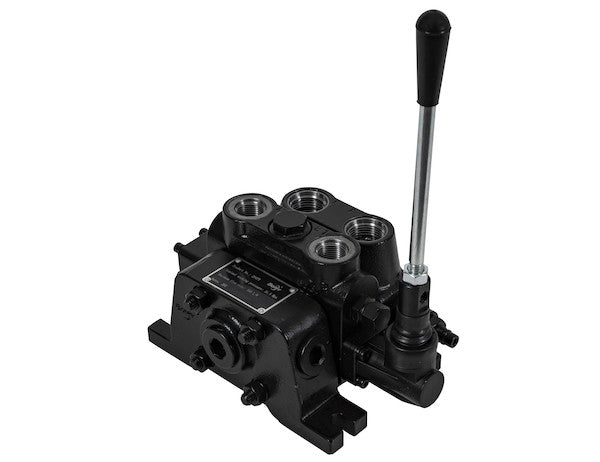

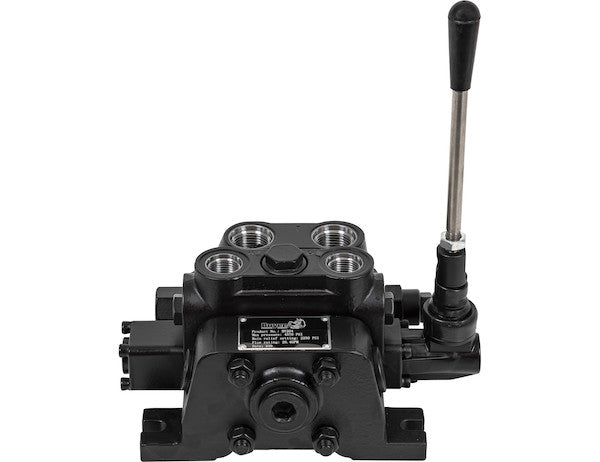

The 21 GPM Valve from Buyers Products is a tough, cast-iron sectional valve you can accommodate handle or cable controls to meet your hydraulic needs. The valve can handle the most demanding jobs, with a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. This sectional valve offers a lot of versatility in spool action and Power Beyond options to configure to your work needs. It can accommodate either handle or cable controls. All valves have cylinder spools. Additional functions and configurations are available. Please contact Customer Service for further information or Hydraulics Technical Support for assistance.
Specifications
| Electrically Operated (y/n) | N |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2250 |
| Maximum Flow Rate | 25 |
| Maximum Pressure | 4500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Port Relief (y/n) | No |
| Port Relief Angle | N |
| Port Relief Dump | N |
| Port Type | SAE |
| Power Beyond (y/n) | Y |
| Spool Action 1 | Power Up/Gravity Down |
| Work Port Size | 5/8 SAE ORB (-10) |
Advanced Hydraulic Control: The 21 GPM Sectional Valve with 3-Way and Power Beyond Functionality
The Buyers Products 21 GPM Sectional Valve represents a pinnacle of hydraulic control technology, engineered for robust performance and unparalleled versatility in demanding operational environments. This detailed exposition delves into the technical specifications, functional principles, and application benefits of this essential component within modern hydraulic systems. Designed for professionals who require precise, reliable, and adaptable hydraulic power, this valve integrates advanced features to optimize system efficiency and longevity.
Core Design and Material Excellence: Cast-Iron Sectional Construction
At the heart of this valve’s exceptional durability and performance is its robust cast-iron construction. Cast iron is a material renowned for its high compressive strength, excellent vibration damping characteristics, and superior resistance to thermal distortion under varying operating temperatures. These properties are critical for hydraulic components subjected to high pressures and dynamic loads, ensuring structural integrity and consistent internal clearances over extended operational cycles. The inherent density of cast iron also contributes to sound dampening, fostering quieter system operation, a significant advantage in many industrial and mobile applications.
The sectional design further enhances the valve’s utility. Unlike monoblock valves, a sectional valve comprises individual working sections that are bolted together. This modularity offers several distinct advantages:
- Configurability: Each section can be customized with different spool types, flow paths, and control options, allowing for tailored solutions to specific hydraulic circuit requirements. This particular model, for instance, features cylinder spools and offers versatile spool action, including Power Up/Gravity Down.
- Serviceability: In the event of damage or wear to a single section, only that section needs replacement or repair, significantly reducing downtime and maintenance costs compared to replacing an entire monoblock unit.
- Expandability: The modular nature allows for the addition or removal of sections, providing future-proofing and adaptability to evolving system needs without requiring a complete valve overhaul. This is particularly valuable for equipment that may be upgraded or repurposed over its lifespan.
- Optimized Flow Paths: Sectional designs can be engineered to minimize internal pressure drops and turbulence, contributing to greater hydraulic efficiency and reduced heat generation within the system.
Flow and Pressure Management: Precision Hydraulics for Demanding Tasks
This valve is rated for a nominal flow of 21 GPM (Gallons Per Minute), with a maximum achievable flow rate of 25 GPM, indicating its capability to manage substantial fluid transfer efficiently. The flow rate is a critical parameter, dictating the speed at which hydraulic actuators (cylinders, motors) can operate. A 21 GPM rating signifies suitability for a broad spectrum of applications, from operating heavy-duty implements on mobile machinery to controlling industrial presses where rapid response and significant power are required.
Pressure management is equally crucial for hydraulic system safety and performance. The valve is designed to withstand a formidable maximum pressure of 4500 PSI, as indicated in its specifications. This high-pressure capability ensures that the valve can operate reliably in systems where intense force generation is paramount. Integral to its pressure management capabilities is the main relief valve, an indispensable safety feature that prevents system overpressure by diverting excess fluid back to the reservoir. This primary relief valve is adjustable from 1300 to 3000 PSI, with a factory preset of 2250 PSI. The ability to fine-tune this setting allows system designers and operators to precisely match the valve’s relief pressure to the specific requirements and maximum safe operating pressure of the hydraulic circuit and its connected actuators, thereby protecting components from damage and extending system life.
While the base configuration specifies no integrated port reliefs, the modular design inherently supports the integration of such features as optional add-ons. Port relief valves, specifically angle and dump reliefs, offer localized overpressure protection for individual work ports. For example, an angle relief valve can protect a cylinder from external shock loads that might induce pressures exceeding its rating, such as an impact on a plow blade. A dump relief, on the other hand, might be configured to rapidly release pressure from a specific actuator circuit under certain conditions. The availability of these options underscores the valve's adaptability for complex and safety-critical applications, where granular pressure control is essential.
Understanding 3-Way Valve Functionality and Spool Configuration
The title "21 GPM Valves 3-Way/Power Beyond" highlights key functional aspects. A 3-way valve typically controls single-acting hydraulic cylinders, directing fluid to extend the cylinder and allowing fluid to return to the tank when the cylinder retracts under gravity or an external load. In the context of a sectional valve, this functionality is achieved through specific spool configurations. The specification "Spool Action 1: Power Up/Gravity Down" precisely describes this operational mode.
- Power Up: When the spool is actuated, pressurized fluid is directed to the "A" work port (or equivalent), extending the cylinder with hydraulic force.
- Gravity Down: When the spool is shifted to the return position, the "A" work port is connected to the tank line, allowing the cylinder to retract due to gravity or an external load, while fluid is displaced back to the reservoir.
The Indispensable Role of Power Beyond
The "Power Beyond" feature is a critical attribute for modern hydraulic systems requiring multiple control valves. In a typical open-center hydraulic system without Power Beyond, when fluid passes through the first valve and is not actively directed to an actuator, it returns to the tank. This means that subsequent valves downstream would not receive pressurized flow. Power Beyond functionality solves this challenge.
A Power Beyond port is an auxiliary pressure port located at the outlet of a valve section, designed to route the main system pressure to the inlet of another control valve or hydraulic component downstream, even when the upstream valve is in its neutral position. Instead of returning to the tank, the flow passes through the Power Beyond sleeve and is presented as pressurized fluid to the next component in the series circuit. This capability enables the daisy-chaining of multiple sectional valves, allowing several functions to be controlled from a single hydraulic pump and main relief valve, without significant pressure loss or complex piping arrangements. This is especially advantageous in mobile equipment like tractors, construction machinery, and utility vehicles that often require simultaneous or sequential operation of various implements.
The integration of Power Beyond in the 21 GPM valve ensures maximum flexibility for system integrators. It simplifies hydraulic plumbing, reduces the need for additional pumps or diverter valves, and optimizes the utilization of hydraulic power across the entire system. Without Power Beyond, each valve would typically require a separate pressure inlet, which is inefficient and costly. Its inclusion confirms this valve's design for comprehensive, multi-function hydraulic architectures.
Control Mechanisms: Handle and Cable Versatility
Operational control is fundamental to user experience and application suitability. This valve offers versatility by accommodating both handle and cable controls.
- Handle Controls: Direct mechanical linkage provides immediate tactile feedback to the operator. This method is often preferred for applications where the operator is in close proximity to the valve and requires a robust, intuitive interface. It offers a direct feel for spool movement and can be very reliable in harsh environments due to its mechanical simplicity.
- Cable Controls: This option provides remote operation, allowing the valve to be mounted in an optimal location (e.g., away from the operator, closer to the actuators, or in a less exposed area) while the control lever remains accessible in the operator’s cabin. Cable controls are ideal for improving ergonomics, reducing noise transmission to the operator, and providing greater flexibility in equipment design. They transmit linear motion from the operator’s lever to the valve spool via a flexible cable assembly, ensuring precise and responsive remote actuation.
Porting Standards and Connectivity
Adherence to industry-standard porting is crucial for ease of integration and maintenance. This valve utilizes SAE ORB (O-Ring Boss) porting, a widely accepted standard in hydraulic systems known for its superior sealing integrity compared to pipe threads.
- Inlet Port Size: 3/4 SAE ORB (-12)
- Outlet Port Size: 3/4 SAE ORB (-12)
- Work Port Size: 5/8 SAE ORB (-10)
Operational Context and Applications
Given its technical specifications, including a nominal 21 GPM flow rate, 4500 PSI maximum pressure, 3-way functionality (Power Up/Gravity Down spool), cast-iron sectional construction, and Power Beyond capability, this valve is ideally suited for a wide array of demanding mobile and industrial hydraulic applications.
-
Mobile Equipment:
- Snow and Ice Control: Essential for operating snowplows, sanders, and salt spreaders, controlling lift, angle, and dump functions. The Power Up/Gravity Down spool is perfect for raising a plow and allowing it to lower by its own weight or hydraulic assist.
- Dump Trucks and Trailers: Controlling the lift and lower functions of dump bodies.
- Refuse Vehicles: Operating various compaction and lifting mechanisms.
- Utility and Service Trucks: Powering auxiliary equipment such as cranes, outriggers, and material handling attachments.
- Agricultural Machinery: Controlling implements like cultivators, sprayers, and small loaders where robust, reliable hydraulic power is critical.
-
Industrial Applications:
- Material Handling: In light to medium-duty industrial lifts, conveyors, and positioning equipment.
- Compact Industrial Presses: Where controlled upward force and gravitational return are acceptable.
- Manufacturing Automation: As a component in custom hydraulic power units for specific linear actuation tasks.
Advanced Considerations: Efficiency and Longevity
The overall efficiency of a hydraulic system is significantly influenced by the performance of its control valves. This 21 GPM sectional valve is designed with features that contribute to system efficiency and extended operational life:
- Minimized Pressure Drop: Optimized internal flow passages in the cast-iron body reduce energy losses due to friction, ensuring that more hydraulic power is available for work and less is dissipated as heat.
- Leakage Control: The precision machining of the cast-iron sections, combined with high-quality seals and the SAE ORB porting, significantly minimizes internal and external leakage. This not only prevents environmental contamination but also maintains system pressure and efficiency over time.
- Thermal Stability: Cast iron's ability to resist thermal distortion helps maintain critical internal tolerances, ensuring consistent performance even as fluid temperatures fluctuate during operation. This prevents premature wear and maintains sealing effectiveness.
- Corrosion Resistance: While not explicitly stated, standard surface treatments and the inherent properties of cast iron provide a degree of corrosion resistance, crucial for outdoor and harsh operating environments.
- Maintenance Access: The sectional design simplifies inspection and repair. Although the existing unit does not feature integrated port reliefs, the modularity ensures that these or other advanced functions could be added or serviced if configured in a different model variant.
Conclusion
The Buyers Products 21 GPM Sectional Valve with 3-Way and Power Beyond functionality is a testament to sophisticated hydraulic engineering. Its heavy-duty cast-iron construction ensures unparalleled durability and resistance to the rigors of high-pressure, high-flow applications. The precise 21 GPM nominal flow rate and robust 4500 PSI maximum pressure rating provide ample power for a diverse range of demanding tasks. The "Power Up/Gravity Down" cylinder spool configuration makes it an ideal choice for single-acting cylinder applications such as those found in snowplows and dump bodies, while the integral Power Beyond capability revolutionizes multi-valve system design by facilitating efficient serial fluid transfer. With versatile handle and cable control options and industry-standard SAE ORB porting, this valve offers both ergonomic flexibility and seamless integration into existing or new hydraulic architectures. This product is not merely a component; it is a foundational element for constructing reliable, efficient, and highly adaptable hydraulic systems, designed to perform under the toughest conditions and provide long-term value through its modularity and robust construction. For tailored configurations or advanced technical inquiries, customers are encouraged to contact dedicated Customer Service or Hydraulics Technical Support to fully leverage the extensive capabilities of this formidable hydraulic control valve.
