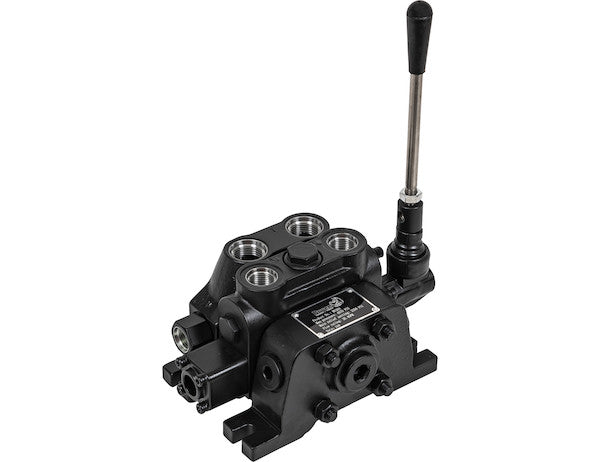

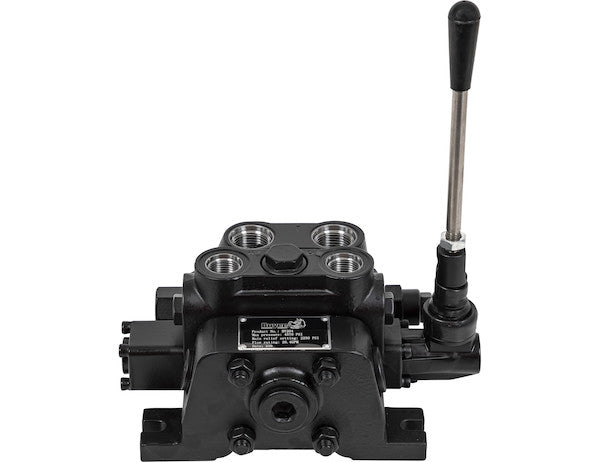

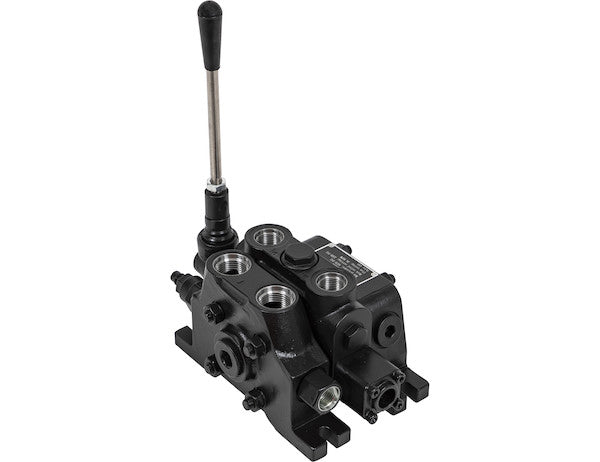

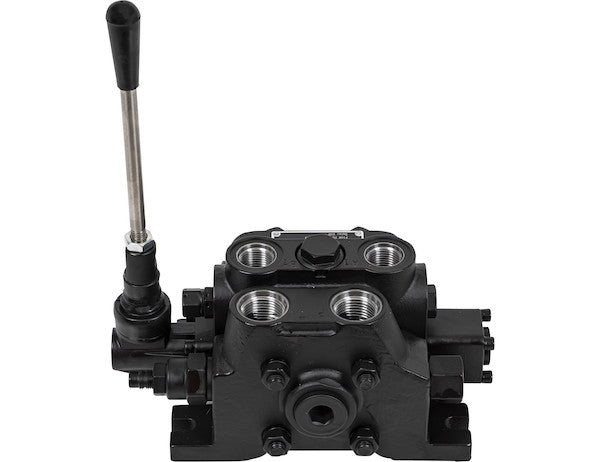

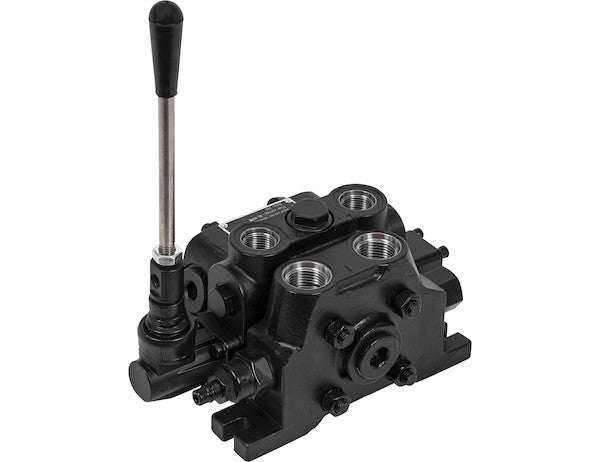

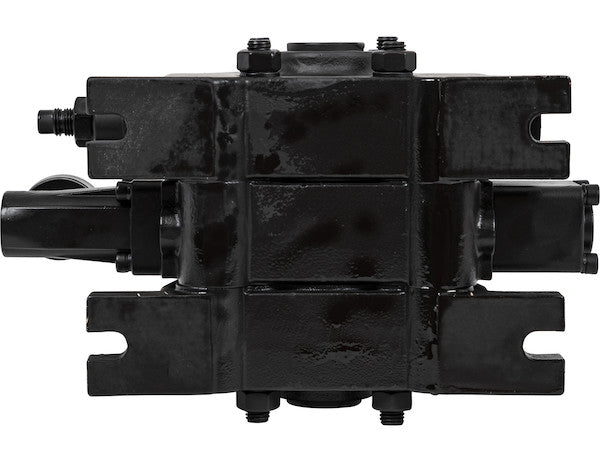

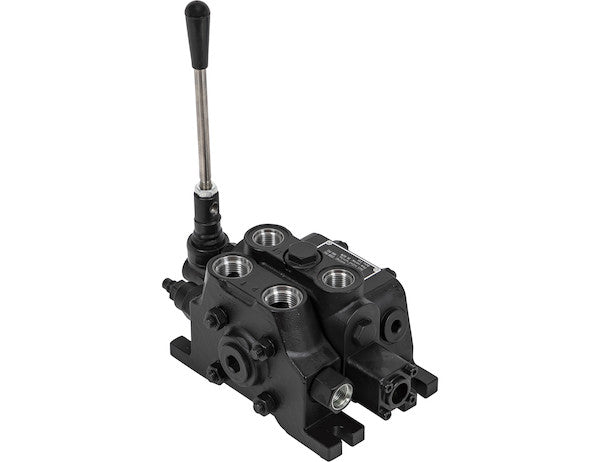

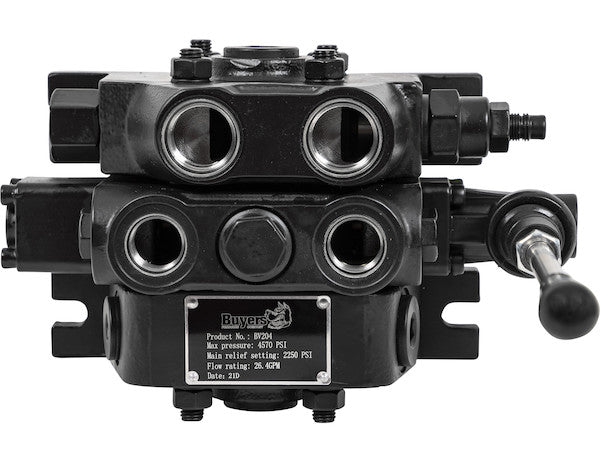

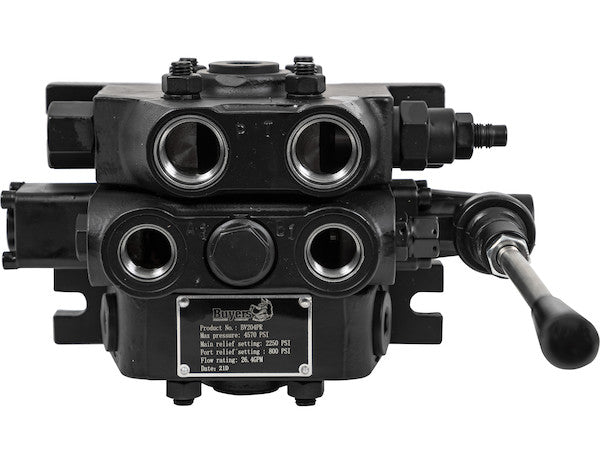

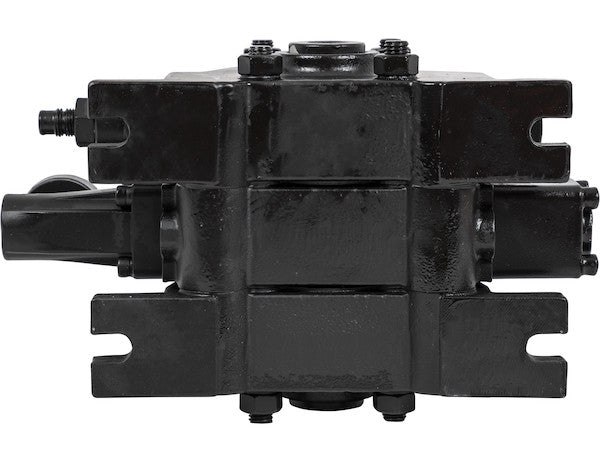

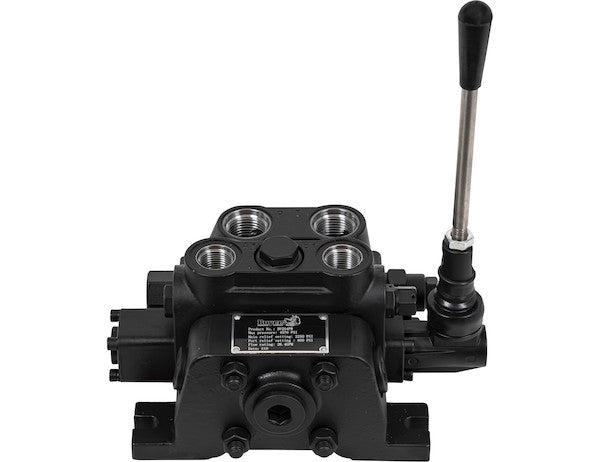

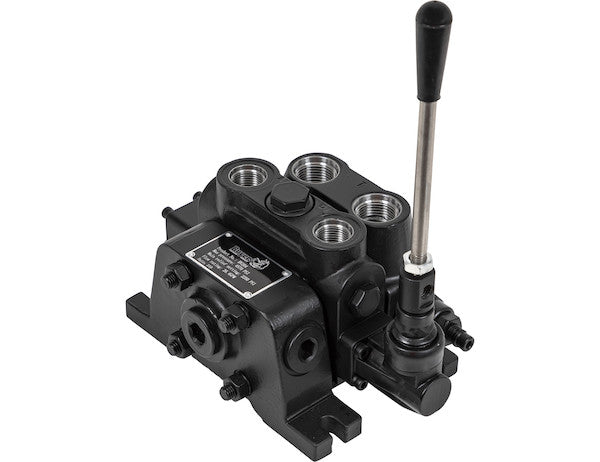

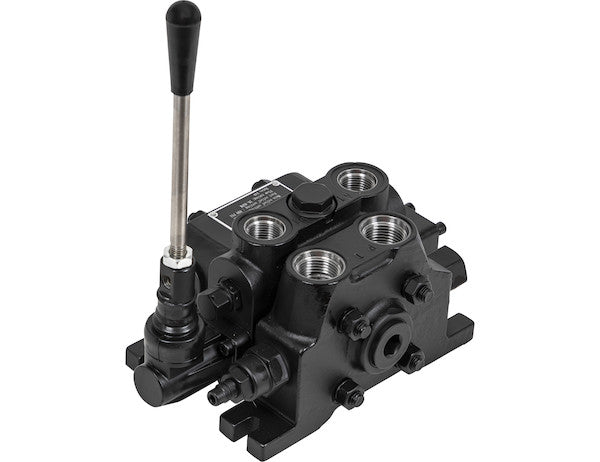

The 21 GPM Valve from Buyers Products is a tough, cast-iron sectional valve you can accommodate handle or cable controls to meet your hydraulic needs. The valve can handle the most demanding jobs, with a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. This sectional valve offers a lot of versatility in spool action and Power Beyond options to configure to your work needs. It can accommodate either handle or cable controls. All valves have cylinder spools. Additional functions and configurations are available. Please contact Customer Service for further information or Hydraulics Technical Support for assistance.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2250 |
| Maximum Flow Rate | 25 |
| Maximum Pressure | 4500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Port Relief (y/n) | Yes |
| Port Relief Angle | Y |
| Port Relief Dump | Y 800 PSI |
| Port Type | SAE |
| Power Beyond (y/n) | No |
| Spool Action 1 | Power Up/Power Down - 1 Port Relief |
| Work Port Size | 5/8 SAE ORB (-10) |
Advanced Technical Overview: The 21 GPM 4-Way Sectional Valve with Integrated Port Relief
The Buyers Products 21 GPM 4-Way Sectional Valve with 1 Port Relief represents a pinnacle of hydraulic control technology, engineered for the most demanding mobile and industrial applications. This robust, cast-iron constructed valve is designed to deliver precise, reliable, and efficient hydraulic power management, making it an indispensable component for a wide array of heavy-duty machinery. Its modular design, coupled with advanced pressure and flow management capabilities, ensures superior performance and unparalleled system protection.
Core Hydraulic Performance: Flow and Pressure Dynamics
At the heart of this hydraulic control unit lies its exceptional capability to manage fluid flow and pressure. The valve is nominally rated for a flow rate of 21 Gallons Per Minute (GPM), signifying its optimal operational efficiency at this throughput. However, its robust internal architecture allows it to accommodate a maximum flow rate of up to 25 GPM, providing an essential margin for applications that experience transient flow spikes or require a higher peak capacity. This distinction between nominal and maximum flow is critical for system designers, ensuring that the valve can consistently perform within its most efficient range while offering resilience against higher momentary demands.
Pressure management is equally impressive, with the valve engineered to operate under system pressures reaching up to 4500 PSI. This high-pressure rating underscores its suitability for heavy-duty tasks where significant force generation is required. The valve incorporates a highly adaptable main relief valve, factory preset at 2250 PSI, which is crucial for safeguarding the entire hydraulic system from over-pressurization. This main relief can be precisely adjusted within a broad range of 1300 to 3000 PSI, offering unparalleled flexibility to match the specific pressure requirements of diverse applications and protect critical system components such as pumps, hoses, and actuators from damage due to excessive pressure build-up. The ability to fine-tune the main relief setting allows hydraulic engineers to optimize system performance, prevent component fatigue, and extend the operational life of the machinery.
Advanced Protection: Integrated Port Reliefs
Beyond the main system relief, this sectional valve distinguishes itself with the inclusion of two additional adjustable port reliefs: an angle relief and a dump relief. These port reliefs are strategically designed to provide localized protection for specific hydraulic functions and actuators, which often encounter pressure spikes independent of the main system pressure. For instance, the dump relief is preset at 800 PSI, offering targeted protection for operations that involve the rapid discharge or dumping of materials, where sudden deceleration or impact can generate momentary high pressures. The angle relief offers similar localized protection for angular movements, preventing over-pressurization within a specific cylinder or motor circuit during directional changes or when encountering external loads.
The integration of these adjustable port reliefs is a significant advantage. They act as critical safety mechanisms, absorbing shock loads and pressure surges that could otherwise lead to actuator damage, hose rupture, or structural failure in the equipment. By providing localized pressure limitation, these reliefs ensure that the force applied to the actuator remains within safe operating limits, significantly enhancing the reliability and longevity of the hydraulic system and the machinery it controls. This multi-tiered approach to pressure management—main relief for overall system protection and port reliefs for specific circuit safeguarding—is a hallmark of a meticulously engineered hydraulic control solution.
Robust Construction and Modular Sectional Design
The choice of cast iron for the valve body is a testament to its intended application in arduous environments. Cast iron offers exceptional durability, high tensile strength, and excellent resistance to wear, fatigue, and corrosion, making it ideal for hydraulic components that endure high pressures, continuous vibrations, and exposure to challenging operational conditions. This material selection ensures the valve's structural integrity and prolonged operational life, even under extreme stresses.
A key distinguishing feature of this product is its sectional valve design. Unlike monoblock valves, a sectional valve comprises multiple interconnected work sections, each corresponding to a specific hydraulic function. This modularity offers significant advantages:
- Customization and Flexibility: Each section can house a different spool type or feature, allowing for precise tailoring of the valve's functionality to specific application requirements. While this particular configuration features a specific spool action and does not include Power Beyond, the inherent sectional design means that additional work sections with different spool types, flow paths, or even Power Beyond functionality can be integrated or replaced to adapt to evolving needs or specialized tasks.
- Ease of Maintenance and Repair: In the event of damage or wear to a single section, only that specific section needs to be replaced or serviced, rather than the entire valve block. This significantly reduces downtime and maintenance costs.
- Scalability: The number of sections can be increased or decreased, allowing the hydraulic system to be expanded or contracted as required, providing a scalable solution for varying machine complexities.
- Enhanced Performance: The individual sections are precisely machined to minimize internal leakage and pressure drop, contributing to higher overall system efficiency and more responsive control.
Spool Configuration and Control Mechanisms
The valve features a 4-way, 3-position spool configuration, which is the standard for controlling double-acting hydraulic cylinders. A 4-way valve indicates that there are four ports (pressure, tank, and two work ports), enabling it to direct fluid to extend or retract a cylinder. The 'Power Up/Power Down - 1 Port Relief' spool action indicates a specific detent or spring-return characteristic designed for applications requiring precise, controlled movement in both directions, often seen in lifting or lowering operations. The "cylinder spool" designation confirms its optimization for linear actuators, ensuring smooth and efficient extension and retraction.
Control of the spool movement is achieved through robust mechanical interfaces. The valve is designed to accommodate either handle or cable controls.
- Handle Controls: Provide direct, tactile feedback to the operator, offering intuitive and immediate manipulation of hydraulic functions. They are highly reliable due to their mechanical simplicity and are often preferred in applications where the operator is in close proximity to the valve.
- Cable Controls: Offer the advantage of remote operation, allowing the valve to be mounted in a protected location while the operator controls the functions from a cabin or control panel. This enhances operator safety and comfort, and simplifies machine design by eliminating complex linkage systems.
Porting Standards and Interface
Adherence to industry-standard porting is crucial for ease of integration and system compatibility. This valve utilizes SAE ORB (O-Ring Boss) ports, known for their superior sealing capabilities and resistance to leakage at high pressures. The specific port sizes are meticulously chosen to optimize flow and minimize pressure drop:
- Inlet Port Size: 3/4 SAE ORB (-12) – The larger inlet ensures an unrestricted flow of hydraulic fluid from the pump into the valve.
- Outlet Port Size: 3/4 SAE ORB (-12) – A similarly sized outlet facilitates efficient return flow to the reservoir, preventing back pressure build-up.
- Work Port Size: 5/8 SAE ORB (-10) – These ports connect directly to the actuators (cylinders or motors), providing appropriate flow for controlled movement while maintaining compact dimensions.
Versatility and Application Spectrum
The robust construction, high flow and pressure ratings, and comprehensive pressure protection mechanisms make the Buyers Products 21 GPM 4-Way Sectional Valve suitable for an extensive range of demanding applications across various industries:
- Snow and Ice Control Equipment: Ideal for controlling snowplow blades (lift, angle), salt spreaders, and de-icing equipment, where reliable operation in harsh, cold conditions is paramount.
- Dump Truck and Trailer Applications: Manages the precise lifting and lowering of dump beds, ensuring safe and efficient material discharge. The port reliefs are particularly beneficial here for absorbing shock loads during dumping.
- Utility and Municipal Vehicles: Powers auxiliary functions on service trucks, refuse vehicles, and street sweepers, providing reliable control for various attachments and implements.
- Agricultural Machinery: Used in tractors and implements for controlling various functions such as loader arms, cultivators, and other hydraulic attachments, where both power and precision are required.
- Construction Equipment: Suitable for smaller excavators, skid steers, and other construction machinery requiring robust control of their hydraulic tools and actuators.
- Material Handling: In forklifts, lift tables, and conveyor systems, providing dependable control for lifting, lowering, and tilting mechanisms.
- Industrial Applications: For various hydraulic presses, clamping mechanisms, and process control systems where manual, direct hydraulic control is preferred for its simplicity and reliability.
The valve's ability to accommodate a wide range of operational pressures and flow demands, coupled with its protective features, ensures consistent performance and minimizes the risk of system failure in these diverse operational contexts.
Technical Support and Customization
While this specific configuration of the 21 GPM 4-Way Sectional Valve offers significant capabilities, Buyers Products emphasizes its commitment to comprehensive customer support. The inherent modularity of a sectional valve means that further customization and alternative configurations are readily available. For applications requiring different spool actions, additional work sections, specialized port reliefs, or even Power Beyond functionality (which, while not present in this specific model, is a common feature in the sectional valve family), customers are encouraged to contact Customer Service or Hydraulics Technical Support. This dedicated support ensures that engineers and operators can leverage the full potential of Buyers Products' hydraulic solutions, tailoring them precisely to unique operational requirements and maximizing system efficiency and longevity.
Conclusion
The Buyers Products 21 GPM 4-Way Sectional Valve with 1 Port Relief stands as a testament to advanced hydraulic engineering. Its robust cast-iron construction, high flow and pressure ratings, adjustable main and port relief valves, and versatile mechanical control options collectively deliver a powerful, reliable, and adaptable solution for critical hydraulic control applications. Designed for demanding environments and precision operation, this valve ensures system integrity, prolongs equipment life, and provides operators with consistent, responsive control. It represents a strategic investment in the performance and durability of any hydraulic system it serves, backed by the flexibility and support offered by its modular design and dedicated technical assistance.
