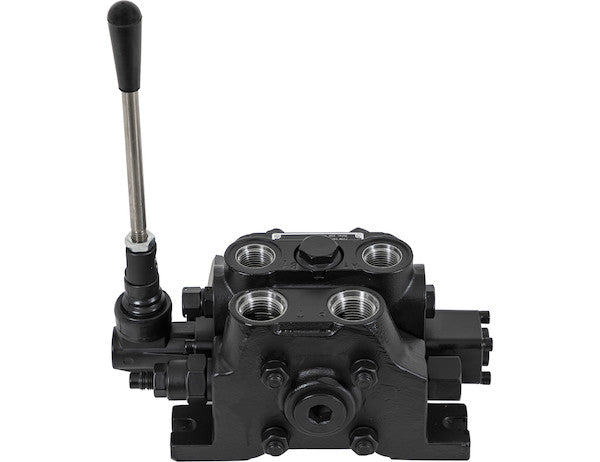

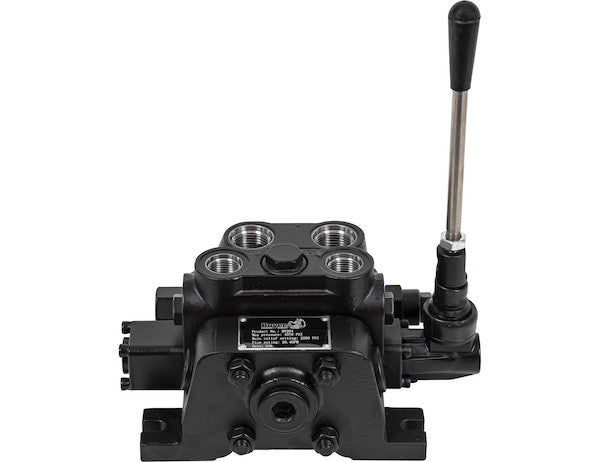

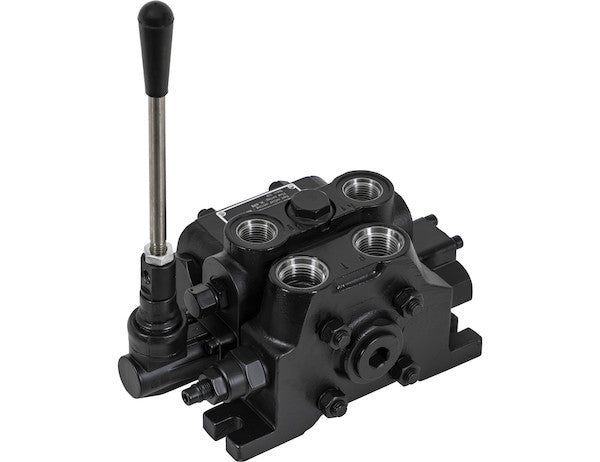

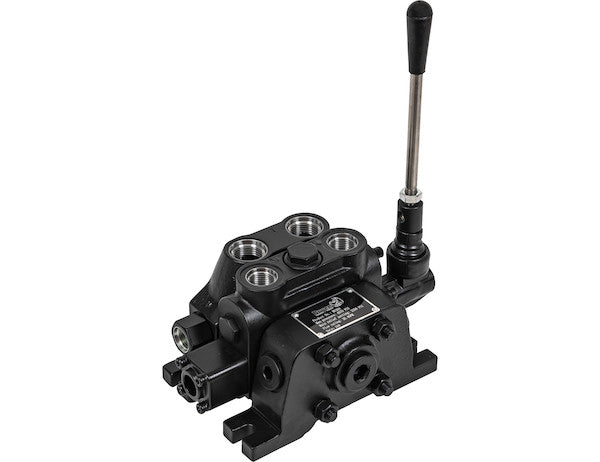

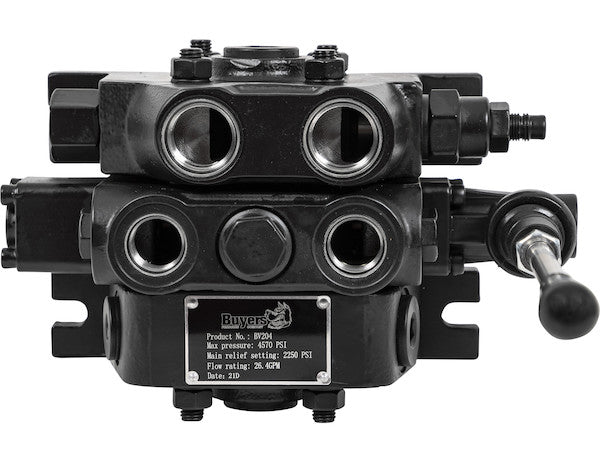

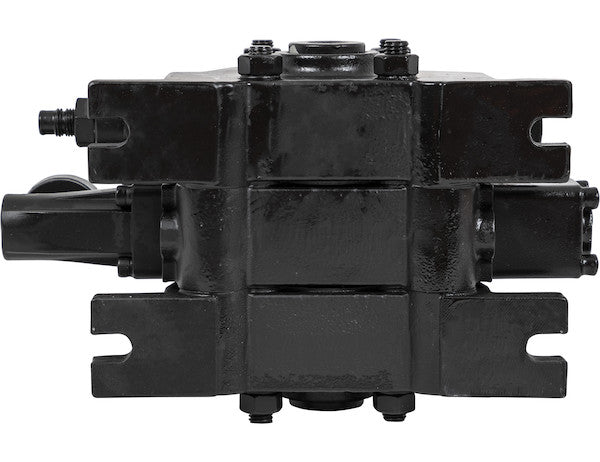

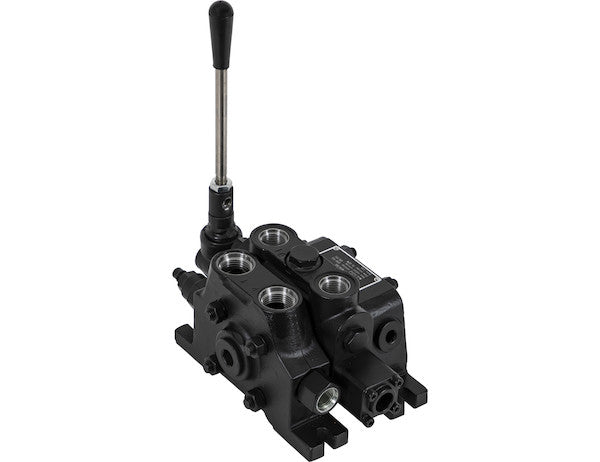

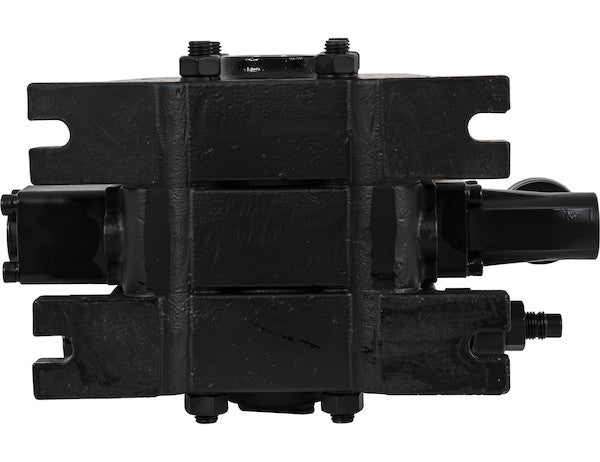

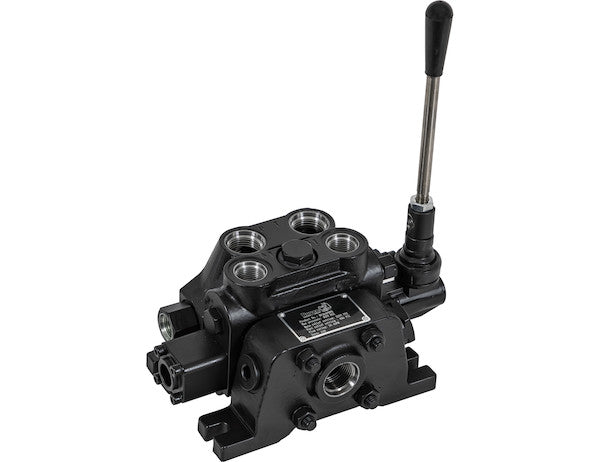

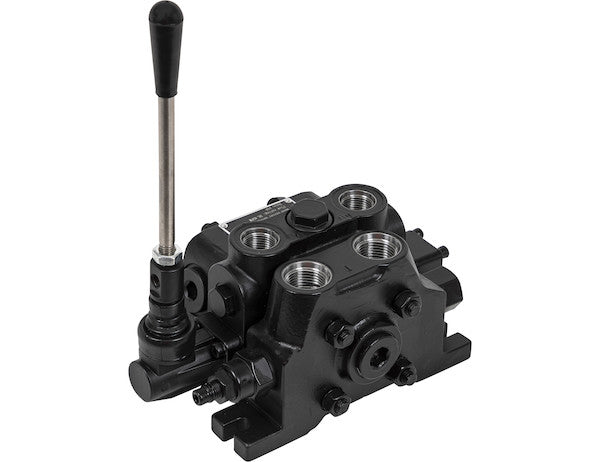

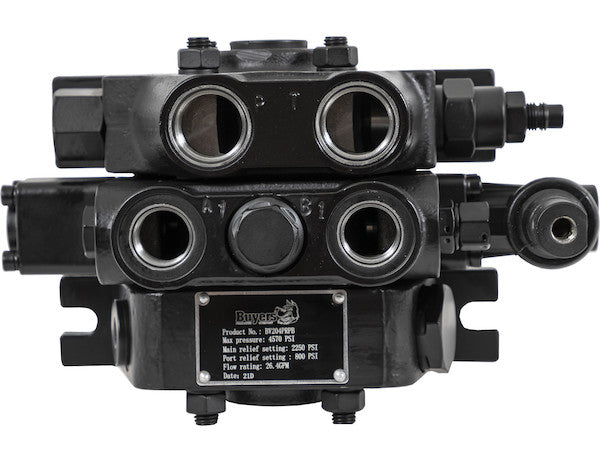

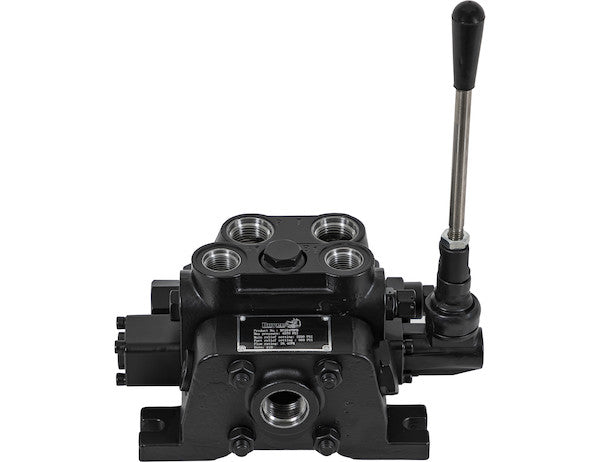

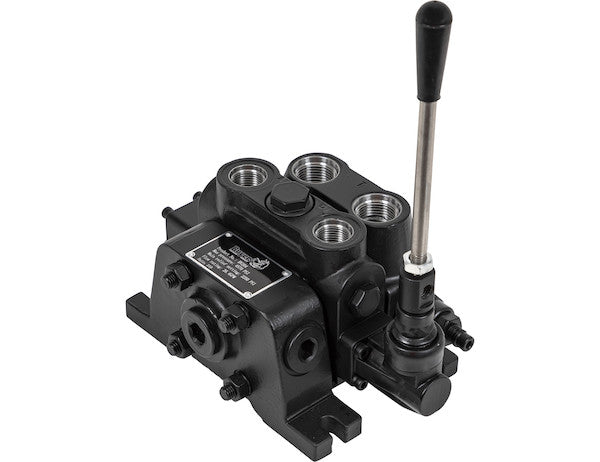

The 21 GPM Valve from Buyers Products is a tough, cast-iron sectional valve you can accommodate handle or cable controls to meet your hydraulic needs. The valve can handle the most demanding jobs, with a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. This sectional valve offers a lot of versatility in spool action and Power Beyond options to configure to your work needs. It can accommodate either handle or cable controls. All valves have cylinder spools. Additional functions and configurations are available. Please contact Customer Service for further information or Hydraulics Technical Support for assistance.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 3/4 SAE ORB (-12) |
| Main Relief Setting | 2250 |
| Maximum Flow Rate | 25 |
| Maximum Pressure | 4500 |
| Outlet Port Size | 3/4 SAE ORB (-12) |
| Port Relief (y/n) | Yes |
| Port Relief Angle | Y 800 PSI |
| Port Relief Dump | Y 800 PSI |
| Port Type | SAE |
| Power Beyond (y/n) | Yes |
| Spool Action 1 | Power Up/Power Down - 1 Port Relief |
| Work Port Size | 5/8 SAE ORB (-10) |
The 21 GPM 4-Way Sectional Hydraulic Valve with 1 Port Relief and Power Beyond is an exemplary piece of hydraulic engineering, meticulously designed to meet the rigorous demands of modern mobile and industrial hydraulic applications. This valve represents a cornerstone component for systems requiring precise control, robust protection, and expandable functionality. Its comprehensive feature set, including a substantial flow rate, high-pressure handling capabilities, multi-stage pressure relief, and integral Power Beyond functionality, positions it as a superior choice for complex hydraulic circuits. This detailed description aims to provide an in-depth technical overview of its capabilities, design philosophy, and operational advantages.
Core Functionality: Precision Directional Control (4-Way Configuration)
At the heart of this product's utility is its fundamental role as a 4-way directional control valve. In hydraulic systems, a 4-way valve is essential for operating double-acting hydraulic cylinders or reversible hydraulic motors. The "4-way" designation refers to the valve's four primary ports: an inlet pressure port (P), a return to tank port (T), and two work ports (A and B). These ports facilitate the precise routing of hydraulic fluid to and from an actuator, enabling bidirectional movement or rotation. For a double-acting cylinder, for instance, fluid directed to port A extends the rod while fluid from port B returns to the tank, and vice-versa for retraction. This precise control over fluid direction is paramount for applications requiring accurate positioning, lifting, lowering, or rotational tasks.
The valve is equipped with dedicated cylinder spools, optimized for controlling the movement of hydraulic cylinders. The standard spool action provided is "Power Up/Power Down," indicating a detent or spring-centered configuration that allows for sustained pressure to be applied in both extension and retraction strokes, facilitating controlled lifting and lowering operations under load. This specific spool action is highly advantageous in applications such as dump bodies, snowplows, and other lifting mechanisms where active force is required in both directions. The non-electrically operated nature of this valve underscores its robust, mechanical control, which can be advantageous in environments where electrical systems are impractical or undesirable, providing straightforward and reliable manual actuation via handle or cable controls.
The flow rate capability is a critical performance metric. With a nominal rating of 21 Gallons Per Minute (GPM) and a maximum flow rate of 25 GPM, this valve is engineered to support a broad spectrum of hydraulic actuators, from moderate to large. A higher flow rate directly translates to faster actuator speeds for a given cylinder size, which is vital for maintaining productivity and efficiency in time-sensitive operations. The ample flow capacity ensures that hydraulic cylinders and motors receive sufficient fluid volume to perform their tasks quickly and effectively, minimizing cycle times and maximizing operational output. This generous flow rating also provides a margin for system expansion or future upgrades, ensuring the valve remains a viable component as system requirements evolve.
Advanced Pressure Management and System Protection
Hydraulic systems inherently operate under high pressures, making robust pressure management and protection mechanisms absolutely vital for safety, longevity, and operational integrity. This sectional valve incorporates a sophisticated multi-tiered pressure relief system, including a main relief valve and two adjustable port reliefs, offering comprehensive circuit protection.
Main Relief Valve
The main relief valve serves as the primary safeguard for the entire hydraulic circuit. It is strategically integrated into the inlet section of the valve to protect the pump and other upstream components from excessive pressure buildup. When the system pressure exceeds the set threshold, the main relief valve diverts hydraulic fluid directly back to the tank, preventing damage to the pump and other critical components. The main relief on this valve is highly adjustable, offering a range from 1300 PSI to 3000 PSI, with a factory preset of 2250 PSI. This wide adjustability allows system designers and operators to fine-tune the maximum operating pressure to precisely match the requirements of their specific application, optimizing performance while ensuring safety. Furthermore, the valve is constructed to withstand a maximum system pressure of 4500 PSI, with an operational rating of 4300 PSI when the main relief is configured for higher pressure settings. This exceptional pressure tolerance speaks volumes about the valve's robust design and its suitability for the most demanding, heavy-duty applications.
Port Relief Valves (Angle and Dump)
Beyond the main relief, the inclusion of two adjustable port relief valves—specifically designated for "Angle" and "Dump" functions—provides an additional layer of localized protection for individual work ports and their connected actuators. Unlike the main relief, which protects the entire system, port reliefs are designed to safeguard specific actuators from pressure spikes caused by external forces or sudden shock loads on the cylinder itself. For example, if a snowplow blade encounters an immovable object, or a dump body experiences an abrupt shift in load, the forces generated could create transient pressure peaks that exceed the actuator's safe operating limits. These port reliefs, preset at 800 PSI, activate to relieve such localized overpressure, channeling fluid back to the return line without affecting the main system pressure. The adjustability of these port reliefs ensures that each function can be precisely protected according to its specific requirements, preventing structural damage to cylinders, hoses, and other components, thereby significantly extending the lifespan of the hydraulic system and its implements. The ability to specify "Y 800 PSI" for both Angle and Dump port reliefs highlights their tailored application-specific protection, ensuring safety and reliability in dynamic operational environments.
System Integration and Expandability: Power Beyond Functionality
The "Power Beyond" feature is a critical differentiator for this sectional valve, offering significant advantages in the design and operation of multi-function hydraulic systems. In many mobile and industrial applications, a single hydraulic pump needs to supply multiple hydraulic functions or implements. Without Power Beyond, a series of individual valves would require a complex and often inefficient plumbing arrangement, where return lines from one valve might interfere with the pressure supply of another, or the system would necessitate a separate pump for each function. Power Beyond functionality resolves this by allowing the pressurized hydraulic fluid, after passing through the initial valve section, to be routed to subsequent directional control valves downstream, rather than being immediately returned to the tank. This effectively creates a series circuit for the pressure line while maintaining parallel operation for the work ports within each valve section.
The primary benefit of Power Beyond is its ability to simplify plumbing and optimize the use of a single hydraulic pump. It enables the creation of expandable hydraulic systems where multiple actuators can be controlled sequentially or, in some designs, even quasi-simultaneously (depending on system architecture and operator input). This modular approach facilitates the integration of various implements or functions on a single vehicle or machine, such as controlling a snowplow blade, a salt spreader, and a hoist all from one hydraulic power unit, without suffering significant pressure drop or flow starvation for the downstream functions when the upstream functions are idle. This capability significantly enhances the versatility and efficiency of hydraulic machinery, allowing for complex operational sequences and expanding the range of tasks a single machine can perform, thereby reducing equipment costs and operational complexity.
Robust Construction and Sectional Design Advantages
The material and design philosophy behind a hydraulic valve are paramount to its long-term performance and reliability. This valve is constructed from tough, cast-iron, a material renowned in the hydraulic industry for its exceptional strength, rigidity, and durability. Cast iron offers superior resistance to wear, fatigue, and vibration, making it an ideal choice for the demanding operational environments typical of heavy machinery. Its inherent density also contributes to excellent heat dissipation properties, helping to maintain optimal hydraulic fluid temperatures and prevent premature degradation of the fluid and system components. The robust cast-iron housing ensures structural integrity even under the maximum operating pressure of 4500 PSI, safeguarding the internal components and maintaining precise tolerances over an extended service life.
The sectional design of this valve further enhances its utility and adaptability. Unlike monoblock valves, which are manufactured as a single, integrated unit, sectional valves are composed of individual work sections, an inlet section, and an outlet end cap, all bolted together. This modular construction offers several distinct advantages:
- Customization and Versatility: The sectional design allows for significant customization. Additional work sections can be added, removed, or reconfigured to meet evolving hydraulic needs, enabling the valve to adapt to a wide array of applications and machine configurations. This flexibility is invaluable for manufacturers who produce different variants of equipment or for end-users seeking to upgrade or modify their machinery.
- Ease of Maintenance and Repair: Should a single section develop an issue, it can be easily replaced or serviced without requiring the replacement of the entire valve block. This significantly reduces downtime and maintenance costs, as repairs can be targeted to specific problematic sections.
- Scalability: The ability to add or remove sections means the hydraulic system can be scaled up or down in terms of the number of functions it controls, providing a future-proof solution for expanding operational requirements.
- Optimized Performance: Each section can be configured with specific spool types, relief settings, and functionality, allowing for a highly optimized hydraulic system tailored to precise operational demands.
Control Interface and Ergonomics
The operational interface of a hydraulic valve plays a crucial role in user experience and control precision. This 21 GPM valve offers versatile control options, accommodating either handle or cable controls. This flexibility allows for integration into diverse machinery designs and operator preferences.
- Handle Controls: Direct handle controls offer tactile feedback and are often preferred for applications where the operator is in close proximity to the valve, allowing for immediate and intuitive manual manipulation. They are known for their simplicity, reliability, and robust mechanical connection, making them suitable for environments where direct operator input is paramount.
- Cable Controls: Cable controls provide the advantage of remote operation, enabling the valve to be positioned in the most hydraulically efficient location, even if it's not directly accessible to the operator. This separation between the operator control lever and the valve body simplifies cab design, reduces noise and heat in the operator's station, and enhances safety by keeping hydraulic lines away from the operator. High-quality push-pull cables transmit force efficiently and precisely, ensuring responsive control from a distance.
The decision between handle and cable controls often depends on the specific machine's ergonomics, operator safety requirements, and installation constraints. The provision for both options underscores the valve's adaptability to a broad spectrum of vehicle and equipment designs, from utility trucks to construction machinery.
Hydraulic Connections and Industry Standards
Proper hydraulic connections are fundamental to preventing leaks, ensuring system integrity, and facilitating easy maintenance. This valve utilizes SAE O-Ring Boss (ORB) ports for all connections, adhering to recognized industry standards. SAE ORB fittings are highly regarded for their superior sealing capability, primarily due to the O-ring that provides a robust, elastomeric seal against a machined surface. This design significantly reduces the risk of leaks, which are a common source of inefficiency and environmental concern in hydraulic systems.
The specific port sizes are thoughtfully chosen to match the valve's flow capabilities and operational demands:
- Inlet and Outlet Ports: Both the inlet and outlet ports are sized at 3/4 SAE ORB (-12). This generous sizing ensures minimal pressure drop across the main flow path, optimizing the efficiency of fluid delivery from the pump and efficient return to the tank. The larger diameter is critical for accommodating the valve's 21-25 GPM flow rate without creating excessive turbulence or heat.
- Work Ports: The work ports (A and B), which connect to the hydraulic actuators, are 5/8 SAE ORB (-10). This sizing is appropriate for routing fluid to and from cylinders or motors, balancing flow capacity with connection compactness.
The standardization to SAE ORB not only guarantees reliable, leak-free connections but also simplifies system assembly and part replacement, as these fittings are widely available and interchangeable across the industry. This commitment to standard fittings enhances the overall serviceability and compatibility of the valve within existing or new hydraulic systems.
Applications and Versatility
The combination of high flow, high pressure, advanced safety features, and modular design makes this 21 GPM 4-Way Sectional Valve incredibly versatile across a multitude of heavy-duty applications. Its "Power Up/Power Down" spool action, coupled with specific port reliefs for "Angle" and "Dump," makes it particularly suited for:
- Snowplow and Spreader Systems: Ideal for controlling the lift, angle, and dump functions of snowplows and salt/sand spreaders on municipal and commercial vehicles, where robust control and overload protection are paramount.
- Dump Trucks and Trailers: Effectively manages the lifting and lowering of dump bodies, providing controlled movement and protection against shock loads during operation.
- Utility and Service Vehicles: Suitable for controlling auxiliary hydraulic functions such as crane outriggers, lift gates, and various attachments on utility trucks.
- Agricultural Machinery: Can be integrated into tractors and other farm equipment for controlling implements like loaders, cultivators, and hay balers, where precise control and reliability are essential.
- Construction Equipment: Applicable in smaller construction machinery for operating buckets, blades, and other attachments requiring bidirectional hydraulic power.
- Material Handling Equipment: Found in forklifts and other material handling devices where lifting, tilting, and clamping functions are hydraulically operated.
Its robust cast-iron construction and high-pressure rating ensure reliable performance even in harsh operating conditions, including extreme temperatures, dirt, and continuous heavy use. The modular design further enhances its appeal, allowing for custom configurations that can evolve with specific project requirements, ensuring long-term utility and investment protection.
Conclusion
The 21 GPM 4-Way Sectional Hydraulic Valve with 1 Port Relief and Power Beyond represents a high-performance, durable, and highly adaptable solution for complex hydraulic control challenges. Its carefully engineered features—from the substantial 21 GPM nominal flow rate and robust 4500 PSI maximum pressure rating to the sophisticated multi-stage pressure relief system and invaluable Power Beyond functionality—underscore its capability to handle the most demanding jobs with precision and safety. The cast-iron sectional construction not only guarantees longevity and ease of maintenance but also offers unparalleled flexibility for customization and system expansion. With options for direct handle or remote cable controls, and standardized SAE ORB connections, this valve provides a comprehensive and technically superior platform for controlling critical hydraulic functions. For applications demanding uncompromising performance, safety, and versatility, this valve stands as an optimal choice, delivering reliability and efficiency that will drive productivity and extend the operational life of hydraulic machinery. For advanced configurations or specific technical inquiries, direct consultation with Customer Service or Hydraulics Technical Support is highly recommended to unlock the full potential of this exceptional hydraulic component.
