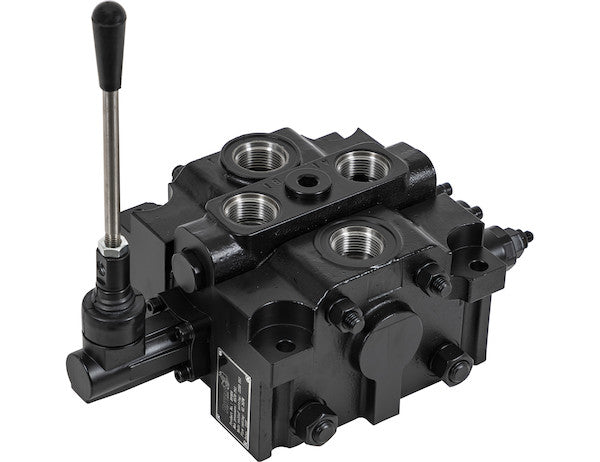

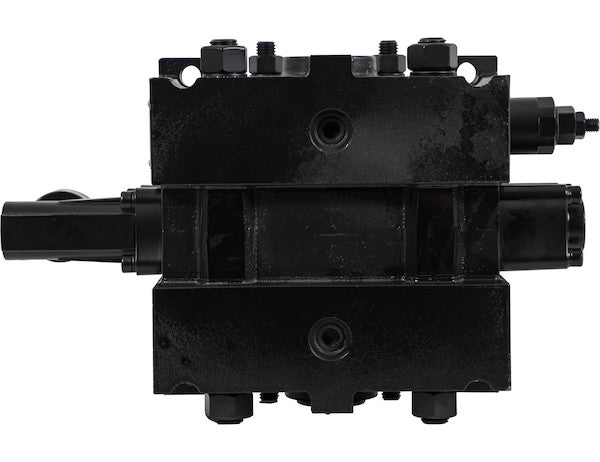

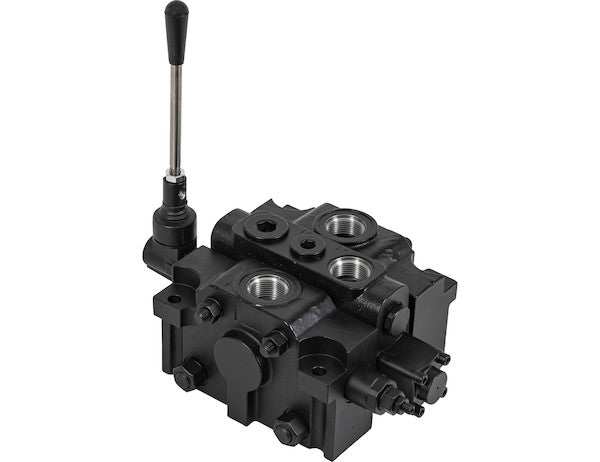

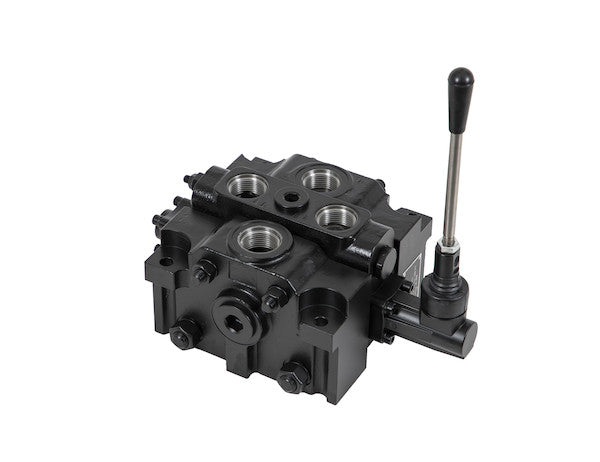

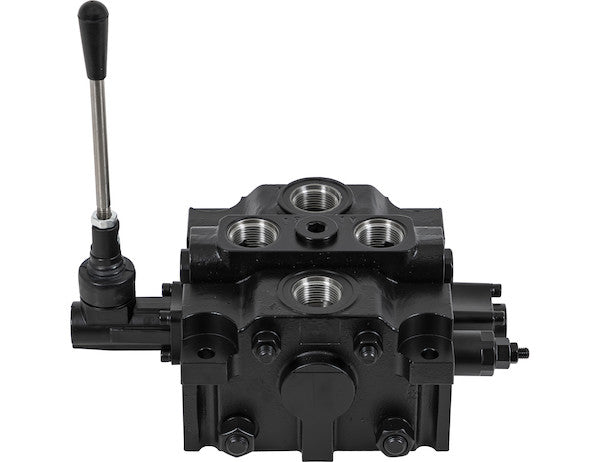

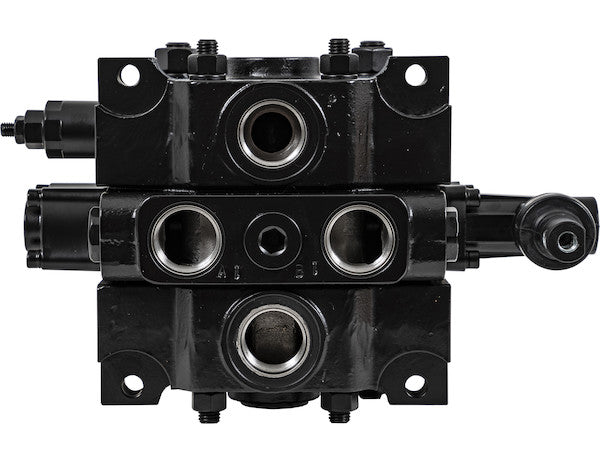

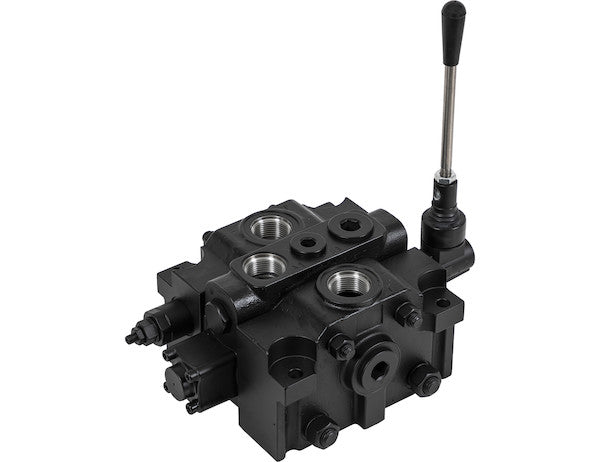

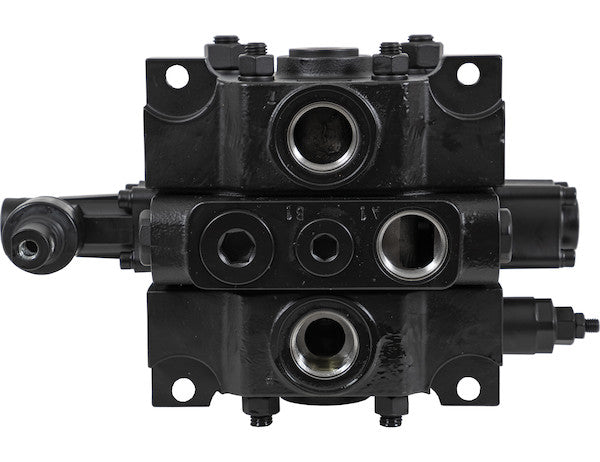

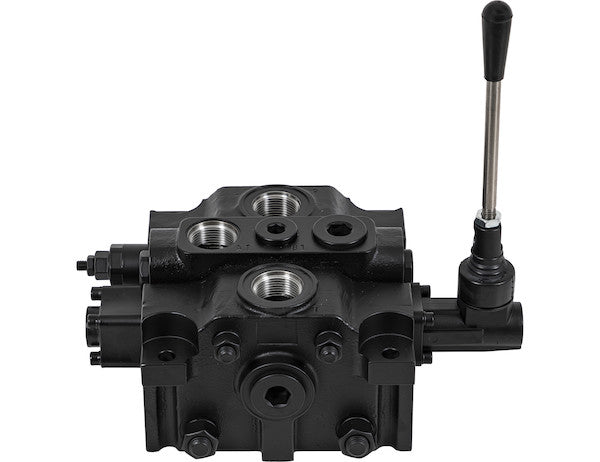

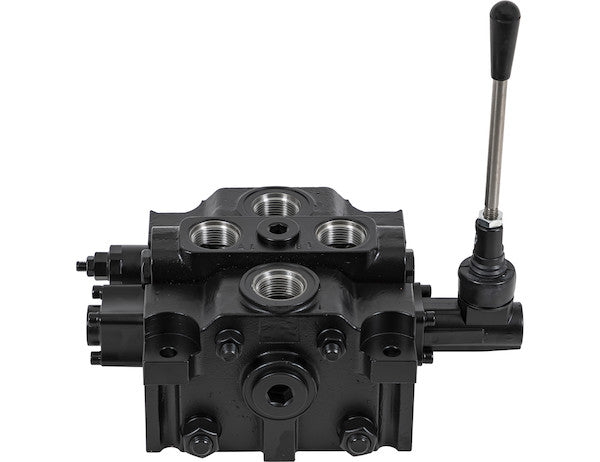

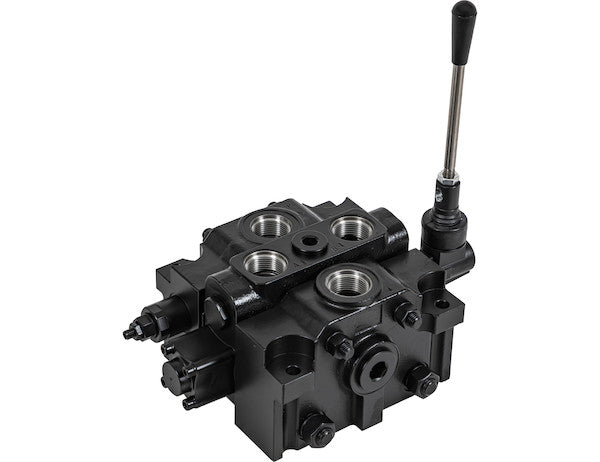

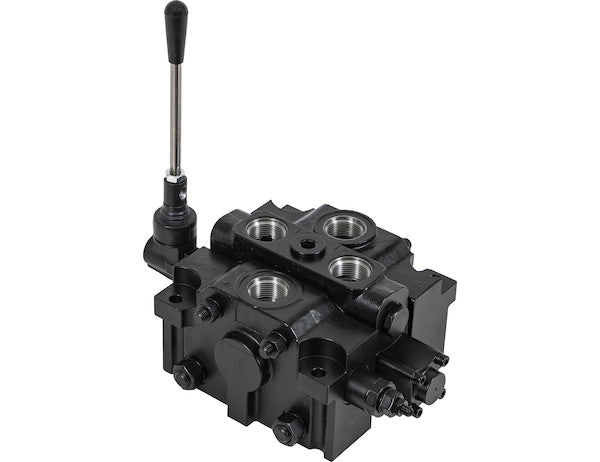

The 40 GPM Valve from Buyers Products is a tough, cast-iron sectional valve that can accommodate handle or cable controls to meet your hydraulic needs. It's designed for high-flow, high-pressure work requirements. The valve can handle the most demanding jobs, with a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. This sectional valve offers a lot of versatility in spool action and Power Beyond options to configure to your work needs. It can accommodate cable or handle controls. All valves have cylinder spools unless specified as motor. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 1 SAE ORB (-16) |
| Main Relief Setting | 2500 |
| Maximum Flow Rate | 40 |
| Maximum Pressure | 4500 |
| Outlet Port Size | 1 SAE ORB (-16) |
| Port Relief (y/n) | N |
| Port Relief Angle | N |
| Port Relief Dump | N |
| Port Type | SAE |
| Power Beyond (y/n) | N |
| Spool Action 1 | Power Up/Gravity Down |
| Work Port Size | 1 SAE ORB (-16) |
Precision Hydraulic Control: The 40 GPM 3-Way Sectional Valve
The 40 GPM Sectional Valve from Buyers Products represents a pinnacle of hydraulic control engineering, meticulously designed for the most demanding applications across diverse heavy-duty industries. This robust, cast-iron directional control valve system offers unparalleled performance, precise fluid management, and exceptional durability, making it an indispensable component for systems requiring high flow rates and formidable pressure capabilities. With a maximum flow rating of 40 Gallons Per Minute (GPM) and an ultimate structural pressure capacity of 4500 PSI, this valve is engineered to deliver reliable and efficient operation in critical hydraulic circuits. Its inherent "3-Way" functionality, interpreted in the context of a sectional valve as a three-position directional control, provides operators with intuitive and effective command over hydraulic actuators, facilitating complex work cycles with ease and safety.Engineered for Extremes: Design and Construction Excellence
The foundation of this valve's exceptional performance lies in its construction. Fabricated from high-strength cast iron, the valve body offers superior structural integrity and resilience against the rigors of continuous high-pressure, high-flow hydraulic operations. Cast iron is specifically chosen for its inherent properties, including excellent compressive strength, vibration dampening capabilities, and resistance to thermal expansion and contraction, which are critical in fluctuating operational environments. This material choice ensures a prolonged service life, minimizing wear and tear even under severe cyclical loading and temperature variations, thereby reducing maintenance requirements and total cost of ownership. As a sectional valve, its modular architecture is a significant advantage. Unlike monoblock valves, a sectional design allows for individual valve sections—each controlling a specific hydraulic function—to be bolted together. This modularity offers unparalleled flexibility in system design and customization. It permits the precise configuration of control functions, spool actions, and additional features to match exact application requirements. This adaptability extends to ease of maintenance and repair; should a single section require service, it can often be replaced or repaired without disturbing the entire valve assembly, thereby reducing downtime and operational interruptions. Furthermore, the ability to expand or modify the valve bank by adding or removing sections provides a scalable solution that can evolve with changing operational needs. The internal passages and spool bores are precision-machined to exceptionally tight tolerances, ensuring minimal internal leakage, optimal hydraulic efficiency, and consistently smooth spool actuation. This meticulous manufacturing process is crucial for maintaining pressure integrity and responsive control throughout the valve's operational lifespan.Unrivaled Hydraulic Performance: Flow Rate and Pressure Dynamics
The 40 GPM maximum flow rate of this valve is a critical specification for applications demanding rapid hydraulic actuator movement and high productivity. In environments where speed and efficiency are paramount—such as in snowplow lifting and angling, refuse compactor operation, or large agricultural implement control—the ability to move substantial volumes of hydraulic fluid quickly translates directly into faster cycle times and enhanced operational output. This high flow capability ensures that cylinders extend and retract swiftly, and hydraulic motors achieve their desired rotational speeds without lag, thereby maximizing the work accomplished within a given timeframe. Complementing its impressive flow rate is its robust pressure handling capacity. The valve is rated for a maximum pressure of 4500 PSI, indicating its structural capability to withstand extreme hydraulic forces. Operationally, the valve is rated up to 4300 PSI when the main relief is appropriately set, highlighting a practical operational envelope that balances performance with safety. This high-pressure rating allows for the use of smaller, more compact cylinders and actuators to generate substantial force, optimizing space and weight in equipment design without compromising power. It also provides a significant safety margin, ensuring the valve can manage peak pressure spikes that may occur during heavy-duty operations without sustaining damage.Advanced Pressure Regulation and System Protection: The Role of Relief Valves
Central to the safe and reliable operation of any hydraulic system is its pressure management. This valve incorporates a highly effective main relief valve, crucial for protecting the entire hydraulic circuit from overpressure conditions. The main relief valve is adjustable across a broad range, from 1300 PSI to 3000 PSI, providing engineers and technicians with the flexibility to fine-tune the system's maximum operating pressure to precisely match the requirements of specific equipment and tasks. While typically factory preset at 2150 PSI (with a common setting of 2500 PSI specified for specific configurations), this adjustability ensures that the hydraulic system operates within its safe working limits, preventing damage to pumps, cylinders, motors, and other components. Beyond the main system protection, the valve series offers the option for two additional adjustable port reliefs—specifically, angle and dump port reliefs. While the particular model in the specifications might not include these by default, their availability underscores the valve's adaptability for specialized applications. Port relief valves are critical for protecting individual work ports and the connected actuators from localized overpressure conditions, such as those caused by external shock loads or sudden blockages.- Angle Port Relief: Often utilized in applications like snowplows, where the blade might encounter an immovable object, creating an instantaneous pressure spike in the angle cylinder line. An angle port relief valve would divert this excessive pressure, protecting the cylinder and associated plumbing from potential damage.
- Dump Port Relief: Valuable in scenarios where a sudden release of load or impact could cause pressure intensification in a specific cylinder chamber. This relief mechanism acts as a localized safety bypass, ensuring that transient overpressures do not compromise component integrity.
Precise Directional Control and Spool Versatility
The "3-Way" aspect of this valve refers to its robust capability for three-position directional control, a hallmark of its functionality. For instance, the "Power Up/Gravity Down" spool action, a common configuration, enables three distinct states for an actuator:- Power Up (Raise): Directs pressurized fluid to one side of a cylinder, causing it to extend (or a motor to rotate in one direction) under controlled power.
- Hold (Neutral): Blocks all ports, locking the actuator in its current position, preventing movement even under load. This is achieved by creating a closed center or tandem center condition within the spool, depending on the internal porting.
- Gravity Down (Lower): Vents fluid from the cylinder's active chamber, allowing the actuator to retract under the force of gravity (or an external load), often with a controlled metering function to regulate descent speed.
Seamless Integration and Intuitive Control Interfaces
Designed for maximum operational convenience and system integration, the 40 GPM valve offers versatile control options. It can seamlessly accommodate both traditional handle controls and remote cable controls.- Handle Controls: Provide direct, tactile feedback to the operator, offering robust and immediate manipulation of hydraulic functions. They are typically favored in applications where the operator is in close proximity to the valve or requires precise, responsive manual input.
- Cable Controls: Enable remote operation, allowing the operator to control hydraulic functions from a cab or a more ergonomic position, isolated from the noise, vibration, and heat of the hydraulic system. This enhances operator comfort, reduces fatigue, and improves safety in many mobile equipment applications.
Broad Spectrum of Applications
The robust design, high-performance capabilities, and versatile configuration options of the 40 GPM 3-Way Sectional Valve make it ideally suited for a comprehensive range of heavy-duty applications across numerous industries:- Snow and Ice Management: Indispensable for controlling snowplow lifts, angles, and spreader functions, ensuring efficient and reliable operation in harsh winter conditions.
- Construction Equipment: Essential for compact construction machinery such as mini excavators, skid steers, and utility loaders, where it controls boom, bucket, and auxiliary attachment movements.
- Agriculture: Manages the intricate hydraulic functions of various agricultural implements, including loaders, cultivators, and harvesting equipment, enhancing productivity and precision.
- Refuse and Waste Management: Plays a critical role in the operation of refuse packers, recycling equipment, and tippers, where robust, high-pressure control is paramount for compacting and lifting heavy loads.
- Material Handling: Used in forklifts, telehandlers, and other lifting equipment for precise control of lifting, tilting, and extending mechanisms.
- Utility and Municipal Fleets: Provides reliable hydraulic control for boom trucks, service vehicles, and other specialized municipal equipment, ensuring safe and efficient operation of various attachments.
- Forestry Equipment: Manages log grapples, chipper feeds, and other hydraulic tools in challenging forestry environments.
Customization and Dedicated Support
Buyers Products stands committed to providing solutions that precisely meet the unique demands of each application. The 40 GPM valve's architecture is inherently designed for extensive customization. While a standard configuration with a "Power Up/Gravity Down" cylinder spool is highlighted, a vast array of additional configurations is available. This includes different spool actions (e.g., closed center, open center, float, regenerative, tandem center), motor spools, various flow ratings within the series, and the integration of optional features like port relief valves and Power Beyond sleeves. We encourage customers to engage directly with our highly knowledgeable Customer Service team to discuss specific operational requirements. Our engineering expertise allows us to recommend and configure the optimal valve solution, ensuring seamless integration into existing systems or providing the foundation for new, high-performance hydraulic circuits. This consultative approach guarantees that every valve deployed not only meets but exceeds performance expectations, contributing to the long-term efficiency and profitability of your operations. In summary, the 40 GPM 3-Way Sectional Valve from Buyers Products is a testament to superior hydraulic engineering. Its heavy-duty cast-iron construction, high flow and pressure capabilities, advanced pressure regulation, versatile directional control, and modular design coalesce to deliver an exceptional product. It is a reliable, high-performance solution that offers unparalleled control, safety, and adaptability across the most demanding industrial and mobile hydraulic applications. Invest in a valve that is built to perform, built to last, and designed to empower your hydraulic systems with precision and power.
