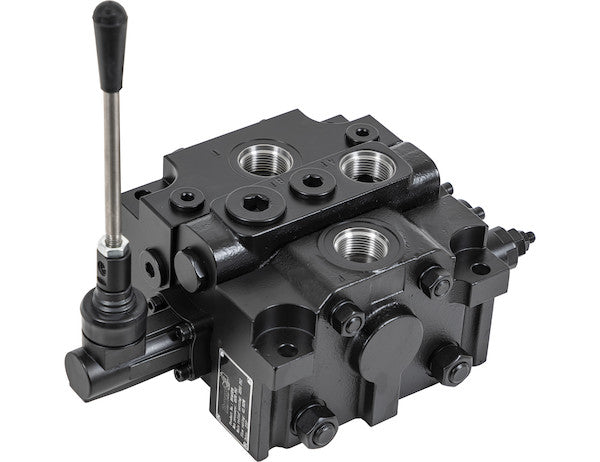

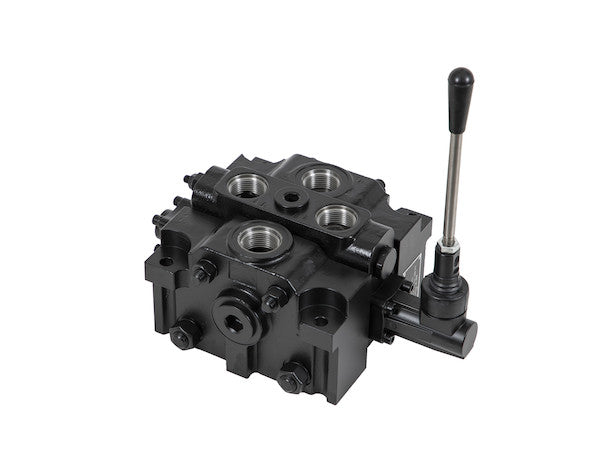

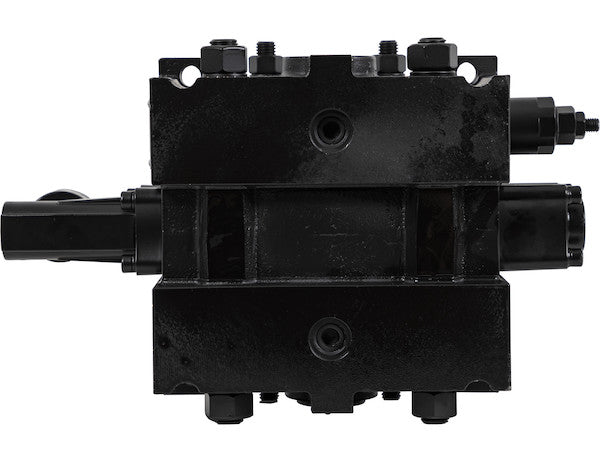

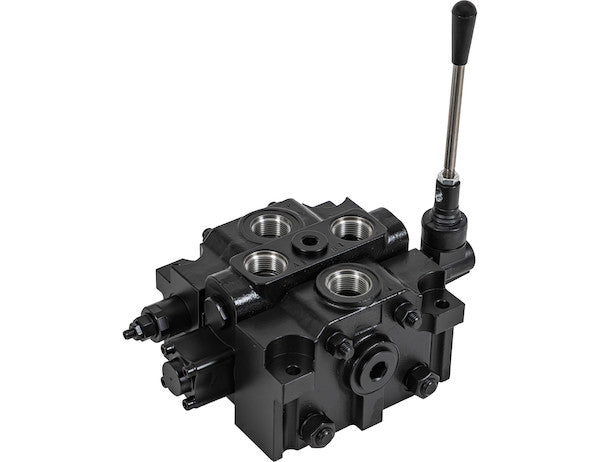

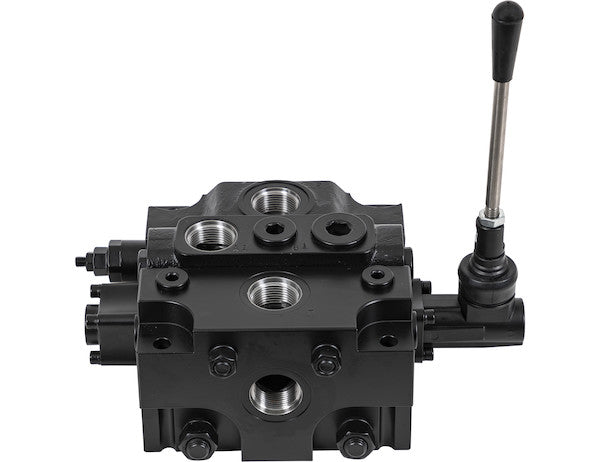

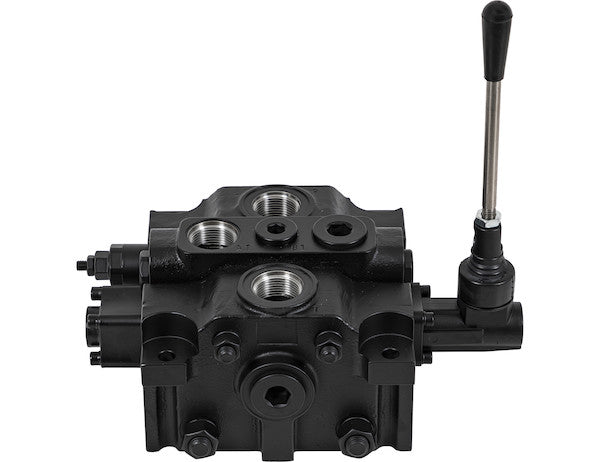

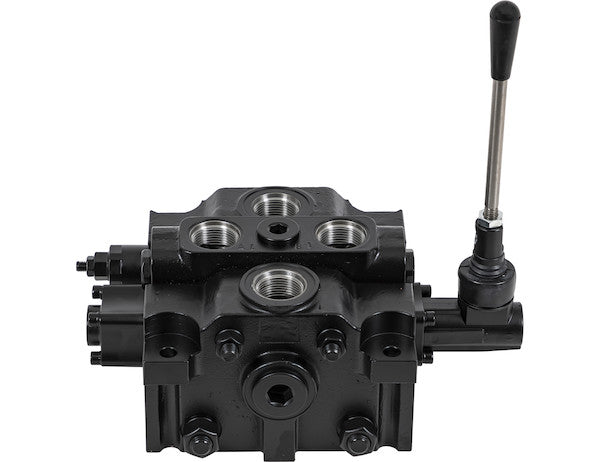

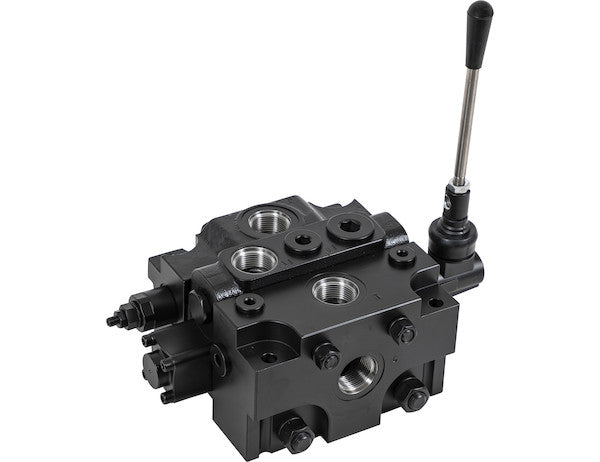

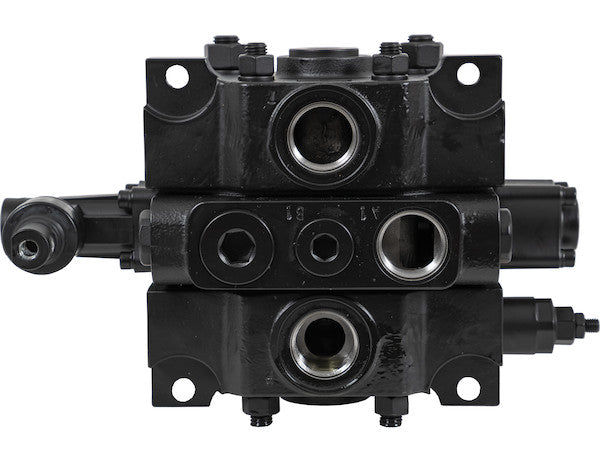

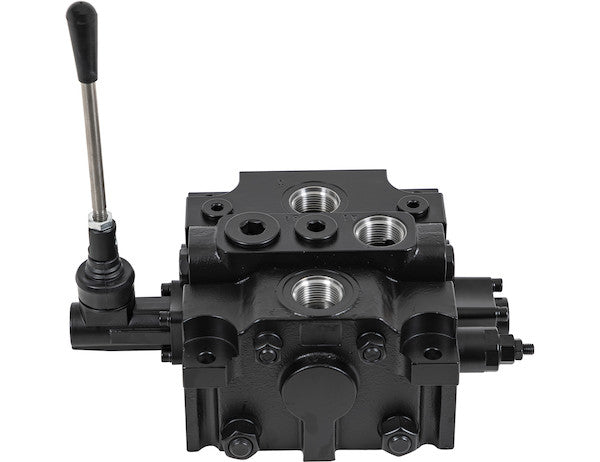

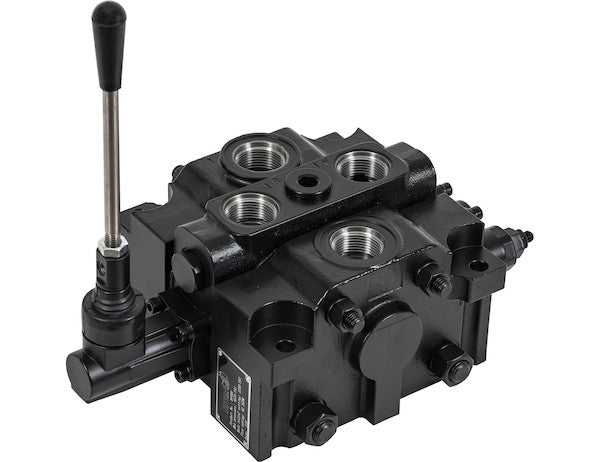

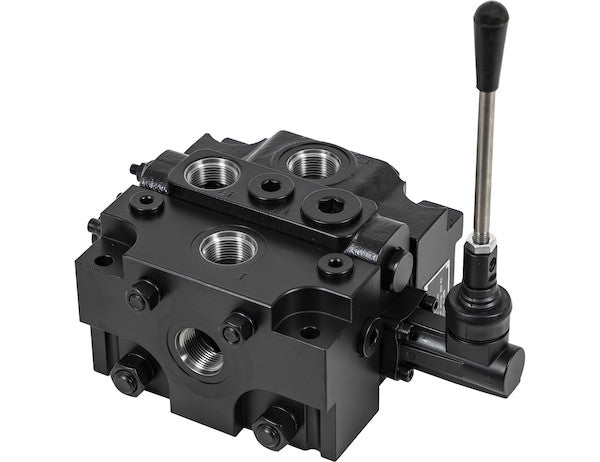

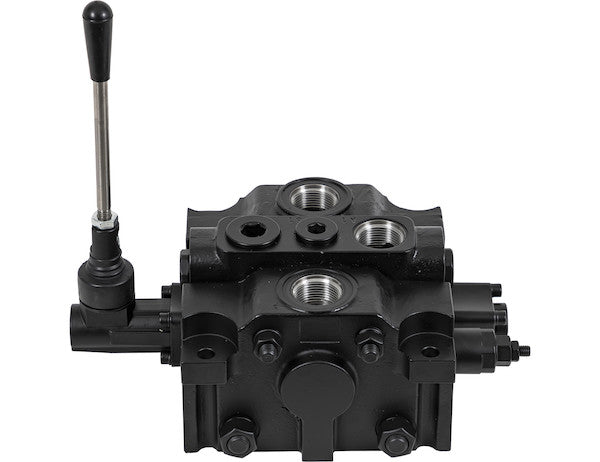

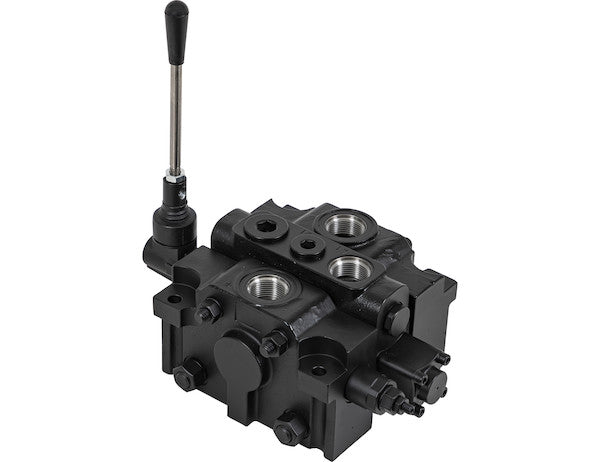

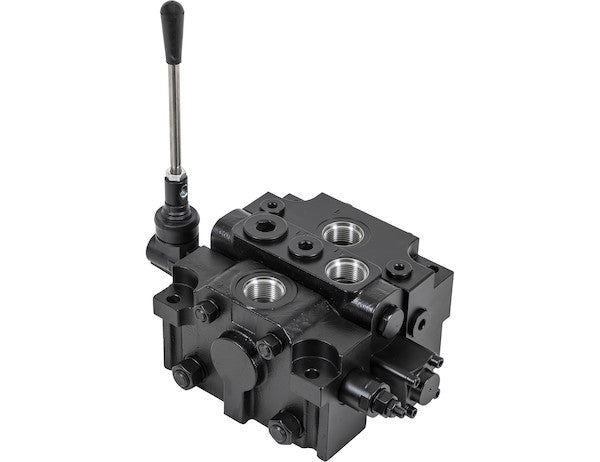

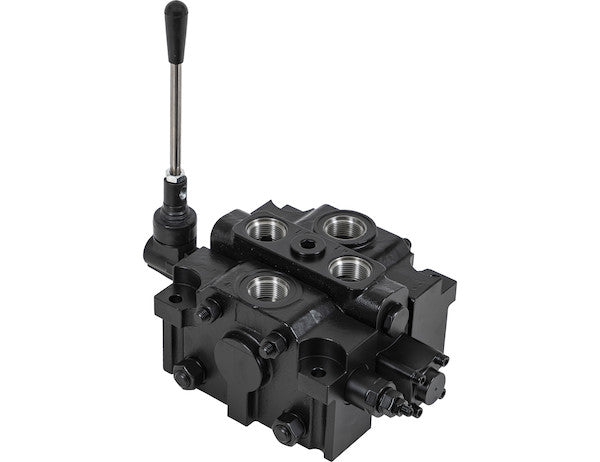

The 40 GPM Valve from Buyers Products is a tough, cast-iron sectional valve that can accommodate handle or cable controls to meet your hydraulic needs. It's designed for high-flow, high-pressure work requirements. The valve can handle the most demanding jobs, with a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. This sectional valve offers a lot of versatility in spool action and Power Beyond options to configure to your work needs. It can accommodate cable or handle controls. All valves have cylinder spools unless specified as motor. Additional configurations are available. Please contact Customer Service for further information.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 1 SAE ORB (-16) |
| Main Relief Setting | 2500 |
| Maximum Flow Rate | 40 |
| Maximum Pressure | 4500 |
| Outlet Port Size | 1 SAE ORB (-16) |
| Port Relief (y/n) | No |
| Port Relief Angle | N |
| Port Relief Dump | N |
| Port Type | SAE |
| Power Beyond (y/n) | Yes |
| Spool Action 1 | Power Up/Gravity Down |
| Work Port Size | 1 SAE ORB (-16) |
Advanced Technical Overview: The 40 GPM 3-Way Sectional Hydraulic Valve with Power Beyond
The 40 GPM 3-Way Sectional Hydraulic Valve from Buyers Products represents a pinnacle of hydraulic control technology, engineered to meet the rigorous demands of heavy-duty mobile and industrial applications. This sophisticated valve integrates robust construction with advanced fluid power capabilities, delivering unparalleled performance, durability, and operational flexibility. Designed for systems requiring substantial volumetric flow and high-pressure resilience, this valve is a critical component for optimizing hydraulic circuit efficiency and longevity.
Engineering and Construction: Foundation of Durability and Modularity
At the core of this high-performance valve lies its construction from tough, high-strength cast iron. Cast iron is meticulously selected for its superior mechanical properties, including excellent tensile strength, compressive strength, and inherent dampening characteristics. These attributes enable the valve to withstand the immense static and dynamic stresses associated with high-pressure hydraulic operations, mitigating the risks of material fatigue and structural deformation. The material's robust nature also provides exceptional resistance to abrasion and corrosion, extending the valve's service life even in harsh operating environments typical of construction, agricultural, and refuse applications.
The sectional design of this hydraulic valve is a fundamental engineering choice that confers significant advantages in terms of customization, maintenance, and system adaptability. Unlike monoblock valves, which are cast as a single unit, sectional valves comprise individual work sections, an inlet section, and an outlet section, bolted together. This modular architecture allows for precise configuration of the valve bank to match specific application requirements. Operators or system integrators can select various spool types, add or remove sections, and integrate diverse control mechanisms, tailoring the hydraulic circuit without necessitating a complete valve replacement. Furthermore, the sectional design simplifies maintenance and repair; if a single section malfunctions, only that section needs to be serviced or replaced, minimizing downtime and reducing overall operational costs. This inherent flexibility makes the 40 GPM valve a future-proof solution, capable of evolving with changing system demands.

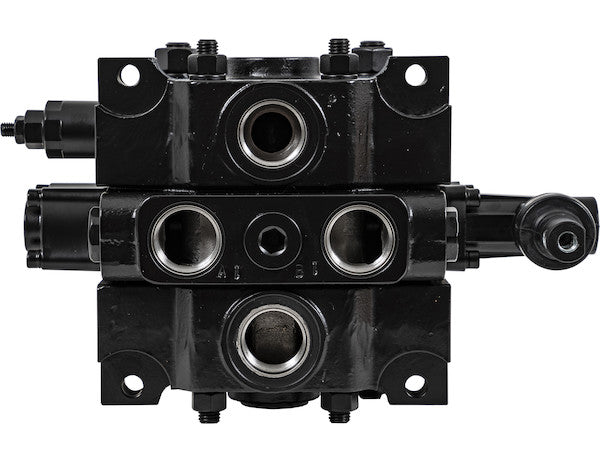

Porting on this valve adheres to the SAE ORB (O-Ring Boss) standard, specifically utilizing 1 SAE ORB (-16) for inlet, outlet, and work ports. The SAE ORB connection system is globally recognized for its superior sealing integrity and resistance to leaks under high pressure. This design incorporates an O-ring compressed within a machined groove, forming a robust, metal-to-metal seal that significantly outperforms traditional tapered pipe threads in leak prevention. The 1-inch nominal size for ports is commensurate with the valve's high flow rate capacity, ensuring minimal pressure drop and optimizing fluid transfer efficiency across the hydraulic system. Standardized SAE porting also facilitates easy integration with a wide array of hydraulic hoses, fittings, and components, streamlining system assembly and maintenance.
Performance Parameters: High Flow and Pressure Resilience
The headline specification of a 40 GPM (Gallons Per Minute) maximum flow rate underscores this valve's capability to manage substantial hydraulic fluid volumes. This high flow capacity is critical for applications demanding rapid actuation of large cylinders or motors, ensuring swift operation of heavy machinery and implements. From swiftly raising a dump bed to rapidly extending the boom of a material handler, the 40 GPM flow rate translates directly into increased productivity and reduced cycle times. The internal flow passages within the valve are engineered for optimized hydrodynamics, minimizing turbulence and energy losses, thereby maximizing the efficiency with which hydraulic power is transmitted to the actuators.
Complementing its high flow capability is an exceptional pressure rating. The valve boasts a maximum pressure tolerance of 4500 PSI, representing its ultimate structural integrity limit. Within operational parameters, it is rated to handle sustained pressures up to 4300 PSI, particularly when the main relief valve is configured towards its upper adjustment range. This robust pressure handling capability allows for the generation of substantial force, enabling the valve to power heavy-duty cylinders and motors in demanding applications where high loads are encountered. The ability to operate at such elevated pressures also contributes to the design of more compact hydraulic systems, as smaller cylinders can generate equivalent forces compared to lower-pressure systems, conserving space and material.
Advanced Pressure Management and System Protection
Effective pressure management is paramount in any hydraulic system, safeguarding components from overpressure and ensuring consistent, reliable operation. This valve incorporates an adjustable main relief valve, factory preset at 2150 PSI, with an impressive adjustment range spanning from 1300 PSI to 3000 PSI. The main relief valve is a critical safety device designed to protect the hydraulic pump and the entire primary circuit from excessive pressure. When system pressure exceeds the set value, the relief valve opens, diverting excess fluid back to the reservoir, thereby preventing damage to pumps, hoses, and actuators. The adjustability provides system designers with the flexibility to fine-tune the relief setting according to the specific pressure requirements of the application, balancing maximum power output with robust system protection. The specification table notes a common main relief setting of 2500 PSI, indicative of a typical configuration that offers a powerful yet safe operating envelope.
While the specific configuration detailed in the specifications does not include them, the sectional design of this valve platform inherently supports the integration of additional adjustable port reliefs – specifically angle and dump types. It is crucial for engineers and operators to understand the function of these optional components. Port relief valves are localized pressure protection devices installed on the work ports (A and B) of a directional control valve. They serve to protect individual actuators (cylinders or motors) from shock loads, thermal expansion pressures, or external forces that could induce pressures higher than the main relief setting. An 'angle' port relief typically protects against pressures generated by external forces acting on the cylinder rod in a single direction, while a 'dump' port relief might be used in applications where a load is suddenly released, causing pressure spikes. Their availability as configurable options underscores the valve's versatility in creating highly protected and application-specific hydraulic circuits, even if not present in the base configuration.
Directional Control: 3-Way Functionality and Spool Actions
The designation "3-Way" in the product title, combined with the "Power Up/Gravity Down" spool action specified, indicates a highly specific and efficient control method often employed in applications such as dump trucks, snowplows, or trailer tailgates. In this configuration, the valve effectively manages three primary flow paths: pressure from the pump, flow to the tank, and flow to a single work port connected to a single-acting cylinder. When actuated to the "Power Up" position, pressurized fluid is directed to the cylinder, causing extension. When returned to a neutral "Hold" position, the fluid is blocked, holding the cylinder in place. Crucially, in the "Gravity Down" position, the work port is opened to the tank line, allowing the weight of the load or the implement to force fluid out of the cylinder and return it to the reservoir, thereby retracting the cylinder under gravity. This eliminates the need for hydraulic pressure to retract the cylinder, simplifying the circuit and potentially improving energy efficiency for appropriate applications.
The valve's default configuration with "cylinder spools" further refines its operational characteristics. A standard cylinder spool is designed to control double-acting cylinders, typically featuring three positions (extend, neutral, retract) and four ports (pressure, tank, and two work ports A and B). However, the specific "Power Up/Gravity Down" spool action represents a specialized variant optimized for single-acting cylinders. For applications requiring continuous rotary motion, the valve platform also accommodates "motor spools" as an option. Motor spools are designed to maintain continuous flow to a hydraulic motor in one or both directions, often featuring an open center neutral position to allow continuous pump flow through the valve to other components or back to the tank, preventing heat buildup.
Control Mechanisms: Robust Manual Operation
This 40 GPM valve is designed for non-electrically operated, manual control, accommodating either direct handle or remote cable controls. This choice emphasizes reliability, simplicity, and ruggedness, making it ideal for environments where electrical systems might be vulnerable to moisture, dust, vibration, or extreme temperatures. Manual controls provide a direct mechanical linkage to the valve spool, offering tactile feedback and intuitive operation. Cable controls extend this direct linkage, allowing the operator to control the valve from a remote cabin or control panel, enhancing safety and ergonomic comfort without introducing complex electrical wiring or sensitive electronic components. The absence of electrical components also reduces potential failure points and simplifies troubleshooting in field conditions, contributing to higher uptime and lower maintenance costs.
The Strategic Advantage of Power Beyond
A standout feature of this hydraulic valve is its integrated Power Beyond capability. Power Beyond is a sophisticated hydraulic circuit design feature that allows pressurized fluid that has passed through one directional control valve section to be routed to the inlet of another downstream valve or component, rather than immediately returning to the hydraulic reservoir. In a typical open-center hydraulic system, when a directional valve is in its neutral position, fluid flows directly through the valve and back to the tank. However, with Power Beyond, the neutral flow is directed to a dedicated Power Beyond port, maintaining system pressure for subsequent valves in series.
The operational benefits of Power Beyond are substantial:
- Sequential Operation: It enables the efficient, sequential operation of multiple hydraulic functions from a single pump and multiple directional control valves, without requiring complex parallel circuits or additional relief valves for each subsequent valve.
- Simplified Plumbing: Power Beyond significantly reduces the amount of hydraulic plumbing required, as the return line from the primary valve is effectively the pressure supply line for the next valve in the series. This streamlines system design, reduces material costs, and minimizes potential leak points.
- Maintained System Pressure: Unlike systems that return fluid to the tank and then draw it again for subsequent operations, Power Beyond maintains working pressure, contributing to a more responsive and efficient multi-function hydraulic system.
- Space Efficiency: By eliminating redundant plumbing and components, Power Beyond contributes to a more compact hydraulic system layout, which is particularly valuable in mobile equipment where space is at a premium.
Applications benefiting from Power Beyond are extensive, including multi-function agricultural machinery (e.g., tractors operating multiple implements), utility vehicles with various attachments, and construction equipment like backhoes or excavators where different functions (boom, dipper, bucket) are often operated sequentially or simultaneously with varying priority. This feature significantly enhances the overall versatility and performance of the hydraulic system, providing a robust solution for complex operational sequences.
Comprehensive Technical Specifications and Application Integration
A deeper dive into the specific technical parameters provided further illustrates the valve's design intent and operational envelope:
- Inlet/Outlet/Work Port Size: 1 SAE ORB (-16): Confirms consistent, high-capacity flow paths with superior leak resistance across all critical connections.
- Maximum Flow Rate: 40 GPM: Ensures ample flow for rapid actuator movement, suitable for large cylinders and motors.
- Maximum Pressure: 4500 PSI: Denotes extreme structural resilience, accommodating demanding high-force applications.
- Main Relief Setting: 2500 PSI (Configurable 1300-3000 PSI): A robust default pressure setting for powerful operations, with extensive adjustability for system optimization and protection.
- Port Type: SAE: Global standard for reliable, interchangeable component integration.
- Power Beyond (y/n): Yes: Confirms the advanced multi-functionality and simplified circuit design capability.
- Spool Action 1: Power Up/Gravity Down: Specifically tailored for single-acting cylinder applications, emphasizing efficiency and simplicity in return strokes.
- Electrically Operated (y/n): No: Highlights the manual, mechanical control system, valued for its reliability and direct user interface in harsh conditions.
This 40 GPM 3-Way Sectional Hydraulic Valve with Power Beyond is ideally suited for a broad spectrum of heavy-duty applications. Its robust cast-iron construction and high flow/pressure capabilities make it an indispensable component in industries such as:
- Construction: Operating hydraulic functions on excavators, loaders, dozers, and material handling equipment.
- Agriculture: Controlling implements, loaders, and various hydraulic systems on tractors and farm machinery.
- Refuse & Waste Management: Powering compaction mechanisms, lift gates, and other hydraulic functions on refuse vehicles.
- Snow & Ice Management: Actuating plows, spreaders, and other attachments on municipal and commercial snow removal equipment.
- Utility Vehicles: Providing precise control for cranes, outriggers, and tool attachments on utility service trucks.
- Marine: For specific deck machinery or steering applications requiring high flow and pressure.
Conclusion
The 40 GPM 3-Way Sectional Hydraulic Valve with Power Beyond from Buyers Products stands as a testament to advanced hydraulic engineering. Its combination of rugged cast-iron sectional construction, high flow and pressure ratings, adjustable pressure relief, and the strategic inclusion of Power Beyond functionality positions it as a premier solution for complex and demanding hydraulic systems. The manual control interface, coupled with specialized spool actions like "Power Up/Gravity Down," underscores its versatility and reliability in critical operational contexts. This valve offers system designers and operators not just a component, but a highly adaptable and durable foundation for building efficient, powerful, and safely controlled hydraulic machinery designed for long-term performance and minimal total cost of ownership. For specialized configurations or further technical inquiries, contacting Customer Service ensures access to the full scope of this formidable product line.
