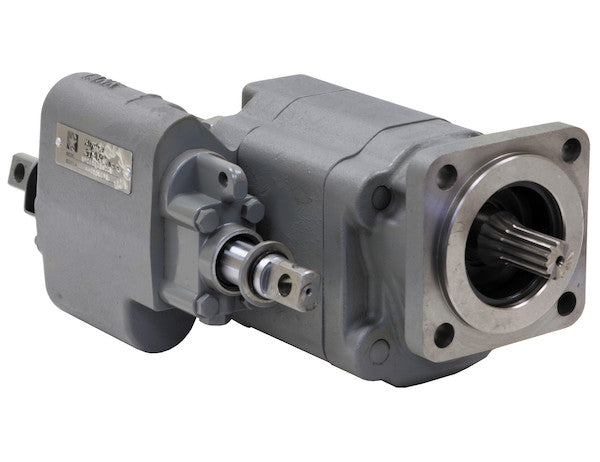

C1010DMCW - Direct Mount Hydraulic Pump With Clockwise Rotation And 2-1/2 Inch Diameter Gear

The Direct Mount Hydraulic Dump Pump with Manual Valve from Buyers Products directly mounts to your PTO for a compact and efficient source of hydraulic power. It is designed for dump operations with 2 or 3 line plumbing and comes set up for standard cable-controlled shift operation. It's also available with air cylinder to convert to pneumatic control on shifter spool. Based on RPM, its output ranges from 13 to 46 GPM. It includes a relief valve set at 2500 PSI. The unit includes a 4 bolt SAE B mounting flange and 7/8 in. by 13 spline shaft. You will need to specify the pump rotation when ordering, which you can determine by looking at the pump with the shaft facing you and the belly of the pump facing down. Note: Buyers Products PTOs can be custom-ordered for your specific vehicle and application. Contact Hydraulic Technical Support for assistance in selecting the correct PTO.

Specifications

The Direct Mount Hydraulic Pump with Clockwise Rotation and 2-1/2 Inch Diameter Gear represents a robust and highly efficient solution for demanding mobile hydraulic applications, specifically engineered for dump operations. This comprehensive technical description will delve into the core attributes, operational principles, performance metrics, and application advantages of this precision-engineered hydraulic power unit.

At its core, this unit is a positive displacement external gear pump, renowned for its simplicity, robust construction, and reliable performance across a wide range of operating conditions. The principle of operation for a gear pump involves a pair of intermeshing gears, driven by an external power source. As the gears rotate, fluid is drawn into the inlet port, trapped between the gear teeth and the pump housing, and then carried around to the outlet port where it is forced out under pressure. The direct mount configuration signifies that this pump is designed to attach directly to a vehicle's Power Take-Off (PTO), eliminating the need for intermediate drive shafts, couplings, and mounting brackets. This design choice inherently leads to a more compact system, reduced installation complexity, and fewer potential points of failure or leakage, thereby enhancing overall system reliability and serviceability.

The specific mention of a "dump pump" indicates that the unit is tailored for applications requiring a hydraulic cylinder to lift and lower a load, such as the bed of a dump truck or the container of a roll-off vehicle. This functionality is intrinsically linked to the integrated manual valve. This manual valve provides operators with direct, tactile control over the hydraulic flow, facilitating precise manipulation of the dump body. By default, the pump is configured for standard cable-controlled shift operation, offering a familiar and straightforward interface for most users. However, recognizing the evolving needs for automation and remote control in modern fleets, the option to integrate an air cylinder to convert to pneumatic control on the shifter spool provides enhanced operational flexibility. This pneumatic option allows for more sophisticated control systems, potentially reducing operator fatigue and improving safety by enabling activation from a more ergonomic or remote position within the cab.

Performance is a critical consideration for any hydraulic system, and this pump excels in delivering a consistent and powerful output. With a nominal displacement of 6 cubic inches per revolution, this pump is capable of generating significant flow rates across its operational RPM range. The flow output varies dynamically with the input RPM, ranging from an efficient 13 Gallons Per Minute (GPM) at 600 RPM to a robust 46 GPM at 1800 RPM. This wide range ensures that the pump can meet the varying speed requirements of dump operations, from controlled, slow lowering to rapid lifting cycles. For instance, at 900 RPM, the pump delivers 21 GPM, scaling up to 25 GPM at 1000 RPM, 33 GPM at 1200 RPM, and 37.5 GPM at 1500 RPM. This responsiveness to engine speed allows for optimized work cycles, contributing to increased productivity and operational efficiency. The maximum recommended operating speed is 2000 RPM, which is typically well within the operational envelope of most PTO systems.

Pressure management is another cornerstone of hydraulic system integrity and safety. This pump is equipped with a high-quality relief valve, factory-set at 2500 PSI (Pounds per Square Inch). This relief valve serves as a crucial safety mechanism, preventing system overpressure by diverting excess fluid back to the reservoir once the set pressure threshold is reached. This protects not only the pump itself but also the downstream components such as hydraulic cylinders, hoses, and fittings from potentially damaging excessive forces. A maximum pressure rating of 2500 PSI positions this pump firmly in the heavy-duty category, suitable for lifting substantial loads encountered in construction, refuse management, and material handling applications.

The mechanical interface of the pump is designed for universal compatibility within the industry standard. It features an SAE B 4-bolt mounting flange, a widely recognized standard that ensures straightforward integration with a multitude of PTO units. The SAE B standard defines specific dimensions for the mounting pattern and the pilot diameter, which in this case is 4.00 inches. This standardized mounting ensures a secure and precise alignment, crucial for transmitting power efficiently and minimizing wear on both the pump and the PTO. The input shaft is a 7/8 inch by 13 spline design. Splined shafts are highly advantageous in hydraulic power transmission due to their superior ability to transfer high torque loads with excellent concentricity and minimal backlash compared to keyway designs. The 13 splines distribute the load evenly, reducing stress concentrations and extending the lifespan of the shaft and the mating PTO output.

A critical specification, explicitly highlighted in the product title, is the "Clockwise Rotation" of the pump. Pump rotation is determined by viewing the shaft end of the pump with the belly facing down. For this particular unit, the shaft rotates in a clockwise direction. This specification is paramount for ensuring compatibility with the vehicle's PTO and overall hydraulic circuit design. Incorrect rotation can lead to improper fluid flow, system malfunction, or even severe damage to the pump and other hydraulic components. Users must carefully verify their PTO's rotational direction to ensure seamless integration.

The heart of any gear pump lies in its gears, and this unit features a robust 2-1/2 inch diameter (and width) gear. The precise manufacturing of these gears, coupled with their substantial size, directly contributes to the pump's displacement and its ability to maintain volumetric efficiency under pressure. Larger gear dimensions allow for greater fluid displacement per revolution, translating to higher flow rates at equivalent RPMs. The gearing mechanism is contained within a durable cast iron housing. Cast iron is the material of choice for heavy-duty hydraulic pumps due to its exceptional strength, rigidity, and inherent dampening characteristics. These properties help to absorb operational vibrations and noise, enhance resistance to wear and abrasion, and provide excellent thermal stability, which is crucial for dissipating heat generated during continuous operation. The robust cast iron construction ensures a long service life and reliable performance in harsh environmental conditions typical of mobile equipment.

Efficient fluid management requires appropriately sized and positioned ports. This pump is designed with rear porting for both the inlet and outlet, which can simplify plumbing in many direct-mount PTO applications, often leading to cleaner hose routing and reduced overall footprint. The suction (inlet) port features a 1 1/2 NPT (National Pipe Taper) connection. The larger diameter of the suction port is intentionally designed to minimize fluid velocity and pressure drop as hydraulic fluid enters the pump, preventing cavitation and ensuring a steady supply of fluid. The outlet (pressure) port is a 1 NPT connection, sized to handle the pressurized fluid flow efficiently out to the hydraulic circuit. The specification for 2-line or 3-line plumbing accommodates various dump system designs. A 2-line system typically involves a pressure line and a return line, while a 3-line system might incorporate an additional sensing or drain line, offering more advanced control or addressing specific system requirements for certain dump body configurations.

When integrating this direct mount hydraulic pump into a vehicle's hydraulic system, careful attention to detail is paramount. Beyond the physical mounting, selecting the correct hydraulic fluid, ensuring proper filtration, and adhering to recommended maintenance schedules are vital for maximizing the pump's lifespan and performance. Hydraulic fluid cleanliness is particularly critical for gear pumps, as contaminants can rapidly accelerate wear on the gears and housing. Regular fluid analysis and filter replacement are recommended preventative measures. Furthermore, while the pump is designed for direct mounting, ensuring that the PTO itself is correctly sized and specified for the application is equally important. Buyers Products offers custom-ordered PTOs for specific vehicle and application requirements, and their hydraulic technical support team is an invaluable resource for assisting in the selection of the correct PTO and for any integration-related queries.

In summary, this Direct Mount Hydraulic Pump with Clockwise Rotation and 2-1/2 Inch Diameter Gear is a meticulously engineered component designed to deliver uncompromising performance and reliability for heavy-duty dump applications. Its direct mount capability, coupled with the integral manual valve and option for pneumatic control, offers operational efficiency and flexibility. The robust cast iron construction, precise 2-1/2 inch gearing, standard SAE B mounting, and high-strength splined shaft ensure long-term durability. With its impressive flow rate capabilities ranging from 13 to 46 GPM and a safely regulated pressure of 2500 PSI, this pump provides the hydraulic power necessary for the most demanding tasks. This unit represents a premium choice for professionals seeking a compact, efficient, and dependable hydraulic power source.
