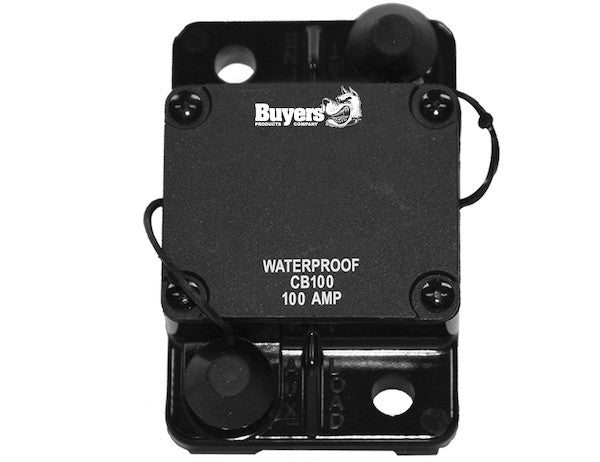

CB100 - 100 Amp Circuit Breaker with Auto Reset

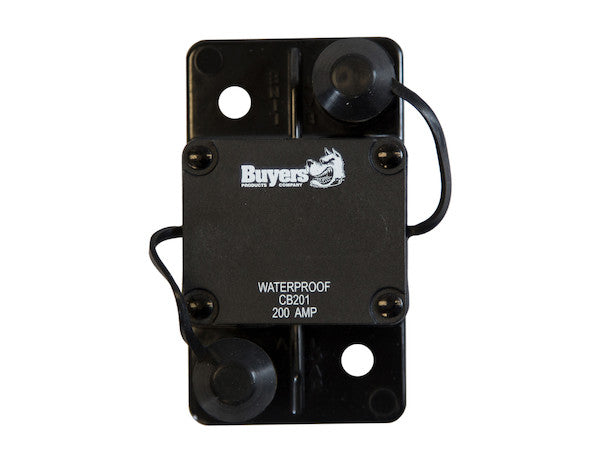

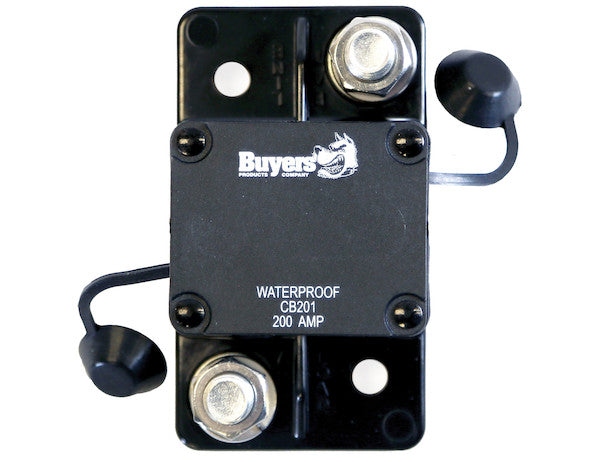

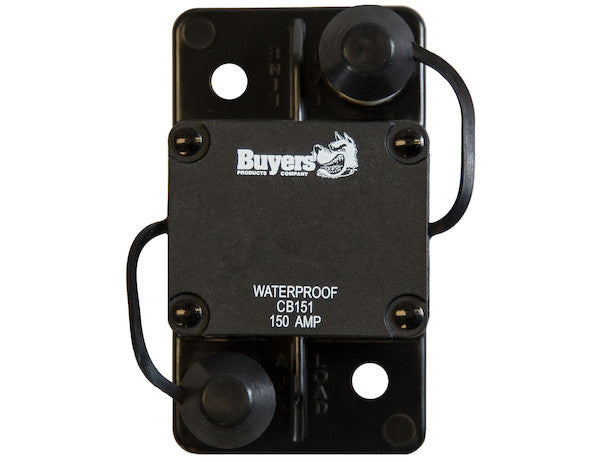

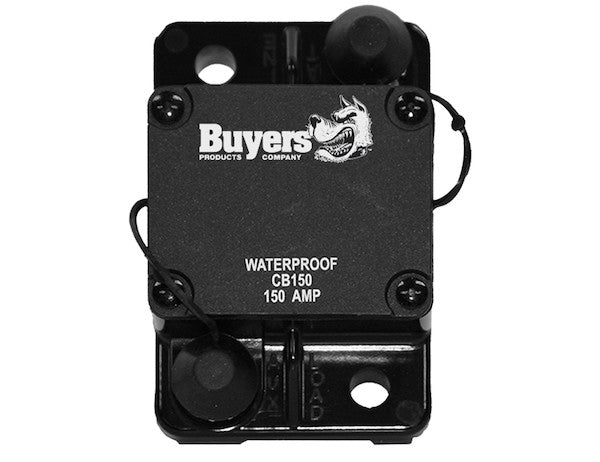

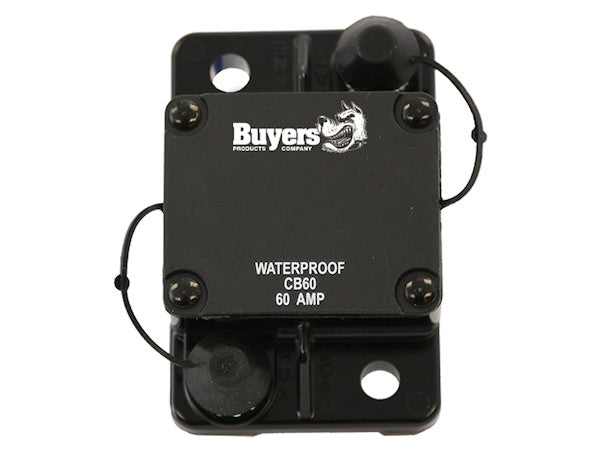

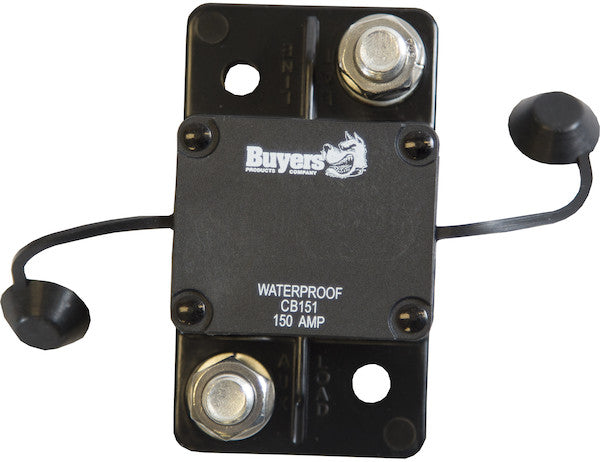

Buyers Products High-Amp Circuit Breakers with Auto Reset protects accessory circuits on dump hoists, plows, spreaders, lift gates, and cranes. The auto reset circuit breakers are water resistant and feature silver-plated studs, stainless steel nuts, and rubber boots. They're available in several amperages to suit your needs.

Specifications

Advanced Technical Overview: The 100 Amp Auto-Reset Circuit Breaker for Demanding Applications

In the realm of modern heavy-duty equipment and high-current accessory systems, reliable overcurrent protection is not merely a recommendation; it is an absolute necessity for operational safety, equipment longevity, and uninterrupted productivity. The 100 Amp Circuit Breaker with Auto Reset represents a pinnacle of protection technology, engineered to safeguard critical electrical circuits under the most demanding conditions. This comprehensive technical description delves into the intricacies of its design, operational principles, material science, and unparalleled utility across a spectrum of industrial and mobile applications.

Core Functionality: Overcurrent Protection and the Auto-Reset Advantage

At its heart, this device is a sophisticated guardian against two primary electrical fault conditions: overloads and short circuits. An overload occurs when an electrical circuit draws more current than it is designed to safely handle, leading to excessive heat generation in wiring and components. A short circuit, a more severe fault, involves an unintended low-resistance path that allows an extremely high current to flow, potentially causing immediate damage, fire, or explosion. The 100 Amp trip current rating is meticulously calibrated to interrupt the circuit when current flow exceeds this threshold, thereby preventing damage to the protected equipment and associated wiring.

The distinction of an "Auto Reset" mechanism is paramount to its advanced functionality. Unlike manual reset circuit breakers or single-use fuses, an auto-reset circuit breaker automatically re-establishes the electrical connection once the fault condition (e.g., an overload causing the trip) has cleared and the internal temperature has normalized. This inherent capability minimizes downtime, eliminates the need for manual intervention, and significantly reduces maintenance requirements, especially in applications where the circuit breaker might be installed in a remote, inaccessible, or harsh environment.

The auto-reset mechanism typically relies on a bimetallic strip, a core component fabricated from two distinct metals with differing coefficients of thermal expansion. When an overcurrent flows through the circuit breaker, it generates heat. This heat is absorbed by the bimetallic strip, causing one metal to expand more rapidly than the other. This differential expansion forces the strip to bend, physically opening the electrical contacts and interrupting the circuit. Once the current surge subsides or the fault clears, and the bimetallic strip cools, it returns to its original shape, closing the contacts and restoring power to the circuit. This elegant thermal-mechanical interplay ensures continuous, vigilant protection without operator intervention, making it ideal for systems where momentary overloads are common but sustained faults are hazardous.

Engineering for Extreme Environments: Robust Construction and Material Science

The operational integrity of a circuit breaker in heavy-duty applications is intrinsically linked to its physical construction and the quality of its materials. This 100 Amp circuit breaker is purpose-built for resilience, featuring a robust design tailored to withstand challenging environmental factors.

Enclosure and Dimensions:

The circuit breaker is encased within a durable, black plastic housing. Plastic is selected for its excellent electrical insulation properties, superior resistance to corrosion from chemicals, salts, and moisture, and its inherent ability to absorb shocks and impacts without deformation. This ensures the internal components are protected from physical damage and environmental ingress. With dimensions of approximately 2.875 inches in length and 1.875 inches in width, the compact footprint of the unit facilitates versatile installation in confined spaces commonly found in vehicle chassis, equipment compartments, and control panels without compromising performance.

Waterproofing and Environmental Sealing:

A critical feature for applications exposed to the elements is its "Waterproof (y/n): Yes" designation. This signifies a high degree of ingress protection, safeguarding the internal electrical contacts and bimetallic mechanism from water, dust, and other particulate matter. The rubber boots covering the stud connections further enhance this sealing capability, forming a critical barrier against moisture ingress and potential short circuits at the connection points. This comprehensive environmental sealing ensures reliable operation in rain, snow, washdowns, and dusty conditions, directly translating to extended service life and reduced risk of premature failure due to environmental degradation.

High-Conductivity Connections:

The electrical connections are implemented via stud terminals, renowned for their superior current-carrying capacity and secure mechanical fastening compared to blade or screw terminals, particularly in high-amperage applications. The specification highlights "Connection Material: Brass" and "Studs Material: Brass," complemented by "silver-plated studs" as described in the introductory text. This combination is a deliberate engineering choice: brass provides a robust, mechanically strong base material, while the silver plating offers exceptional electrical conductivity and superior corrosion resistance. Silver boasts the highest electrical conductivity of all metals, minimizing resistance and heat generation at the connection points, which is crucial for a 100 Amp circuit. Furthermore, silver plating significantly retards oxidation and galvanic corrosion, ensuring stable, low-resistance connections over extended periods, even in humid or saline environments. The inclusion of stainless steel nuts for securing the connections guarantees long-term fastener integrity, resisting rust and maintaining tight, vibration-proof electrical contacts.

Electrical Characteristics: Precision and Compatibility

Understanding the electrical specifications is vital for proper application and system integration.

Trip Current: 100 Amps

The 100 Amp trip current is engineered for high-power DC accessory circuits. This rating is suitable for protecting substantial loads such as large hydraulic pump motors, high-capacity winches, heavy-duty lighting arrays, inverter systems, and ancillary power distribution units on commercial vehicles and industrial machinery. Proper sizing of the circuit breaker relative to the wire gauge and the maximum continuous current draw of the protected circuit is paramount to prevent nuisance tripping while ensuring adequate protection against damaging overloads.

Maximum Voltage: 42.0 Volts

With a maximum voltage rating of 42.0 Volts DC, this circuit breaker is compatible with a wide range of DC electrical systems prevalent in heavy equipment, automotive, marine, and industrial settings. This includes standard 12V and 24V systems, as well as emerging 36V and 42V systems, offering broad applicability and future-proofing for evolving electrical architectures. The robust arc-quenching capabilities within the breaker are designed to safely interrupt current at these voltage levels, preventing sustained arcing that could damage the device or other components.

Strategic Applications Across Industries

The specific design attributes of this 100 Amp auto-reset circuit breaker make it indispensable for a multitude of critical applications where robustness, automatic recovery, and high-current protection are non-negotiable.

Commercial and Municipal Vehicles:

• Dump Hoists: Protecting the high-current motors that operate hydraulic dump beds. The auto-reset feature is advantageous if the hoist momentarily stalls or encounters an obstruction, allowing operation to resume once the load clears, without requiring operator intervention under potentially hazardous conditions.
• Plows and Spreaders: Essential for safeguarding the electrical motors powering snowplow hydraulics and salt/sand spreader mechanisms. These applications often experience intermittent heavy loads or minor blockages that could cause temporary overcurrents. An auto-reset breaker provides seamless recovery and prevents service interruptions during critical winter operations.
• Lift Gates: Used in delivery trucks and commercial vehicles, lift gates demand significant current to operate their hydraulic pumps. Protection ensures the motor and associated wiring are safe from overloads caused by heavy loads or mechanical binding. The auto-reset ensures the operator can quickly retry operation without leaving the control panel to reset a breaker.

Heavy Construction and Industrial Equipment:

• Cranes: Essential for protecting accessory circuits on mobile and stationary cranes, including lighting, auxiliary motors, and control systems. The high amperage rating accommodates substantial power requirements, and auto-reset capability supports continuous operation in dynamic work environments.
• Excavators and Backhoes: Protection for auxiliary hydraulic pumps, rotating beacons, specialized lighting, and onboard diagnostic systems.
• Forklifts and Material Handling: Safeguarding the high-current circuits for hydraulic pumps and power steering, particularly in heavy-duty electric models.

Marine and Recreational Vehicles:

• Marine Vessels: Ideal for protecting high-draw marine accessories like anchor winches, bow thrusters, powerful audio systems, and inverter circuits. The waterproof construction and corrosion-resistant connections are paramount in the harsh saline environments encountered at sea.
• RVs and Campers: Providing overcurrent protection for inverter systems, large slide-out motors, leveling systems, and high-capacity auxiliary power outlets, ensuring safety and reliability during travel and remote camping.

Specialty and Utility Vehicles:

• Utility Trucks: For aerial lifts, boom trucks, and service vehicles, protecting power take-off (PTO) driven equipment, floodlights, and onboard power tools.
• Emergency Vehicles: Protecting critical communication systems, warning lights, sirens, and auxiliary power supplies, where uninterrupted operation and rapid fault recovery are non-negotiable for public safety.

Installation Best Practices and System Integration

Optimal performance and safety of the 100 Amp circuit breaker are contingent upon correct installation and thoughtful integration into the electrical system.

Wire Gauge Selection:

For a 100 Amp circuit, selecting the appropriate wire gauge is absolutely critical. Undersized wiring will create excessive resistance, generate heat, and potentially melt insulation, even if the circuit breaker protects against overloads. Consult standard automotive or marine wire gauge charts (e.g., SAE, ABYC) to determine the minimum required conductor size for 100 Amps at the anticipated circuit length. For example, a 0 AWG or 2/0 AWG cable is typically required for high-current 12V applications to minimize voltage drop and safely carry a 100 Amp load.

Mounting Considerations:

The circuit breaker should be mounted in an accessible location, even with its auto-reset feature, to allow for periodic inspection and troubleshooting. Ensure a secure mounting surface that can withstand vehicle vibrations and environmental stressors. The robust plastic housing is designed for direct mounting, but consideration for heat dissipation in enclosed spaces should be given, though auto-reset breakers are designed to operate thermally.

Secure Connections:

The stud connections require robust terminals (e.g., ring terminals) appropriately sized for the chosen wire gauge and crimped with a high-quality crimping tool for maximum conductivity and mechanical strength. The silver-plated brass studs and stainless steel nuts should be torqued to the manufacturer's specified values to prevent loose connections, which can lead to increased resistance, heat buildup, and potential arcing. The rubber boots must be correctly installed over the connections to maintain the waterproof integrity.

Positioning in the Circuit:

The circuit breaker should be installed as close as practically possible to the power source (e.g., battery or main power distribution point) to protect the entire length of the accessory circuit from the source onwards. This minimizes the length of unprotected wire, reducing the risk of a short circuit before the protective device.

Distinction from Fuses:

While both fuses and circuit breakers provide overcurrent protection, their operational philosophies differ. Fuses are sacrificial, single-use devices that must be replaced after tripping. Circuit breakers are resettable. The auto-reset variant offers a distinct advantage for systems where temporary overloads are anticipated, and continuous operation is paramount, avoiding the need to carry spare fuses or perform roadside replacements. For critical safety circuits where any fault requires immediate manual inspection before re-energization, a manual reset circuit breaker or fuse might be preferred. However, for many accessory circuits, the auto-reset feature provides superior operational convenience and efficiency.

Technical Advantages and Long-Term Value

Investing in this 100 Amp auto-reset circuit breaker provides tangible technical and economic advantages:

• Enhanced Safety: Proactive protection against overloads and short circuits mitigates risks of electrical fires, component damage, and potential injury to personnel.
• Maximized Uptime: The auto-reset feature ensures rapid and automatic restoration of power following a transient fault, drastically reducing equipment downtime and increasing operational efficiency, particularly in remote or continuously operating systems.
• Reduced Maintenance Costs: Eliminates the need for costly and time-consuming manual resets or fuse replacements, translating into lower operational expenses and a more streamlined maintenance regimen.
• Durability and Longevity: Constructed with high-grade, corrosion-resistant materials (plastic housing, silver-plated brass studs, stainless steel nuts, rubber boots) and designed to be waterproof, the breaker offers an extended service life even in the most aggressive operating environments.
• Optimized Performance: Silver-plated brass connections ensure minimal resistance and heat loss, allowing connected accessories to draw their full rated current efficiently.

Conclusion

The 100 Amp Circuit Breaker with Auto Reset stands as an exemplary solution for robust, reliable, and intelligent overcurrent protection in high-demand DC electrical systems. Its sophisticated auto-reset mechanism, combined with its heavy-duty, waterproof construction and high-conductivity connections, delivers an unparalleled blend of safety, efficiency, and operational continuity. For equipment operators, fleet managers, and system designers who prioritize uninterrupted performance and long-term reliability in applications ranging from commercial transport and municipal services to heavy construction and marine environments, this circuit breaker is an essential, high-performance component engineered to exceed expectations and safeguard valuable assets.
