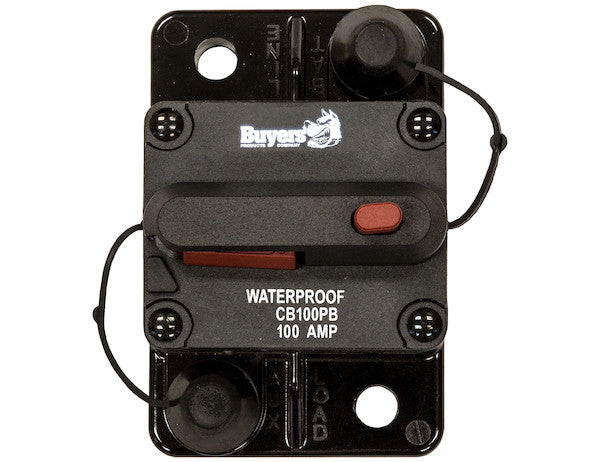

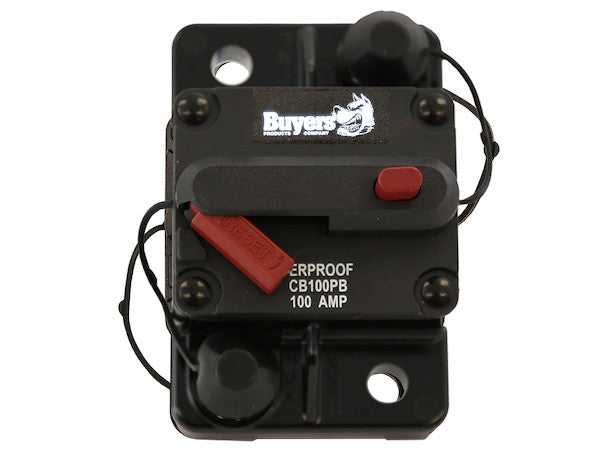

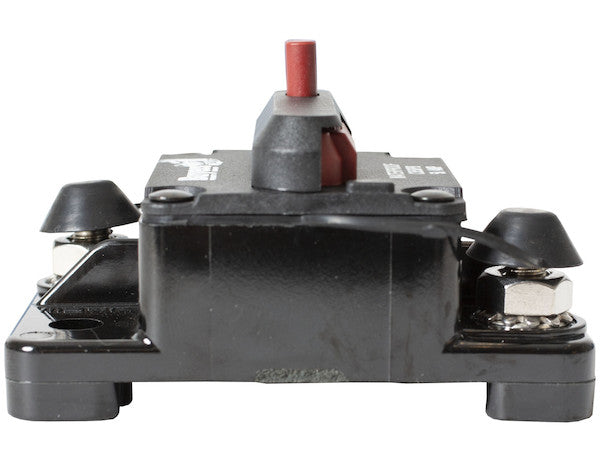

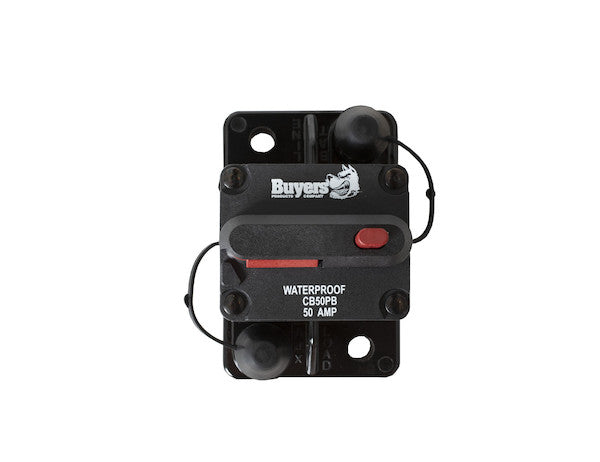

High-Amp Circuit Breakers with Manual Reset from Buyers Products helps protect auxiliary and accessory circuits on dump hoists, plows, spreaders, lift gates, and cranes. The manual reset, push-to-trip circuit breakers are water resistant and feature silver-plated studs, stainless steel nuts, and rubber boots. They are available in amperages ranging from 30A to 250A.
Specifications
| Box Material | Plastic |
|---|---|
| Color | Black |
| Connection | Stud |
| Connection Material | Brass |
| Finish | Plain |
| Length | 2.875 |
| Material | Plastic |
| Max Volts | 42.0 |
| Reset | Manual |
| Studs Material | Brass |
| Trip Current | 100 |
| Waterproof (y/n) | Yes |
| Width | 1.875 |
Technical Overview: The 100 Amp Manual Push-to-Trip Reset Circuit Breaker for Demanding Applications
The 100 Amp Circuit Breaker with Manual Push-to-Trip Reset from Buyers Products represents a critical component in the electrical protection architecture of heavy-duty vehicular and industrial auxiliary systems. Engineered to safeguard high-current circuits against potentially damaging overloads and short circuits, this specific 100A rating is meticulously calibrated for applications demanding substantial current flow, ensuring both operational integrity and paramount safety. Its design incorporates advanced material science and robust construction principles to withstand the rigorous demands of harsh operating environments, making it an indispensable asset for critical functions such as those found in dump hoists, plows, spreaders, lift gates, and cranes.
Fundamental Principles of Overcurrent Protection in DC Systems
Electrical systems, particularly those in mobile equipment, are inherently susceptible to transient spikes, sustained overcurrents, and catastrophic short circuits. Without adequate protection, these events can lead to severe consequences, including wire insulation degradation, component failure, fire hazards, and complete system breakdown. A circuit breaker functions as an automatic electrical switch designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or short circuit. Its fundamental operational mechanism involves interrupting the current flow when it exceeds a predetermined safe threshold for a specified duration. Unlike a fuse, which is a single-use device requiring replacement after activation, a circuit breaker offers the significant advantage of being resettable, allowing for immediate restoration of service once the fault condition has been identified and rectified. This particular 100 Amp unit is engineered to trip precisely when the current exceeds this threshold, providing reliable protection for high-power auxiliary and accessory circuits operating within a 42V DC system.
The Significance of a 100 Amp Rating in Heavy-Duty Applications
The specified 100 Amp (A) trip current rating of this circuit breaker is a pivotal characteristic, directly addressing the substantial power requirements of various heavy-duty equipment. In applications such as powering hydraulic pumps for dump hoists, electric motors for snowplow lift mechanisms, or sophisticated control systems for large cranes, current draws can frequently reach or exceed 100 amperes, especially during peak operational phases or transient start-up conditions. A breaker with this specific rating ensures that the circuit is protected against overloads that could damage wiring or connected components, while simultaneously allowing for the necessary operational current without nuisance tripping. This precise calibration is essential for maintaining the efficiency and longevity of high-power auxiliary systems, preventing premature wear and potential failure of expensive equipment. The ability to handle such high amperage demands underscores its robust internal construction and superior contact materials, optimized for minimal resistive losses and maximum current carrying capacity.
Manual Reset and Push-to-Trip Mechanism: Operational Advantages and Diagnostic Utility
A defining feature of this circuit breaker is its manual reset and push-to-trip mechanism. This design choice offers distinct advantages over automatic reset breakers or traditional fuses, particularly in applications where fault diagnosis and controlled system restarts are critical. When an overcurrent condition occurs, the breaker trips, opening the circuit to prevent damage. The manual reset capability requires an operator to physically push a button to re-engage the circuit. This deliberate action ensures that an underlying fault condition, which caused the trip, is acknowledged and ideally investigated before power is restored. This prevents a continuous cycle of tripping and resetting that could obscure the root cause of the problem or lead to repeated stress on the electrical system. Furthermore, the "push-to-trip" function provides a valuable diagnostic and maintenance tool. It allows technicians to intentionally open the circuit for testing, troubleshooting, or maintenance procedures without disconnecting wires or requiring external tools. This enhances safety during servicing and streamlines diagnostic processes, making it easier to isolate specific electrical segments for inspection or repair. The clear visual indication of its tripped state also aids in rapid fault identification within complex electrical networks.
Robust Design and Construction for Extreme Environments
The operational environments for auxiliary circuits on dump hoists, plows, spreaders, lift gates, and cranes are often characterized by extreme conditions, including exposure to moisture, dust, vibration, temperature fluctuations, and corrosive agents. To ensure unwavering performance under these stresses, the Buyers Products 100 Amp Circuit Breaker is meticulously engineered with a robust material selection and sealing technologies:
Water Resistance and Environmental Sealing
The designation "water resistant" and the inclusion of rubber boots are critical for applications where exposure to the elements is unavoidable. The primary housing of the breaker is constructed from durable, impact-resistant black plastic, providing inherent insulation and protection for the internal components. The integral rubber boots are strategically placed to encapsulate the connection points, forming a resilient barrier against ingress of water, salt spray, dirt, and other contaminants. This comprehensive sealing prevents corrosion of terminals, short circuits due to moisture, and maintains optimal electrical conductivity, thereby extending the operational lifespan and reliability of the circuit breaker in severe weather conditions or wash-down environments. The material choice for the box and overall construction results in a "Waterproof (y/n): Yes" rating, affirming its resilience in challenging wet conditions.
Premium Conductive Materials
The electrical integrity of any high-current device is heavily reliant on the quality of its conductive pathways. This circuit breaker features silver-plated studs, which are superior to plain brass or copper in several aspects. Silver boasts the highest electrical conductivity of all metals, minimizing resistance at the connection points and consequently reducing heat generation during high-current flow. The plating also provides an exceptional barrier against oxidation and corrosion, preserving the low-resistance contact over time, which is crucial for consistent performance and preventing voltage drops in demanding DC applications. The internal connection material is specified as brass, an excellent conductor known for its strength and workability, further ensuring efficient current transmission within the breaker's mechanism.
Corrosion Resistance and Secure Fastening
Complementing the silver-plated studs, stainless steel nuts are utilized for securing cable connections. Stainless steel is renowned for its exceptional resistance to corrosion, rust, and chemical degradation, making it an ideal choice for outdoor and marine applications where exposure to salt, moisture, and various industrial chemicals is common. The inherent strength of stainless steel also ensures a secure and durable mechanical connection that resists loosening due to vibration or thermal expansion/contraction. The combination of silver-plated studs and stainless steel nuts guarantees long-term electrical and mechanical integrity, minimizing maintenance requirements and maximizing system uptime. The overall finish is plain, indicating a utilitarian and functional design focused on performance rather than aesthetic embellishments.
Targeted Applications: Powering Critical Auxiliary Systems
The versatility and robust design of the 100 Amp Circuit Breaker make it ideally suited for a broad spectrum of heavy-duty auxiliary and accessory circuits:
Dump Hoists
Dump hoists, essential for construction and material handling, rely on powerful hydraulic pumps often driven by high-current electric motors. These motors experience significant surge currents during start-up and heavy-load operation. A 100A breaker provides the necessary protection against overloads caused by stalled motors, hydraulic system blockages, or electrical faults, ensuring the safety of the equipment and operators while allowing for peak performance.
Plows and Spreaders
Snowplows and salt/sand spreaders are deployed in some of the most challenging conditions imaginable, including freezing temperatures, heavy precipitation, and corrosive road treatments. Their electric motors, solenoids, and control systems demand reliable overcurrent protection. This water-resistant, corrosion-resistant breaker ensures uninterrupted operation and protection for critical components like lift pumps and spinner motors, which often draw considerable current.
Lift Gates
Vehicle lift gates, integral for logistics and delivery services, involve electric motors that can draw high currents when lifting heavy loads. Safety and operational reliability are paramount. The 100A breaker protects the lift gate's electrical system from overcurrents due to mechanical binding, motor strain, or wiring faults, thereby preventing damage and potential operational failures that could delay deliveries or compromise safety.
Cranes
Mobile and vehicle-mounted cranes feature complex electrical systems controlling hydraulic pumps, winches, lighting, and safety interlocks. These systems are characterized by intermittent high-current demands and the critical need for absolute reliability. The 100A breaker safeguards these essential circuits, allowing operators to focus on precision and safety without concern for electrical system integrity during heavy lifts or prolonged operations.
General Heavy-Duty Vehicle Auxiliary Circuits
Beyond these specific examples, the breaker is indispensable for various other high-draw auxiliary circuits on commercial vehicles, municipal fleets, and construction equipment. This includes powerful lighting arrays, inverter systems, auxiliary power units, heavy-duty winches, and specialized onboard equipment, all of which benefit from robust, resettable overcurrent protection tailored for high amperage requirements and harsh environmental exposure.
Technical Specifications and Performance Parameters
A detailed understanding of the technical specifications is crucial for proper integration and assured performance:
Voltage Rating (42V DC)
The maximum voltage rating of 42.0 Volts DC (Direct Current) is a critical parameter. While many automotive applications operate at 12V DC, heavy-duty commercial vehicles, off-highway equipment, and some industrial systems utilize 24V DC, and increasingly, 42V DC, especially for newer, more power-intensive systems. The 42V rating indicates robust insulation and contact separation capabilities suitable for these higher voltage heavy-duty environments, ensuring safe operation without dielectric breakdown or arcing at its rated voltage.
Current Trip Rating (100A)
As previously discussed, the 100 Amp trip current is precisely set to protect circuits against persistent overloads and instantaneous short circuits. This rating is determined by the thermal characteristics of the bimetallic strip or other current-sensing element within the breaker, which is designed to heat up and trip within a specified time curve when the current exceeds 100A. This precision ensures that components and wiring are protected before they reach damaging temperature thresholds.
Physical Dimensions and Material Science
With a length of 2.875 inches and a width of 1.875 inches, the compact form factor of this circuit breaker facilitates installation in space-constrained applications. The primary material is plastic, selected for its excellent electrical insulation properties, light weight, and resistance to environmental factors. The use of stud connections, made from brass (and silver-plated for the external terminals), provides a highly robust and secure method for terminating heavy-gauge electrical cables. Stud connections are preferred in high-current applications over blade or plug-in terminals due to their superior surface contact area, mechanical strength, and ability to handle vibration without loosening, thus minimizing resistive losses and heat buildup at the interface.
Advantages Over Traditional Fuses
While fuses offer reliable single-use overcurrent protection, circuit breakers, particularly manual reset types, present several compelling advantages in heavy-duty applications:
- Resettability: The primary advantage is the ability to reset the breaker after a trip, eliminating the need to carry and replace spare fuses. This significantly reduces downtime and operational costs, especially in remote locations or during critical operations.
- Diagnostic Feedback: A tripped circuit breaker provides an immediate, clear indication of a fault. The manual reset mechanism encourages operators to investigate the cause of the trip before restoring power, promoting better maintenance practices and preventing recurring damage.
- Long-Term Cost-Effectiveness: Although the initial cost of a circuit breaker may be higher than a fuse, its reusable nature leads to substantial long-term savings by eliminating ongoing fuse replacement expenses.
- Environmental Resilience: Modern circuit breakers, like this Buyers Products model, are often sealed and built to withstand harsh environmental conditions better than many open fuse holders, which can be susceptible to corrosion and ingress.
- Controlled Interruption: Circuit breakers are designed to interrupt current safely, even under extreme short-circuit conditions, often with precise trip curves that can be less affected by temperature than certain types of fuses.
Installation and Integration
Proper installation is paramount to ensuring the full efficacy and safety of the 100 Amp Circuit Breaker. Given its stud connections, it is designed for secure, bolted cable terminations, typically using ring terminals crimped onto the appropriate gauge wiring. The use of stainless steel nuts ensures a tight and vibration-resistant connection, crucial for the mobile applications it serves. It should be mounted in an accessible location, allowing for easy access to the manual reset button and for visual inspection, while also being protected from direct physical damage. Consideration of cable routing, strain relief, and appropriate torquing of the terminal nuts is essential to prevent hot spots, voltage drops, and potential failures at the connection points. The compact dimensions (Length 2.875", Width 1.875") allow for flexible mounting options within electrical enclosures or directly onto vehicle frames where space might be limited.
Ensuring Operational Safety and Reliability
The integration of the Buyers Products 100 Amp Circuit Breaker into an electrical system profoundly enhances overall operational safety and reliability. By automatically disconnecting power when an overcurrent condition arises, it mitigates risks of electrical fires, component damage, and prolonged system outages. The manual reset mechanism, in particular, contributes to a safer operating environment by compelling a diagnostic pause before re-energizing the circuit, preventing immediate re-tripping into an unaddressed fault. This systematic approach to fault management not only protects valuable equipment but also safeguards personnel by preventing potential hazards associated with overloaded circuits. Its robust construction, featuring water resistance, corrosion-resistant materials, and premium conductors, ensures consistent, reliable performance even in the most demanding and unforgiving conditions, leading to greater uptime and reduced maintenance burden.
The Buyers Products Commitment to Quality
Buyers Products is a reputable name in the heavy-duty truck and trailer equipment industry, known for its unwavering commitment to quality, durability, and innovation. The 100 Amp Circuit Breaker reflects this ethos, engineered to meet the stringent demands of professional applications. Customers can rely on this product not only for its technical specifications but also for the brand's legacy of producing robust and dependable solutions that withstand the test of time and tough environments. The availability of these breakers in a wide range of amperages, from 30A to 250A, demonstrates Buyers Products' comprehensive approach to fulfilling diverse power protection requirements across the heavy-duty sector.
Conclusion
The 100 Amp Circuit Breaker with Manual Push-to-Trip Reset from Buyers Products is a high-performance, purpose-built solution for overcurrent protection in critical auxiliary and accessory circuits. Its precise 100A trip rating, coupled with the functional benefits of a manual reset and push-to-trip mechanism, offers superior control, diagnostic utility, and safety compared to traditional protection devices. Constructed with premium materials such as a durable plastic housing, silver-plated brass studs, stainless steel nuts, and protective rubber boots, it delivers exceptional water resistance and corrosion immunity. This makes it an indispensable component for the electrical systems of dump hoists, plows, spreaders, lift gates, cranes, and other heavy-duty equipment operating in challenging conditions. Investing in this circuit breaker ensures the long-term reliability, safety, and operational efficiency of high-current DC electrical systems, reinforcing system integrity and minimizing costly downtime.
