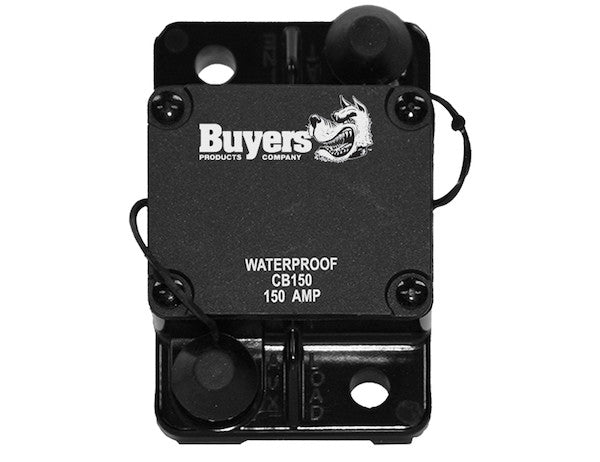

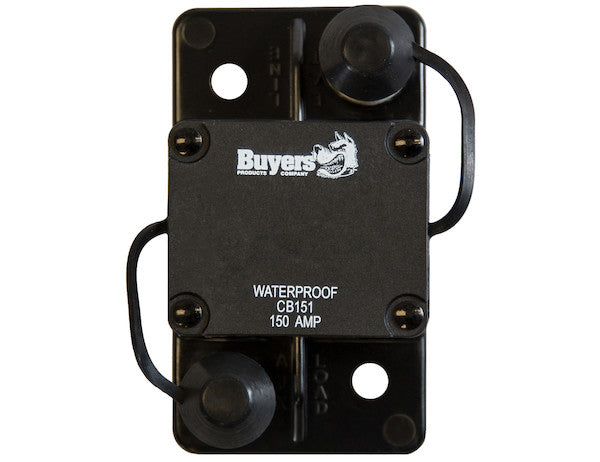

CB150 - 150 Amp Circuit Breaker With Auto Reset

Buyers Products High-Amp Circuit Breakers with Auto Reset protects accessory circuits on dump hoists, plows, spreaders, lift gates, and cranes. The auto reset circuit breakers are water resistant and feature silver-plated studs, stainless steel nuts, and rubber boots. They're available in several amperages to suit your needs.

Specifications

Advanced Circuit Protection: The 150 Amp Auto-Reset Circuit Breaker for Heavy-Duty Applications

The 150 Amp Circuit Breaker with Auto Reset represents a critical component in the electrical architecture of modern heavy-duty vehicles and industrial equipment. Engineered for superior protection and continuous operation, this high-amperage circuit breaker is specifically designed to safeguard auxiliary circuits that power demanding accessories such as hydraulic pumps on dump hoists, electric motors on snowplows and salt spreaders, robust lift gates, and powerful crane systems. Its defining characteristic, the auto-reset function, provides an unparalleled blend of safety, convenience, and operational efficiency in environments where manual intervention may be impractical or undesirable.

Fundamental Principles of Circuit Protection for High-Current Systems

Circuit protection devices are indispensable for preventing damage to electrical systems and components from overcurrent conditions, which can arise from short circuits or sustained overloads. Unlike traditional fuses, which are sacrificial and require replacement after each trip, a circuit breaker offers a reusable solution. This particular unit, rated at 150 Amps, is calibrated to interrupt the electrical flow when the current exceeds this threshold, thereby protecting downstream equipment and wiring from potentially destructive thermal events. The choice between a fuse and a circuit breaker often hinges on the application's specific requirements for reset capability, and for high-amperage, critical mobile equipment, the advantages of an auto-reset breaker are substantial.

Most high-amperage circuit breakers of this type employ a thermal tripping mechanism. This mechanism typically consists of a bimetallic strip, which is a composite of two different metals bonded together, each possessing a distinct coefficient of thermal expansion. When an overcurrent condition occurs, the excessive current flowing through the circuit heats the bimetallic strip. As the strip heats, one metal expands more rapidly than the other, causing the strip to bend. This deflection mechanically actuates a switch, opening the electrical contacts and interrupting the circuit. This intrinsic design allows for a precisely calibrated response to overcurrent, ensuring reliable protection without false trips under normal operating conditions.

The Critical Role of 150 Amp Rating

The 150 Amp rating signifies the maximum continuous current this circuit breaker is designed to carry without tripping under specified conditions. For the applications it serves – including dump hoists, plows, spreaders, lift gates, and cranes – 150 Amps is a significant current draw, indicative of powerful electric motors and actuators. For instance, the hydraulic pump motor of a medium-duty dump hoist or a large lift gate can demand peak currents well within or exceeding the 100-150 Amp range during startup or under heavy load. Selecting a circuit breaker with an appropriate current rating is paramount. An undersized breaker would trip prematurely, causing nuisance downtime, while an oversized breaker would fail to provide adequate protection, risking damage to expensive equipment and creating potential safety hazards. The 150 Amp rating of this unit is specifically tailored to meet the rigorous power demands of such heavy-duty accessory circuits, ensuring robust protection without compromising operational capacity.

Advanced Auto-Reset Functionality

The auto-reset feature is a cornerstone of this circuit breaker's utility, particularly in dynamic and demanding environments. Once an overcurrent event causes the bimetallic strip to trip and open the circuit, the breaker remains open until the strip cools down. As it cools, the bimetallic strip straightens and re-establishes the electrical connection, automatically resetting the circuit. This seamless, hands-free reset capability offers several distinct advantages:

• Enhanced Operational Continuity: For intermittent overloads, such as momentary motor stalls or transient spikes, the auto-reset function allows the system to resume operation without requiring manual intervention, significantly reducing downtime and improving productivity.
• Reduced Maintenance Burden: Eliminates the need for operators to locate and replace blown fuses, saving time and labor costs, particularly in systems where access to the protection device might be difficult.
• Suitability for Remote Applications: Ideal for equipment operating in remote locations or systems where constant monitoring by personnel is not feasible.
• Protection Against Intermittent Faults: While continuous cycling on a persistent fault can indicate a serious underlying issue, the auto-reset feature effectively handles transient faults that are self-clearing, ensuring the system can continue functioning efficiently.

It is crucial to understand that while auto-reset provides convenience, repeated tripping signals a persistent fault that requires investigation and remediation. The breaker will continue to cycle until the fault is resolved, highlighting the issue for diagnosis.

Robust Construction and Material Science for Demanding Environments

The durability and reliability of any circuit protection device are heavily dependent on its construction materials and design, especially when deployed in harsh mobile or outdoor conditions. This 150 Amp circuit breaker is meticulously engineered with these factors in mind:

• Box Material (Plastic, Black, Plain Finish): The robust plastic housing provides excellent electrical insulation and mechanical protection for the internal components. Its black color and plain finish contribute to its discreet integration into various electrical systems while offering inherent resistance to UV radiation, chemicals, and physical impacts commonly encountered in industrial and vehicular settings. Plastic, specifically engineered for such applications, offers a high dielectric strength, critical for containing high electrical currents and preventing unintended grounding or short circuits.

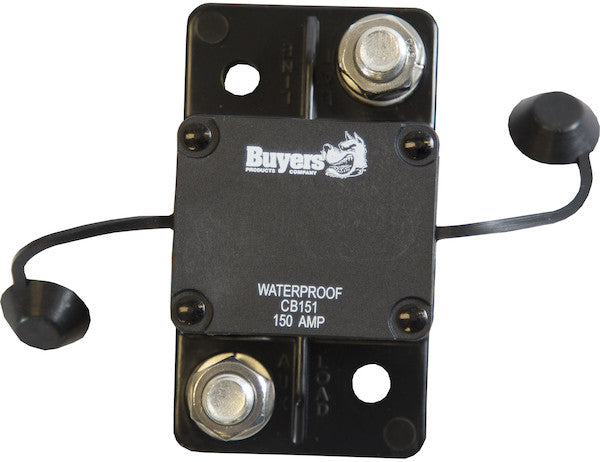

• Connection Type (Stud): The utilization of stud connections, as opposed to spade terminals or other connection methods, is crucial for high-amperage applications. Studs provide a larger contact surface area, minimizing resistance and heat generation at the connection point, which is vital for carrying 150 Amps safely and efficiently. This robust connection method ensures a secure, vibration-resistant electrical path, critical for mobile equipment.
• Connection Material (Brass, Silver-Plated Studs): The studs are manufactured from high-conductivity brass, a material renowned for its excellent electrical properties. To further enhance conductivity and provide superior corrosion resistance, these brass studs are silver-plated. Silver is the most electrically conductive metal, and its application significantly reduces contact resistance, minimizing voltage drop and heat generation at the terminals. This plating also offers robust protection against oxidation and other forms of corrosion, which are prevalent in outdoor, humid, or chemically exposed environments, ensuring long-term electrical integrity.
• Stainless Steel Nuts: Securing the electrical connections are stainless steel nuts. Stainless steel is chosen for its exceptional resistance to corrosion, rust, and galling, particularly when exposed to moisture, road salts, or aggressive industrial fluids. This ensures that the connections remain tight and secure over time, preventing loosening due to vibration and maintaining optimal electrical contact. The robust nature of stainless steel also allows for precise torque application during installation, further enhancing connection reliability.
• Rubber Boots: The inclusion of rubber boots over the terminals serves multiple critical functions. Primarily, they provide additional insulation against accidental short circuits, especially important in crowded electrical compartments. Furthermore, these boots act as a protective barrier, sealing the electrical connections from moisture, dust, dirt, and corrosive elements. This enhanced environmental protection is a key contributor to the "waterproof" rating of the unit, extending its lifespan and reliability in challenging conditions.

Technical Specifications: Performance and Integration

A deeper look into the technical specifications reveals the precise engineering behind this circuit breaker:

• Max Volts (42.0 V): This rating indicates the maximum voltage at which the circuit breaker is designed to safely operate. While many heavy-duty vehicles operate on 12V or 24V DC systems, the 42V rating provides ample headroom and compatibility with evolving electrical architectures, including those found in some hybrid or specialized industrial vehicles. This ensures the breaker can reliably protect circuits without suffering dielectric breakdown or degradation in higher voltage automotive or marine applications.
• Trip Current (150 Amps): As previously discussed, this is the current threshold at which the breaker will reliably trip, safeguarding the circuit from damaging overcurrent conditions. The precision of this trip curve is critical for both protection and preventing nuisance trips.
• Waterproof (Yes): This explicit rating underscores the unit's suitability for exposed installations. Achieved through robust housing, sealed connections, and rubber boots, this feature is indispensable for applications in marine environments, agricultural machinery, construction equipment, or any vehicle exposed to the elements, ensuring performance even when subjected to spray, washdowns, or submersion up to certain depths (depending on specific IP rating, often IP67 or IP68 for fully waterproof components).
• Dimensions (Length: 2.875", Width: 1.875"): The compact dimensions facilitate easier integration into existing electrical panels or confined spaces typical of vehicle and equipment installations. Despite its high amperage rating, the design maintains a relatively small footprint, allowing for flexible mounting options without occupying excessive space.

Expanded Application Scenarios

Beyond the primary examples, the 150 Amp auto-reset circuit breaker finds utility in a broader spectrum of demanding applications:

• Auxiliary Power Systems: Ideal for protecting main feeds from auxiliary battery banks, particularly those supplying high-power inverters for tools, communications equipment, or off-grid living setups in RVs and overland vehicles.
• Marine Applications: Essential for protecting high-draw marine accessories such as powerful anchor winches, thrusters, and large sound systems, where exposure to saltwater spray and humidity is constant. The waterproof design and corrosion-resistant materials are crucial here.
• Agricultural Equipment: Used in tractors, harvesters, and sprayers to protect circuits for hydraulic pumps, spray boom controls, lighting arrays, and other high-current implements that operate in dirty, wet, and often remote conditions.
• Emergency Vehicles: Provides reliable circuit protection for high-intensity lighting, siren systems, air compressors, and specialized rescue equipment in ambulances, fire trucks, and police vehicles, where continuous operation is paramount.
• Construction Equipment: Safeguards circuits for rotating beacons, work lights, hydraulic power units, and control systems on excavators, bulldozers, and loaders, operating in environments prone to vibration, dust, and moisture.

Installation and Best Practices

Proper installation is paramount to ensuring the optimal performance and longevity of the 150 Amp auto-reset circuit breaker. Key considerations include:

• Wire Sizing: Given the 150 Amp rating, it is critical to use appropriately gauged wiring capable of safely carrying such high current over the intended distance, in accordance with applicable electrical codes and manufacturer recommendations (e.g., AWG standards). Undersized wire will lead to excessive heat, voltage drop, and potential fire hazards.
• Mounting Location: While the unit is waterproof, mounting it in a location that minimizes direct exposure to extreme mechanical stress, heat sources, or abrasive elements can further extend its service life. Ensure adequate ventilation if installed in an enclosed space, though thermal breakers typically manage their own heat well.
• Connection Integrity: Ensure all connections are clean, free of corrosion, and properly torqued. Over-tightening can damage the studs, while under-tightening can lead to high resistance, heat buildup, and intermittent connections. The silver-plated brass studs and stainless steel nuts are designed to facilitate robust connections, but proper technique is still essential.
• Environmental Considerations: While rated as waterproof, minimizing prolonged submersion or direct, high-pressure spray can help preserve the integrity of the rubber boots and housing over many years of service.

Conclusion

The 150 Amp Circuit Breaker with Auto Reset stands as an exemplary solution for robust, reliable, and convenient circuit protection in heavy-duty and mission-critical applications. Its precise 150 Amp trip rating, coupled with the inherent advantages of auto-reset functionality, minimizes downtime and enhances operational efficiency. The meticulous selection of materials, including a durable plastic housing, silver-plated brass studs, stainless steel nuts, and protective rubber boots, ensures exceptional durability and an unqualified waterproof rating, making it suitable for the most challenging environmental conditions. For professional installers and operators of commercial vehicles, marine craft, and industrial equipment, this circuit breaker offers a superior level of safeguarding, ensuring the longevity of expensive electrical systems and the continuous, safe operation of vital accessory circuits.
