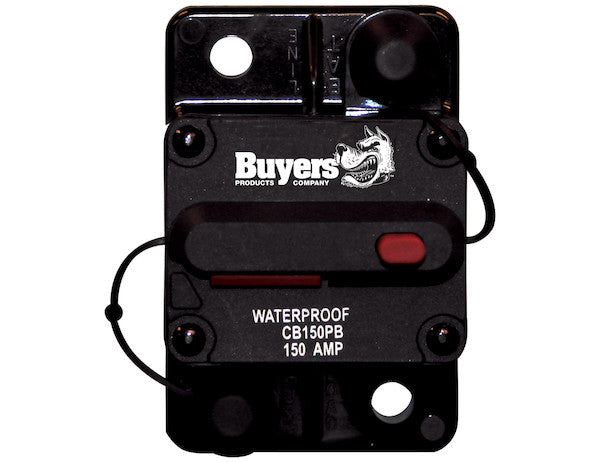

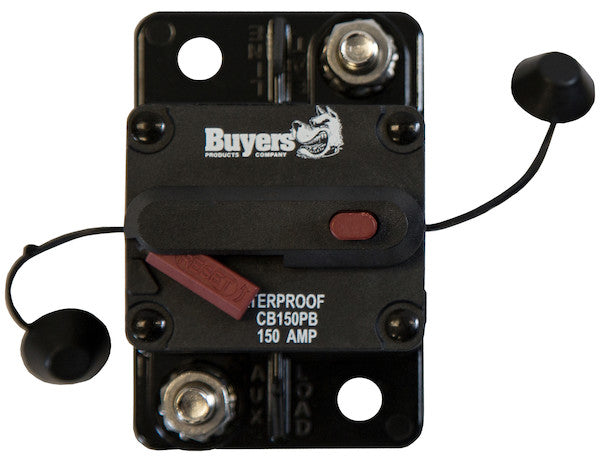

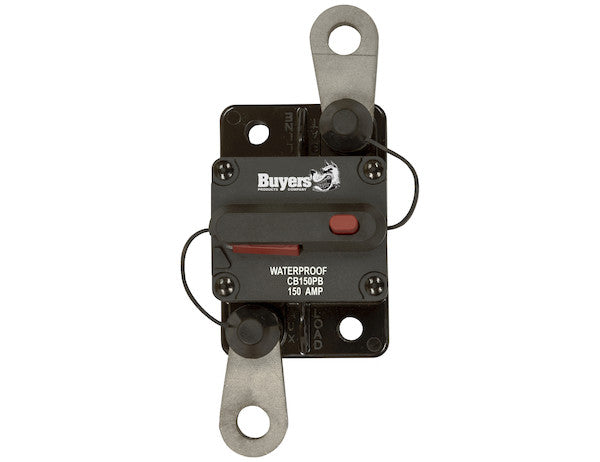

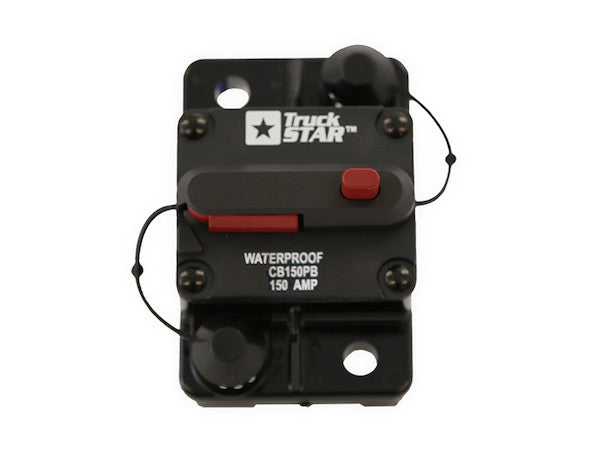

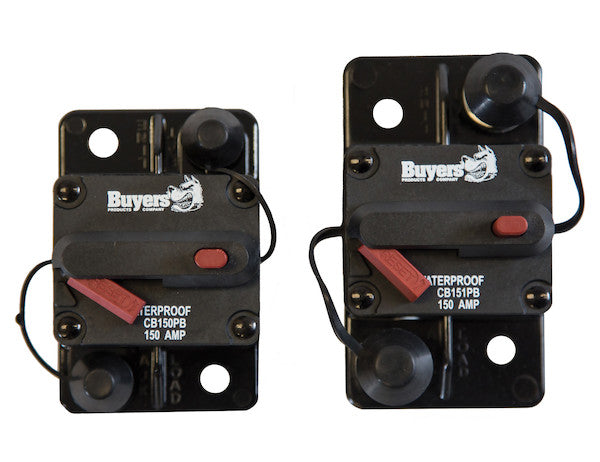

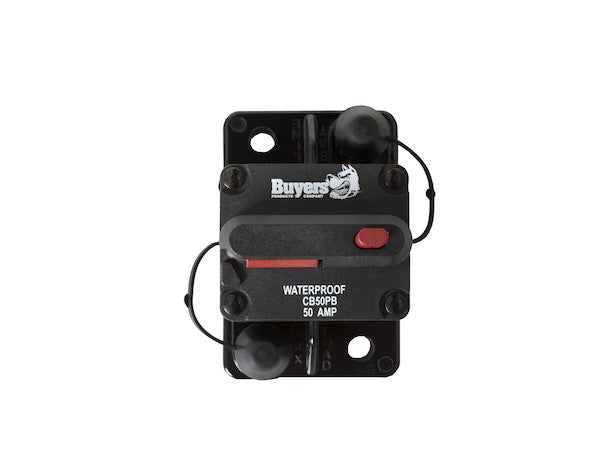

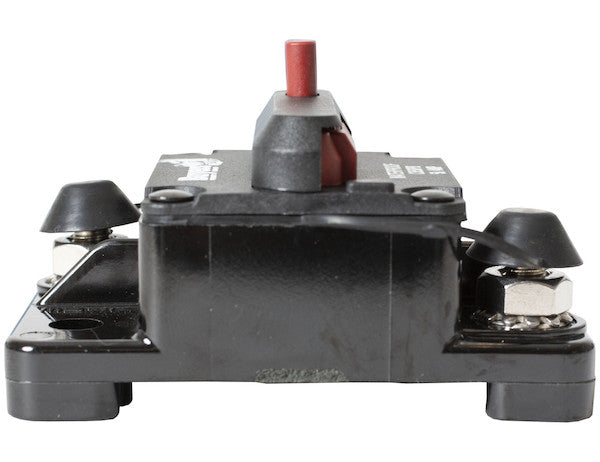

High-Amp Circuit Breakers with Manual Reset from Buyers Products helps protect auxiliary and accessory circuits on dump hoists, plows, spreaders, lift gates, and cranes. The manual reset, push-to-trip circuit breakers are water resistant and feature silver-plated studs, stainless steel nuts, and rubber boots. They are available in amperages ranging from 30A to 250A.
Specifications
| Box Material | Plastic |
|---|---|
| Color | Black |
| Connection | Stud |
| Connection Material | Brass |
| Finish | Plain |
| Length | 2.875 |
| Material | Plastic |
| Max Volts | 42.0 |
| Reset | Manual |
| Studs Material | Brass |
| Trip Current | 150 |
| Waterproof (y/n) | Yes |
| Width | 1.875 |
The 150 Amp Circuit Breaker with Manual Push-to-Trip Reset: Advanced Overcurrent Protection for Demanding Applications
In the realm of high-current DC electrical systems, robust and reliable overcurrent protection is not merely a feature but an imperative. The 150 Amp Circuit Breaker with Manual Push-to-Trip Reset from Buyers Products represents a pinnacle of engineering designed to safeguard critical auxiliary and accessory circuits across a wide spectrum of heavy-duty and specialized applications. This device is meticulously crafted to deliver precision protection, ensure operational continuity, and extend the lifespan of valuable electrical components by mitigating the risks associated with overcurrent events such as short circuits and overloads. Its specific 150 Amp rating positions it as an ideal solution for systems requiring significant current flow, where traditional fusing solutions may prove inadequate or incur excessive operational costs due to frequent replacement. The integration of a manual reset and push-to-trip functionality further elevates its utility, offering both immediate system restoration and enhanced diagnostic capabilities.
Understanding the Core Functionality: Overcurrent Protection Principles
The primary role of any circuit breaker is to automatically interrupt an electrical circuit when the current flowing through it exceeds a safe threshold, thereby preventing damage to wiring, equipment, and potential hazards like electrical fires. This 150 Amp circuit breaker employs a thermal tripping mechanism, a robust and proven technology especially well-suited for DC applications. At its heart lies a bimetallic strip, an assembly of two distinct metals bonded together, each possessing a different coefficient of thermal expansion. Under normal operating conditions, the current flows through this strip without incident. However, when an overcurrent condition arises, the increased current generates excessive heat within the bimetallic strip. As the strip heats up, the metals expand at different rates, causing the strip to bend and deform. This mechanical deformation, once it reaches a calibrated point corresponding to 150 amps, actuates a trip mechanism that rapidly opens a set of electrical contacts, effectively breaking the circuit and isolating the fault. This instantaneous response is crucial in preventing sustained overcurrents from causing irreversible damage or dangerous conditions.
Upon activation, the circuit breaker remains in an open (tripped) state until manually reset. This characteristic is vital for safety and diagnostic purposes. It prevents the circuit from being inadvertently re-energized into a fault condition, which could lead to further damage or injury. The manual reset capability, as opposed to a fuse, offers significant operational advantages. Instead of requiring replacement after each trip, the circuit breaker can be reset once the underlying fault has been identified and corrected. This dramatically reduces downtime, lowers maintenance costs, and minimizes the need for stocking spare parts, particularly beneficial in remote or time-sensitive operational environments. The "push-to-trip" feature further enhances its functionality, allowing operators or technicians to intentionally trip the circuit breaker. This is invaluable for system testing, planned maintenance, or emergency shutdown procedures, providing an immediate and reliable method to de-energize a specific circuit without disconnecting cables or resorting to other, less convenient methods.
Technical Specifications and Performance Parameters
The precise technical specifications of this 150 Amp circuit breaker are paramount to its effectiveness and suitability for high-demand applications. With a nominal trip current of 150 Amps, this device is engineered to provide precise protection for circuits where the normal operational current approaches this value, but excursions beyond it would indicate an unsafe condition. The selection of a 150 Amp rating is critical; undersizing could lead to nuisance tripping under normal loads, while oversizing would fail to provide adequate protection. It is designed for optimal performance within electrical systems with a maximum voltage of 42.0 Volts DC. This voltage rating makes it perfectly compatible with standard 12V, 24V, and emerging 36V/42V DC systems prevalent in modern heavy equipment, commercial vehicles, and marine applications. Adherence to this voltage limit is crucial to prevent arc formation and ensure safe interruption capabilities during a fault condition. The thermal trip characteristic typically means that the breaker will trip faster at higher overcurrents and slower at moderate overcurrents, providing a robust protection curve that accounts for temporary inrush currents typical of motor starting or capacitive loads, while still providing rapid protection for severe faults.
Robust Construction and Material Science for Enduring Performance
The durability and reliability of this circuit breaker are inextricably linked to its construction and the materials utilized. The enclosure is crafted from a high-quality, impact-resistant plastic. This material offers several key advantages: excellent dielectric properties to insulate internal components and prevent electrical leakage, inherent corrosion resistance crucial in harsh environments where metallic enclosures would degrade, and a lightweight profile that minimizes added mass to mobile equipment. The black color provides UV resistance and a discreet appearance. For critical electrical connections, the circuit breaker features robust stud terminals. These studs are manufactured from brass, a material chosen for its excellent electrical conductivity, mechanical strength, and corrosion resistance. To further enhance these properties, the brass studs are silver-plated. Silver plating significantly improves surface conductivity, reduces contact resistance, and provides superior resistance to oxidation and corrosion compared to bare brass, ensuring optimal current transfer and long-term reliability even in challenging conditions. The connection integrity is secured with stainless steel nuts, which are highly resistant to rust and corrosion, providing a reliable and lasting mechanical and electrical connection. The inclusion of rubber boots over the terminals offers an additional layer of protection, sealing the critical connection points against moisture, dust, and other contaminants, thereby preventing short circuits and galvanic corrosion.
Environmental Sealing: Water Resistance and Robustness
Given its intended use in applications like dump hoists, plows, spreaders, lift gates, and cranes, which are frequently exposed to the elements, environmental protection is paramount. This circuit breaker is explicitly designed to be water resistant, confirmed by its "Waterproof (y/n): Yes" specification. While specific IP ratings may vary by model within the series, this designation assures a high level of ingress protection against water spray, splashes, and potentially even temporary immersion, ensuring reliable operation in rain, snow, and wash-down scenarios. This is achieved through precision-engineered housing seals, robust sealing around the manual reset button, and the protective rubber boots over the electrical terminals. The overall design prioritizes maintaining internal component integrity, preventing moisture-induced failures, and ensuring consistent performance regardless of environmental conditions. This level of environmental resilience is critical for minimizing system downtime and costly repairs in demanding outdoor and mobile applications.
Versatile Applications in Demanding Environments
The inherent robustness and protective capabilities of this 150 Amp circuit breaker make it indispensable across a diverse range of heavy-duty and auxiliary applications:
- Heavy-Duty Mobile Equipment: Essential for protecting the high-current circuits found in construction machinery, agricultural equipment, and utility vehicles. This includes the power feeds for hydraulic pump motors on dump hoists, snow plows, and lift gates, where sudden surges or mechanical binding could lead to catastrophic electrical overloads. It also safeguards the complex electrical systems of mobile cranes, ensuring the safe operation of their auxiliary functions, lighting, and control circuits.
- Marine and Recreational Vehicles (RVs): In marine environments, corrosion and moisture are constant threats. The water-resistant design and silver-plated studs make this breaker ideal for protecting high-draw accessory circuits such as anchor windlasses, high-output stereo systems, bow thrusters, and inverter feeds. For RVs, it provides critical protection for battery bank circuits, large inverter/charger systems, and other high-power auxiliary loads, ensuring safety and reliability during travel and remote operation.
- Industrial and Auxiliary Systems: Beyond vehicular applications, this breaker finds use in various industrial settings where heavy DC loads are common. This could include auxiliary power units, battery backup systems, portable power generators, and specialized equipment requiring robust overcurrent protection in challenging operational conditions. Its manual reset capability simplifies troubleshooting and maintenance in these complex systems.
Installation, Operation, and Maintenance Best Practices
Proper installation is crucial for the optimal performance and longevity of the circuit breaker. It should be strategically mounted in an accessible location, allowing for easy visual inspection and manual resetting. Secure mounting, using appropriate fasteners, is essential to withstand vibrations and shocks inherent in mobile applications. Wiring for 150 Amp circuits demands careful attention to wire gauge selection; only wires rated for the full 150 Amp continuous current and potential fault currents should be used, adhering to relevant electrical codes and standards (e.g., SAE, ABYC). Connections to the silver-plated brass studs must be made with properly crimped high-quality ring terminals, ensuring a low-resistance, secure interface. The stainless steel nuts should be torqued to the manufacturer's specified values to prevent loose connections, which can lead to excessive heat generation and potential failure. The rubber boots should be correctly seated to provide maximum environmental protection for the terminals.
During operation, the circuit breaker functions autonomously to protect the circuit. Should a trip occur, the manual reset functionality becomes invaluable. Before attempting a reset, it is critical to investigate the cause of the overcurrent. Simply resetting a breaker without addressing the underlying fault can lead to repeated tripping, damage to the breaker itself, or further system complications. Once the fault is cleared, the breaker can be manually reset, quickly restoring power. The "push-to-trip" feature is not just for emergencies; it serves as an excellent diagnostic tool. Technicians can use it to isolate specific circuits for testing, perform voltage drop measurements without completely de-energizing the entire system, or ensure the functionality of the breaker itself. Routine visual inspections of the breaker and its connections for any signs of corrosion, physical damage, or loose wiring are recommended to ensure continued reliable performance.
Advantages Over Traditional Fuses
While fuses offer cost-effective, single-use overcurrent protection, the 150 Amp Circuit Breaker with Manual Push-to-Trip Reset provides distinct advantages in demanding applications:
- Reusability: The most significant benefit is its ability to be reset manually after a trip, eliminating the need for replacement. This dramatically reduces ongoing costs, particularly in systems prone to occasional transient overloads or where troubleshooting might involve multiple trips.
- Reduced Downtime: Rapid restoration of power is possible once a fault is cleared, minimizing operational downtime compared to the time required to locate and replace a blown fuse.
- Diagnostic Capability: The push-to-trip feature allows for deliberate circuit interruption, assisting in system diagnostics, planned maintenance, and safe power isolation.
- Environmental Robustness: Circuit breakers are often designed with superior environmental sealing and mechanical resilience compared to many fuse holders, offering enhanced protection against moisture, vibration, and temperature extremes.
- Visibility: Often, the tripped state of a circuit breaker is visually apparent (e.g., button popped out), making fault identification quicker than with some types of fuses.
Ensuring Safety and System Longevity
The implementation of this 150 Amp Circuit Breaker is a strategic investment in the safety and longevity of your electrical systems. By providing precise and reliable overcurrent protection, it acts as a critical failsafe, preventing thermal runaway in wiring, safeguarding expensive electronic components, and mitigating the risk of electrical fires. Its robust design, featuring water resistance, silver-plated brass studs, stainless steel nuts, and protective rubber boots, ensures that this protection remains steadfast even in the most arduous operating conditions. The manual reset and push-to-trip functions empower operators and maintenance personnel with greater control and diagnostic capabilities, contributing to more efficient troubleshooting and reduced operational interruptions. This commitment to quality and functionality aligns with the stringent requirements of professional applications, making it an indispensable component for any high-performance electrical system.
Conclusion: Uncompromising Protection for Critical Systems
The 150 Amp Circuit Breaker with Manual Push-to-Trip Reset from Buyers Products is more than just an electrical component; it is an integrated solution for advanced overcurrent protection in high-stakes environments. From the heavy-duty demands of hydraulic dump hoists and snow plows to the critical auxiliary systems of cranes and marine vessels, its design and construction reflect an uncompromising commitment to reliability, safety, and operational efficiency. By combining a precise 150 Amp thermal trip mechanism with a robust, water-resistant enclosure and corrosion-resistant, high-conductivity terminals, this circuit breaker stands ready to protect your valuable equipment and ensure continuous, safe operation. Its reusability and unique push-to-trip function offer significant advantages over traditional fuses, providing a sophisticated, cost-effective, and user-friendly approach to safeguarding vital electrical circuits against the unpredictable challenges of real-world applications. Choose this circuit breaker for unparalleled protection and peace of mind in your most demanding electrical systems.
