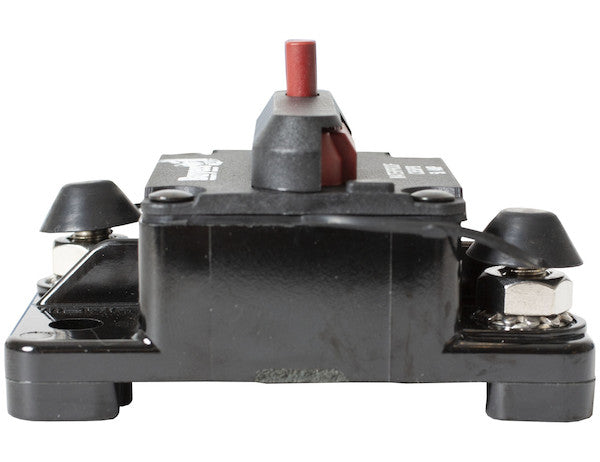

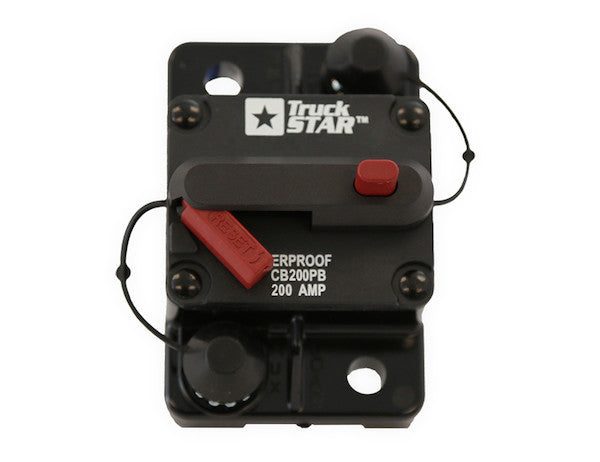

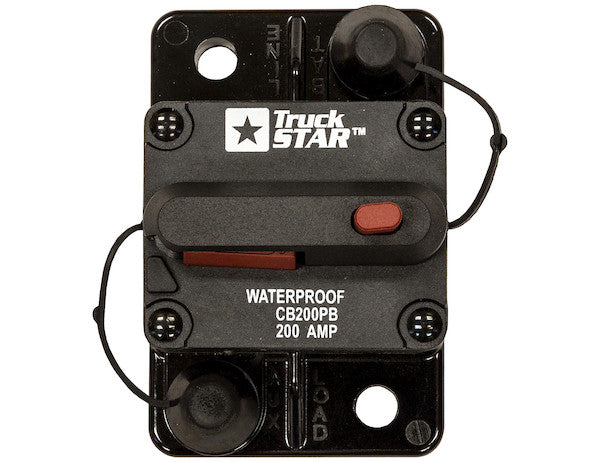

CB200PB - 200 Amp Circuit Breaker With Manual Push-to-Trip Reset

High-Amp Circuit Breakers with Manual Reset from Buyers Products helps protect auxiliary and accessory circuits on dump hoists, plows, spreaders, lift gates, and cranes. The manual reset, push-to-trip circuit breakers are water resistant and feature silver-plated studs, stainless steel nuts, and rubber boots. They are available in amperages ranging from 30A to 250A.

Specifications

Advanced Circuit Protection: The 200 Amp Manual Push-to-Trip Circuit Breaker

The 200 Amp Circuit Breaker with Manual Push-to-Trip Reset represents a critical component in safeguarding complex electrical systems, particularly in demanding mobile and heavy-duty applications. Engineered by Buyers Products, this high-amperage circuit breaker is meticulously designed to provide robust overcurrent protection for auxiliary and accessory circuits. Its technical specifications and construction materials are carefully selected to ensure reliable performance, extended operational life, and optimal safety in challenging operational environments. This detailed description will elaborate on the engineering principles, material science, operational benefits, and diverse applications that make this 200A circuit breaker an indispensable asset for commercial and industrial vehicles.

Core Functionality and Overcurrent Protection

At its essence, this 200 Amp circuit breaker is an automatic electrical safety device designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its fundamental function is to detect a fault condition and interrupt current flow, thereby preventing equipment damage, electrical fires, and ensuring personnel safety. Unlike fuses, which operate once and must be replaced, circuit breakers are resettable devices, offering a distinct advantage in terms of operational continuity and reduced maintenance costs.

The designation "200 Amp" indicates the nominal trip current rating of this specific model. This means the device is engineered to carry a continuous current of 200 amperes under specified conditions without tripping. When the current flowing through the circuit exceeds this threshold for a predetermined duration, the internal tripping mechanism activates. This precision in current rating is crucial for matching the breaker to the specific load requirements of high-power auxiliary systems, preventing both nuisance trips and inadequate protection. This particular unit is part of a broader family of high-amp circuit breakers offered by Buyers Products, with available amperages ranging from 30A to 250A, providing flexibility to protect various load profiles.

The Manual Push-to-Trip Reset Mechanism

A distinctive and highly advantageous feature of this circuit breaker is its "Manual Push-to-Trip Reset" mechanism. This design choice is not arbitrary; it signifies a deliberate engineering decision aimed at enhancing safety, operational control, and diagnostic capability, especially in critical applications. The manual reset capability means that once the breaker trips due to an overcurrent event, it remains open until an operator physically intervenes to reset it. This contrasts sharply with automatic reset breakers, which automatically reclose the circuit once the fault condition clears, potentially re-energizing a hazardous fault or allowing repeated tripping that could damage components.

The "push-to-trip" functionality further empowers the operator or maintenance personnel. This allows for deliberate de-energization of the circuit by manually pushing the trip button. This feature is invaluable for maintenance, troubleshooting, or emergency shutdowns, enabling a controlled and safe disconnection of power to the protected circuit without requiring the main power source to be disconnected. This level of control is particularly vital in heavy machinery where immediate and intentional circuit isolation can prevent accidents or facilitate quicker, safer repairs. The manual reset mechanism also forces an operator to investigate the cause of the trip before re-energizing the circuit, promoting best practices for system diagnostics and preventing repetitive damage.

Robust Construction and Material Science

The durability and reliability of any electrical protection device in harsh environments are largely determined by its construction materials and design integrity. This 200 Amp circuit breaker excels in this regard, incorporating several key features that underscore its professional-grade suitability.

• Water Resistance: The classification as "water resistant" and specifically "Waterproof (y/n): Yes" in the specifications, indicates a high degree of protection against ingress of liquids and particulates. While specific IP ratings are not provided, this implies robust sealing techniques, such as O-rings, gaskets, or sealed enclosures, to prevent moisture, dust, and debris from compromising internal electrical components. This attribute is paramount for applications on vehicles exposed to rain, snow, road spray, or wash-downs, ensuring consistent performance and preventing premature failure due to environmental degradation.
• Enclosure Material: The "Box Material" and "Material" specified as "Plastic" (Color: Black) signify the use of high-grade engineering plastics. These materials are chosen not only for their inherent electrical insulation properties but also for their mechanical strength, impact resistance, UV stability, and resistance to common automotive and industrial chemicals (e.g., fuels, oils, solvents). The black color typically denotes materials with good UV resistance, preventing material degradation and color fading when exposed to sunlight over prolonged periods. The compact dimensions (Length: 2.875 inches, Width: 1.875 inches) also contribute to ease of integration into various space-constrained applications.
• Connection Terminals: The circuit breaker utilizes "Stud" type connections, which are preferred for high-current applications due to their secure mechanical and electrical interface. The "Studs Material" and "Connection Material" are specified as "Brass," further enhanced by "silver-plated studs." Brass offers excellent electrical conductivity and corrosion resistance. The addition of a silver plating significantly improves surface conductivity, reduces contact resistance, and provides superior resistance to oxidation and corrosion compared to bare brass, ensuring a stable and low-resistance connection even under high current loads and fluctuating environmental conditions. This meticulous attention to contact material minimizes voltage drop and heat generation at the connection points, contributing to overall system efficiency and reliability.
• Fasteners and Sealing: The inclusion of "stainless steel nuts" provides a robust, corrosion-resistant fastening solution, critical for maintaining secure electrical connections over time, especially in environments prone to moisture and salt. Complementing the water-resistant design, "rubber boots" are incorporated. These boots typically cover the connection studs, offering additional protection against moisture, dust, and accidental short circuits from tools or stray wires. They act as an extra layer of environmental sealing and insulation, further reinforcing the breaker's operational integrity in harsh conditions.

Electrical Characteristics and Performance Parameters

Understanding the electrical parameters is crucial for proper system design and application matching.

• Trip Current: 200 Amperes: As highlighted, this is the primary rating for overcurrent protection. The trip curve characteristics (e.g., thermal, magnetic, or thermomagnetic) dictate how quickly the breaker responds to different levels of overcurrent. For high-amp applications in vehicles, often a thermal-magnetic trip mechanism is employed, offering delayed tripping for moderate overloads (e.g., motor startup surges) and instantaneous tripping for severe overloads or short circuits.
• Max Volts: 42.0 Volts: This voltage rating signifies the maximum operational voltage the circuit breaker is designed to safely interrupt. A rating of 42.0V DC (Direct Current) makes this breaker highly suitable for heavy-duty vehicle electrical systems, which commonly operate at 12V, 24V, or increasingly, 48V (with a 42V nominal) DC for higher power efficiency in certain applications. It is critical that the circuit breaker's voltage rating meets or exceeds the system voltage to ensure safe and effective interruption of current without arcing or insulation breakdown within the device itself.
• Interrupting Capacity (IC): While not explicitly listed in the specifications, an essential parameter for any circuit breaker is its interrupting capacity (also known as AIC - Ampere Interrupting Capacity or SCCR - Short-Circuit Current Rating). This indicates the maximum short-circuit current the breaker can safely interrupt without being destroyed. For a high-amp breaker in a vehicular DC system, this rating would typically be substantial to handle the potentially very high short-circuit currents that can occur, especially when connected directly to battery banks. Professional installation ensures that the breaker's IC rating is adequate for the available fault current at its point of installation.

Diverse Applications in Heavy-Duty Systems

The versatility and robustness of this 200 Amp circuit breaker make it ideal for a wide array of demanding applications, specifically targeting auxiliary and accessory circuits on various types of heavy equipment and commercial vehicles. These are circuits that draw significant current and require reliable, accessible protection beyond the main vehicle electrical system.

• Dump Hoists: Hydraulic dump hoists on trucks and trailers draw substantial current, especially during the initial lift phases. A 200A breaker provides critical protection against motor overloads and hydraulic system stalls that can lead to excessive current draw.
• Plows and Spreaders: Snowplows and salt/sand spreaders used on municipal and commercial vehicles are exposed to harsh weather conditions and demand considerable power for hydraulic pumps, motors, and control systems. This breaker ensures their electrical integrity against overloads caused by heavy loads, mechanical binding, or environmental stress.
• Lift Gates: Electric or electro-hydraulic lift gates on delivery trucks and utility vehicles require robust protection due to their frequent operation and significant current requirements. The breaker safeguards the lift gate motor and associated control circuitry from overcurrent conditions that can arise from heavy loads or continuous use.
• Cranes: Mobile cranes, especially those with auxiliary functions like outrigger deployment, winch operation, or specialized lighting, benefit from dedicated circuit protection. The 200A breaker can protect the heavy-duty motors and control systems of these critical components, preventing damage from overloads during lifting operations or system malfunctions.
• Other Accessory Circuits: Beyond these specific examples, the breaker is also suitable for a myriad of other high-draw accessory circuits, including:
  • Large inverters (e.g., for converting DC to AC power for tools or appliances).
  • High-output lighting systems (e.g., warning lights, work lights).
  • Auxiliary battery banks and charging systems.
  • Winches and recovery systems on off-road vehicles or utility trucks.
  • Heavy-duty air compressors or pneumatic systems.
  • Hydraulic pump motors for various mobile equipment.

In each of these applications, the ability to manually reset and push-to-trip provides essential operational flexibility and safety. It allows operators to quickly address and isolate issues, minimizing downtime and potential equipment damage.

Installation Guidelines and Best Practices

Proper installation is paramount to ensuring the optimal performance and longevity of the 200 Amp circuit breaker. While specific instructions will accompany the product, general best practices include:

• Location: Install the circuit breaker as close as practically possible to the power source (e.g., battery or main distribution point) it is protecting, to minimize the length of unprotected wire.
• Mounting: Securely mount the breaker to a stable, vibration-resistant surface, ensuring it is readily accessible for manual reset and push-to-trip operations. The robust plastic housing is designed to withstand typical mounting stresses.
• Wiring: Use appropriately sized wire gauge for the 200A current rating, complying with all applicable electrical codes and manufacturer recommendations. The silver-plated brass studs are designed for secure ring-terminal connections. Ensure all connections are clean, tight, and free from corrosion. The use of stainless steel nuts ensures long-term connection integrity.
• Environmental Considerations: While water resistant, positioning the breaker in a location that minimizes direct exposure to extreme elements (e.g., direct high-pressure spray, prolonged submersion) will further enhance its lifespan. The rubber boots should be correctly seated over the terminals.
• Orientation: Follow any manufacturer-recommended orientation for optimal performance, especially if the internal tripping mechanism is sensitive to gravity or thermal convection.

Advantages of Manual Reset Over Automatic Reset

The choice of a manual reset mechanism is a deliberate engineering advantage, particularly for high-power, safety-critical applications. Manual reset breakers offer:

• Enhanced Safety: Preventing immediate re-energization of a faulty circuit after a trip. This forces an inspection, reducing the risk of fire or further damage from a persistent fault.
• Diagnostic Aid: A tripped manual breaker clearly indicates a fault occurred and remains tripped, aiding in troubleshooting. An auto-reset breaker might cycle on and off, making fault isolation more challenging.
• Controlled Operations: The push-to-trip function allows for deliberate, safe isolation of a circuit for maintenance or emergency, without affecting other parts of the electrical system.
• Prevention of Nuisance Cycling: In some applications, temporary overloads might cause an auto-reset breaker to cycle rapidly, potentially stressing components. A manual reset prevents this undesirable cycling.

Conclusion

The 200 Amp Circuit Breaker with Manual Push-to-Trip Reset from Buyers Products is an exemplary solution for advanced electrical protection in severe-duty environments. Its high-amperage capacity, combined with a manual reset and push-to-trip functionality, provides superior control, safety, and diagnostic capability. The meticulous selection of materials, including water-resistant plastic housing, silver-plated brass studs, stainless steel nuts, and protective rubber boots, ensures exceptional durability and reliable performance against environmental stressors and electrical demands. Designed for critical auxiliary and accessory circuits on vehicles like dump hoists, plows, spreaders, lift gates, and cranes, this circuit breaker stands as a testament to robust engineering, delivering peace of mind through unwavering electrical system safeguarding.
