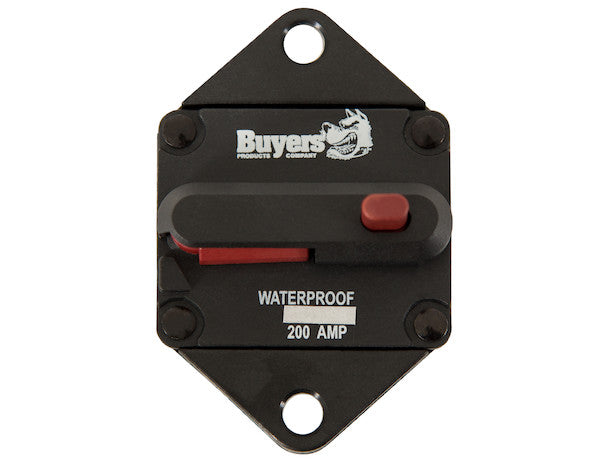

Buyers Products Hi-Amp Panel Mount Circuit Breaker is ideal for switch and power distribution panels. It can be switched with a manual push-button trip. The unit is waterproof to protect against shorts and IP67 rated for dust resistance.
Specifications
| Depth | 2.090 |
|---|---|
| Length | 1.91 |
| Material | Plastic |
| Max Volts | 42.0 |
| Reset | Manual |
| Studs Material | Brass |
| Trip Current | 200 |
| Waterproof (y/n) | Y |
| Width | 2.92 |
The 200 Amp Push-to-Trip Circuit Breaker: Advanced Overcurrent Protection for Critical DC Systems
The Buyers Products 200 Amp Push-to-Trip Circuit Breaker represents a cornerstone in robust electrical system protection, meticulously engineered for high-current, direct current (DC) applications. Designed specifically for integration into switch and power distribution panels, this Hi-Amp circuit breaker offers superior overcurrent protection crucial for maintaining the integrity and safety of sophisticated electrical networks. Its unique push-to-trip functionality, coupled with an IP67 environmental rating and inherent waterproof design, positions it as an indispensable component in demanding operational environments.
Fundamental Principles of Circuit Protection: The Imperative of 200 Amps
At its core, a circuit breaker serves as an automatic electrical switch designed to protect an electrical circuit from damage caused by an overcurrent, which can result from an overload or a short circuit. Unlike a fuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. The 200 Amp trip current rating of this particular unit signifies its capability to protect circuits handling substantial electrical loads. In DC systems, where inductive loads can be significant and instantaneous current draws high, a 200 Amp capacity is essential for applications such as heavy-duty vehicle auxiliary circuits, marine battery banks, large RV power distribution systems, high-power inverters, and sophisticated off-grid solar installations. An overload occurs when too many devices draw current from a circuit, causing the total current to exceed the circuit's safe operating limit. A short circuit, a more severe condition, occurs when an unintended low-resistance path is created, allowing an excessively large current to flow, potentially leading to rapid overheating, component damage, and fire hazards. This 200 Amp breaker is engineered to detect and interrupt such dangerous currents swiftly, preventing catastrophic failures and ensuring the longevity of connected equipment.
Operational Mechanics: The Push-to-Trip and Manual Reset System

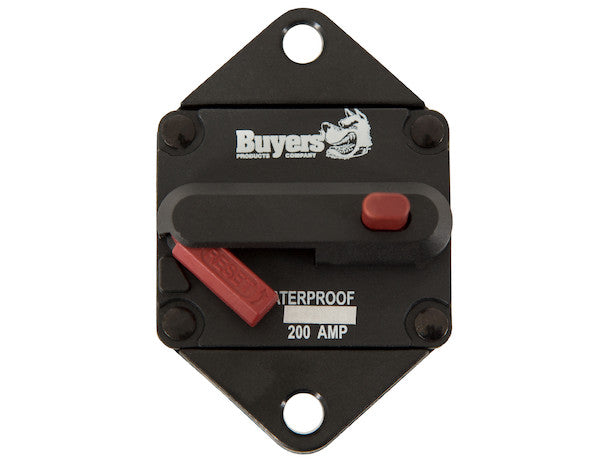

A distinctive feature of this circuit breaker is its manual push-to-trip mechanism. This functionality provides a critical advantage by allowing an operator to intentionally trip the breaker with a physical button, thereby isolating a circuit at will. This is invaluable for system diagnostics, maintenance procedures, or emergency disconnections where immediate power interruption is required without disturbing the main power source or other connected circuits. For instance, during the servicing of an auxiliary component on a heavy-duty vehicle or marine vessel, the push-to-trip feature enables safe de-energization of the specific circuit without necessitating a complete system shutdown. The manual reset capability further enhances operator control and safety. Unlike auto-reset breakers, which automatically re-establish the connection once the fault clears (potentially leading to repeated cycling and eventual damage if the fault persists), this manual reset model requires direct human intervention. This deliberate action ensures that the cause of the overcurrent condition has been identified and rectified before power is restored, thereby preventing potential damage to the circuit breaker itself and connected equipment. The manual reset mechanism typically involves a thermal or thermal-magnetic tripping element, which responds to excessive current by heating a bimetallic strip or activating an electromagnet. Once tripped, the internal contacts open, breaking the circuit. The manual reset button then physically re-engages these contacts, allowing current to flow again only after a conscious decision has been made.
Environmental Fortification: IP67 Rating and Waterproof Design
The operational reliability of electrical components in harsh environments is paramount, and this 200 Amp circuit breaker excels in this regard with its IP67 rating and explicit waterproof designation. The Ingress Protection (IP) rating system, defined by the International Electrotechnical Commission (IEC) standard 60529, classifies the degree of protection provided by mechanical casings and electrical enclosures against ingress of solids and liquids. An IP67 rating signifies two critical levels of protection:
- ‘6’ (First Digit – Solids Protection): This indicates complete protection against dust ingress. The enclosure is dust-tight, meaning no dust can penetrate the component. This is vital in automotive, marine, construction, and agricultural settings where fine particulate matter can cause short circuits, wear, and mechanical failure in unprotected electrical devices.
- ‘7’ (Second Digit – Liquids Protection): This denotes protection against the effects of temporary immersion in water, specifically up to 1 meter (3.3 feet) for 30 minutes. This level of waterproofing goes beyond mere splash resistance, ensuring the internal electrical components remain dry and functional even when subjected to significant water exposure, such as heavy rain, hose-downs, or accidental submersion.
Construction and Material Integrity: Durable Plastic Housing and Brass Studs
The selection of materials for the construction of this circuit breaker is a deliberate choice aimed at optimizing performance, durability, and safety. The primary housing is constructed from high-quality plastic, a material chosen for several key attributes. Electrically, plastic serves as an excellent insulator, preventing unintended current paths and enhancing user safety by enclosing live components. Mechanically, the plastic selected is typically engineered for high impact resistance, chemical stability, and UV resistance, making it suitable for demanding environments where physical shock, exposure to various chemicals (fuels, oils, cleaning agents), and prolonged sunlight are common. This ensures the structural integrity of the breaker over its operational life. The electrical connection points are robustly designed with brass studs. Brass, an alloy of copper and zinc, is highly regarded in electrical applications for its exceptional electrical conductivity and superior corrosion resistance, especially in marine or humid environments where standard steel might quickly degrade. The strength of brass also ensures secure and stable connections, minimizing the risk of loose terminals that could lead to resistance, heat generation, and potential failure. The precise manufacturing of these components guarantees reliable current flow through the breaker and robust mechanical attachment within the electrical panel, contributing significantly to the overall system's stability and safety profile.
Installation and Integration: Panel Mount Design and Dimensional Specificity
The panel mount design of this 200 Amp circuit breaker offers significant advantages for professional electrical installations. Panel mounting allows for secure, integrated, and aesthetically pleasing installation directly onto switchboards, control panels, or distribution boxes. This method ensures the breaker is firmly fixed, preventing movement or accidental dislodgement that could compromise electrical connections or overall system integrity, particularly in dynamic environments subject to vibration or shock. The design facilitates clear access to the push-to-trip button and manual reset mechanism, enabling straightforward operation and maintenance. Precise dimensional specifications—Depth: 2.090 inches, Length: 1.91 inches, Width: 2.92 inches—are critical for system integrators and electrical engineers. These measurements allow for accurate planning of panel layouts, ensuring adequate space for mounting, wiring, and heat dissipation. Proper dimensioning prevents interference with other components, simplifies installation procedures, and contributes to a professional and organized electrical panel. The compact yet robust form factor is optimized for integration into a wide range of panels without requiring excessive space, making it versatile for both new installations and retrofits.
Voltage and System Compatibility: The 42V DC Rating
With a maximum voltage rating of 42.0 Volts DC (VDC), this circuit breaker is ideally suited for common low-voltage DC electrical systems. This voltage range typically encompasses 12V, 24V, and 36V systems prevalent in automotive, marine, recreational vehicle (RV), and some industrial and solar power applications. While 42V might seem specific, it provides a sufficient margin for systems operating at nominal 12V or 24V, accounting for voltage fluctuations during charging or load variations. It is crucial to match the circuit breaker's voltage rating to, or exceed, the system's maximum operating voltage to ensure safe and effective interruption of current. Attempting to use a breaker rated for lower voltage in a higher voltage system can lead to dangerous situations, including arcing and failure to interrupt the circuit, as the contacts may not be designed to withstand the higher electrical potential difference during interruption. This 42V rating confirms its specific design and testing for DC applications, where arc extinguishing mechanisms differ from AC systems dueating to the unidirectional flow of current. The robust design ensures that even at its maximum rated voltage, the breaker can reliably and safely interrupt the specified 200 Amp current without sustaining damage or compromising safety.
Application Versatility: Where High-Amp Protection is Critical
The 200 Amp Push-to-Trip Circuit Breaker’s combination of high current capacity, environmental durability, and manual control makes it exceptionally versatile across numerous industries requiring robust DC power management.
- Heavy-Duty Automotive and Commercial Vehicles: Indispensable for protecting high-draw auxiliary circuits such as winches, powerful audio systems, hydraulic pumps, lift gates, and complex lighting systems in trucks, buses, emergency vehicles, and utility fleets.
- Marine Applications: Essential for protecting critical systems on boats, yachts, and other marine vessels, including high-output alternators, inverter systems, windlasses, thrusters, and large battery banks, where exposure to saltwater spray and humidity is constant.
- Recreational Vehicles (RVs): Provides vital protection for RV battery banks, inverter/charger circuits, and other high-current appliances, ensuring safe operation during travel and stationary use.
- Off-Grid Solar and Battery Storage Systems: Crucial for protecting charge controllers, inverters, and battery banks in standalone solar power systems, preventing overcurrent damage from solar arrays or loads.
- Industrial and Agricultural Machinery: Safeguards control circuits and heavy-duty actuators in industrial equipment, tractors, and other farm machinery operating in challenging outdoor and dusty environments.
- Material Handling Equipment: Used in forklifts, electric carts, and other battery-powered equipment to protect motor control circuits and battery connections.
Advanced Considerations and Safety Protocols
The effective deployment of the 200 Amp Push-to-Trip Circuit Breaker extends beyond mere installation. System designers and installers must adhere to stringent electrical safety protocols. This includes selecting appropriate wire gauges capable of handling 200 amps and higher surge currents, ensuring all connections are tightened to specification to prevent resistance heating, and properly locating the breaker as close as possible to the power source it protects. While this breaker provides robust overcurrent protection, it is part of a larger electrical system. Careful consideration of cascading protection, coordination with other protective devices (such as fuses for specific sensitive components), and adherence to local electrical codes and standards are paramount. The breaker's design helps prevent thermal runaway events, equipment failures, and potential electrical fires by swiftly interrupting fault currents. Its robust construction implies a high interrupt current rating (AIC), meaning it can safely interrupt a very large short-circuit current without welding its contacts or exploding, a critical safety feature for high-power DC systems.
Conclusion: Unyielding Protection for Critical Power Systems
The Buyers Products 200 Amp Push-to-Trip Circuit Breaker stands as a testament to engineering excellence in circuit protection. Its specific design for high-amp DC applications, combined with the practical push-to-trip and manual reset features, and unmatched environmental resilience through its IP67 rating and waterproof construction, makes it an indispensable component for professionals. This breaker offers not just protection, but also enhanced control, diagnostics, and long-term reliability for the most demanding electrical systems. Investing in this high-performance circuit breaker ensures maximum operational safety, prolongs equipment lifespan, and maintains the integrity of critical power infrastructure in challenging environments.
