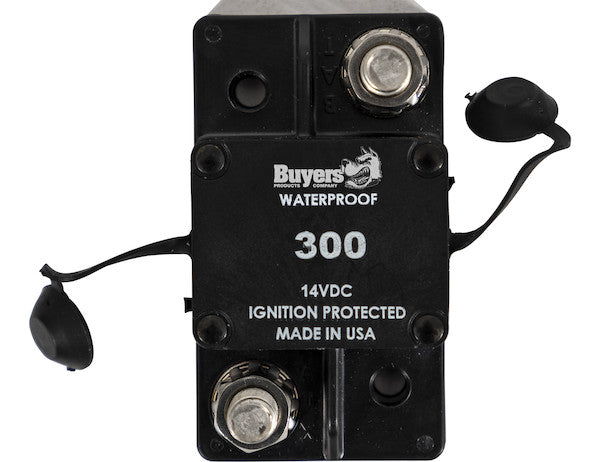

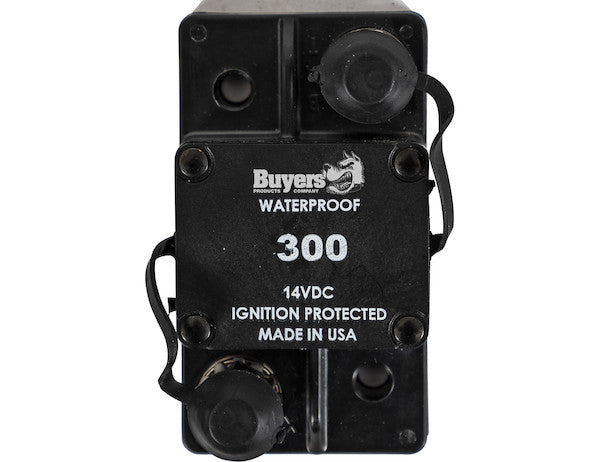

Buyers Products High-Amp Large Frame Circuit Breaker with Auto Reset helps protect dump hoist, lift gate, salt spreader, and crane high current circuits. Choose between a range of 150A - 300A models to meet the needs of your operation. The circuit breaker is water-resistant, with silver-plated studs and nuts with rubber boots that provide additional clearance for heavy gauge connectors.
Specifications
| Box Material | Plastic |
|---|---|
| Color | Black |
| Connection | Stud |
| Connection Material | Brass |
| Finish | Plain |
| Length | 3.325 |
| Material | Plastic |
| Max Volts | 42.0 |
| Reset | Auto |
| Studs Material | Brass |
| Trip Current | 300 |
| Waterproof (y/n) | Yes |
| Width | 1.875 |
Technical Deep Dive: The 300 Amp Large Frame Auto Reset Circuit Breaker
In demanding industrial, commercial, and heavy-duty automotive applications, the integrity and reliability of electrical systems are paramount. The Buyers Products High-Amp Large Frame Circuit Breaker with Auto Reset represents a critical component engineered to safeguard high-current circuits from overloads and short circuits, thereby preventing costly equipment damage, mitigating safety risks, and ensuring operational continuity. This detailed technical exposition will delve into the advanced features, operational principles, material science, and application specific benefits of this robust 300 Amp auto-reset circuit breaker.
The Imperative of High-Current Circuit Protection
High-current circuits are inherent to the operation of powerful electro-mechanical systems such as dump hoists, hydraulic lift gates, specialized salt spreaders, and heavy-duty cranes. These applications draw significant amperage, often in excess of 100 amps, necessitating a robust protection mechanism. Without adequate circuit protection, an overcurrent condition—whether a sustained overload or a sudden short circuit—can lead to catastrophic consequences. These range from overheating and insulation breakdown in conductors, to irreversible damage to motors, solenoids, and control modules, potentially culminating in electrical fires or system failures. Fuses provide single-use protection, requiring manual replacement, which can lead to downtime. Circuit breakers, particularly those with an auto-reset function, offer a more sophisticated and convenient solution for these dynamic environments.
Operational Principle: Auto Reset Thermal Circuit Breaker
The core of this circuit breaker's functionality lies in its auto-reset thermal tripping mechanism. Thermal circuit breakers operate on the principle of a bimetallic strip. This strip is composed of two different metals, typically copper and a nickel-iron alloy, bonded together. Each metal possesses a different coefficient of thermal expansion. When current flows through the circuit breaker, it generates heat. If the current exceeds the specified trip current (e.g., 300 amps), the bimetallic strip heats up, causing the metal with the higher coefficient of thermal expansion to expand more rapidly than the other. This differential expansion causes the strip to bend. At a predetermined deflection point, the bimetallic strip triggers a mechanical latch, which in turn opens a set of electrical contacts, interrupting the circuit and stopping the flow of current.
The "auto reset" feature distinguishes this breaker from manual reset or trip-free designs. Once the overcurrent condition is removed and the bimetallic strip cools down, it returns to its original shape. This restoration of shape causes the mechanical latch to re-engage, automatically closing the electrical contacts and restoring power to the circuit. This automatic restoration is invaluable in applications where immediate human intervention is impractical or undesirable, such as remote equipment, or systems where momentary overloads are common and self-correcting. For instance, a temporary mechanical bind in a lift gate mechanism might cause a brief current spike; an auto-reset breaker allows the system to attempt recovery without manual interaction, minimizing operational interruptions.
Rated Capacity: 300 Amperes and 42 Volts Maximum
The 300 Amp rating signifies the maximum continuous current this circuit breaker is designed to carry without tripping. This high amperage capacity is specifically tailored for the most demanding heavy-duty applications. For example, a powerful DC motor on a hydraulic pump for a dump hoist or a large winch on a crane can momentarily draw hundreds of amps during start-up or under heavy load conditions. A 300A trip current ensures that these normal operational surges do not unnecessarily trip the breaker, while still providing robust protection against sustained overloads or severe short circuits that exceed safe operating parameters.
The maximum voltage rating of 42.0 Volts DC is crucial for compatibility with typical vehicle electrical systems. While many heavy vehicles operate on 12V or 24V DC systems, the 42V rating provides a sufficient safety margin and ensures suitability for some 36V systems or transient voltage spikes that can occur in DC circuits, particularly during load switching or alternator regulation events. It ensures the insulation and contact separation distance are adequate to safely interrupt current at these voltage levels without arcing or breakdown.
Robust Construction: Large Frame Design and Material Science
The term "Large Frame" is indicative of a physically robust construction, designed to accommodate the substantial internal components required for high-current interruption and heat dissipation. A larger frame allows for thicker conductors, more substantial contact points, and a larger bimetallic element, all contributing to enhanced durability and higher current handling capabilities. This physical robustness also makes it more resistant to the vibrations and mechanical stresses common in heavy-duty mobile applications.
Material selection is critical for the long-term performance and reliability of high-amp circuit breakers:
- Box Material (Plastic, Black): The housing is constructed from a high-grade plastic polymer, chosen for its excellent electrical insulation properties, resistance to impact, and ability to withstand a wide range of environmental temperatures. The black color often signifies UV stability and general purpose durability.
- Connection Material (Brass) and Studs Material (Brass): Brass is the material of choice for the connection terminals and studs due to its excellent electrical conductivity, good corrosion resistance, and mechanical strength. It provides a reliable interface for power transfer and robust thread engagement for securing heavy gauge connectors.
- Silver-Plated Studs and Nuts: The application of silver plating to the brass studs and nuts is a significant enhancement. Silver is the most electrically conductive of all metals, surpassing even copper. This plating dramatically reduces contact resistance at the connection points, which in turn minimizes heat generation during high current flow. Lower heat generation at the terminals improves overall system efficiency and prevents premature degradation of insulation or connectors. Furthermore, silver exhibits superior resistance to oxidation and tarnishing compared to bare brass in many environments, ensuring consistent electrical performance over time.
- Rubber Boots: The inclusion of rubber boots over the silver-plated studs and nuts serves multiple critical functions. Firstly, they provide crucial electrical insulation, preventing accidental short circuits from tools or stray wiring. Secondly, they act as an environmental seal, protecting the critical electrical connections from moisture, dust, dirt, and corrosive agents, which is particularly vital in outdoor or harsh operating conditions. Thirdly, they offer a degree of vibration dampening, ensuring the connections remain secure even under constant vehicle motion. Finally, the design providing "additional clearance for heavy gauge connectors" simplifies installation and ensures a proper, uncompromised connection, which is essential for minimizing resistance and heat buildup in high-current circuits.
Environmental Resilience: Water-Resistant Design
The specification "Waterproof (y/n): Yes" underscores the circuit breaker's suitability for deployment in environments where exposure to moisture is inevitable. This water resistance is achieved through a combination of sealed housing construction and the protective rubber boots over the terminals. For applications such as salt spreaders, which operate in highly corrosive and wet conditions, or construction equipment exposed to rain and washdowns, this feature is non-negotiable. A water-resistant circuit breaker prevents ingress of water which could lead to internal corrosion, electrical leakage, or short circuits, thus ensuring long-term reliability and safety of the protected system.
Dimensions and Form Factor
With a length of 3.325 inches and a width of 1.875 inches, the circuit breaker presents a compact yet robust form factor. This sizing is practical for installation in confined spaces often encountered in vehicle chassis, control boxes, or auxiliary equipment compartments. The stud-type connection ensures secure, high-integrity electrical interfaces, which are vital for sustained high-current applications where vibration and mechanical stress are prevalent.
Application-Specific Benefits and Operational Context
The specific applications highlighted for this circuit breaker underscore its versatility and necessity in the heavy-duty sector:
- Dump Hoists: Dump hoists utilize powerful hydraulic pumps driven by DC motors that draw significant current during the lifting and lowering cycles, especially when operating under full load or in cold weather. The 300A auto-reset breaker protects the motor and associated wiring from overcurrents caused by mechanical resistance, hydraulic system issues, or sustained operation, ensuring the continuous, safe functioning of the dumping mechanism.
- Lift Gates: Electric lift gates on commercial vehicles are subjected to frequent cycles of heavy lifting. Overloads can occur due to excessive weight, obstructions, or motor strain. The auto-reset feature is particularly beneficial here, allowing the gate to recover from momentary overloads without requiring driver intervention, thereby improving efficiency and reducing downtime at delivery points.
- Salt Spreaders: Operating in extremely harsh conditions involving moisture, salt, and abrasive materials, salt spreaders require highly durable and environmentally protected electrical components. The water-resistant design and corrosion-resistant silver-plated connections of this breaker ensure reliable operation of the spreader motor and controls, even in freezing temperatures and corrosive environments. The auto-reset function is valuable for protecting against current spikes caused by clogs or frozen material without needing a manual reset in adverse weather.
- Cranes: Mobile cranes and vehicle-mounted cranes represent some of the most power-intensive applications. Their motors and control systems demand high current. The 300A breaker provides essential protection against overloads in the lifting mechanism, winches, and hydraulic pump motors. In a crane, circuit integrity is not just about equipment protection, but critically about safety, preventing failures that could lead to dropped loads or unstable operations.
- General High-Current Auxiliary Circuits: Beyond these core applications, this breaker is also ideal for protecting other high-amp auxiliary circuits in heavy-duty vehicles, such as large inverters, powerful winches, air compressors, and battery bank isolation for specialized equipment, ensuring the longevity and safe operation of these critical systems.
Installation and Maintenance Considerations
While the auto-reset feature minimizes direct operator intervention for tripping, proper installation remains critical for optimal performance and safety. Due to the high current rating, appropriately sized heavy-gauge copper cables must be used to connect the circuit breaker into the circuit, adhering to relevant electrical codes and manufacturer guidelines to prevent voltage drop and excessive heat generation. The additional clearance provided by the rubber boots on the studs facilitates secure termination of these large cables. The mounting location should consider thermal management; while the breaker is designed for heat dissipation, ensuring adequate airflow around the unit will contribute to its longevity. Regular visual inspections of the connections and housing are recommended, particularly in harsh environments, to detect any signs of corrosion, loose connections, or physical damage, although the water-resistant design and material choices significantly reduce these concerns.
Conclusion
The 300 Amp Large Frame Auto Reset Circuit Breaker stands as a testament to robust engineering designed for the most demanding electrical protection challenges in heavy-duty mobile and industrial applications. Its combination of high current capacity, reliable auto-reset functionality, advanced material science (including silver-plated brass connections with protective rubber boots), and water-resistant construction ensures unparalleled protection against electrical faults. By preventing damage to expensive equipment, enhancing operational uptime through automatic restoration of power, and bolstering overall system safety, this circuit breaker is an indispensable component for maintaining the integrity and efficiency of high-current circuits in dump hoists, lift gates, salt spreaders, cranes, and various other power-intensive machinery. Its thoughtful design minimizes maintenance requirements and maximizes operational reliability, making it a professional-grade solution for critical circuit protection.
