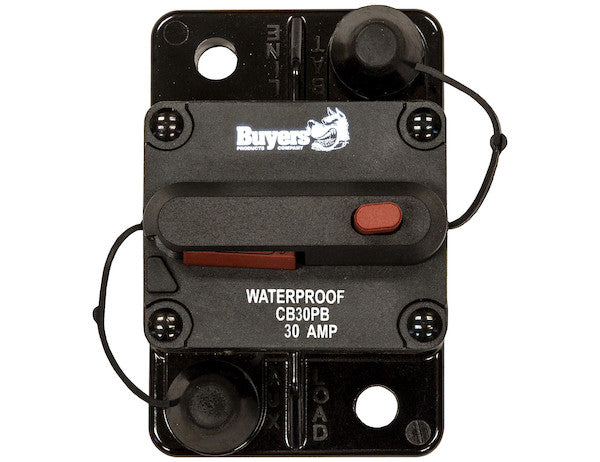

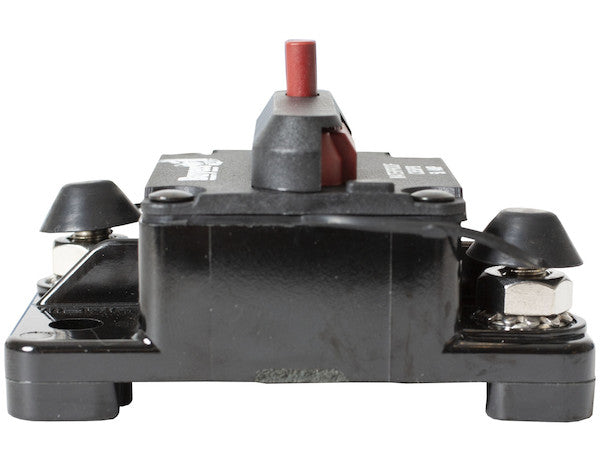

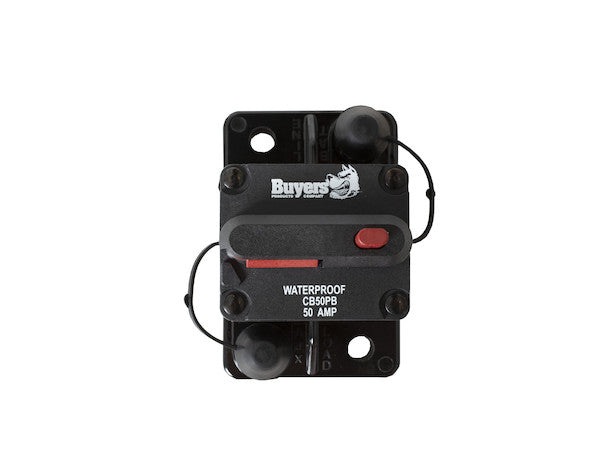

High-Amp Circuit Breakers with Manual Reset from Buyers Products helps protect auxiliary and accessory circuits on dump hoists, plows, spreaders, lift gates, and cranes. The manual reset, push-to-trip circuit breakers are water resistant and feature silver-plated studs, stainless steel nuts, and rubber boots. They are available in amperages ranging from 30A to 250A.
Specifications
| Box Material | Plastic |
|---|---|
| Color | Black |
| Connection | Stud |
| Connection Material | Brass |
| Finish | Plain |
| Length | 2.875 |
| Material | Plastic |
| Max Volts | 42.0 |
| Reset | Manual |
| Studs Material | Brass |
| Trip Current | 30 |
| Waterproof (y/n) | Yes |
| Width | 1.875 |
Advanced Technical Overview: 30 Amp Circuit Breaker with Manual Push-to-Trip Reset
The 30 Amp Circuit Breaker with Manual Push-to-Trip Reset from Buyers Products represents a critical component in the robust electrical architecture of contemporary heavy-duty mobile equipment and auxiliary systems. Engineered for precision protection against overcurrent conditions, this device is designed to safeguard vital auxiliary and accessory circuits across a diverse range of demanding applications, including dump hoists, plows, spreaders, lift gates, and various crane systems. Its foundational design prioritizes both operational safety and equipment longevity by providing a reliable means of circuit interruption and a user-centric manual reset functionality, complemented by an integral push-to-trip capability for diagnostics and controlled system shutdowns.
Fundamentals of Circuit Protection and the Role of High-Amp Breakers
Electrical circuits, particularly those in high-current draw applications common to heavy equipment, are inherently susceptible to fault conditions such as overloads and short circuits. These anomalies can result in excessive current flow, leading to overheating of conductors, potential damage to expensive electrical components, and in severe cases, the risk of fire or electrical shock. Circuit protection devices are therefore indispensable for mitigating these hazards. Unlike single-use fuses, which must be replaced after each trip event, circuit breakers offer a resettable solution, significantly enhancing operational efficiency and reducing maintenance downtime.
This 30 Amp circuit breaker operates primarily on a thermal-magnetic trip mechanism, a common and highly effective design for DC applications. The thermal element typically consists of a bimetallic strip that heats and bends in response to sustained overcurrent conditions, mechanically actuating the trip mechanism. For instantaneous, high-magnitude short circuits, a magnetic element (a solenoid coil) rapidly trips the breaker, providing quick protection against catastrophic current surges. The 30 Amp rating specifies the continuous current that the breaker is designed to carry without tripping under normal operating conditions. Any sustained current exceeding this threshold will initiate the thermal trip, while sudden, severe surges will trigger the magnetic trip, ensuring comprehensive protection for the connected 30A circuits.
Manual Reset and Push-to-Trip Functionality: Operational Advantages
The explicit inclusion of a "Manual Reset" mechanism is a deliberate design choice that offers distinct advantages in industrial and mobile equipment settings. An auto-reset breaker, while convenient for momentary overloads, can allow a faulty circuit to repeatedly cycle on and off, potentially exacerbating the underlying problem, drawing down battery power, or even damaging the load device through continuous power cycling. A manual reset, conversely, requires direct human intervention to restore power after a trip. This forces an operator or technician to acknowledge the fault condition, providing an opportunity for inspection and diagnosis before re-energizing the circuit. This critical pause can prevent further damage to equipment, aid in troubleshooting, and ensure that the root cause of the overcurrent is addressed.
Beyond its primary function of fault protection and manual restoration, this circuit breaker integrates a "Push-to-Trip" feature. This capability transforms the protective device into a versatile diagnostic and control tool. The push-to-trip button allows for manual actuation of the breaker's trip mechanism, effectively opening the circuit and interrupting power flow to the connected load. This is invaluable for several scenarios:
- System Diagnostics: Technicians can intentionally trip the breaker to isolate a specific circuit for testing, component replacement, or troubleshooting without needing to disconnect wiring or de-energize the entire system.
- Safety Disconnect: In situations where immediate power shutdown to an auxiliary circuit is required for safety protocols or emergency procedures, the push-to-trip offers a direct and rapid means of isolation.
- Controlled Shutdown: For maintenance tasks that necessitate a complete power cut to a specific accessory, the push-to-trip function provides a convenient and secure method of deactivation.
These combined functionalities underscore the professional-grade utility of this circuit breaker, elevating it beyond a mere protective component to an active element in system management and safety protocols.
Robust Construction and Environmental Resilience
The operational environments of heavy equipment are notoriously harsh, characterized by exposure to moisture, dust, vibration, temperature extremes, and corrosive agents. The design and material selection for this 30 Amp circuit breaker reflect a deep understanding of these challenges, ensuring long-term reliability and performance.
- Water Resistance and Sealing: Designated as "Waterproof (y/n): Yes" and described as "water resistant" with "rubber boots," this breaker is specifically engineered to withstand ingress from water spray, splashes, and high humidity, common in outdoor and washdown applications. The rubber boots provide a protective seal over the terminal studs and potentially the manual reset button, preventing moisture and contaminants from compromising electrical connections or internal mechanisms. This resilience is paramount for maintaining circuit integrity and preventing corrosion-induced failures.
- Durable Housing Materials: The "Box Material" and "Material" are specified as "Plastic" and the "Color" as "Black." High-quality engineering plastics, often thermosets or high-performance thermoplastics, are chosen for their excellent electrical insulation properties, mechanical strength, impact resistance, and chemical stability. Black pigmentation typically incorporates UV stabilizers, which enhance the material's resistance to degradation from prolonged exposure to sunlight, preventing brittleness and maintaining structural integrity over time.
- Premium Connection Components: The electrical connection integrity is crucial for high-current applications. This breaker features "Stud" connections, which are preferred for their ability to provide secure, low-resistance connections for larger gauge wires compared to blade or screw terminals. The "Studs Material" and "Connection Material" are specified as "Brass," further enhanced by "silver-plated studs." Brass offers good conductivity and mechanical strength, while the silver plating significantly improves surface conductivity, reduces contact resistance, and provides superior corrosion resistance compared to unplated brass, especially in damp or chemically active environments. Silver's natural oxidation (tarnish) is also conductive, unlike other metals, ensuring a consistently low-resistance pathway. The inclusion of "stainless steel nuts" ensures corrosion-resistant fastening, maintaining terminal torque and preventing loosening due to vibration, which is a common issue in mobile equipment.
Voltage and Amperage Specifications: Tailored for DC Systems
The "Max Volts" rating of "42.0 V" clearly indicates that this circuit breaker is designed for Direct Current (DC) applications, which are standard in vehicular and heavy equipment electrical systems. While 12V and 24V systems are most prevalent, the 42V rating provides a sufficient margin for voltage fluctuations and is compatible with emerging 36V or even 48V auxiliary systems found in some modern electric or hybrid heavy machinery. The "Trip Current" of "30 Amps" aligns perfectly with the product title, specifying the precise current level at which the breaker is engineered to trip under overload conditions, safeguarding circuits designed to draw up to this amperage.
Dimensional and Finish Considerations
The physical dimensions, "Length" of 2.875 inches and "Width" of 1.875 inches, are critical for installation planning and integration into existing electrical panels or mounting locations. These compact dimensions facilitate versatile mounting in constrained spaces often encountered in vehicle chassis or equipment enclosures. The "Plain" finish implies a functional, unadorned surface, which is typical for industrial components where performance and durability take precedence over aesthetic refinement.
Detailed Application Scenarios
The enumerated applications highlight the demanding operational contexts where this 30 Amp circuit breaker excels:
- Dump Hoists: These systems often involve high-current DC motors for hydraulic pumps that lift heavy loads. A 30A breaker can protect the motor control circuits, solenoid valves, or lighting systems associated with the hoist mechanism from overloads caused by excessive loads, mechanical binding, or electrical faults within the motor itself.
- Plows: Snowplows utilize hydraulic pumps and electric actuators for blade positioning and angle adjustments. The 30A breaker can shield the hydraulic pump motor, control circuits for articulation, or auxiliary lighting systems from current spikes or continuous overdraw, especially critical during strenuous plowing operations in harsh winter conditions.
- Spreaders: Material spreaders (e.g., salt, sand) rely on electric motors to drive augers or spinner mechanisms. Protection for these motors against jamming, excessive material load, or electrical faults ensures continuous operation and prevents costly motor burnout.
- Lift Gates: Found on commercial vehicles, lift gates employ powerful DC motors to raise and lower heavy cargo. A 30A breaker is suitable for protecting the gate's hydraulic pump motor, control unit, or safety interlock circuits, ensuring reliable and safe operation during loading and unloading.
- Cranes (Auxiliary/Accessory Circuits): While main crane power circuits often require much higher amperage protection, the 30A breaker is ideal for safeguarding critical auxiliary functions such as boom lights, warning beacons, control panel power, diagnostic ports, or secondary hydraulic pump circuits. This isolates potential faults in non-critical systems from affecting primary crane operations.
In all these applications, the inherent vibration and shock of mobile machinery underscore the need for stud connections, which offer superior mechanical stability and electrical contact integrity compared to other terminal types that might loosen under dynamic stress.
Installation and Maintenance Best Practices
Proper installation is paramount to leveraging the full protective capabilities of this 30 Amp circuit breaker. It should be mounted securely in an accessible location, allowing for easy access to the manual reset and push-to-trip button. Wiring connections must be made using appropriately sized conductors for 30A continuous current and secured with the stainless steel nuts to the specified torque to ensure low-resistance contacts and prevent thermal runaway at the terminals. The water-resistant design minimizes the need for elaborate protective enclosures, simplifying installation in exposed locations, but installers should still aim to minimize direct exposure to high-pressure water jets where possible, especially around the reset button area unless the design explicitly states suitability for such conditions.
Maintenance primarily involves periodic visual inspection for any signs of physical damage, corrosion, or compromised rubber boots. The manual reset feature inherently aids in diagnostics, as a tripped breaker signals an anomaly that requires investigation. Understanding the typical current draw of the protected circuit is crucial; repeated trips without an apparent cause might indicate a creeping fault, an undersized breaker for the application, or a component nearing end-of-life.
Conclusion: Uncompromising Protection for Demanding Environments
The 30 Amp Circuit Breaker with Manual Push-to-Trip Reset from Buyers Products is more than just a fuse alternative; it is a meticulously engineered, robust, and intelligent component designed to meet the rigorous demands of heavy-duty vehicular and industrial applications. Its precise 30 Amp thermal-magnetic protection, combined with the critical manual reset and diagnostic push-to-trip functions, offers unparalleled safety, operational continuity, and troubleshooting efficiency. The choice of premium materials—silver-plated brass studs, stainless steel hardware, and a durable, waterproof plastic housing—ensures exceptional longevity and reliable performance even in the most challenging environmental conditions. For any system designer or equipment operator seeking uncompromising protection for vital 30 Amp DC auxiliary and accessory circuits, this circuit breaker stands as a superior and indispensable solution, embodying reliability and intelligent circuit management.
