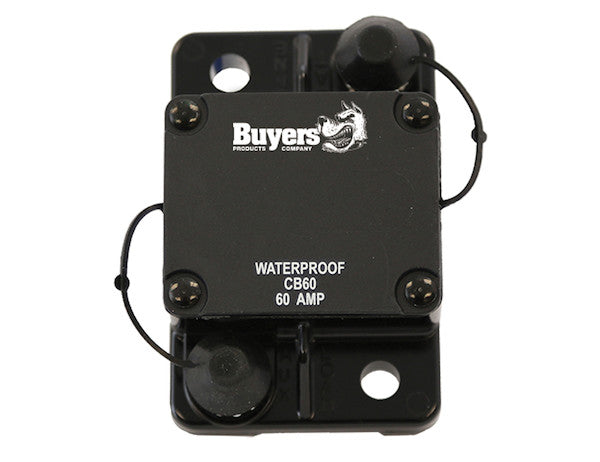

CB60 - 60 Amp Circuit Breaker With Auto Reset

Buyers Products High-Amp Circuit Breakers with Auto Reset protects accessory circuits on dump hoists, plows, spreaders, lift gates, and cranes. The auto reset circuit breakers are water resistant and feature silver-plated studs, stainless steel nuts, and rubber boots. They're available in several amperages to suit your needs.

Specifications

Advanced Circuit Protection: The Buyers Products 60 Amp Auto Reset Circuit Breaker for Demanding Applications

In the realm of heavy-duty vehicular and industrial equipment, the integrity and reliability of electrical systems are paramount. The Buyers Products 60 Amp Circuit Breaker with Auto Reset stands as a critical component engineered to provide robust and intelligent overcurrent protection for the most demanding accessory circuits. Designed for an array of applications including dump hoists, plows, spreaders, lift gates, and cranes, this high-amp circuit breaker ensures operational continuity and safeguards valuable equipment against the unpredictable challenges of real-world use.

The Foundational Role of Circuit Protection in Heavy-Duty Systems

Electrical systems in commercial vehicles and industrial machinery are routinely exposed to dynamic loads, harsh environmental conditions, and the potential for transient or sustained overcurrent events. Without adequate protection, these events can lead to catastrophic failures, including wiring damage, component burnout, fire hazards, and significant operational downtime. Fuses, while offering basic protection, require manual replacement after each trip, which can be inefficient and costly in systems prone to intermittent faults.

Circuit breakers, by contrast, offer a more sophisticated and reusable form of protection. They are designed to automatically interrupt the flow of current when it exceeds a predetermined safe level, effectively isolating the fault and preventing damage. The crucial advantage of a circuit breaker over a fuse lies in its ability to be reset, restoring circuit functionality once the fault condition has cleared or been addressed. The Buyers Products 60 Amp Circuit Breaker takes this efficiency a step further with its auto-reset functionality, optimizing it for applications where continuous operation and minimal intervention are critical.

Understanding the 60 Amp Rating: Precision in Protection

The core of this product's capability lies in its 60 Amp (A) trip current rating. This specification dictates the maximum continuous current the circuit breaker is designed to carry without tripping. When the current flow in the protected circuit exceeds 60 Amps for a specific duration, the internal mechanism of the breaker will activate, opening the circuit. Selecting the correct amperage is vital for effective protection; an undersized breaker will trip prematurely under normal operating loads, causing nuisance outages, while an oversized breaker may fail to protect the circuit adequately during an actual fault, leading to component damage.

For heavy-duty applications such as hydraulic pump motors on dump hoists or lift gates, the initial inrush current during startup can be substantial, often exceeding the continuous operating current. A 60 Amp rating is carefully chosen to accommodate these transient spikes without nuisance tripping, while still providing robust protection against sustained overloads or direct short circuits that could arise from wiring damage or motor seizure. This balance between operational tolerance and protective sensitivity is a hallmark of well-engineered circuit protection, ensuring the breaker only trips when a genuine threat to the circuit's integrity is present.

The Ingenuity of Auto Reset Technology: Uninterrupted Operation

The "Auto Reset" feature is a defining characteristic of this Buyers Products circuit breaker, distinguishing it significantly from manual reset variants. At its heart, the auto-reset mechanism utilizes a bimetallic strip or similar thermally sensitive component. When an overcurrent condition occurs, the bimetallic strip heats up, bends, and breaks the electrical connection, opening the circuit. Once the fault clears and the bimetallic strip cools down, it returns to its original position, automatically re-establishing the electrical connection. This seamless, self-correcting action provides numerous operational advantages:

Firstly, it dramatically reduces downtime. In applications where equipment operates remotely or without constant supervision, or in situations where frequent, momentary overloads might occur (e.g., a motor briefly stalling), an auto-reset breaker allows the system to recover and resume operation without human intervention. This is particularly beneficial for auxiliary circuits on utility vehicles and machinery where prompt resumption of service is crucial.

Secondly, it enhances safety by reducing the need for personnel to access potentially hazardous or inconvenient locations to reset a tripped breaker. For accessory circuits mounted deep within a vehicle's chassis or integrated into complex hydraulic systems, manual resets can be cumbersome and time-consuming. Auto-reset ensures continuous protection while allowing operators to focus on their primary tasks.

However, it is important to understand the operational context for auto-reset breakers. While ideal for intermittent faults, for persistent or dangerous fault conditions (such as a hard short circuit), an auto-reset breaker will repeatedly trip and reset. While this continuous cycling does protect the circuit from sustained damage, it can also lead to heat buildup in the breaker itself and may not provide an explicit indication of a persistent underlying problem. Therefore, system designers must weigh the benefits of automatic recovery against the need for fault diagnosis in specific applications. For the heavy-duty accessory circuits targeted by this product, where intermittent operational demands often create transient current spikes, the auto-reset mechanism is overwhelmingly advantageous, balancing protection with practical operational efficiency.

Engineered for Extreme Environments: Material Science and Robust Design

The operational environments for dump hoists, plows, spreaders, lift gates, and cranes are notoriously harsh, involving exposure to moisture, dust, vibrations, temperature extremes, and corrosive agents. The Buyers Products 60 Amp Circuit Breaker is meticulously engineered with materials and design features to withstand these conditions and deliver consistent performance:

Water Resistance (Yes): The explicit "Waterproof (y/n): Yes" specification indicates a high degree of ingress protection. While a precise IP (Ingress Protection) rating isn't provided, it signifies the breaker's ability to resist the entry of water, crucial for outdoor applications, marine environments, and vehicles exposed to rain, snow, and wash-downs. This protection prevents internal corrosion of electrical components, short circuits, and operational failure due to moisture ingression.

Housing Material (Plastic, Black): The robust plastic housing is not just for aesthetics. Modern engineering plastics are selected for their excellent dielectric properties, high mechanical strength, impact resistance, and temperature stability. The black color often indicates a material engineered with UV stabilizers to prevent degradation from prolonged sun exposure, ensuring the housing remains structurally sound and electrically insulating over the product's lifespan. This material choice provides a lightweight yet durable enclosure that protects the internal bimetallic element and electrical connections.

Connection (Stud, Brass, Silver-plated): The use of stud connections is a critical design choice for high-current applications. Studs provide a secure, low-resistance connection point, minimizing voltage drop and heat generation at the terminals, which are common issues with less robust connection types. The connection material, brass, is chosen for its excellent electrical conductivity and inherent corrosion resistance. Furthermore, the studs are silver-plated. Silver is the most electrically conductive of all metals, and silver plating significantly reduces contact resistance, minimizing heat generation, improving power transfer efficiency, and preventing surface oxidation (tarnishing) that can degrade performance over time. This superior conductivity and corrosion resistance ensure reliable power delivery even in demanding conditions.

Studs Material (Brass): Complementing the connection material, the studs themselves are made from brass, providing the necessary strength and conductive properties for secure and efficient electrical interfaces.

Fasteners (Stainless Steel Nuts): To complement the silver-plated brass studs, stainless steel nuts are employed. Stainless steel is renowned for its exceptional corrosion resistance, particularly in environments exposed to moisture, road salts, and chemicals. This prevents seizing, ensures ease of maintenance, and maintains the integrity of the electrical connection by resisting loosening due to vibration—a common challenge in mobile heavy equipment.

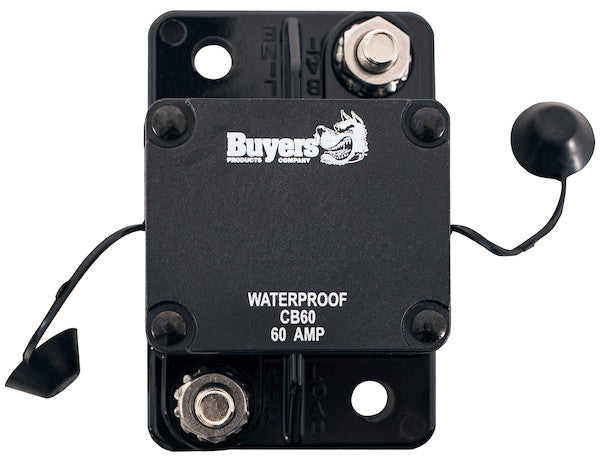

Protective Elements (Rubber Boots): The inclusion of rubber boots further enhances the protection of the terminal connections. These boots encapsulate the stud-and-nut assembly, creating an additional barrier against moisture, dust, and physical damage. They also provide supplemental electrical insulation, reducing the risk of accidental short circuits or contact with live terminals, thereby enhancing overall system safety.

Diverse Applications: Tailored for Performance

The Buyers Products 60 Amp Circuit Breaker with Auto Reset is purpose-built for the challenging operational demands of specific heavy-duty equipment:

• Dump Hoists: These systems rely on powerful electric motors to drive hydraulic pumps, which often draw very high intermittent currents. An auto-reset breaker ensures that momentary overloads during lifting operations or hydraulic system pressure spikes do not lead to prolonged downtime, allowing the operator to continue work efficiently.

• Plows: Snow plows operate in extremely harsh conditions, exposed to freezing temperatures, snow, ice, and corrosive road salts. The electrical systems controlling blade articulation, angling, and auxiliary lighting are critical. This water-resistant, robust breaker ensures continuous protection against environmental ingress and electrical overloads, which can occur when motors are stressed.

• Spreaders: Similar to plows, spreaders for salt, sand, or gravel operate in corrosive and abrasive environments. The motors driving the spreading mechanisms require reliable overcurrent protection that can withstand these conditions. The auto-reset feature is invaluable for maintaining continuous material dispersion.

• Lift Gates: Found on commercial delivery trucks, lift gates are used frequently throughout the day, drawing significant current to operate hydraulic pumps. The auto-reset breaker ensures that if the lift gate motor experiences a temporary overload (e.g., due to binding or extreme load), the system can quickly recover without driver intervention, minimizing delivery delays.

• Cranes: While not typically protecting primary hoist motors, this breaker is ideal for auxiliary circuits on mobile or stationary cranes, such as those powering control systems, safety interlocks, warning lights, or smaller hydraulic functions. The reliability and durability offered by this breaker are essential for maintaining the safety and operational efficiency of critical lifting equipment.

Across these applications, the common thread is the need for highly reliable, environmentally resilient, and maintenance-minimizing electrical protection. The 60 Amp Auto Reset Circuit Breaker excels in delivering this.

Detailed Technical Specifications and Dimensions

• Max Volts (42.0V): This specification indicates the maximum voltage at which the breaker is safely rated to operate. Heavy-duty vehicles commonly utilize 12V, 24V, and sometimes 36V or 42V DC electrical systems. A 42V rating provides a comfortable margin for protection across a wide range of vehicular DC applications, ensuring compatibility and safety for advanced vehicle architectures.

• Length (2.875 inches) and Width (1.875 inches): These compact dimensions allow for flexible installation in space-constrained environments typical of vehicle chassis, under-hood compartments, or control panels. The efficient footprint ensures it can be integrated without requiring significant modifications or consuming valuable space.

• Finish (Plain): A plain finish implies a functional, industrial-grade surface treatment designed for performance and durability rather than purely aesthetic appeal. It is typically resistant to chips, scratches, and common industrial contaminants, maintaining its protective qualities throughout its service life.

• Color (Black): The black color of the plastic housing is a standard choice for electrical components, offering a discreet appearance and often indicating a material composition optimized for UV stability and industrial environments.

Installation and System Integration Considerations

Proper installation is crucial to maximizing the effectiveness and longevity of any circuit protection device. When integrating the Buyers Products 60 Amp Auto Reset Circuit Breaker, it is recommended to:

• Ensure that the breaker's amperage rating precisely matches or slightly exceeds the maximum continuous operating current of the protected accessory circuit, while being less than the current carrying capacity of the circuit wiring itself.

• Mount the breaker in a location that, while accessible for inspection if needed, is strategically chosen to benefit from its water-resistant properties, avoiding areas of direct, sustained water immersion unless specifically designed for such extreme conditions.

• Utilize appropriate wire gauge for the 60 Amp circuit to prevent overheating of conductors and ensure efficient power transfer.

• Ensure all stud connections are clean, free of corrosion, and securely tightened to specified torque values, utilizing the provided stainless steel nuts and rubber boots for maximum reliability and protection.

• Adhere to all local electrical codes, manufacturer guidelines, and best practices for vehicular or industrial electrical system wiring.

For critical applications, professional installation by a qualified technician is always recommended to ensure optimal performance and safety.

The Unwavering Commitment to Reliability and Safety

The Buyers Products 60 Amp Circuit Breaker with Auto Reset embodies a robust solution for vital accessory circuit protection in demanding environments. Its combination of a precise 60 Amp trip rating, advanced auto-reset functionality, and construction with high-quality, durable, and corrosion-resistant materials (water-resistant plastic housing, silver-plated brass studs, stainless steel nuts, rubber boots) ensures unparalleled reliability and operational efficiency. By investing in this advanced circuit breaker, operators and fleet managers can significantly enhance the safety of their electrical systems, minimize costly downtime, and extend the service life of their valuable heavy-duty equipment and accessory circuits. This product is not merely a component; it is an assurance of uninterrupted performance and protection against the rigors of industrial and commercial operations.
