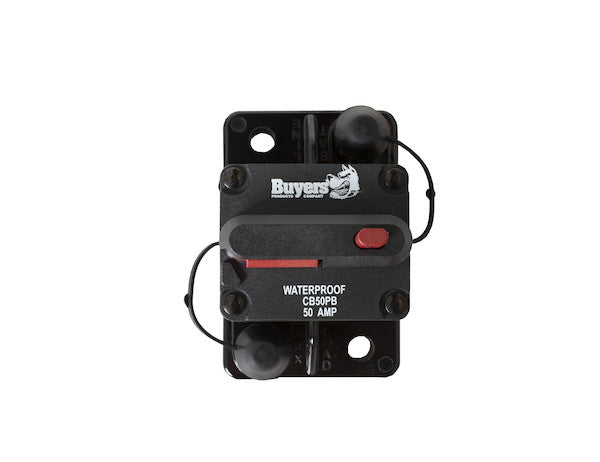

High-Amp Circuit Breakers with Manual Reset from Buyers Products helps protect auxiliary and accessory circuits on dump hoists, plows, spreaders, lift gates, and cranes. The manual reset, push-to-trip circuit breakers are water resistant and feature silver-plated studs, stainless steel nuts, and rubber boots. They are available in amperages ranging from 30A to 250A.
Specifications
| Box Material | Plastic |
|---|---|
| Color | Black |
| Connection | Stud |
| Connection Material | Brass |
| Finish | Plain |
| Length | 2.875 |
| Material | Plastic |
| Max Volts | 42.0 |
| Reset | Manual |
| Studs Material | Brass |
| Trip Current | 60 |
| Waterproof (y/n) | Yes |
| Width | 1.875 |

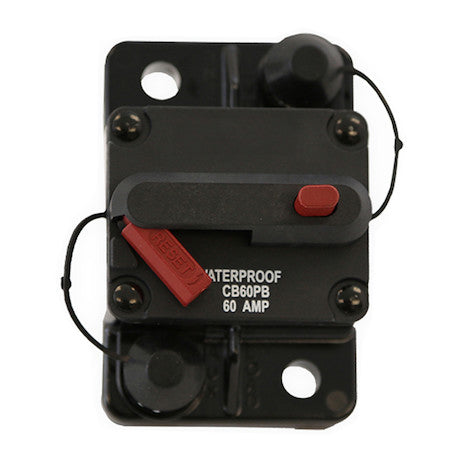

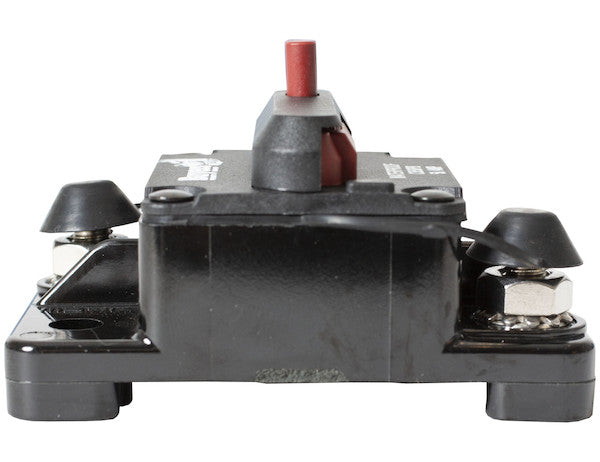

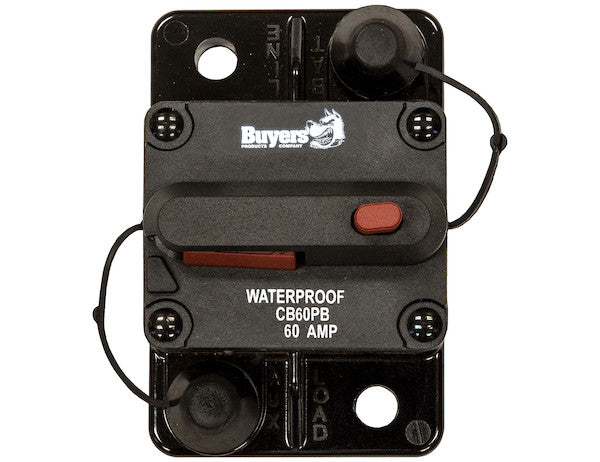

The 60 Amp Manual Push-to-Trip Reset Circuit Breaker: Advanced Overcurrent Protection for Demanding Auxiliary Circuits
The 60 Amp Circuit Breaker with Manual Push-to-Trip Reset from Buyers Products represents a pinnacle in circuit protection technology, specifically engineered for the rigorous demands of auxiliary and accessory circuits in heavy-duty commercial and industrial applications. This robust device is meticulously designed to safeguard critical electrical systems on equipment such as dump hoists, plows, spreaders, lift gates, and cranes, where reliable overcurrent protection is paramount to operational integrity and personnel safety. With its precise 60-ampere trip current, manual reset capability, and an construction optimized for environmental resilience, this circuit breaker delivers unparalleled performance in challenging operational environments.Fundamental Principles of Circuit Protection
At its core, a circuit breaker serves as an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overcurrent, typically resulting from an overload or short circuit. Unlike a fuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. This 60 Amp unit employs a thermal-magnetic or purely thermal tripping mechanism, a common and effective method for high-ampere DC applications. **Thermal Trip Mechanism:** This mechanism relies on a bimetallic strip, a component made from two different metals bonded together, each with a different coefficient of thermal expansion. When an overcurrent flows through the breaker, the bimetallic strip heats up. As it heats, the different expansion rates cause the strip to bend. At a predetermined temperature, corresponding to the 60-ampere trip current (or sustained overcurrent), the bending force of the strip activates a mechanical latch, which in turn opens the circuit contacts, interrupting the current flow and protecting the downstream load. This thermal response is sensitive to the magnitude and duration of the overcurrent, providing reliable protection against sustained overloads. **Magnetic Trip Mechanism (often combined):** In some high-ampere breakers, an additional magnetic trip component is integrated. This mechanism responds instantaneously to very high currents, characteristic of a short circuit. A coil wrapped around a core creates an electromagnet. In a short circuit scenario, the sudden surge in current generates a strong magnetic field, which rapidly actuates a plunger or armature to trip the breaker, offering immediate protection against severe fault conditions. While the primary description implies a focus on thermal response for high-amp DC, understanding both mechanisms provides a comprehensive view of advanced circuit protection. For this 60A unit, the thermal trip is the dominant feature, providing time-delayed protection that allows for temporary inrush currents typical of motor starting while still protecting against persistent overloads.The Advantage of Manual Push-to-Trip Reset
The manual reset feature, combined with a "push-to-trip" capability, significantly enhances the utility and safety of this 60 Amp circuit breaker in its intended applications. **Manual Reset:** Following an overcurrent event and subsequent trip, the breaker's contacts remain open. The circuit will not be re-energized until an operator manually presses the reset button. This is a critical safety feature, especially in heavy-duty machinery. It prevents the immediate re-energization of a faulted circuit, which could potentially cause further damage to equipment, create a hazardous situation for personnel, or exacerbate the underlying electrical problem. A manual reset demands operator intervention, encouraging investigation into the cause of the trip before restoring power. This diagnostic pause is invaluable for troubleshooting and preventing recurring issues. **Push-to-Trip Functionality:** The integrated push-to-trip button offers an additional layer of control and diagnostic capability. This feature allows an operator or technician to intentionally trip the circuit breaker, thereby de-energizing the protected circuit at will. This is particularly useful for: * **System Diagnostics:** Testing wiring, components, or control logic in a de-energized state. * **Maintenance and Repair:** Safely isolating a circuit for service, preventing accidental energization during repairs on connected auxiliary equipment. * **Intentional Shutdown:** Providing a convenient and reliable method for an emergency or routine shutdown of an auxiliary circuit without having to disconnect battery terminals or manipulate main power switches. This dual functionality – preventing automatic re-energization after a fault and allowing for deliberate circuit interruption – makes the 60 Amp Manual Push-to-Trip Reset Circuit Breaker a superior choice for applications where safety, diagnostic capability, and precise control over auxiliary power are paramount.Robust Construction for Extreme Environments
The durability and reliability of this circuit breaker are directly attributable to its meticulously selected materials and construction techniques, ensuring optimal performance in demanding conditions. **Enclosure and Materials:** The breaker is housed within a sturdy black plastic box (Material: Plastic, Box Material: Plastic). This choice of material offers several critical advantages: * **Electrical Insulation:** Plastic is an excellent electrical insulator, providing inherent protection against accidental contact with live components and preventing short circuits to ground. * **Corrosion Resistance:** Unlike metallic enclosures, plastic is inherently resistant to rust and corrosion, a vital attribute in outdoor, marine, or industrial environments exposed to moisture, chemicals, or salt spray. * **UV Stability:** High-quality engineering plastics are formulated to resist degradation from ultraviolet (UV) radiation, ensuring the enclosure maintains its structural integrity and aesthetic over extended periods of outdoor exposure. * **Impact Resistance:** The chosen plastic provides sufficient mechanical strength to withstand minor impacts and vibrations commonly encountered in mobile equipment. **Advanced Connection System:** The electrical connection integrity is paramount for high-ampere devices. This circuit breaker features a robust stud connection system, superior to blade terminals for high current applications due to its larger contact area and secure fastening. * **Studs Material: Brass, Silver-Plated:** The specifications indicate "Studs Material: Brass" and also "silver-plated studs." This combination represents an optimal engineering solution. Brass provides excellent mechanical strength, machinability, and good base conductivity. The critical enhancement comes from the silver plating. Silver is the most electrically conductive metal, and applying a layer of silver to the brass studs significantly reduces contact resistance, minimizing voltage drop and heat generation at the connection points. This is crucial for 60-amp circuits where even slight resistance can lead to considerable power losses (P=I²R) and localized heating. Furthermore, silver plating dramatically improves resistance to oxidation and corrosion, ensuring long-term electrical stability and reliability, especially in environments exposed to moisture, salt, and industrial pollutants that would degrade bare brass over time. * **Stainless Steel Nuts:** The use of stainless steel nuts for securing wire terminals to the studs is a deliberate choice for superior corrosion resistance and enhanced mechanical integrity. Stainless steel resists rust and degradation, ensuring that connections remain tight and conductive over the lifespan of the equipment, even in harsh conditions where ordinary steel nuts would corrode and seize. * **Rubber Boots:** Each stud connection is further protected by a rubber boot. These boots serve multiple purposes: * **Enhanced Waterproofing:** They provide an additional seal against water ingress, protecting the critical electrical connections from moisture, spray, and contaminants. * **Electrical Insulation:** They offer supplementary insulation, preventing accidental short circuits or contact with live terminals, thus improving overall safety. * **Vibration Dampening:** The rubber material helps to absorb minor vibrations, contributing to the longevity and stability of the electrical connections. **Waterproofing:** The "Waterproof (y/n): Yes" specification underscores the breaker's suitability for outdoor and exposed applications. While specific IP (Ingress Protection) ratings are not listed, the combination of a sealed plastic housing, silver-plated studs, stainless steel nuts, and protective rubber boots indicates a design capable of withstanding significant water exposure, including rain, snow, and pressure washing. This level of environmental sealing is essential for equipment operating in construction sites, agricultural fields, municipal services, and marine environments.Performance Specifications and Electrical Characteristics
This 60 Amp Circuit Breaker is engineered to precise electrical specifications, ensuring effective protection and compatibility with common auxiliary power systems. **Trip Current: 60 Amps:** This is the nominal current at which the breaker is designed to trip under specific overload conditions. It means the breaker will allow currents up to 60 amps to flow continuously without tripping. Sustained currents exceeding this threshold will activate the thermal trip mechanism, interrupting the circuit. The selection of a 60 Amp breaker requires careful consideration of the connected load's continuous operating current and its momentary inrush currents. It's crucial to ensure the breaker is adequately sized for the maximum continuous operating current of the auxiliary circuit while having sufficient overhead to accommodate transient startup currents without nuisance tripping. **Max Volts: 42.0 V:** This specification indicates the maximum DC voltage the breaker is rated to safely interrupt. This rating makes it ideal for conventional 12V, 24V, and even 36V DC systems prevalent in heavy-duty vehicles and industrial equipment. The ability to handle up to 42V DC provides a robust safety margin for nominal 12V and 24V systems, accommodating voltage fluctuations that can occur in vehicle electrical systems (e.g., during charging cycles or load dumps). Safely interrupting high DC currents at these voltages is critical, as DC arcs are inherently more difficult to extinguish than AC arcs. **Dimensions:** With a Length of 2.875 inches and a Width of 1.875 inches, the compact footprint of this circuit breaker facilitates easy integration into existing electrical panels or new installations where space may be at a premium. Its size allows for versatile mounting options, ensuring it can be positioned effectively within the equipment's electrical architecture.Applications and Operational Context
The strategic design and robust specifications of the 60 Amp Manual Push-to-Trip Reset Circuit Breaker make it indispensable across a spectrum of demanding applications. * **Dump Hoists:** Essential for protecting the high-current DC motors and solenoids that power hydraulic pumps used in dump hoists. Overloads can occur due to heavy loads, mechanical binding, or hydraulic system faults. The 60A breaker ensures the motor and associated wiring are protected, preventing costly burnouts or fires. * **Plows:** Critical for snowplows, where hydraulic lift and angle mechanisms, as well as auxiliary lighting, draw significant current. Protection against overloads caused by mechanical resistance, ice buildup, or motor strain is vital for continuous operation in harsh winter conditions. * **Spreaders:** Used on salt, sand, or gravel spreaders to protect motors for conveyor belts, augers, and spinner assemblies. These motors can experience high loads, especially when starting with heavy material or encountering blockages. * **Lift Gates:** Provides protection for the powerful DC motors that operate hydraulic lift gates on trucks and trailers. Overcurrents can arise from excessive loads, binding mechanisms, or hydraulic system issues. The manual reset prevents immediate restart until the cause is addressed. * **Cranes:** Integral to protecting control circuits, motor contactors, and auxiliary lighting on mobile and overhead cranes. While main crane power circuits may have larger protection, this 60A breaker is ideal for specific sub-systems requiring robust, localized protection. * **Other Heavy-Duty Auxiliary Circuits:** Any application involving DC motors, solenoids, inverters, or other high-current accessory loads on vehicles, construction equipment, or industrial machinery will benefit from this level of dedicated circuit protection. This includes winches, air compressors, power inverters, and heavy-duty lighting systems. In these environments, the manual reset functionality is particularly advantageous. Unlike auto-reset breakers which can continually cycle on and off, potentially causing cumulative damage to wiring or motors during a persistent fault, the manual reset forces an operator to identify and rectify the issue before restoring power. This proactive approach significantly reduces downtime and maintenance costs in the long run.Installation and Maintenance Best Practices
Proper installation and periodic maintenance are crucial to maximizing the performance and longevity of the 60 Amp Circuit Breaker. **Installation:** 1. **Mounting:** Securely mount the breaker to a solid, vibration-resistant surface using appropriate fasteners. The compact size (2.875" L x 1.875" W) allows for flexible placement, but ensure it is in an accessible location for manual reset and inspection. 2. **Wire Sizing:** Always ensure that the wire gauge used for the protected circuit is appropriate for the 60-ampere rating of the breaker and the expected load. Using undersized wire can lead to overheating and premature tripping or, worse, fire hazards. Refer to relevant wire gauge charts (e.g., SAE J1127 or NFPA 70) for proper sizing based on current, length, and temperature. 3. **Terminal Connections:** Strip insulation carefully to expose the proper length of conductor. Use high-quality ring terminals, crimped securely onto the wire ends. 4. **Torque Specifications:** When connecting wires to the silver-plated brass studs, ensure the stainless steel nuts are tightened to the manufacturer's recommended torque specifications. Over-tightening can strip threads or damage the studs; under-tightening can lead to loose connections, increased resistance, and heat buildup, potentially causing nuisance trips or connection failure. 5. **Rubber Boots:** Ensure the protective rubber boots are correctly installed over the terminals after connections are made, providing full coverage for enhanced waterproofing and insulation. 6. **Polarity:** Observe correct polarity when wiring DC circuits (positive to positive, negative to negative). While a circuit breaker will generally trip on overcurrent regardless of polarity, consistent wiring practices are essential for system integrity. **Maintenance:** 1. **Periodic Inspection:** Regularly inspect the breaker and its connections for any signs of physical damage, corrosion, or discoloration (which could indicate overheating). 2. **Terminal Integrity:** Verify that all connections remain tight and secure. Loose connections can increase resistance and lead to localized heating. 3. **Boot Condition:** Check the rubber boots for cracks, tears, or degradation. Replace damaged boots to maintain waterproofing and insulation. 4. **Cleanliness:** Keep the breaker free from excessive dirt, dust, and debris. While waterproof, a clean environment helps ensure optimal thermal dissipation and reliable operation. 5. **Functional Check:** Periodically utilize the push-to-trip feature to confirm the mechanical operation of the breaker. This verifies its ability to interrupt the circuit as intended.Compliance and Reliability
While specific certifications (like UL, CSA, or SAE J1625) are not detailed in the provided information, products from reputable manufacturers like Buyers Products are generally designed and manufactured to meet or exceed industry standards for electrical components in their specified applications. The use of high-quality materials such as silver-plated brass, stainless steel, and durable plastics, combined with a water-resistant design, speaks to a commitment to reliability and performance under adverse conditions. This 60 Amp circuit breaker is engineered for long-term dependable service, minimizing the risk of electrical failures and maximizing equipment uptime.Conclusion
The 60 Amp Circuit Breaker with Manual Push-to-Trip Reset is an indispensable component for protecting critical auxiliary and accessory circuits in heavy-duty applications. Its precision 60-ampere tripping mechanism safeguards against overloads and short circuits, while the manual reset and push-to-trip functions offer unparalleled control, diagnostic capability, and operator safety. Constructed with high-grade, environmentally resistant materials including a durable plastic housing, silver-plated brass studs, stainless steel nuts, and protective rubber boots, this breaker is built to withstand the harshest operating conditions, from extreme weather to corrosive industrial environments. Its compact design and robust electrical specifications (up to 42.0V Max) ensure seamless integration and reliable performance in 12V, 24V, and other common DC systems. By providing a dependable line of defense against electrical faults, this high-quality circuit breaker extends the lifespan of valuable equipment, enhances operational safety, and contributes significantly to the overall efficiency and reliability of commercial and industrial machinery. Choosing this 60 Amp Manual Reset Circuit Breaker means investing in superior protection, proactive maintenance capability, and long-term peace of mind for your most vital auxiliary power systems.
