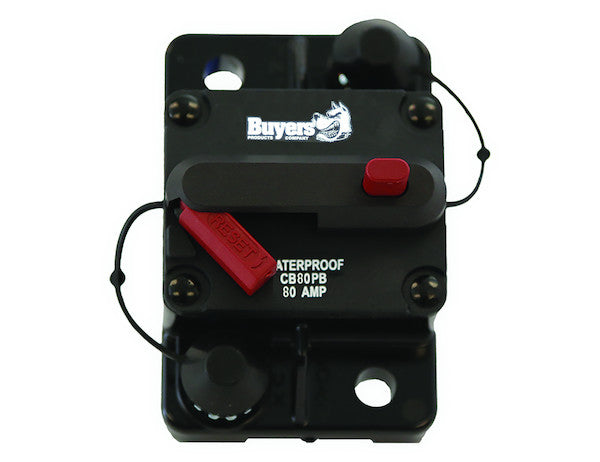

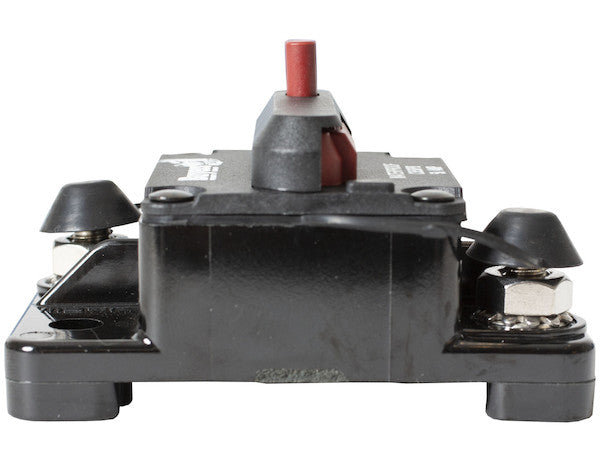

CB80PB - 80 Amp Circuit Breaker With Manual Push-to-Trip Reset

Advanced Circuit Protection for Demanding Applications: The 80 Amp Manual Push-to-Trip Circuit Breaker

The 80 Amp Circuit Breaker with Manual Push-to-Trip Reset represents a critical component in the safeguarding of advanced auxiliary and accessory electrical circuits across a wide spectrum of heavy-duty commercial and industrial equipment. Engineered by Buyers Products, this high-amp circuit breaker is meticulously designed to offer unparalleled protection against overcurrent conditions, which can otherwise lead to catastrophic equipment failure, costly downtime, and significant safety hazards. Its robust construction and intelligent design cater specifically to the rigorous demands of applications such as dump hoists, snow plows, salt and sand spreaders, lift gates, and cranes, where reliable electrical system integrity is paramount.

The Fundamental Role of Circuit Protection in Mobile Equipment

In the complex electrical architectures of modern mobile equipment, transient current spikes, short circuits, and sustained overloads are inherent risks that necessitate sophisticated protective measures. Unlike traditional fuses, which offer a single-use solution to overcurrent events, circuit breakers provide a re-settable mechanism, drastically improving operational efficiency and reducing maintenance costs. This 80 Amp unit functions on a thermomagnetic principle, leveraging both thermal and magnetic actuation for precise and rapid fault detection. The thermal element responds to prolonged, moderate overloads by heating a bimetallic strip, which eventually deforms and trips the circuit. Concurrently, the magnetic element provides instantaneous tripping for severe overcurrents or short circuits, where the magnetic field generated by the excessive current directly actuates the tripping mechanism. This dual-action capability ensures comprehensive protection across the full spectrum of fault conditions, from gradual overloads to instantaneous catastrophic failures. The integration of such a high-capacity breaker is essential for circuits powering significant electrical loads, ensuring that critical systems remain protected without compromising performance.

Technical Specifications and Performance Profile

This particular circuit breaker is rated for a trip current of 80 amperes, making it ideally suited for high-current applications common in heavy-duty machinery. The maximum voltage rating of 42.0 Volts DC underscores its suitability for 12V and 24V vehicle electrical systems, which are standard in commercial transport and off-highway equipment. Its ability to withstand transient voltage fluctuations up to this level ensures operational stability and longevity even in electrically noisy environments. The manual reset functionality, explicitly detailed as "push-to-trip," is a deliberate design choice that enhances troubleshooting capabilities and prevents automatic re-engagement of a potentially faulty circuit. After an overcurrent event, the operator must manually depress the reset button, thereby forcing an inspection of the circuit and connected components before power can be restored. This manual intervention is a critical safety feature, preventing repeated tripping and potential damage to components in the event of an unaddressed underlying fault.

Robust Construction for Extreme Environments

The durability and reliability of this 80 Amp circuit breaker are significantly derived from its meticulously selected materials and construction methodologies. The primary housing (Box Material and Material: Plastic, Color: Black) is crafted from high-grade, impact-resistant plastic. This material provides excellent electrical insulation, crucial for preventing unintentional grounding or shorting, and offers inherent resistance to UV degradation, chemical exposure, and mechanical impacts frequently encountered in demanding outdoor and industrial settings. The compact dimensions (Length: 2.875 inches, Width: 1.875 inches) facilitate easy integration into space-constrained electrical enclosures and compartments.

The electrical connections are implemented via stud terminals (Connection: Stud, Connection Material: Brass, Studs Material: Brass), a preferred method for high-current circuits due to their superior mechanical strength and low electrical resistance compared to blade terminals. The studs are further enhanced with a silver-plated finish, as indicated in the product description. Silver plating on brass studs is a strategic choice for high-performance electrical components. Silver possesses the highest electrical conductivity of all metals, significantly reducing contact resistance and minimizing heat generation at the connection points, even under full load. Furthermore, silver plating provides exceptional corrosion resistance, crucial for maintaining optimal electrical contact in humid, saline, or chemically aggressive environments common in road maintenance equipment. This meticulous attention to material science ensures stable, low-resistance connections over the long term. The stainless steel nuts secure these connections, offering superior resistance to corrosion and galling, ensuring that the integrity of the terminal connection remains steadfast against vibration and environmental stressors.

Adding to its environmental resilience, the circuit breaker incorporates rubber boots. These boots serve multiple critical functions: providing an additional layer of insulation, protecting the terminal connections from ingress of moisture, dust, and contaminants, and acting as a vibration dampener. This comprehensive sealing, coupled with the "Waterproof (y/n): Yes" specification, indicates a design capable of meeting stringent environmental protection standards, likely correlating to an IP (Ingress Protection) rating suitable for direct exposure to water spray and harsh weather conditions without compromise to internal components. This level of waterproofing is indispensable for equipment operating outdoors in all seasons, such as snow plows and spreaders.

Specialized Applications and Operational Benefits

The 80 Amp circuit breaker is purpose-built for the challenging operational profiles of various heavy-duty vehicles and machinery:

• Dump Hoists: These systems often involve high-current DC motors driving hydraulic pumps. An 80A breaker ensures that the motor and associated control circuits are protected from overloads caused by heavy lifting, hydraulic lock-ups, or motor stalls, preventing motor burnout and control system damage.
• Snow Plows: Plow systems incorporate multiple electrical components, including powerful hydraulic pump motors for lift and angle functions, solenoid valves, and lighting. The 80A rating is crucial for protecting the main power circuits of these hydraulic pumps, which can experience significant current draw during extreme plowing operations.
• Salt and Sand Spreaders: These applications typically feature electric motors for conveyor belts and spinner mechanisms. Overloads can occur if material jams or motors are forced to operate beyond their capacity. The breaker provides essential protection, ensuring continuous operation during critical winter maintenance.
• Lift Gates: Employing powerful electric motors to raise and lower heavy loads, lift gates are highly susceptible to overcurrents if loads exceed limits, or if mechanical obstructions occur. The 80A breaker safeguards these expensive motor and control units, extending their operational life.
• Cranes: Mobile cranes and service cranes utilize auxiliary circuits for outriggers, winches, and various control functions. Protection against overcurrents here is not just about equipment longevity but also about operational safety, preventing potential collapses or control failures.

In each of these scenarios, the manual push-to-trip reset provides a significant operational advantage. It allows maintenance personnel or operators to quickly identify and address the root cause of an electrical fault before re-energizing the circuit. This reduces diagnostic time, prevents recurring failures, and minimizes operational downtime, thereby increasing overall productivity and reducing total cost of ownership.

Installation and System Integration Best Practices

Proper installation of the 80 Amp circuit breaker is fundamental to its effective operation and the overall integrity of the electrical system. It should be mounted as close as practically possible to the power source (e.g., battery or alternator output) for the circuit it is protecting. This strategic placement minimizes the length of unprotected wire, thereby reducing the risk of a short circuit between the power source and the breaker itself. Secure mounting, using appropriate fasteners, is essential to mitigate the effects of vibration and shock common in mobile applications. The stud connections require proper wire termination with appropriately sized lug terminals, crimped with professional-grade tools to ensure maximum conductivity and mechanical strength. The wire gauge selected for the circuit must also be commensurate with the 80 Amp rating to prevent excessive voltage drop and overheating. Furthermore, while the unit is waterproof, ensuring that the rubber boots are correctly seated over the connections after wiring is critical to maintaining its ingress protection rating.

Compliance, Safety, and Longevity

This 80 Amp circuit breaker adheres to rigorous engineering standards, contributing significantly to both equipment safety and operational compliance. By preventing overcurrents, it directly mitigates the risk of electrical fires, insulation breakdown, and irreversible damage to costly motors, solenoids, and wiring harnesses. This protection extends to personnel, safeguarding them from potential electrical hazards associated with faulty circuits. While specific certifications are not explicitly listed, the robust design, material choices, and functionality align with common industry requirements for automotive and heavy-duty vehicle electrical components, such as those outlined by SAE (Society of Automotive Engineers) standards like SAE J1625 for ignition-protected circuit breakers, which specifies performance criteria for devices operating in challenging environments.

The longevity of this device is inherent in its design. The use of corrosion-resistant materials (silver-plated brass studs, stainless steel nuts), the robust plastic housing, and the comprehensive waterproofing combine to create a unit capable of enduring years of service in hostile conditions. Minimal maintenance is typically required beyond periodic visual inspection for physical damage or loose connections. The manual reset mechanism itself is designed for a high number of operational cycles, ensuring that the breaker will function reliably throughout its service life, providing consistent protection whenever an overcurrent event occurs. This combination of advanced engineering, durable materials, and thoughtful design makes the 80 Amp Circuit Breaker an indispensable asset for any demanding auxiliary or accessory electrical circuit.
