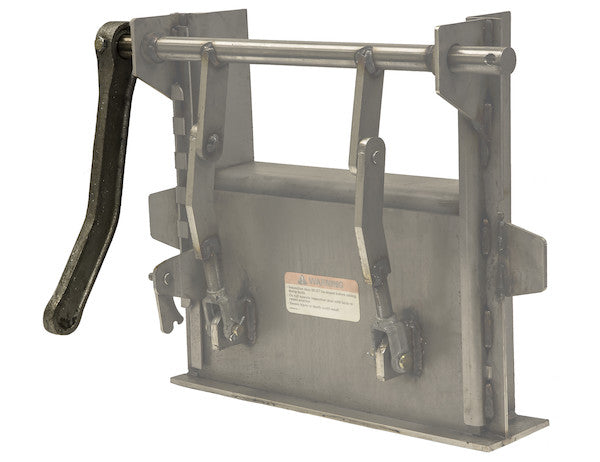

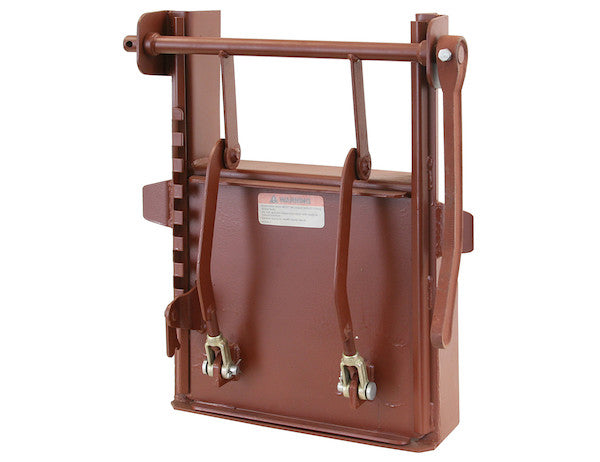

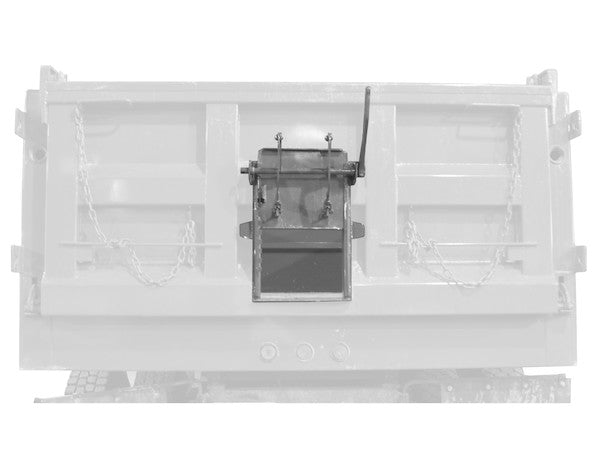

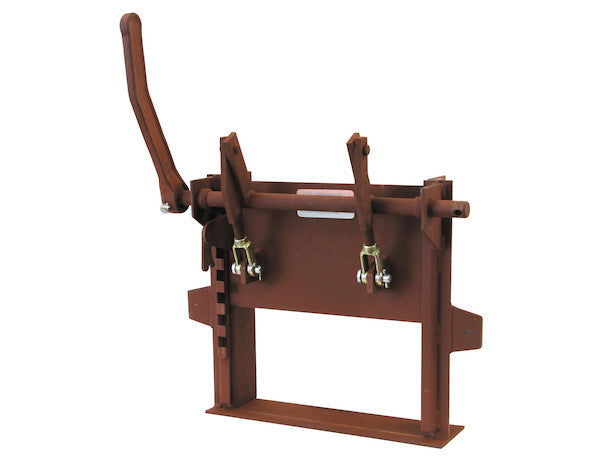

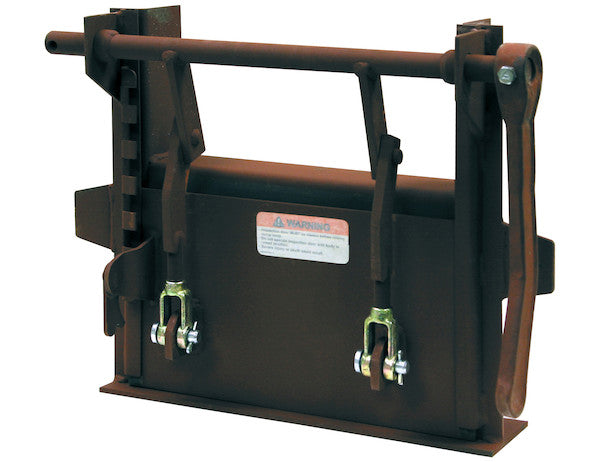

Buyers Products Inspection Door provides a small access opening in the tailgate for any task that does not require the entire tailgate to be lowered. Designed to be welded onto the dump body tailgate, the door has a detent door holder to position into place and a turn buckle door travel adjustment. Made of durable carbon or stainless steel, it has a bolt-on, locking door handle that can be interchanged for left- or right-hand operation. The door has a zinc chromate primer finish and can be painted to match your vehicle. Choose the size that matches your dump: 7.25 in. opening height for 1 ton to super duty dumps or 13.7 in. height for medium and heavy class dumps.
Specifications
| Door Opening Height (in.) | 7.25 |
|---|---|
| Door Opening Width (in.) | 13.75 |
| Finish | Plain |
| For Dump Truck (class) | 1-Ton to Super Duty |
| Material | 304 Stainless Steel |
| Overall Height (in.) | 11.75 |
| Overall Width (in.) | 17.15 |
In the demanding realm of commercial hauling and material transport, operational efficiency, safety, and equipment longevity are paramount. The Inspection Door with Detent, specifically designed with a 7.25 x 13.75 Inch Door Opening and constructed from premium Stainless Steel, represents a critical advancement in dump body functionality. This component is engineered to provide a controlled, secure, and efficient access point to the dump body's contents without the necessity of fully actuating the main tailgate. This capability significantly streamlines a variety of common tasks, reducing cycle times, minimizing energy expenditure, and enhancing overall operational precision across a diverse range of heavy-duty applications.
The strategic incorporation of an inspection door addresses a fundamental operational challenge: the disproportionate effort and time required to lower an entire dump body tailgate for minor inspections, material sampling, or small-scale discharge tasks. Traditional dump body designs often necessitate the full engagement of hydraulic systems to operate the primary tailgate, consuming fuel, increasing wear on hydraulic components, and potentially delaying workflow. The Buyers Products Inspection Door mitigates these inefficiencies by offering a precisely sized aperture, optimized for situations where only limited access is required. This specific model, with its 7.25-inch height and 13.75-inch width opening, is meticulously dimensioned to strike an optimal balance between accessibility and structural integrity, ensuring compatibility with the robust demands of 1-Ton to Super Duty class dump trucks.
Precision Engineering and Optimal Dimensions
The design philosophy behind this Inspection Door prioritizes precision and functional integration. The specified door opening of 7.25 inches in height by 13.75 inches in width is not arbitrary; it is the result of careful consideration for typical operational requirements in the field. This aperture size facilitates easy visual inspection of bulk materials, allowing operators to assess load consistency, moisture content, or detect potential contaminants without compromising the structural integrity of the tailgate. Furthermore, it is ideally suited for taking representative material samples, a critical task in industries such as aggregates, mining, and agriculture where quality control is essential. The modest dimensions also allow for selective discharge of small quantities of material, making it invaluable for precise spreading applications or clearing minor blockages without initiating a full dump cycle.
Beyond the functional opening, the overall dimensions of the Inspection Door assembly are equally critical for seamless integration. With an overall height of 11.75 inches and an overall width of 17.15 inches, the unit is proportioned for secure and stable installation onto existing dump body tailgates. These dimensions ensure that the door frame provides ample surface area for robust welding, which is the recommended installation method. Welding ensures a permanent, high-strength bond that can withstand the extreme dynamic loads, vibrations, and structural stresses inherent in heavy-duty dump truck operations. The careful balance of opening size to overall frame size contributes to the long-term durability and reliability of the entire tailgate assembly.
Unrivaled Material Excellence: 304 Stainless Steel
A defining characteristic and significant advantage of this particular Inspection Door is its construction from premium 304 Stainless Steel. The selection of 304 SS over other materials, such as standard carbon steel, is a deliberate engineering choice driven by the need for superior performance in highly corrosive and abrasive environments. 304 Stainless Steel is an austenitic stainless steel, known for its excellent corrosion resistance, high tensile strength, and remarkable ductility. Its primary constituents, including approximately 18% chromium and 8% nickel, form a passive layer on the surface that inherently resists oxidation, rust, and degradation from a wide array of chemical agents and atmospheric conditions.
In the context of dump truck operations, materials frequently encountered range from highly abrasive aggregates, corrosive salts used for de-icing roads, acidic waste materials, and various organic compounds. Standard carbon steel, even with a protective coating, is susceptible to wear and corrosion in such environments, leading to premature material degradation, structural compromise, and increased maintenance costs. 304 Stainless Steel, by contrast, offers unparalleled resistance to these challenges. Its inherent toughness resists surface abrasion from moving aggregates, while its corrosion resistance ensures structural integrity is maintained even when exposed to harsh chemicals or prolonged moisture. This resilience translates directly into an extended operational lifespan for the Inspection Door, reducing the frequency of repairs and replacements and thereby lowering the total cost of ownership over the equipment's lifetime.
Furthermore, 304 Stainless Steel exhibits excellent weldability, which is crucial for its intended integration into the dump body tailgate. Proper welding techniques create a homogeneous bond between the door assembly and the tailgate structure, eliminating potential weak points that could arise from mechanical fasteners over time. The material's inherent cleanliness and resistance to pitting corrosion also make it a suitable choice for applications involving sensitive materials, where cross-contamination must be minimized. While the product description notes a "Plain" finish for this stainless steel model, this typically refers to a mill finish or a lightly polished surface, which showcases the material's natural aesthetic and further contributes to its resistance to environmental factors. For applications requiring specific aesthetics or additional protective layers, the inherently inert surface of 304 SS can also be treated or coated if desired, though its natural properties often negate this need.
Advanced Mechanical Features for Enhanced Control and Security
The operational superiority of this Inspection Door is further amplified by its integrated mechanical features: the detent door holder, turn buckle door travel adjustment, and a bolt-on, locking door handle. Each of these components is meticulously designed to optimize functionality, safety, and user control.
Detent Door Holder
The detent door holder is a sophisticated mechanism engineered to provide positive and reliable positioning of the door. Utilizing a spring-loaded or cam-action design, it engages at specific points, typically in both the fully closed and fully open positions. When the door is moved to one of these positions, the detent mechanism exerts resistance, effectively holding the door in place and preventing unintended movement due to vibration, vehicle motion, or wind. This feature is paramount for safety, as it eliminates the risk of the door unexpectedly swinging open during transit or inadvertently closing while an operator is conducting an inspection or task. From an efficiency standpoint, the detent allows for hands-free operation, enabling personnel to safely perform their duties without needing to manually secure the door. This reliable mechanical retention system ensures that the door remains in its intended state, contributing significantly to a safer and more productive work environment.
Turn Buckle Door Travel Adjustment
The inclusion of a turn buckle door travel adjustment mechanism provides an invaluable layer of customizability and precision control. A turnbuckle typically consists of two threaded rods, one with a left-hand thread and the other with a right-hand thread, connected by a central body that can be rotated. As the central body is turned, it either draws the rods closer together or pushes them further apart, effectively changing the overall length of the assembly. In the context of this inspection door, this adjustment mechanism allows operators to fine-tune the maximum opening angle of the door. This capability is crucial for adapting to various operational scenarios, such as controlling the flow rate of different material types, preventing over-spill when sampling, or simply accommodating individual operator preferences for door clearance. The precision offered by the turn buckle ensures that the door's opening can be set and maintained with accuracy, optimizing material handling and further enhancing operational flexibility and safety.
Bolt-on, Locking Door Handle
Security and adaptability are key attributes of the bolt-on, locking door handle. The bolt-on design facilitates easy installation, removal, and replacement, simplifying maintenance and extending the service life of the door assembly. Unlike welded or integrally molded handles, a bolt-on mechanism allows for rapid field interchangeability. Crucially, this handle can be configured for either left- or right-hand operation, offering universal applicability regardless of the specific mounting orientation or user preference. This ergonomic flexibility ensures comfortable and efficient use for all operators. The integrated locking mechanism provides an essential layer of security, safeguarding the contents of the dump body from unauthorized access, pilferage, or tampering. It also serves as an additional safety measure, ensuring that the door remains securely latched during vehicle movement, preventing accidental opening that could lead to spillage, damage, or hazard. The robust construction of the handle itself, typically from heavy-gauge steel, complements the durability of the stainless steel door, ensuring long-term reliability even under strenuous daily use.
Seamless Integration and Installation
The design mandate for this Inspection Door emphasizes robust and permanent integration into the dump body tailgate. The specified method of installation is welding, which is the gold standard for high-stress applications in heavy equipment. Welding creates a monolithic connection between the inspection door frame and the tailgate structure, eliminating the potential for loosening or fatigue that can occur with bolted or riveted attachments over time. This welded integration ensures the entire assembly maintains its structural integrity against the constant vibrations, impacts, and heavy loads characteristic of dump truck operations. Proper welding techniques, executed by qualified personnel, will create a strong, watertight, and dust-tight seal, protecting the interior contents and preventing material loss or environmental contamination. The engineering choice for welding underscores the product's commitment to durability, reliability, and long-term performance within the most challenging environments.
Operational Versatility and Performance Advantages
The Inspection Door with Detent is a highly versatile component, offering significant operational advantages across a multitude of industries. In construction and aggregates, it facilitates rapid visual inspection of sand, gravel, and asphalt mixtures, aiding in quality control and load verification. For waste management, it allows for quick checks of compacted refuse or the clearing of minor blockages without requiring a full tailgate cycle. Agricultural applications benefit from precise sampling of grain, feed, or fertilizer, ensuring consistent product quality and optimized spreading. Furthermore, the ability to perform these tasks via a small access point contributes to substantial fuel savings by reducing reliance on the main hydraulic system, minimizes wear and tear on primary tailgate components, and ultimately decreases overall operational costs. The enhanced safety protocols, stemming from reduced interaction with large moving parts and secure door retention, further cement its value as an indispensable enhancement for any modern dump truck fleet.
Conclusion
The Inspection Door with Detent, featuring a 7.25 x 13.75 Inch Door Opening and crafted from 304 Stainless Steel, is an expertly engineered solution designed to elevate the efficiency, safety, and longevity of dump truck operations. Its strategic dimensions, superior material construction, and integrated advanced mechanical features—including the detent door holder, turn buckle adjustment, and locking, reversible handle—collectively provide an unparalleled level of control, security, and adaptability. Engineered for robust welded integration and built to withstand the harshest operating conditions, this inspection door is not merely an accessory but a fundamental upgrade, enabling precision material management, reducing operational overhead, and enhancing overall fleet performance. It represents a sound investment for operators seeking to optimize productivity and ensure the long-term reliability of their heavy-duty equipment.
