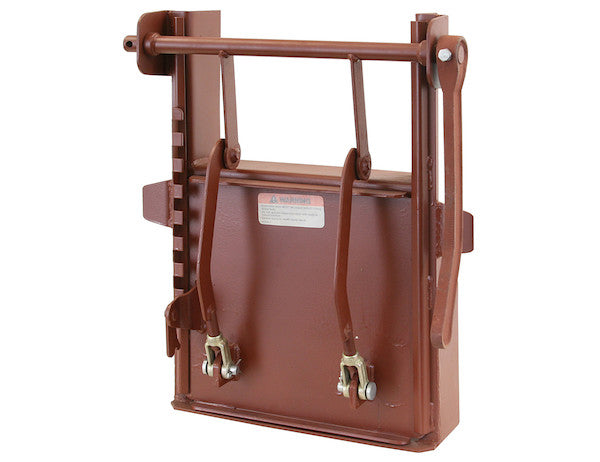

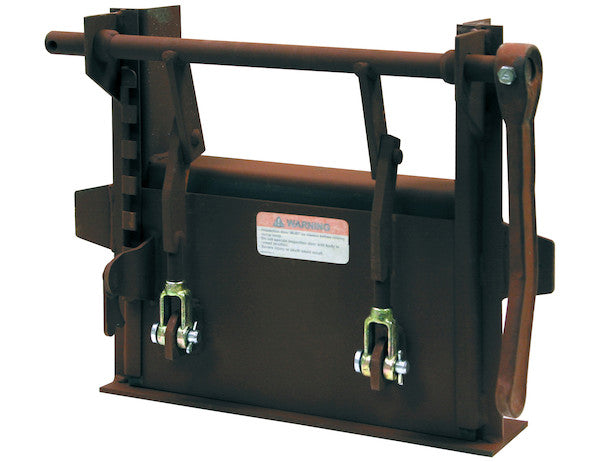

Buyers Products Inspection Door provides a small access opening in the tailgate for any task that does not require the entire tailgate to be lowered. Designed to be welded onto the dump body tailgate, the door has a detent door holder to position into place and a turn buckle door travel adjustment. Made of durable carbon or stainless steel, it has a bolt-on, locking door handle that can be interchanged for left- or right-hand operation. The door has a zinc chromate primer finish and can be painted to match your vehicle. Choose the size that matches your dump: 7.25 in. opening height for 1 ton to super duty dumps or 13.7 in. height for medium and heavy class dumps.
Specifications
| Door Opening Height (in.) | 12.38 |
|---|---|
| Door Opening Width (in.) | 13.50 |
| Finish | Plain |
| For Dump Truck (class) | Medium & Heavy Duty |
| Material | Carbon Steel |
| Overall Height (in.) | 23.00 |
| Overall Width (in.) | 15.12 |
Advanced Technical Overview: Buyers Products Inspection Door with Detent for Medium & Heavy Duty Dump Applications
The Buyers Products Inspection Door, featuring a precise 12.38 x 13.5 inch clear opening and a robust detent mechanism, represents a critical enhancement for the operational efficiency and safety of medium and heavy-duty dump bodies. Engineered for permanent integration through welding onto the tailgate, this specialized access solution significantly streamlines various tasks that historically necessitated the full lowering of the main tailgate, thereby reducing cycle times, minimizing wear on primary hydraulic systems, and bolstering overall site safety protocols. This technical exposition delves into the meticulous design, material science, functional mechanisms, and profound operational advantages offered by this indispensable component.
Precision Engineering and Application Specificity
Designed with an optimal 12.38 inch height and 13.5 inch width clear opening, this inspection door is strategically sized to facilitate a broad range of operational needs on medium and heavy-duty dump trucks. This dimensional configuration is particularly pertinent for applications requiring controlled material discharge, visual inspection of cargo, sample collection, or the clearing of minor obstructions without incurring the time and energy expenditure associated with full tailgate operation. The compact access point minimizes the potential for spillage during discharge of granular or aggregate materials, providing a more controlled and precise flow, which is invaluable in scenarios demanding accuracy, such as spreading operations or targeted material placement.
The overall dimensions of the unit, measuring 23.00 inches in height and 15.12 inches in width, are carefully proportioned to ensure structural integrity and seamless integration within the existing tailgate architecture. These dimensions provide ample surface area for secure welding attachment, distributing stress loads effectively across the tailgate structure, and maintaining the inherent strength of the dump body. The "Plain" finish, explicitly denoting an unpainted state over the protective primer, signifies that the final aesthetic and advanced environmental protection coating is to be applied by the end-user, allowing for perfect color matching and customization to fleet specifications or corporate branding.
Material Science: The Carbon Steel Advantage
The primary material of construction for this inspection door is high-grade carbon steel. Carbon steel is selected for its superior mechanical properties, which are critical for components subjected to the rigorous operational demands of dump truck applications. Its inherent high tensile strength and yield strength ensure exceptional resistance to deformation under extreme loads, impacts, and abrasive wear from various bulk materials such as gravel, sand, asphalt, and construction debris. The metallurgical composition of the carbon steel employed guarantees excellent weldability, which is paramount for a component designed for permanent, structural integration via welding onto the dump body tailgate. This ensures a robust, continuous joint that can withstand dynamic stresses, vibrations, and the cyclical loading characteristic of heavy-duty vehicular operations without compromising structural integrity.
The choice of carbon steel also provides a favorable balance of strength, durability, and cost-effectiveness, making it an economically viable yet high-performing solution for fleet operators. Its resistance to fatigue is essential for a door that will undergo repeated opening and closing cycles over its service life. While carbon steel is known for its susceptibility to corrosion, this is comprehensively addressed through an advanced pre-treatment and priming strategy, detailed below.
Corrosion Protection: Zinc Chromate Primer System
Prior to the "Plain" finish designation, each inspection door undergoes a meticulous pre-treatment process culminating in the application of a high-performance zinc chromate primer. Zinc chromate is a widely recognized and highly effective anti-corrosive pigment known for its exceptional protective properties, particularly in harsh, moisture-laden, and chemically aggressive environments typical of road transport and construction. The mechanism of protection involves several critical aspects:
- Active Corrosion Inhibition: Zinc chromate acts as an active anodic inhibitor. When exposed to moisture or corrosive agents, the chromate ions (CrO42-) released from the primer react with the metal surface, forming a passive film of metal chromates or oxides. This film effectively passivates the steel surface, preventing or significantly slowing down the anodic reaction necessary for corrosion to initiate and propagate.
- Galvanic Protection: The zinc component of the primer can also offer a degree of galvanic protection. In the presence of an electrolyte (moisture), zinc, being more electrochemically active than steel, corrodes preferentially, thereby protecting the underlying steel substrate.
- Excellent Adhesion: Zinc chromate primers are formulated to provide superior adhesion to steel substrates, creating a tenacious bond that resists delamination and blistering. This robust adhesion ensures that subsequent topcoats adhere firmly, forming a multi-layered barrier against environmental degradation.
- Substrate Preparation: The primer effectively seals the steel surface, preventing direct contact with atmospheric oxygen, moisture, and road salts – all primary catalysts for rust formation. This foundational layer is crucial for extending the lifespan of the steel component in corrosive service conditions.
The "Plain" finish indicates that while the zinc chromate primer provides essential primary corrosion resistance, it is intended to be overcoated with a final paint system by the end-user. This user-applied topcoat serves as the ultimate barrier against mechanical abrasion, UV degradation, chemical exposure, and continued atmospheric corrosion, while also providing the desired aesthetic integration with the dump truck's existing color scheme. The integrity of the primer ensures that the final paint system achieves its maximum protective potential and longevity.
Functional Mechanisms: Detent, Turnbuckle, and Handle Ergonomics
The design incorporates several sophisticated mechanisms to optimize usability, control, and security:

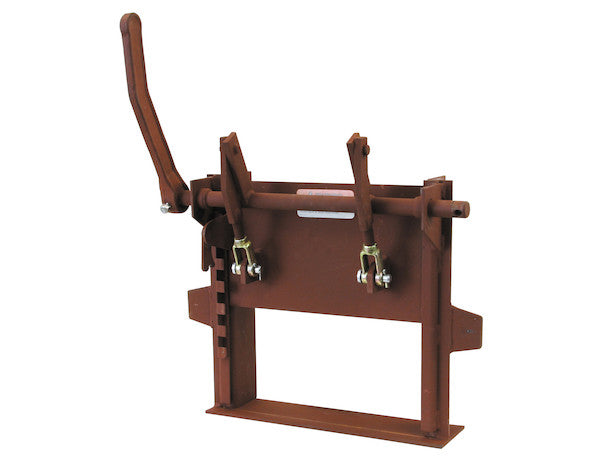

- Detent Door Holder: The inclusion of a detent door holder is a paramount safety and operational feature. A detent mechanism provides a positive locking action that holds the door securely in its open position during operation. This prevents inadvertent closure due to vehicle movement, wind, or vibrations, thereby enhancing operator safety by eliminating the risk of accidental entrapment or injury. Furthermore, it ensures consistent material flow by maintaining a stable opening, crucial for precise discharge operations. The detent system is engineered for robust engagement and disengagement, designed to withstand repeated cycles and the harsh environmental conditions of a dump truck.
- Turn Buckle Door Travel Adjustment: The turnbuckle mechanism provides a precise and easily adjustable means to control the maximum opening angle of the inspection door. This feature is critical for fine-tuning material discharge rates, allowing operators to restrict the flow to specific requirements, prevent over-spill, or manage the consistency of material distribution. Over time, components can experience wear or minor structural shifts; the turnbuckle allows for on-site adjustment to compensate for these factors, ensuring optimal performance throughout the door's service life. It also serves as a secondary control to prevent the door from impacting the dump body structure during aggressive opening, thereby protecting both the door and the tailgate from damage.

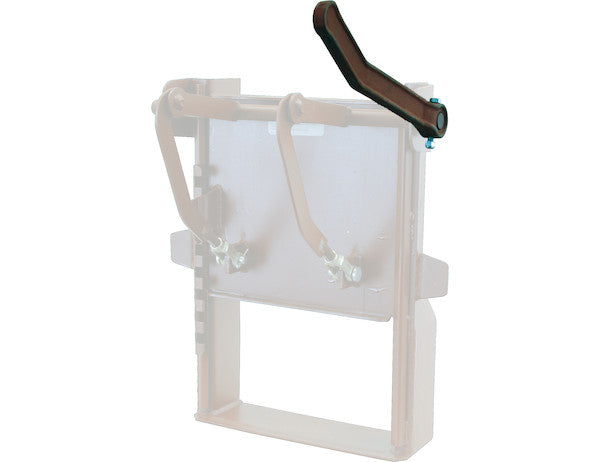

- Bolt-On, Locking Door Handle with Interchangeable Handing: The door is equipped with a robust, bolt-on locking handle. The bolt-on design facilitates straightforward field replacement if necessary, minimizing downtime. The locking feature is a critical security attribute, preventing unauthorized access to the dump body's contents when the vehicle is unattended, thereby safeguarding valuable cargo or preventing tampering. A significant ergonomic advantage is its interchangeable design for left- or right-hand operation. This flexibility allows for optimal installation regardless of the specific tailgate configuration or operator preference, ensuring ergonomic accessibility and ease of use in diverse operational settings. The handle itself is engineered for durability, designed to withstand heavy use and exposure to dirt, dust, and moisture, often operated with gloved hands.
Operational and Economic Advantages
The integration of the Buyers Products Inspection Door into a dump truck tailgate yields substantial operational and economic benefits:
- Enhanced Efficiency: By providing a localized access point, operators can perform quick inspections, take samples, or clear minor blockages without the time-consuming and hydraulically intensive process of lowering the entire tailgate. This significantly reduces cycle times, improves turnaround efficiency, and conserves fuel by minimizing hydraulic system engagement.
- Improved Safety Profile: Reducing the frequency of full tailgate operations mitigates risks associated with large moving parts, pinch points, and hydraulic system failures. The controlled material discharge capability inherent in the inspection door minimizes the risk of sudden surges or uncontrolled spills, protecting personnel and surrounding equipment. The locking handle adds a layer of security, preventing unauthorized access or accidental opening during transit.
- Extended Equipment Life: Less frequent actuation of the main tailgate hydraulic cylinders, hinges, and associated components translates directly to reduced wear and tear, thereby extending the service life of these critical and often expensive systems. The inspection door itself is designed for robustness, deflecting wear and impact from the main tailgate.
- Precision Material Handling: The combination of the optimal opening size and the turnbuckle adjustment mechanism allows for unprecedented control over material flow, which is crucial for applications such as asphalt paving, aggregate spreading, or precise delivery of landscaping materials.
- Reduced Maintenance Overhead: The design simplifies routine inspections and minor maintenance tasks, as the smaller door allows for targeted access without exposing the entire dump body. The use of durable carbon steel and the comprehensive primer system significantly reduces long-term maintenance needs related to structural integrity and corrosion.
- Versatility in Applications: Beyond bulk material discharge, the door proves invaluable for sampling contents for quality control, verifying load levels, or simply performing visual checks of the dump body interior.
Installation and Long-Term Performance

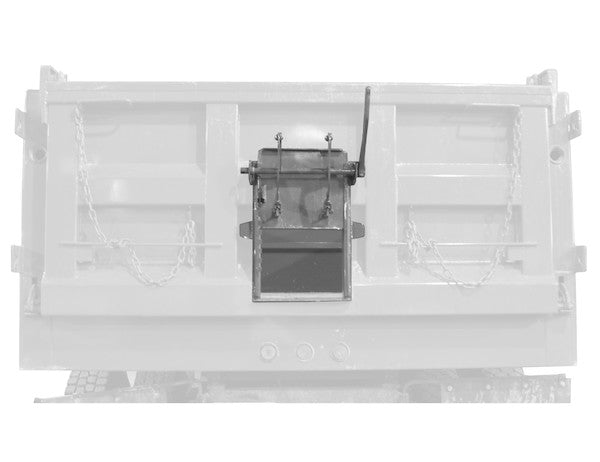

Installation of the Buyers Products Inspection Door requires professional welding, ensuring a permanent and structurally sound integration with the dump body tailgate. Proper welding techniques, including appropriate material preparation (e.g., grinding, deburring) and selection of compatible welding consumables, are essential to maintain the structural integrity of both the door and the tailgate. Post-welding treatment, including thorough cleaning and the application of the final paint system over the zinc chromate primer, is crucial for achieving maximum corrosion resistance and aesthetic integration.
For sustained optimal performance, routine inspection of the detent mechanism, turnbuckle, and handle is recommended. Checks for wear, proper lubrication of moving parts, and verification of fastening integrity will ensure reliable operation throughout the service life of the dump truck. Given its heavy-duty construction and protective finishes, the inspection door is engineered for long-term reliability in the most demanding operational environments.
Conclusion
The Buyers Products Inspection Door with its 12.38 x 13.5 inch opening represents a meticulously engineered solution for medium and heavy-duty dump truck operations. Its strategic design, utilizing robust carbon steel, advanced zinc chromate primer for unparalleled corrosion resistance, and sophisticated functional mechanisms such as the detent holder, turnbuckle adjustment, and an interchangeable locking handle, collectively deliver significant improvements in operational efficiency, safety, and precision. This product is not merely an accessory; it is a fundamental enhancement that contributes directly to reducing operational costs, extending equipment lifespan, and elevating the overall productivity and safety standards of dump truck fleets across various demanding industries.
