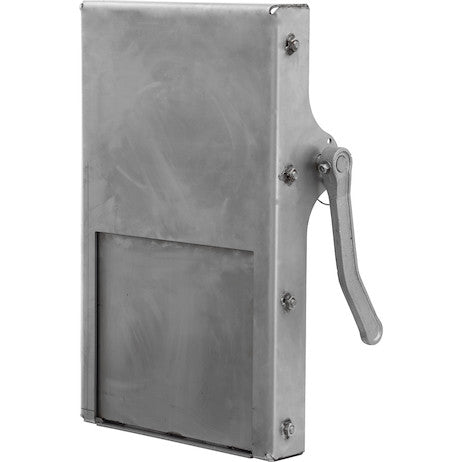

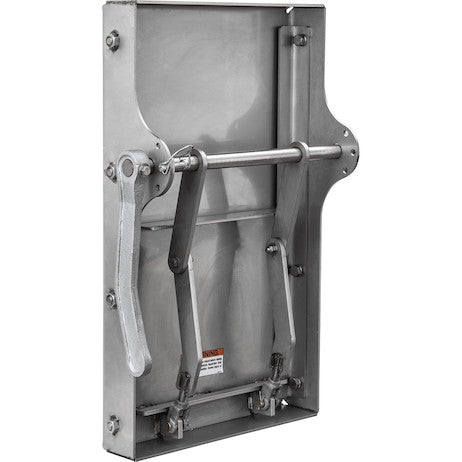

CCD1415 - Inspection Door With Detent - 14.00 X 13.17 Inch Door Opening-Plain Finish

Buyers Products Serviceable Inspection Door provides access into dump body without requiring the entire tailgate to be opened, such as getting a shovel full of asphalt or aggregate, dumping into a wheelbarrow, or sampling the material The door has a pin to hold the door open in various positions and a turn-buckles in the linkage to adjust how the door snaps closed Bolt together design allows for door, linkage, and tracks to be removed for service, cleaning, and painting after installation Choose the size and material to match your tailgate. This door assembly is available in two heights, in either carbon steel or stainless steel construction

Specifications

Advanced Technical Overview: Buyers Products Inspection Door with Detent - Optimized for Heavy-Duty Material Handling

The Buyers Products Inspection Door with Detent, featuring a precise 14.00 x 13.17 inch door opening and a robust plain finish, represents a critical component in the operational efficiency and safety of commercial dump bodies. Engineered for superior performance in demanding applications, this specialized access solution provides a controlled and localized discharge point for bulk materials, circumventing the necessity of fully opening the main tailgate. This design philosophy translates directly into enhanced productivity, reduced operational wear, and significant improvements in material handling precision for various industries, including construction, landscaping, and aggregate transport.

The core utility of this inspection door lies in its ability to facilitate targeted material access. Whether an operator requires a shovel-full of asphalt for patching, a measured quantity of aggregate for a wheelbarrow, or a representative sample for quality control analysis, this door provides the necessary access without compromising the structural integrity or operational continuity of the larger dump body system. This targeted approach minimizes spillage, reduces material waste, and allows for more granular control over discharge volumes, leading to more efficient project execution and resource management.

Precision Engineering and Material Selection for Uncompromising Durability

At the heart of the Inspection Door’s robust performance is its meticulously engineered construction, leveraging high-grade carbon steel for critical structural and operational components. The door itself, along with its surrounding frame, is fabricated from 3/16 inch thick carbon steel. This material specification is not arbitrary; it is a deliberate choice based on carbon steel's inherent mechanical properties. Carbon steel exhibits exceptional tensile strength, yield strength, and impact resistance, making it ideally suited to withstand the abrasive nature of bulk materials and the dynamic stresses encountered during vehicle operation and material discharge. The 3/16 inch thickness provides a formidable barrier against localized impacts, wear from flowing materials, and deformation under static loads, ensuring the door maintains its structural integrity and sealing capability over an extended service life.

The primary pivot mechanism, crucial for the door's articulation, is anchored by a 1-inch diameter carbon steel round bar. This cross shaft material selection is paramount for load distribution and fatigue resistance. A 1-inch diameter provides substantial bending stiffness and torsional strength, preventing deflection or permanent deformation even when the door is subjected to uneven loads or repeated opening/closing cycles with material present. The smooth surface of the round bar minimizes friction within its pivot points, contributing to fluid operation and reducing wear on mating components. Its integration into the 3/16 inch thick carbon steel frame ensures a robust connection capable of transferring operational forces effectively.

Further reinforcing the assembly's durability is the linkage system, manufactured from 3/8 inch thick carbon steel. The linkage components are subject to significant cyclical stresses, transmitting the force required to open and close the door, as well as absorbing shocks during material movement. The increased thickness of 3/8 inch for the linkage, compared to the door and frame, provides an additional margin of strength, minimizing the risk of buckling, stretching, or fracture over time. This meticulous engineering of component thickness, tailored to the specific stress profiles of each part, underscores the product's commitment to long-term reliability in arduous environments.

The Detent Mechanism: Enhancing Control and Operational Flexibility

A cornerstone feature of this inspection door is its integrated detent mechanism, described as a "pin to hold the door open in various positions." This seemingly simple mechanism is a sophisticated ergonomic and operational enhancement. Mechanically, the detent typically involves a spring-loaded pin or a similar locking device that engages with a series of predetermined notches or holes along the door's travel path. This allows the operator to selectively lock the door at various angles of opening, rather than requiring it to be held manually or to be fully open/closed. The benefits are multifaceted:

1. Controlled Flow Rates: By setting the door to a specific intermediate position, operators can precisely regulate the flow rate of granular or fluid materials. This is invaluable for applications requiring slow, steady discharge, preventing uncontrolled surges that could lead to spillage, dust generation, or uneven distribution.
2. Enhanced Safety: The detent mechanism eliminates the need for operators to physically support the door during discharge, reducing the risk of strain injuries or accidental closure. It also ensures that the door remains securely open, preventing sudden movements that could cause injury or damage.
3. Operational Efficiency: For repetitive tasks, the ability to quickly set and reset the door to a preferred opening position saves time and improves consistency. Whether filling multiple wheelbarrows to the same level or extracting consistent material samples, the detent ensures repeatability.
4. Adaptability to Material Type: Different materials exhibit varying flow characteristics. The detent system allows operators to fine-tune the door opening to suit the specific material being handled, whether it's fine sand, coarse gravel, or cohesive asphalt, optimizing discharge for each scenario.

The precise engineering of the detent engagement points ensures reliable locking and unlocking, contributing to both the functional performance and the user experience of the door assembly.

Adjustable Linkage and Closure Optimization

Complementing the detent mechanism is the inclusion of "turn-buckles in the linkage to adjust how the door snaps closed." This feature is a testament to the product's emphasis on long-term performance and adaptability. Turn-buckles are mechanical devices used to adjust the length and tension of cables or rods. In this context, they provide a crucial means of fine-tuning the door's closure dynamics. Over time, components in any heavy-duty system can experience wear, or slight deformations may occur due to sustained stress. The turn-buckles enable technicians to compensate for these factors, ensuring that the door continues to close with optimal force and alignment. Key advantages include:

1. Consistent Sealing: Proper adjustment ensures that the door closes tightly against its frame, creating an effective seal that prevents material leakage during transport. This is particularly important for fine aggregates, powders, or moisture-sensitive materials.
2. Optimized Snap Action: The "snap closed" action can be adjusted. A precise snap prevents the door from bouncing open during vehicle movement over rough terrain, while an overly aggressive snap can cause excessive wear. Turn-buckles allow for the perfect balance.
3. Longevity of Components: By allowing for fine adjustments, the turn-buckles help to distribute closing forces evenly, reducing localized stress on hinges, latches, and the door itself. This proactive adjustment capability extends the lifespan of the entire assembly.
4. Maintenance and Wear Compensation: As the system ages, minor slop or play might develop. The turn-buckles offer a simple and effective way to take up this slack, restoring the door to its original operational tightness and preventing premature failure.

This level of adjustability underscores the product's design for maintainability and sustained high performance, ensuring that the investment delivers consistent results throughout its operational life.

The Plain Finish: Practicality and Versatility

The "Plain Finish" specified for this inspection door is a deliberate choice that offers practical advantages for industrial users. A plain finish typically implies that the carbon steel components are supplied in their raw, untreated state, possibly with a light protective oil to prevent surface rust during transit and storage. This approach provides several key benefits:

1. Customizable Coating Options: End-users have the freedom to apply specialized coatings that best suit their specific operational environment and aesthetic preferences. This could include heavy-duty epoxy paints for extreme abrasion resistance, anti-corrosion primers and topcoats for highly corrosive environments (e.g., salt, chemicals), or specific corporate color schemes. Applying these coatings to a clean, unprimed surface allows for optimal adhesion and longevity of the chosen protective layer.
2. Simplified Welding and Fabrication: For installers who may need to weld the inspection door frame directly to the dump body tailgate, a plain finish eliminates the need for grinding off existing paint or primers, simplifying the fabrication process and ensuring superior weld integrity. This is particularly relevant given the "Bolt together design" also allows for integration flexibility.
3. Cost Efficiency: Omitting a factory-applied paint finish can sometimes contribute to a more cost-effective initial purchase price, transferring the choice and cost of specialized finishing to the end-user, who can then align it with their specific needs and budget.

While requiring post-installation finishing for optimal long-term corrosion protection in most outdoor environments, the plain finish offers a pragmatic foundation for robust, customized integration.

Integrated Handle Design and Serviceability

The operational interface of the inspection door is a "Bolt-on, galvanized casting" handle. The use of a galvanized casting for the handle material is a significant detail. Galvanization, a process of applying a protective zinc coating to steel or iron, provides superior corrosion resistance. This is crucial for a component that is frequently handled and exposed to the elements, moisture, and potentially corrosive materials. A casting, in turn, allows for complex and ergonomic shapes to be formed with high strength, ensuring a comfortable and secure grip for operators while providing robust resistance to impact and bending forces.

The "bolt-on" nature of the handle further enhances the product's maintainability. Should the handle become damaged due to impact or wear, it can be easily unbolted and replaced without requiring welding or extensive disassembly of the entire door mechanism. This modularity reduces downtime and maintenance costs, highlighting the thoughtful design for real-world heavy-duty applications.

Unparalleled Serviceability and Modular Design

One of the most compelling aspects of the Buyers Products Inspection Door is its "Bolt together design [that] allows for door, linkage, and tracks to be removed for service, cleaning, and painting after installation." This modular construction philosophy is a paramount feature for fleet managers and maintenance personnel. In a demanding industrial environment, component wear, accidental damage, or the need for periodic maintenance is inevitable. The bolt-together design significantly simplifies these processes:

1. Streamlined Repairs: If the door panel sustains damage, only the door panel needs to be replaced, rather than the entire frame or tailgate section. Similarly, individual linkage components or tracks can be serviced or exchanged, leading to reduced material costs and labor time for repairs.
2. Facilitated Cleaning: The ability to remove components individually simplifies thorough cleaning, especially important when transporting different types of materials that may leave residues, or to prevent cross-contamination.
3. Optimized Painting and Corrosion Protection: Removing components for painting allows for comprehensive surface preparation and coating application. This ensures that all surfaces, including hidden nooks and crannies, receive adequate protection, leading to a much longer lifespan for the protective finish and the underlying steel. This is especially beneficial given the "plain finish" that allows for custom coating strategies.
4. Reduced Downtime: The ease of disassembly and reassembly translates directly into minimized vehicle downtime. Quick repairs and maintenance cycles mean that the dump body can be returned to service faster, maximizing its operational availability and profitability.
5. Inventory Management: The modularity allows for easier stocking of individual spare parts, rather than requiring the replacement of larger, more expensive sub-assemblies.

This design decision reflects a deep understanding of the challenges faced in maintaining heavy equipment and underscores Buyers Products' commitment to delivering solutions that are not only robust but also economically viable to own and operate over their entire lifecycle.

Operational Efficiency and System Integration

The Inspection Door's overall dimensions are critical for its integration into various dump body designs. With an Overall Height of 28.44 inches and an Overall Width of 17.25 inches, the frame is designed to provide sufficient structural support and mounting points for secure attachment to the tailgate structure. The generous dimensions ensure that the door assembly can be welded or bolted into place with ample material around the opening, maintaining the structural integrity of the tailgate itself. The careful sizing ensures that the installation process is straightforward, whether for original equipment manufacturers (OEMs) integrating it into new builds or for aftermarket retrofits on existing dump trucks.

The strategic placement and sizing of this inspection door also contribute to the overall efficiency of material transport operations. By reducing the frequency with which the main tailgate must be cycled, the life of the larger, more complex hydraulic and mechanical components of the tailgate is extended. This leads to fewer maintenance interventions, lower repair costs, and a more reliable fleet. The ability to precisely control material discharge also minimizes site cleanup, reduces environmental impact by controlling dust and spillage, and enhances worker safety by providing a predictable and manageable material flow.

Conclusion

The Buyers Products Inspection Door with Detent, featuring a 14.00 x 13.17 inch door opening and a plain carbon steel finish, stands as a testament to intelligent design and robust engineering in the heavy-duty equipment sector. Its selection of high-grade carbon steel for all critical components, including the 3/16 inch thick door and frame, 1-inch diameter cross shaft, and 3/8 inch thick linkage, ensures exceptional durability and resistance to the harsh demands of material handling. The innovative detent mechanism provides unparalleled control over material flow, enhancing safety and operational precision, while the adjustable linkage via turn-buckles guarantees consistent sealing and prolongs component life by allowing for wear compensation. Furthermore, the bolt-together, modular design significantly simplifies maintenance, cleaning, and repair, leading to reduced downtime and a lower total cost of ownership. From its galvanized casting handle designed for ergonomic operation and corrosion resistance to its adaptable plain finish, every aspect of this inspection door is engineered to deliver superior performance, efficiency, and longevity, making it an indispensable asset for any commercial dump body application requiring precise and controlled material access.
