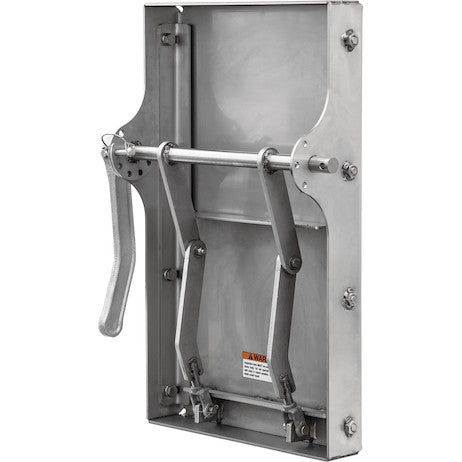

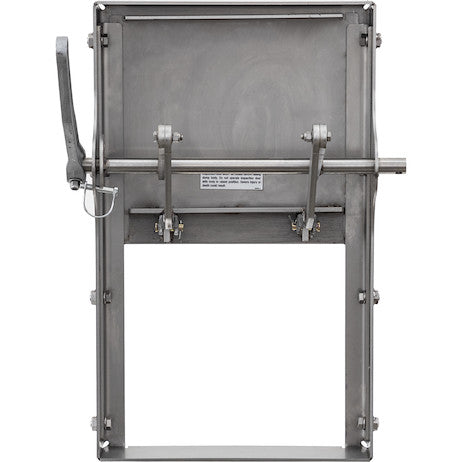

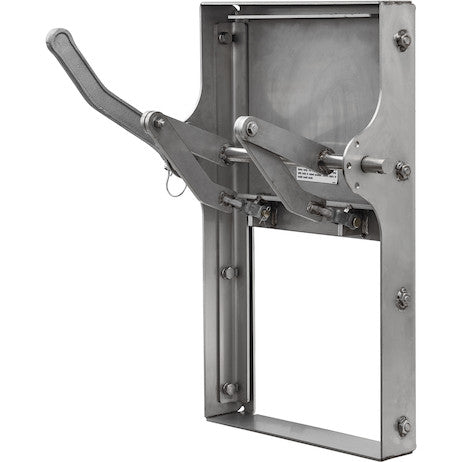

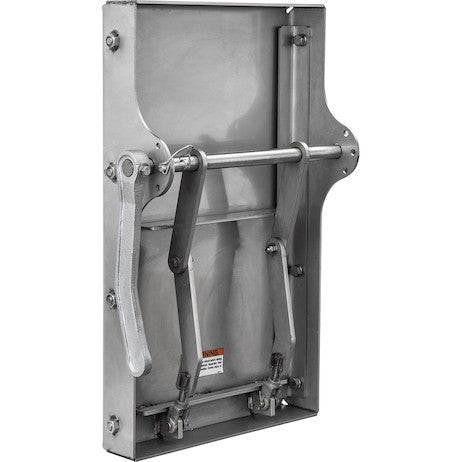

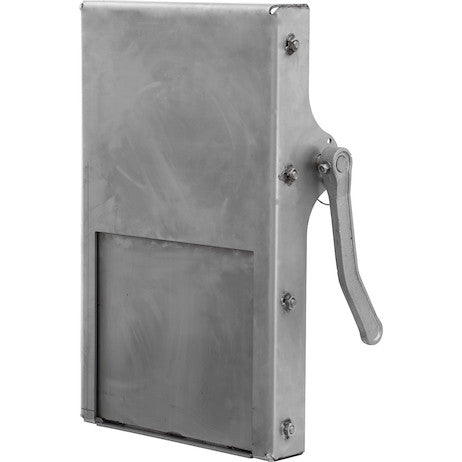

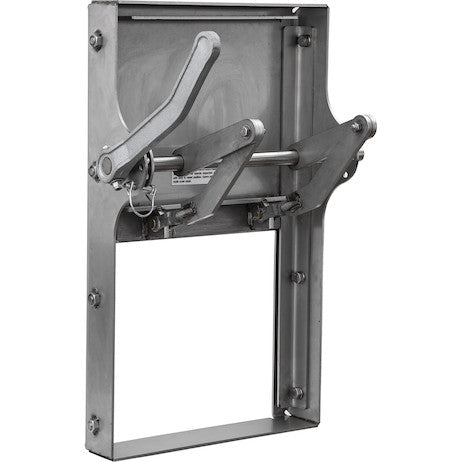

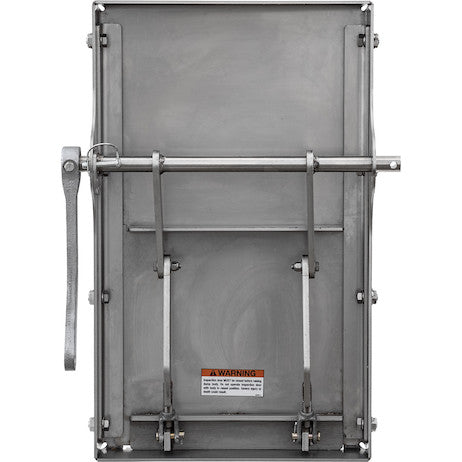

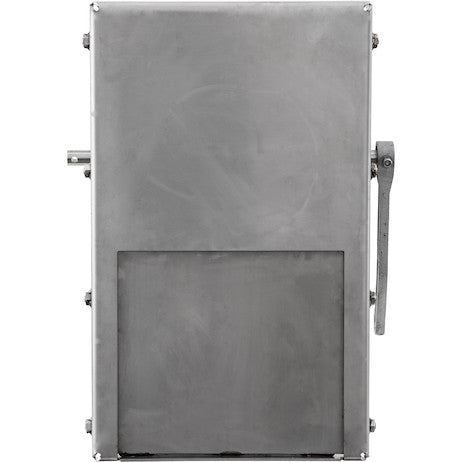

CCD1415SS - Inspection Door With Detent - 14.00 X 13.19 Inch Door Opening-Stainless Steel

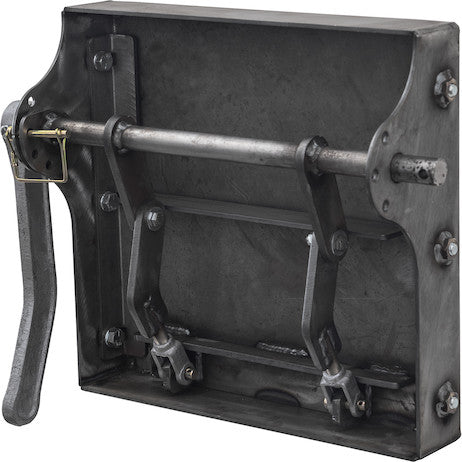

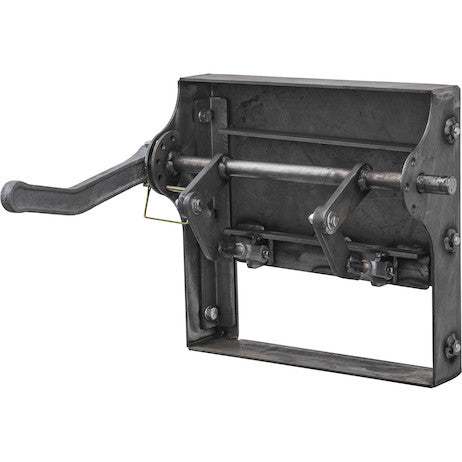

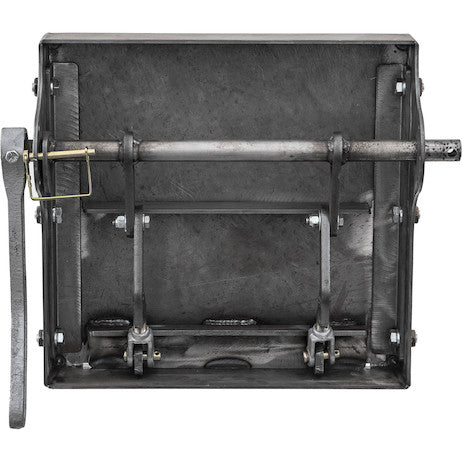

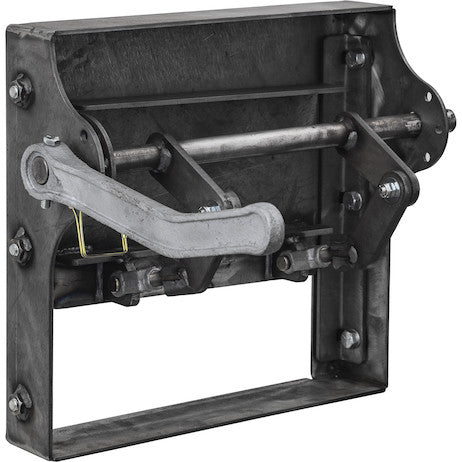

Buyers Products Serviceable Inspection Door provides access into dump body without requiring the entire tailgate to be opened, such as getting a shovel full of asphalt or aggregate, dumping into a wheelbarrow, or sampling the material The door has a pin to hold the door open in various positions and a turn-buckles in the linkage to adjust how the door snaps closed Bolt together design allows for door, linkage, and tracks to be removed for service, cleaning, and painting after installation Choose the size and material to match your tailgate. This door assembly is available in two heights, in either carbon steel or stainless steel construction

Specifications

The Inspection Door With Detent, featuring a generous 14.00 x 13.19 inch door opening and premium stainless steel construction, represents a critical advancement in the operational efficiency and safety of bulk material transport vehicles, particularly dump bodies. Engineered to address the inherent challenges associated with traditional tailgate operations, this product offers a specialized access point that significantly streamlines material handling tasks. Instead of the cumbersome and often time-consuming process of fully opening a large tailgate, this inspection door provides a precise and controlled aperture for targeted material extraction, sampling, or discharge into smaller receptacles. Its design philosophy centers on maximizing productivity, minimizing operational downtime, and enhancing worker safety in demanding industrial and commercial environments.

At the core of its functionality is the strategically sized door opening. With dimensions of 14.00 inches in width and 13.19 inches in height, this opening is meticulously calibrated to facilitate a wide range of tasks. For operators needing to retrieve a specific quantity of material, such as a shovel full of asphalt or aggregate for patch work, the compact opening prevents over-dispersion and waste, ensuring only the necessary volume is accessed. Similarly, when filling wheelbarrows or other smaller containers, the controlled egress mitigates spillage, maintains a cleaner worksite, and reduces material loss. Crucially, in applications requiring material quality assurance, the ability to obtain representative samples without disturbing the bulk load or requiring extensive re-securing of the tailgate is invaluable. This precision access translates directly into improved logistical workflows and more accurate material management.

A standout feature of this inspection door is its integrated detent mechanism. The presence of a pin that holds the door open in various positions offers unparalleled versatility and operational safety. Unlike doors that merely swing freely, potentially leading to accidental closure or uncontrolled movement, the detent system allows operators to fix the door at a desired opening angle. This is particularly beneficial when a sustained opening is required for continuous material flow into a specific container or for hands-free sampling. The secure positioning provided by the detent eliminates the need for manual support, thereby freeing personnel to focus on the task at hand and significantly reducing the risk of injuries caused by moving parts. The robust design of this detent ensures reliable performance even under the vibrations and impacts characteristic of heavy-duty vehicle operation, underscoring its engineering for durability and consistent functionality.

Further enhancing its operational precision and longevity are the turn-buckles integrated into the linkage system. These adjustable components serve a critical role in fine-tuning the door's closing mechanism, allowing operators to customize how the door snaps shut. The ability to adjust the tension and engagement of the closing action ensures a consistently secure and tight seal. Over time, environmental factors, material wear, or minor structural shifts in the dump body can affect the door's closure. The turn-buckle system provides a simple yet effective means to compensate for such changes, maintaining optimal performance throughout the product's lifespan. This adjustability prevents rattling during transit, minimizes the ingress of moisture or contaminants, and ensures that the door remains securely latched, safeguarding the integrity of the transported materials. The precision afforded by this feature reflects a deep understanding of the practical demands faced by operators in the field.

The choice of material for this specific Inspection Door variant is a primary differentiator: 304 Stainless Steel. While the product line offers carbon steel options, this particular model leverages the superior attributes of 304 Stainless Steel for its construction. This austenitic stainless steel is renowned for its exceptional corrosion resistance, high tensile strength, and excellent ductility, making it an ideal material for components exposed to harsh environments and abrasive materials. In the context of dump body operations, where exposure to moisture, road salts, acidic aggregates, and various chemical compounds is common, 304 Stainless Steel provides a robust defense against degradation, rust, and pitting. This ensures the long-term structural integrity and aesthetic appeal of the inspection door, even with continuous exposure to corrosive elements. The cross shaft, a critical pivot point for the door, is specifically constructed from a 1-inch diameter stainless steel round bar, demonstrating a commitment to unparalleled strength and smooth, reliable articulation under load. This material selection extends the operational life of the unit and minimizes the need for frequent maintenance or replacement due to material failure.

The application of 304 Stainless Steel is not merely a superficial finish; it imbues the entire assembly with intrinsic advantages. Its non-porous surface is inherently hygienic, resisting the adhesion and accumulation of debris, which simplifies cleaning protocols—a significant benefit in applications involving sticky materials like asphalt or fine aggregates. Furthermore, the material's inherent strength contributes to the door's overall rigidity and resistance to impact damage, a common concern in demanding construction and industrial settings. While certain internal components, like the linkage, might incorporate high-strength carbon steel for specific mechanical advantages, these elements are carefully chosen and often treated (e.g., galvanized casting for the handle) to complement the stainless steel's corrosion resistance, ensuring comprehensive durability across the assembly. The strategic integration of 3/16-inch thick materials for the door and frame components (when fabricated from 304 SS in this specific model) provides a substantial physical barrier, capable of withstanding the dynamic forces and abrasive nature of bulk materials.

Designed with practicality and longevity in mind, the Inspection Door With Detent features a unique bolt-together design. This modular construction philosophy is a significant advantage, particularly when it comes to maintenance and servicing. Unlike welded assemblies that often require specialized tools and potentially extensive downtime for repairs, the bolt-together components—including the door, linkage, and tracks—can be easily disassembled. This facilitates efficient removal for routine cleaning, crucial for preventing material buildup that could impede operation or foster corrosion. Moreover, it allows for individual components to be serviced, repaired, or even replaced without requiring the complete removal or replacement of the entire tailgate or door assembly. This ease of serviceability extends to re-painting or applying protective coatings, ensuring the unit can be maintained in optimal condition throughout its operational life, minimizing life-cycle costs and maximizing uptime. The total overall dimensions of 28.44 inches in height and 17.25 inches in width for the entire assembly, including the frame, indicate a robust and substantial unit engineered for seamless integration into various dump body designs.

The handle, a critical interface for user interaction, is a robust bolt-on, galvanized casting. Galvanization provides a sacrificial zinc coating that offers excellent corrosion protection to the underlying carbon steel, complementing the stainless steel components. The bolt-on design means the handle can be easily replaced if damaged, further simplifying maintenance. Its cast construction ensures inherent strength and ergonomic form, providing a secure grip for operators even with gloved hands, thereby contributing to both operational efficiency and safety. The entire design ethos, from the choice of advanced materials like 304 Stainless Steel for key components to the thoughtful integration of adjustable mechanisms and serviceable construction, positions this Inspection Door as a premium solution engineered for the most demanding applications.

The utility of this specialized door extends across a broad spectrum of industries. In the construction sector, it is indispensable for controlled discharge of aggregates, sand, gravel, and asphalt for precise spreading or manual distribution. Landscaping professionals benefit from its ability to dispense topsoil, mulch, or decorative stones with accuracy into specific areas or wheelbarrows without disturbing larger loads. Municipal services, particularly in winter operations, can utilize it for sampling road salt or distributing de-icing agents in a controlled manner. Agricultural applications can include controlled dispensing of feed, fertilizer, or other bulk granular materials. Beyond these, any industry that relies on dump bodies for transport and requires precise, smaller-scale access to bulk materials will find this inspection door to be an invaluable asset. It is particularly advantageous in scenarios where the bulk material is valuable, hazardous, or requires strict quality control, as it minimizes exposure and ensures integrity.

In conclusion, the Inspection Door With Detent, with its precisely engineered 14.00 x 13.19 inch opening and robust 304 Stainless Steel construction, represents a significant enhancement in the functionality and reliability of dump body equipment. Its sophisticated features, including the multi-position detent for controlled access, adjustable linkage for optimal closure, and the comprehensive corrosion resistance of stainless steel, converge to deliver a product that far surpasses conventional solutions. The bolt-together design reinforces its long-term value by ensuring ease of maintenance and component replacement, thereby extending the service life of the entire assembly and reducing operational expenditure. This door is not merely an accessory; it is a meticulously designed industrial component that elevates efficiency, improves safety, and contributes to the longevity of your fleet. It provides a strategic advantage by minimizing the wear and tear on primary tailgate mechanisms, reducing fuel consumption associated with full tailgate operations, and fostering a safer, more productive work environment. For discerning professionals seeking to optimize their material handling processes with a durable, high-performance solution, this Stainless Steel Inspection Door stands as the definitive choice.
