Specifications
| Direct Mount/Remote Mount | Direct |
|---|---|
| Direct or Remote Mount | Direct Mount |
| Displacement | 2 |
| Flow | 11 |
| Flow at 1000 RPM | 11.7 |
| Flow at 1200 RPM | 14.04 |
| Flow at 1500 RPM | 16.76 |
| Flow at 1800 RPM | 21 |
| Flow at 2100 RPM | 24.57 |
| Flow at 600 RPM | 7.0 |
| Flow at 900 RPM | 10.44 |
| Gear Size | 1.50 |
| Gear Width | 1.500 |
| Inlet Port Size | 1 1/4 NPT |
| Input Mount Type | Integral Bracket |
| Material | Cast Iron |
| Maximum Pressure | 2500 |
| Maximum Rotations Per Minute (RPM) | 2000 |
| Mount Type | SAE B 4 Bolt |
| Outlet Port Size | 3/4 NPT |
| Pilot Diameter | - |
| Ports (rear/side) | Rear |
| Rear Port Size | 3/4 NPT |
| Rotation | Counterclockwise |
| Shaft Size | 7/8-13 |
| Shaft Type | Splined |
| Suction Port Size | 1 1/4 NPT |

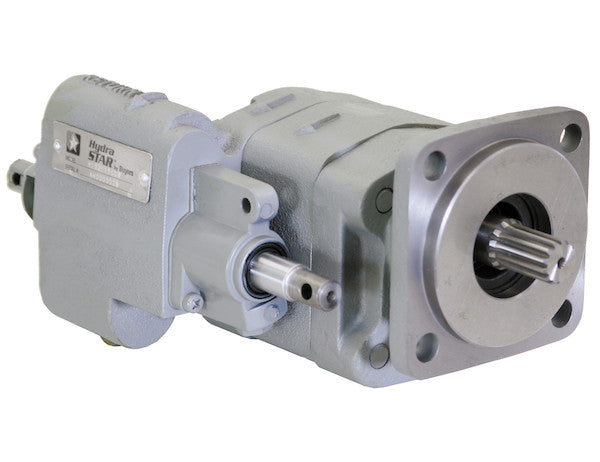

The Direct Mount Hydraulic Pump with Counterclockwise Rotation and a 1-1/2 Inch Diameter Gear represents a critical component for robust and efficient hydraulic power systems, particularly those integrated into commercial vehicle applications. Engineered for direct mounting, this pump optimizes space utilization and minimizes potential points of failure often associated with more complex remote-mount installations. Its specific counterclockwise rotation, a paramount consideration for system compatibility, ensures seamless integration with a variety of Power Take-Off (PTO) units designed for this operational direction.
At its core, this hydraulic pump is a positive displacement external gear pump, a fundamental technology revered for its reliability, cost-effectiveness, and impressive power-to-weight ratio. The "1-1/2 Inch Diameter Gear," more precisely referring to the gear width (as specified at 1.500 inches), is a key determinant of the pump's volumetric displacement and, consequently, its hydraulic flow characteristics. With a displacement of 2 cubic inches per revolution, this pump is adept at generating a substantial flow of hydraulic fluid for its compact size, making it exceptionally well-suited for smaller dump applications where consistent and responsive hydraulic power is essential.
Optimized Direct Mount Integration and Manual Control
The defining feature of this hydraulic pump is its direct mount capability. By bolting directly to a PTO, the unit forms a cohesive and compact hydraulic power source. This direct connection eliminates the need for intermediate drive shafts, couplings, and additional mounting hardware, thereby reducing the overall system footprint and simplifying installation. The inherent compactness is invaluable in modern vehicle chassis where space is often at a premium. Furthermore, a direct mount configuration enhances mechanical efficiency by reducing power losses associated with additional drive components, translating directly into more usable hydraulic power for the application.
Complementing its direct mount design is the integrated manual valve with cable-controlled shift operations. This feature provides operators with precise and reliable control over the hydraulic circuit. Manual valves are highly valued in dump applications for their direct engagement and straightforward operation, allowing for immediate response to operational demands. Cable control offers the flexibility to position the control lever within the cab, providing ergonomic access for the operator without requiring complex electronic interfaces or pneumatic lines. This mechanical linkage ensures a robust and dependable control mechanism, vital for safety and operational efficiency in demanding work environments.
Understanding Counterclockwise Rotation and Its Importance
The specification of "Counterclockwise Rotation" is absolutely critical for the correct functioning and longevity of any hydraulic pump. Hydraulic pumps are designed to operate in a specific rotational direction relative to their internal porting and gear engagement. Operating a pump in the incorrect direction can lead to immediate damage, including severe cavitation, seal failure, and internal component wear, as the fluid flow paths and pressure dynamics are fundamentally reversed. For this specific pump, counterclockwise rotation is determined by viewing the pump with the shaft facing the observer and the 'belly' or main body of the pump facing downwards. This standardized observation method ensures that technicians and operators can accurately verify the pump's intended rotation against the PTO's output rotation, preventing costly installation errors. Careful verification of both pump and PTO rotation is an indispensable step in the hydraulic system assembly process, ensuring system integrity and performance.
Robust Construction and Standardized Interfaces
Constructed from high-grade cast iron, the housing of this hydraulic pump provides exceptional durability and structural rigidity. Cast iron is the material of choice for demanding hydraulic applications due to its superior strength-to-weight ratio, excellent wear resistance, and inherent dampening characteristics which help mitigate noise and vibration. This robust material ensures the pump can withstand high internal pressures, external stresses, and environmental factors commonly encountered in vocational vehicle operations, contributing significantly to its long operational lifespan and reliability.
The pump features a 4-bolt SAE B mounting flange, an industry-standard interface that ensures broad compatibility with a wide range of PTO units and auxiliary drive systems. SAE flanges are known for their robust sealing capabilities and mechanical strength, providing a secure and leak-free connection. Power transmission from the PTO to the pump's internal gears is facilitated by a 7/8 inch by 13-spline shaft. Splined shafts are specifically designed for transmitting high torque loads reliably. The multiple splines distribute the load evenly across a larger surface area compared to keyways, thereby reducing stress concentrations and minimizing wear, even under intermittent shock loads typical of dump truck operations.
Hydraulic Performance Characteristics
The performance of any hydraulic pump is quantified by its ability to generate flow and pressure efficiently. With a nominal displacement of 2 cubic inches per revolution, this pump effectively moves a substantial volume of hydraulic fluid with each rotation of its gears. This displacement directly influences the volumetric flow rate (GPM - Gallons Per Minute) at various operational speeds. The provided flow rate specifications illustrate this relationship:
- Flow at 600 RPM: 7.0 GPM
- Flow at 900 RPM: 10.44 GPM
- Flow at 1000 RPM: 11.7 GPM
- Flow at 1200 RPM: 14.04 GPM
- Flow at 1500 RPM: 16.76 GPM
- Flow at 1800 RPM: 21 GPM
- Flow at 2100 RPM: 24.57 GPM
These figures demonstrate a near-linear increase in flow with increasing RPM, characteristic of positive displacement pumps. The maximum recommended operational speed for this pump is 2000 RPM, which correlates to a robust flow rate suitable for rapid cylinder extension and retraction cycles in dump applications. The ability to achieve 24.57 GPM at 2100 RPM highlights the pump's capacity to deliver ample fluid volume for quick and efficient system responses.
Equally critical is the pump's maximum pressure rating of 2500 PSI (Pounds per Square Inch). This pressure capability dictates the maximum force the hydraulic system can generate, directly impacting the lifting capacity of a dump body or the force exerted by other hydraulic actuators. A 2500 PSI rating indicates a pump designed for demanding tasks, capable of handling significant loads and providing ample hydraulic muscle for a variety of medium-duty applications, while also offering a safety margin for typical operational pressures in smaller dump trucks and utility vehicles.
Hydraulic Porting and Fluid Dynamics
Proper port sizing is crucial for optimizing hydraulic system performance and preventing common issues such as cavitation and excessive heat generation. This pump is equipped with a 1 1/4 NPT (National Pipe Taper) inlet/suction port and a 3/4 NPT outlet/pressure port, both located at the rear of the pump. The larger inlet port size (1 1/4 NPT) is deliberately designed to minimize restriction on the suction side, allowing hydraulic fluid to flow freely from the reservoir into the pump. This is paramount for preventing cavitation, a phenomenon where vapor bubbles form in the fluid due due to low pressure, collapsing violently within the pump and causing significant wear and damage. The 3/4 NPT outlet port is sized to accommodate the pressurized flow, balancing flow velocity with minimal pressure drop across the connection to the rest of the hydraulic circuit. The NPT threading ensures a tapered fit that provides a secure, leak-tight seal when properly assembled, a fundamental requirement for maintaining system integrity and efficiency.
Application Focus: Smaller Dump and Utility Operations
While generically termed a "small dump pump," this unit is engineered for a diverse range of smaller-scale hydraulic applications beyond just dump trucks. Its attributes make it ideal for light to medium-duty vocational vehicles requiring a reliable and compact hydraulic power source. This includes, but is not limited to, utility service trucks with small cranes or lift gates, tow trucks with hydraulic winches, landscape dump trailers, and various municipal vehicles. The manual valve control is particularly advantageous in scenarios where precise, operator-driven hydraulic functions are preferred, offering a tactile and responsive interface that experienced operators often favor.
The integration of the pump directly with a PTO provides a clean, self-contained hydraulic system. This eliminates the need for auxiliary engines or electric motors to drive the pump, leveraging the vehicle's existing power plant for hydraulic functions. This approach reduces fuel consumption, maintenance complexity, and overall system weight, contributing to greater operational economy and vehicle efficiency.
System Integration and Support from Buyers Products
Successful implementation of any hydraulic system hinges on proper component selection and integration. The modular design, standard SAE mounting flange, and specific counterclockwise rotation of this pump underscore its compatibility with a broad spectrum of PTO units. Buyers Products emphasizes the importance of selecting the correct PTO for specific vehicle makes, models, and transmissions. Vehicle-specific PTOs ensure optimal gear ratios, mounting configurations, and power transfer capabilities. Recognizing the complexities involved, Buyers Products offers custom-ordered PTOs to precisely match individual vehicle and application requirements. Their dedicated Customer Service team serves as an invaluable resource, providing expert guidance and technical assistance to ensure seamless system compatibility and peak performance.
Operational Best Practices and Maintenance
To maximize the lifespan and maintain the peak performance of this direct mount hydraulic pump, adherence to best operational and maintenance practices is essential. This includes regular inspection of hydraulic fluid levels and quality, ensuring the use of recommended hydraulic fluid types, and periodic replacement of hydraulic filters to prevent contamination. Proper fluid filtration is paramount, as contaminants are a leading cause of premature wear in hydraulic components. Additionally, routine checks of all hydraulic lines, fittings, and seals for signs of wear or leakage are crucial. Ensuring that the system operates within its specified maximum pressure (2500 PSI) and RPM (2000 RPM) limits is also vital to prevent overstressing components and potentially reducing their operational life. Adhering to these simple yet critical guidelines will ensure the pump delivers consistent, reliable hydraulic power for years to come.
Conclusion
The Direct Mount Hydraulic Pump with Counterclockwise Rotation and a 1-1/2 Inch Diameter Gear from Buyers Products is a testament to robust engineering and practical design. Its direct mount capability provides a compact and efficient solution, while the integrated cable-controlled manual valve offers precise and reliable operation for small dump and utility applications. Constructed from durable cast iron and featuring industry-standard SAE mounting and a splined shaft, this pump is built to endure challenging work environments. With impressive flow rates across its operational RPM range and a substantial 2500 PSI maximum pressure, it delivers the necessary power and responsiveness for critical hydraulic functions. Backed by Buyers Products' commitment to compatibility and customer support, this pump stands as an exemplary choice for professionals seeking a high-performance, dependable hydraulic power source.
