Specifications
| Direct Mount/Remote Mount | Direct |
|---|---|
| Direct or Remote Mount | Direct Mount |
| Displacement | 3 |
| Flow | 16 |
| Flow at 1000 RPM | 16.1 |
| Flow at 1200 RPM | 19.2 |
| Flow at 1500 RPM | 16.76 |
| Flow at 1800 RPM | 29 |
| Flow at 2100 RPM | 33.81 |
| Flow at 600 RPM | 9.66 |
| Flow at 900 RPM | 14.49 |
| Gear Size | 2.00 |
| Gear Width | 2.000 |
| Inlet Port Size | 1 1/4 NPT |
| Input Mount Type | Integral Bracket |
| Material | Cast Iron |
| Maximum Pressure | 2500 |
| Maximum Rotations Per Minute (RPM) | 2000 |
| Mount Type | SAE B 4 Bolt |
| Outlet Port Size | 3/4 NPT |
| Pilot Diameter | - |
| Ports (rear/side) | Rear |
| Rear Port Size | 3/4 NPT |
| Rotation | Counterclockwise |
| Shaft Size | 7/8-13 |
| Shaft Type | Splined |
| Suction Port Size | 1 1/4 NPT |

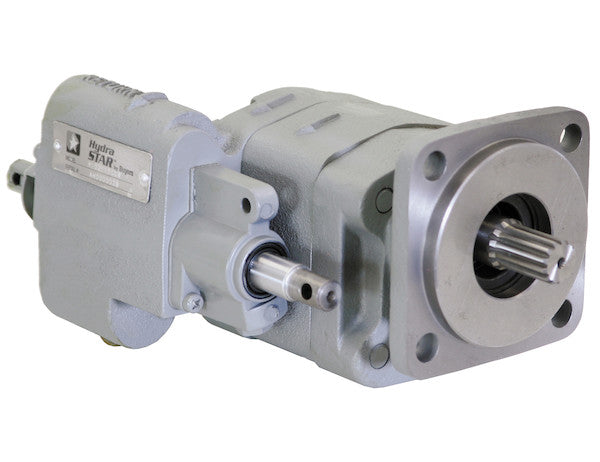

The Direct Mount Hydraulic Pump with Counterclockwise Rotation and 2 Inch Dia. Gear represents a robust and efficiently engineered solution designed specifically for demanding hydraulic power applications within the mobile equipment sector, particularly for smaller dump truck systems and utility vehicles requiring consistent, high-pressure fluid delivery. This hydraulic pump, meticulously manufactured by Buyers Products, integrates advanced design principles and durable materials to ensure optimal performance, longevity, and ease of installation in a wide array of operational environments.
Precision Engineering for Direct Mount Applications
At the core of this unit's design philosophy is its direct mount configuration. Unlike remote-mount systems that require additional hydraulic lines, mounting brackets, and potentially more complex power transfer mechanisms, this pump bolts directly to a vehicle's Power Take-Off (PTO) unit. This direct coupling offers several critical advantages. Firstly, it significantly reduces the overall footprint of the hydraulic system, making it an ideal choice for vehicles where space is at a premium. The compact nature minimizes potential points of failure by eliminating unnecessary hoses and connections, thereby enhancing system reliability and reducing maintenance requirements. Secondly, a direct mount configuration often results in a more efficient transfer of mechanical power from the PTO to the pump, as energy losses associated with intermediate driveshafts or additional couplings are either reduced or entirely circumvented. This direct approach ensures that the maximum available power from the vehicle's engine, via the PTO, is translated into hydraulic energy.
The interface between the pump and the PTO is standardized for broad compatibility and secure attachment. Featuring an SAE B 4-bolt mounting flange, this pump adheres to widely recognized industry standards, ensuring seamless integration with a vast range of PTO units available in the market. The 4-bolt pattern provides a secure, rigid connection, essential for handling the significant torque and operational vibrations inherent in hydraulic systems. Complementing this robust mounting flange is a 7/8 inch by 13 spline shaft. The splined shaft design is paramount for efficient torque transmission, offering a superior grip and alignment compared to keyway shafts, especially under heavy loads and frequent start/stop cycles. The 13 splines distribute the rotational force evenly, minimizing wear and prolonging the life of both the pump and the PTO shaft, thereby contributing to the overall durability and reliability of the hydraulic system.
Optimized Hydraulic Performance: Gear Mechanism and Flow Characteristics
This pump operates on the principle of a positive displacement external gear pump, a fundamental and highly reliable design in fluid power technology. The internal mechanics involve a pair of precisely machined, intermeshing gears housed within a robust casing. As these gears rotate, they create a partial vacuum at the inlet port, drawing hydraulic fluid into the pump's chambers. The fluid is then trapped between the gear teeth and the pump housing, carried around the periphery, and forcibly ejected through the outlet port as the teeth re-mesh. This continuous displacement action is what generates the hydraulic flow and pressure required to operate cylinders, motors, and other actuators.
A critical component defining the pump's performance is its 2-inch diameter gear, further specified with a 2.000-inch gear width. These dimensions are directly proportional to the pump's volumetric displacement, which is rated at 3 cubic inches per revolution. This displacement figure signifies the precise volume of hydraulic fluid moved with each full rotation of the pump's shaft. A larger gear diameter and width generally allow for greater fluid displacement per revolution, translating into higher flow rates at a given RPM. The precise engineering of these gears ensures minimal internal leakage (slippage) and high volumetric efficiency, even under high-pressure conditions.
The specified counterclockwise rotation is a vital operational parameter. When viewed from the shaft end, with the belly of the pump facing downwards, the shaft of this particular model rotates in a counterclockwise direction. This specific rotation dictates how the pump must be coupled to the PTO, as misaligned rotation will prevent the pump from priming and generating hydraulic pressure, or worse, cause damage. The clear instruction provided by Buyers Products on how to determine the required pump rotation underscores the importance of this detail for correct installation and system functionality.
Comprehensive Flow Rate Analysis Across Operating RPMs
The operational efficiency and capacity of a hydraulic pump are best understood through its flow rate characteristics across various rotational speeds. This pump provides a comprehensive set of flow data, allowing users to accurately predict performance based on their vehicle's engine and PTO RPM. The flow is specified in gallons per minute (GPM), offering a clear indication of the hydraulic fluid volume delivered per unit of time.
- Flow at 600 RPM: 9.66 GPM - At the lower end of the operational spectrum, such as during engine idle or slow PTO engagement, the pump delivers a substantial 9.66 GPM. This flow is adequate for initial system engagement and maintaining minimal hydraulic function.
- Flow at 900 RPM: 14.49 GPM - As the PTO speed increases to 900 RPM, the flow rate rises proportionally to 14.49 GPM. This range often corresponds to light-duty operations or slower, more controlled movements of the dump body.
- Flow at 1000 RPM: 16.1 GPM - Approaching the typical cruising or operational RPM for many vehicles, 1000 RPM yields 16.1 GPM, providing a strong balance between speed and control for moderate applications.
- Flow at 1200 RPM: 19.2 GPM - A further increase to 1200 RPM boosts the flow to 19.2 GPM. This level of flow is suitable for faster actuation of hydraulic cylinders, facilitating quicker dump cycles or more responsive attachment operations.
- Flow at 1500 RPM: 16.76 GPM - It's important to note the specific flow at 1500 RPM which is 16.76 GPM. While slightly lower than the 1200 RPM figure, this might indicate specific operational efficiencies or pressure considerations at this particular speed, or a slight variance in measurement. For professional applications, understanding such specific points helps in precise system design and component matching.
- Flow at 1800 RPM: 29 GPM - At 1800 RPM, the pump demonstrates a significant increase in output, delivering 29 GPM. This higher flow rate is crucial for rapid dump cycles, large volume transfers, or applications requiring swift and powerful hydraulic response.
- Flow at 2100 RPM: 33.81 GPM - At its higher operational speeds, reaching 2100 RPM, the pump achieves its peak listed flow of 33.81 GPM. This maximum flow capability ensures that the pump can meet the demands of even the most rigorous smaller dump applications, providing exceptional speed for heavy loads and efficient operation.
This detailed flow curve provides hydraulic system designers and operators with precise data to match the pump's output to the specific flow requirements of their cylinders or motors, ensuring optimal cycle times and system efficiency. The linear relationship between RPM and flow (with minor variations due to internal slippage and efficiency curves) is a hallmark of well-designed gear pumps.
Pressure Capability and Operational Limits
Beyond flow, the pump's ability to generate and withstand pressure is paramount. With a maximum pressure rating of 2500 PSI, this pump is engineered to handle substantial hydraulic loads. This pressure capability is critical for lifting heavy dump bodies, operating compactors, or powering other demanding hydraulic actuators. The robust cast iron construction contributes significantly to its ability to maintain integrity under these high-pressure conditions, preventing distortion or leaks that could lead to system failure. Adhering to the maximum pressure rating is crucial for the longevity of the entire hydraulic system, including cylinders, hoses, and valves.
The maximum operational rotations per minute (RPM) for this pump is specified at 2000 RPM. While the flow rates are provided up to 2100 RPM, the stated maximum RPM of 2000 serves as a guideline for continuous, safe operation. Exceeding this limit can lead to accelerated wear of internal components, increased heat generation, potential cavitation, and ultimately, premature pump failure. It is essential to ensure that the PTO output speed, when engaged, remains within this specified maximum to preserve the pump's integrity and extend its service life.
Integrated Control and User Interface
A distinctive feature of this hydraulic pump is its integrated manual valve with cable-controlled manual shift operations. This design simplifies the hydraulic circuit by combining the pump and control valve into a single, compact unit. The manual valve typically offers positions for "raise," "hold," and "lower" functions, providing direct and intuitive control over the dump body or other hydraulic actuators. Cable control offers several advantages in mobile applications: it is mechanically robust, less susceptible to electrical interference or sensor failures common in electronic systems, and provides a tactile feedback to the operator. This direct mechanical linkage ensures reliable operation even in harsh environmental conditions, making it a dependable choice for utility and vocational vehicles where consistent performance is key. The "integral bracket" for input mount type further simplifies installation, indicating a self-contained unit ready for direct attachment.
Robust Construction for Enduring Performance
The selection of materials for hydraulic components directly impacts their durability and performance. This pump is constructed from high-quality cast iron. Cast iron is a preferred material for hydraulic pump housings due to its exceptional strength-to-weight ratio, excellent vibration damping characteristics, and superior resistance to wear and abrasion. Its inherent rigidity helps maintain critical internal tolerances under varying pressure and temperature conditions, which is crucial for preserving the pump's volumetric and mechanical efficiency. Furthermore, cast iron possesses good thermal conductivity, aiding in the dissipation of heat generated during continuous operation, thereby contributing to the stability of the hydraulic fluid and extending the life of seals and other internal components. This robust material choice ensures the pump can withstand the demanding operational cycles and harsh environmental exposure typical of mobile equipment applications.
Optimized Porting for Efficient Fluid Dynamics
The design and sizing of the hydraulic ports are fundamental to the pump's overall efficiency and to preventing issues such as cavitation or excessive pressure drops. This pump features thoughtfully sized and positioned ports for optimal fluid flow.
- Inlet Port Size / Suction Port Size: 1 1/4 NPT - The generous 1 1/4 inch NPT (National Pipe Taper) inlet and suction port size is crucial for ensuring an unrestricted flow of hydraulic fluid into the pump. A larger suction port minimizes fluid velocity at the inlet, reducing the risk of cavitation—a phenomenon where air bubbles form and collapse within the fluid due to localized low pressure, leading to noise, vibration, and significant damage to pump components. The NPT threading ensures a secure, leak-free connection, vital for maintaining system integrity.
- Outlet Port Size / Rear Port Size: 3/4 NPT - The 3/4 inch NPT outlet and rear port size is designed to efficiently channel the pressurized hydraulic fluid out of the pump and into the rest of the system. While smaller than the inlet, this size is optimized to create the necessary pressure without causing excessive restriction or heat buildup for the specified flow rates and pressure capabilities. The rear porting configuration offers flexibility in plumbing, often simplifying hose routing in compact installations.
The consistent use of NPT threading across all ports ensures compatibility with standard hydraulic fittings and facilitates straightforward, reliable connections, minimizing the potential for leaks under high pressure.
Applications and System Integration
This direct mount hydraulic pump is meticulously engineered for "smaller dump applications." This broad category encompasses a range of vehicles, including light-duty dump trucks, landscape trucks, municipal utility vehicles, and trailers equipped with hydraulic dump functionality. Its compact design and integrated valve make it particularly well-suited for installations where space is constrained, and a streamlined hydraulic system is desired. The pump's performance characteristics – specifically its displacement, flow rates, and pressure capabilities – are perfectly matched to the typical demands of lifting and lowering small to medium-sized dump beds, ensuring efficient and responsive operation. The emphasis on direct mounting simplifies the power train from the vehicle's engine via the PTO, making it a highly efficient solution for dedicated hydraulic functions.
Installation, Maintenance, and Longevity
The design of this Buyers Products hydraulic pump prioritizes both ease of installation and long-term reliability. The SAE B 4-bolt mounting flange and 7/8 inch by 13 spline shaft are standard interfaces, simplifying mechanical integration with compatible PTO units. For optimal performance and extended lifespan, proper installation practices are critical. This includes ensuring correct alignment between the PTO and pump shaft to prevent premature wear on bearings and seals. The integral bracket for the input mount further aids in a straightforward, secure attachment.
While the product information notes a "-" for "Pilot Diameter", it implies that the mounting flange directly supports the pump without requiring an additional pilot bore engagement, or that the integral bracket design naturally aligns it. This simplification can reduce installation complexity for certain PTO configurations.
Beyond initial installation, routine maintenance is paramount. This includes regular inspection of hydraulic fluid levels and quality, ensuring that the fluid is clean and free of contaminants, as hydraulic fluid is the lifeblood of the system. Proper filtration is essential to protect the precision-machined internal components of the pump from particulate matter. Regular checks for leaks at fittings and seals, along with monitoring for unusual noise or vibration, can preempt larger issues and ensure the pump operates at peak efficiency throughout its service life. The robust cast iron construction inherently contributes to lower maintenance needs compared to less durable materials, offering superior resistance to external damage and internal wear.
Conclusion: A Reliable Solution for Demanding Applications
The Direct Mount Hydraulic Pump with Counterclockwise Rotation and 2 Inch Dia. Gear from Buyers Products represents a high-performance, durable, and efficiently designed solution for providing hydraulic power in smaller dump applications. Its direct mount configuration offers a compact footprint and optimized power transfer. The precisely engineered gear mechanism, characterized by a 3 cubic inch displacement and a 2-inch gear diameter, delivers consistent and powerful fluid flow across a wide range of operational RPMs, from 9.66 GPM at 600 RPM to 33.81 GPM at 2100 RPM. With a maximum pressure capability of 2500 PSI, it stands ready to handle demanding lifting tasks.
The inclusion of a cable-controlled manual valve streamlines operation and enhances reliability. Constructed from robust cast iron, the pump is built to withstand harsh operating conditions and provide extended service life. The standardized SAE B 4-bolt mounting flange and 7/8 inch by 13 spline shaft ensure broad compatibility and secure power transmission, while optimally sized NPT ports facilitate efficient fluid dynamics. Buyers Products' commitment to quality and precise specifications ensures that this hydraulic pump is not just a component, but a foundational element for reliable and efficient mobile hydraulic systems. For bespoke vehicle and application integration, the guidance of Buyers Products Customer Service is readily available to ensure the selection of the perfect PTO, guaranteeing optimal system synergy and performance.
