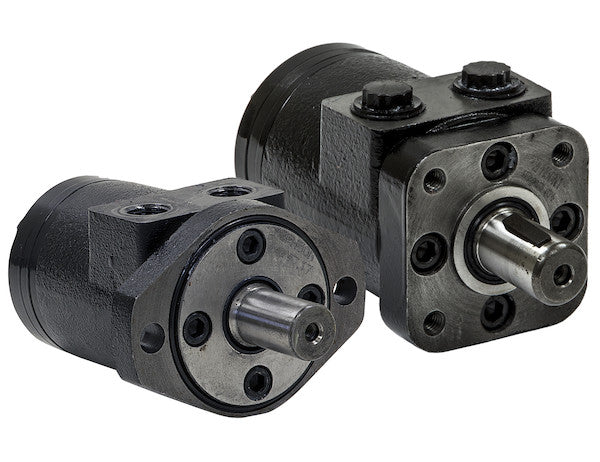

CM012P - Hydraulic Motor

Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders. The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate. Choose from a wide range of motors depending on your needs for flow rates, torque and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.

Specifications

The Hydraulic Motor from Buyers Products, specifically engineered with a 2-bolt mount, NPT threads, and a nominal displacement of 4.5 to 4.7 cubic inches, represents a pinnacle of hydraulic power conversion technology designed for demanding medium-duty applications. This advanced hydraulic motor is the embodiment of robust engineering, combining efficiency, power, and compact design into a single, high-performance unit. Its precise specifications and construction make it an indispensable component in hydraulic systems requiring reliable and consistent rotational force.

Advanced Hydraulic Principles and Design

At its core, this hydraulic motor operates on the fundamental principle of converting hydraulic fluid pressure and flow into mechanical rotational energy. This process is orchestrated by an internal mechanism that responds to the pressurized fluid, generating torque and speed at the output shaft. The efficiency and performance of this conversion are critical for the overall system's effectiveness, and this motor excels in delivering superior results.

The motor incorporates an industry-proven spool valve design coupled with state-of-the-art gerotors. This combination is a testament to sophisticated hydraulic engineering. The spool valve mechanism is responsible for precisely directing the hydraulic fluid into and out of the gerotor set. This timing and flow control are crucial for smooth operation, efficient power transfer, and controlled directional changes. Spool valves are renowned for their reliability and ability to handle high pressures, ensuring the motor performs consistently even under strenuous conditions. Their robust construction minimizes internal leakage, contributing to the motor's high volumetric efficiency.

The gerotor (GERerated ROTOR) set is at the heart of the motor's power generation. Comprising an inner and outer gear, the gerotor design creates expanding and contracting chambers as the gears rotate. Hydraulic fluid entering the expanding chambers forces the inner gear to rotate eccentrically within the outer gear, which in turn drives the output shaft. This design offers several significant advantages:

• High Volumetric Efficiency: The precise meshing of the gerotor gears minimizes fluid bypass, ensuring that a maximum proportion of the input fluid contributes to mechanical work.
• Compactness: Gerotor motors are inherently compact for a given displacement, making them ideal for installations where space is a premium.
• Smooth Operation: The continuous engagement of the gerotor elements results in very smooth torque delivery and low ripple, reducing vibration and noise.
• High Starting Torque: This motor's design excels in providing exceptional starting torque, a critical characteristic for applications that require overcoming significant inertia from a standstill.

Displacement and Performance Characteristics

With a nominal displacement of 4.5 cubic inches, specifically detailed as 4.7 cubic inches per revolution in the technical specifications, this motor is meticulously engineered for a balanced output of torque and speed. Displacement is a fundamental parameter of any hydraulic motor, defining the volume of fluid required to complete one full revolution of the output shaft. This value directly influences the motor's torque output for a given pressure and its speed for a given flow rate.

The relationship between displacement, flow, speed, and torque can be expressed through key hydraulic equations:

• Speed (RPM) = [Flow (GPM) * 231] / Displacement (cu. in./rev)
• Torque (lb-in) = [Displacement (cu. in./rev) * Pressure (psi)] / (2 * π * Mechanical Efficiency)

Using the specified displacement of 4.7 cubic inches:

• At a continuous flow of 15 GPM, the theoretical maximum continuous speed is approximately (15 * 231) / 4.7 ≈ 736 RPM. This aligns closely with the specified 760 RPM maximum continuous speed, accounting for minor internal slippage and design optimizations.
• At an intermittent flow of 18 GPM, the theoretical maximum intermittent speed is approximately (18 * 231) / 4.7 ≈ 883 RPM, which also aligns well with the specified 912 RPM.

These calculations underscore the motor's capability to deliver precise and predictable rotational speeds across its operational range, making it highly adaptable to various application requirements where speed control is paramount.

Torque Output and Pressure Resilience

The motor's torque characteristics are particularly impressive, especially its high starting torque capabilities. With a minimum starting torque of 840 lb-in under continuous pressure and up to 1150 lb-in under intermittent pressure, this motor can initiate motion against substantial loads. This attribute is invaluable in applications like augers and winches, where initial resistance can be very high.

• Continuous Torque Rating: 1044 lb-in. This sustained torque output ensures the motor can maintain high performance during prolonged operation without overheating or degradation.
• Intermittent Torque Rating: 1150 lb-in. This higher rating allows the motor to handle peak load demands for short durations, providing an extra surge of power when needed most.

These torque ratings are directly supported by the motor's robust pressure handling capabilities. The motor is designed for a continuous operating pressure of 1800 PSI (approximately 124 Bar) and an intermittent pressure of 2400 PSI (approximately 165 Bar). The maximum case pressure of 1500 PSI (without a case drain) further emphasizes the motor's structural integrity and ability to withstand high internal stresses, ensuring long-term reliability even in challenging hydraulic environments.

Mounting and Porting Standards for Seamless Integration

The motor's integration into existing hydraulic systems is simplified by its adherence to widely accepted industry standards for mounting and fluid connection. The 2-bolt mount type ensures compatibility with a broad spectrum of equipment and facilitates straightforward installation. This standard mounting configuration streamlines the design process for OEMs and simplifies replacement for end-users, minimizing downtime and labor costs.

Fluid connection is managed via 1/2 NPT (National Pipe Taper) threads. NPT is a prevalent standard in North American industrial hydraulics, known for its reliable sealing properties when properly installed with thread sealant. The tapered design allows for a mechanical interference fit, creating a robust, leak-resistant connection crucial for maintaining system integrity and preventing fluid loss. The 1/2-inch size is appropriate for the motor's flow rate specifications, ensuring efficient fluid transfer to support its performance parameters.

Further mechanical interface details include a 1.00-inch straight shaft with a 0.25-inch keyway. A straight shaft is versatile, accommodating various couplings and power transmission components, while the keyway ensures a positive, non-slip connection to driven machinery. The 3.25-inch pilot diameter provides precise centering and stability for the motor when mounted, minimizing misalignment and extending the lifespan of both the motor and the driven component.

Material and Construction for Durability

The selection of cast iron as the primary material for the motor's housing is a deliberate choice driven by its superior mechanical properties. Cast iron offers:

• High Strength and Rigidity: It provides excellent structural integrity to withstand the high internal pressures and external forces encountered during operation.
• Vibration Dampening: Cast iron inherently possesses good vibration dampening characteristics, contributing to smoother and quieter operation.
• Thermal Stability: It can dissipate heat effectively, helping to maintain optimal operating temperatures and prolong the life of internal components and hydraulic fluid.
• Wear Resistance: Its robust nature ensures resistance to wear and fatigue, crucial for components exposed to continuous dynamic loading.

This material choice underscores Buyers Products' commitment to manufacturing durable and long-lasting hydraulic components capable of withstanding the rigors of industrial and mobile applications.

Versatile Applications

The specific characteristics of this hydraulic motor—its 4.5-4.7 cubic inch displacement, high start-up torque, robust construction, and efficient design—make it exceptionally well-suited for a diverse range of medium-duty applications:

• Compressors: The motor's consistent torque output and ability to maintain stable speeds are ideal for driving air compressors, ensuring a steady supply of compressed air for various tools and operations.
• Augers: High starting torque is paramount for augers, allowing them to penetrate soil, ice, or other materials from a complete stop. The continuous torque rating ensures sustained drilling power, while the robust shaft and housing withstand the reactive forces.
• Winches: For winching applications, precise speed control and high torque are essential for lifting or pulling heavy loads. The motor’s ability to deliver high torque at lower speeds enables controlled and powerful winching operations, critical for safety and efficiency.
• Cranes: In small to medium crane systems, hydraulic motors provide the smooth, controlled motion required for lifting, slewing, and extending. The motor's compact size aids in integration, while its reliable performance ensures precise load handling.
• Spreaders: Whether for salt, sand, or other materials, spreaders require consistent and reliable power to ensure even distribution. This motor's ability to operate efficiently under continuous flow and pressure makes it perfect for maintaining constant output in demanding environmental conditions.

Operational Considerations and Maintenance

To maximize the longevity and performance of this hydraulic motor, several operational and maintenance considerations are crucial. Adherence to proper hydraulic system design principles, including appropriate fluid selection, filtration, and cooling, is paramount. Maintaining the cleanliness of the hydraulic fluid is critical, as contaminants can cause premature wear to the gerotor and spool valve components. Regular inspection of connections, shafts, and mounting hardware ensures continued reliability and prevents potential issues.

While the motor is designed for maximum case pressure without a case drain (1500 PSI), for applications involving consistently high back pressures or where external system conditions might lead to elevated case pressures, incorporating a case drain line can further extend the motor's life by relieving internal pressure buildup and ensuring optimal lubrication of internal seals and bearings. This is a common practice in advanced hydraulic system designs to enhance durability under severe operating conditions.

Conclusion

The Hydraulic Motor from Buyers Products with its 2-bolt mount, NPT threads, and 4.5-4.7 cubic inches displacement stands as a testament to engineering excellence in the field of hydraulic power. Its integration of a proven spool valve design with state-of-the-art gerotor technology delivers an unparalleled balance of economy, efficiency, compactness, and raw power. Designed for the most demanding medium-duty applications, it offers exceptional starting torque, reliable continuous operation, and robust construction from high-grade cast iron. From the precise fluid management enabled by its spool valve to the smooth, high-torque output of its gerotor set, every aspect of this motor is engineered for superior performance and long-term reliability. It is not just a component; it is a critical investment in the productivity and efficiency of your hydraulic systems, providing a dependable power source that meets and exceeds the requirements of modern industrial and mobile equipment.
