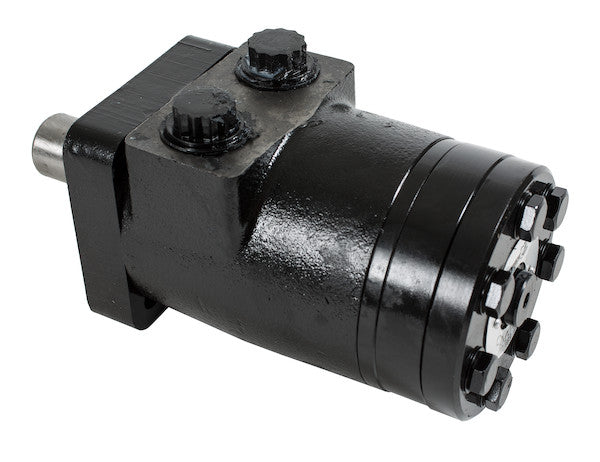

CM034P - Hydraulic Motor

Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders. The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate. Choose from a wide range of motors depending on your needs for flow rates, torque and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.

Specifications

Precision Engineered Hydraulic Auger Motor for SaltDogg® Spreader Applications: A Technical Deep Dive

The hydraulic auger motor presented here represents a meticulously engineered replacement component designed to restore and optimize the functionality of SaltDogg® spreaders. While the product title references "17.9 CIR," it is imperative to clarify that this specific motor, as detailed in the technical specifications, features a displacement of 7.3 cubic inches per revolution (CIR). This particular 7.3 CIR configuration has been precisely selected and optimized to deliver superior performance characteristics, ensuring seamless integration and efficient material spreading for SaltDogg® systems. This motor is a prime example of how advanced hydraulic technology, coupled with robust construction, can provide an economical, efficient, compact, and powerful solution for the demanding operational environment of commercial spreading applications.

Understanding the Core Mechanics: Hydraulic Motor Principles

Hydraulic motors are rotary actuators that convert hydraulic energy (fluid pressure and flow) into mechanical energy (torque and angular displacement). Unlike hydraulic cylinders that produce linear motion, motors produce continuous rotational motion. Their fundamental advantage lies in their ability to generate immense torque from a compact footprint, offer variable speed control, and deliver high power density, making them indispensable in heavy-duty mobile and industrial machinery. The reliability and responsiveness of hydraulic systems are particularly crucial in applications where precise control and robust power are simultaneously required, such as the auger system of a SaltDogg® spreader.

Gerotor Technology: The Heart of Efficiency

Central to this motor's performance is its state-of-the-art gerotor design. A gerotor (generated rotor) is a positive displacement pump or motor composed of an inner rotor with N teeth and an outer rotor (or ring) with N+1 teeth. The inner rotor is typically splined to the output shaft and rotates eccentrically within the outer rotor. As hydraulic fluid enters the expanding chambers between the inner and outer rotors, it creates pressure differentials that force the rotors to turn. The fluid is then expelled from the contracting chambers. This ingenious mechanism offers several significant advantages:

• High Volumetric Efficiency: Gerotor motors exhibit excellent volumetric efficiency due to precise machining tolerances and minimal internal leakage, ensuring that a maximum proportion of the input fluid flow is converted into useful mechanical work.
• Smooth Operation and Low Noise: The continuous engagement of the multiple teeth and the smooth, orbital motion inherent in gerotor design result in exceptionally smooth torque transmission and reduced pulsation, which translates to quieter operation and less vibration in the spreader system.
• Compact Design: The integrated nature of the gerotor set allows for a high power-to-weight ratio, contributing to the motor's overall compact form factor, a critical consideration for space-constrained applications like vehicle-mounted spreaders.
• Excellent Starting Torque: The design inherently provides high starting torque capabilities, essential for overcoming the initial inertia and resistance encountered when starting an auger filled with compacted material like salt or sand.
• Contamination Tolerance: While proper filtration is always recommended, gerotor designs are generally more tolerant of minor fluid contamination compared to more complex piston or vane motor designs, enhancing reliability in rugged outdoor environments.

Industry-Proven Spool Valve Design: Precision and Control

Complementing the advanced gerotor set is an industry-proven spool valve design. The spool valve acts as the directional control mechanism within the motor, precisely metering and directing hydraulic fluid to the gerotor chambers. This design is highly regarded for its:

• Responsiveness: The spool valve allows for rapid and accurate control of fluid flow, enabling quick starts, stops, and reversals of the auger motor, which is crucial for precise material spreading.
• Efficiency: Optimized internal passages and minimal pressure drop across the valve ensure that hydraulic power is efficiently converted, contributing to the motor's overall energy efficiency.
• Durability: Manufactured from hardened steels and precision-ground, these spool valves are designed to withstand high pressures and continuous operation, ensuring a long service life even under arduous conditions.
• Reliability: The simplicity and proven track record of spool valve technology contribute to the motor's overall dependability, minimizing the risk of operational failures in critical winter maintenance applications.

Robust Construction: Cast Iron Durability

The choice of cast iron as the primary material for the motor housing underscores its commitment to durability and longevity. Cast iron offers several metallurgical and mechanical advantages that are paramount for equipment operating in harsh outdoor environments:

• High Strength and Rigidity: Cast iron provides excellent tensile and compressive strength, making the motor housing highly resistant to mechanical stresses, impact, and distortion. Its inherent rigidity maintains the precise internal clearances required for efficient hydraulic operation.
• Vibration Damping: The microstructure of cast iron provides superior vibration damping characteristics compared to other metals. This helps to absorb and dissipate operational vibrations generated by the auger and the vehicle, extending the life of both the motor and connected components.
• Corrosion Resistance: While not entirely impervious, cast iron exhibits good resistance to environmental corrosion, especially when adequately surface-treated. This is critical for SaltDogg® spreaders, which are constantly exposed to moisture, road salt, and abrasive materials.
• Heat Dissipation: Cast iron possesses good thermal conductivity, allowing for efficient dissipation of heat generated during continuous operation, helping to maintain optimal hydraulic fluid temperatures and prevent thermal degradation of seals and internal components.

Detailed Performance Metrics for SaltDogg® Spreader Optimization

The specified technical parameters of this hydraulic motor are carefully balanced to ensure optimal performance in SaltDogg® auger applications. These metrics are not merely numbers but indicators of the motor's capability to deliver consistent, reliable, and precise material spreading.

Displacement: 7.3 CIR – Engineered for Auger Control

The motor's displacement of 7.3 cubic inches per revolution signifies the volume of hydraulic fluid required to complete one full rotation of the output shaft. While the title might mention "17.9 CIR" in a broader context, this specific 7.3 CIR displacement is engineered to provide a precise balance of torque and speed for SaltDogg® augers. This value is critical as it directly influences the motor's speed at a given flow rate and its torque output at a given pressure. For auger applications, a carefully chosen displacement ensures that the auger rotates at an appropriate speed for consistent material discharge, without excessive power consumption or insufficient torque to handle dense or frozen aggregates. The 7.3 CIR design optimizes the efficiency of power conversion, ensuring that the motor responds effectively to varying loads inherent in spreading operations.

Torque Characteristics: Power to Drive Through Resistance

Auger systems frequently encounter high resistance, particularly during startup when compacted material needs to be dislodged, or when operating with heavy, dense materials. This motor is specified with impressive torque ratings:

• Minimum Starting Torque (Continuous Pressure): 1100 lb-in
• Minimum Starting Torque (Intermittent Pressure): 1510 lb-in
• Torque Rating (Continuous): 1100 lb-in
• Torque Rating (Intermittent): 1510 lb-in

These figures highlight the motor's ability to generate significant rotational force. High starting torque is paramount for breaking through material inertia and avoiding frustrating jams or stalls. The continuous torque rating (1100 lb-in) indicates the sustained output capability during normal operation, ensuring consistent material flow. The higher intermittent torque rating (1510 lb-in) provides a critical reserve of power, allowing the motor to briefly handle peak loads or momentary obstructions without faltering, enhancing overall system reliability and preventing costly downtime associated with auger blockages. This robust torque profile ensures the SaltDogg® spreader can reliably dispense various materials, from fine sand to coarse rock salt, under challenging conditions.

Flow and Speed: Precision Spreading Control

The interaction between hydraulic fluid flow and motor speed is fundamental to controlling the rate of material dispersion:

• Flow (Continuous): 15 GPM
• Flow (Intermittent): 18 GPM
• Maximum Speed (Continuous): 585 RPM
• Maximum Speed at Continuous Flow: 585 RPM
• Maximum Speed at Intermittent Flow: 702 RPM

At a continuous flow of 15 GPM (gallons per minute), the motor achieves a steady operational speed of 585 RPM. This continuous speed is ideal for maintaining a consistent and controlled discharge rate of spreading materials. When higher output is temporarily required, such as clearing a larger area quickly or managing particularly wet or heavy material, the motor can sustain an intermittent flow of 18 GPM, reaching a maximum intermittent speed of 702 RPM. This flexibility in speed control allows operators to fine-tune the spreading pattern and quantity, optimizing material usage and ensuring effective coverage without wastage. The ability to smoothly transition between these flow and speed profiles is a direct benefit of the motor's precise gerotor and spool valve design.

Pressure Ratings: System Integrity and Power

The motor's pressure ratings are indicative of its robustness and compatibility within a hydraulic system:

• Pressure – Bar (Continuous): 1800 PSI
• Pressure – Bar (Intermittent): 2400 PSI
• Maximum Case Pressure (Without Case Drain): 1500 PSI

These pressure ratings signify the hydraulic pressure the motor can continuously (1800 PSI) and intermittently (2400 PSI) withstand and convert into mechanical energy. The 1800 PSI continuous pressure rating ensures stable performance under typical operating loads, while the 2400 PSI intermittent rating provides a safety margin and power reserve for peak demands, preventing motor damage from pressure spikes in the system. The maximum case pressure of 1500 PSI (without a dedicated case drain line) is an important parameter for hydraulic system design, indicating the permissible pressure build-up within the motor's housing. Adhering to these pressure limits ensures the integrity of the motor's seals and internal components, contributing to its long-term reliability and leak-free operation.

Mounting and Integration: Seamless Replacement

Ease of installation and secure integration are vital for a replacement component. This motor is designed with standard interfaces to ensure compatibility and straightforward replacement:

• Input Mount Type: 4 Bolt – The 4-bolt mounting pattern is a widely recognized industrial standard, providing a robust and stable connection to the auger drive assembly. This secure mounting minimizes vibration and ensures precise alignment, critical for smooth and efficient power transfer.
• Pilot Diameter: 1.75 inches – The pilot diameter ensures concentric alignment of the motor with the mating component, preventing misalignment stresses and premature wear on bearings and seals.
• Shaft Size: 1.00 inch Straight with 0.25 inch Keyway – The 1.00-inch straight shaft is a common and robust choice for transmitting significant torque. The integrated 0.25-inch keyway provides a positive, non-slip connection to the auger shaft or coupling, crucial for reliably driving the auger under heavy loads. A straight shaft is generally easier to couple and maintain.
• Port Size: 1/2 NPT – The 1/2 NPT (National Pipe Taper) port size is a standard threading for hydraulic connections, ensuring broad compatibility with existing hydraulic lines and fittings on SaltDogg® spreaders, simplifying installation and minimizing the need for specialized adapters.

Application-Specific Advantages for SaltDogg® Spreaders

The combination of these technical features makes this hydraulic motor an ideal replacement for SaltDogg® spreader auger applications:

• Enhanced Material Delivery Consistency: The precise control over torque and speed, coupled with high starting torque, ensures that the auger maintains a consistent rotational velocity. This translates to uniform material discharge, preventing clogs, minimizing uneven spreading patterns, and optimizing the use of valuable de-icing agents.
• Uncompromised Durability in Harsh Environments: SaltDogg® spreaders operate in some of the most challenging conditions imaginable—freezing temperatures, abrasive materials, corrosive salt, and constant vibration. The cast iron construction, robust internal components, and high-pressure ratings of this motor provide exceptional resistance to these environmental stressors, ensuring prolonged operational life.
• Minimized Downtime and Maintenance: As a direct replacement (Compares To: 101-1755-009), this motor facilitates quick and hassle-free installation, reducing vehicle downtime. Its inherent reliability, stemming from the quality of its components and design, also contributes to lower long-term maintenance costs.
• Optimal Power-to-Efficiency Ratio: The motor's design balances the need for significant power with hydraulic efficiency. The gerotor and spool valve system convert hydraulic energy into mechanical work with minimal losses, contributing to reduced fuel consumption for the vehicle's hydraulic power unit.
• Reliable Performance Across Material Types: Whether dispensing granular rock salt, treated salt, sand, or a blend of materials, the motor's high torque and controlled speed ensure effective handling, preventing bridging and ensuring a continuous flow of product.

The Value of a Quality Replacement

Investing in a high-quality replacement hydraulic motor, such as this 7.3 CIR unit, is paramount for maintaining the operational integrity and efficiency of your SaltDogg® spreader. Using parts that directly compare to original equipment (Compares To: 101-1755-009) ensures that all critical parameters—fit, form, and function—are met or exceeded. This avoids the pitfalls of generic or ill-fitting components that can lead to reduced performance, increased wear on other system components, or premature failure. This replacement motor is not just a part; it's a commitment to continued productivity, safety, and operational excellence for your winter maintenance fleet.

Conclusion

This 7.3 CIR hydraulic auger motor stands as a testament to advanced hydraulic engineering applied to a critical industrial need. From its robust cast iron casing to its precision-engineered gerotor and spool valve internals, every aspect of its design is geared towards delivering exceptional performance, durability, and reliability for SaltDogg® spreader applications. Its carefully calibrated displacement, formidable torque ratings, precise flow-to-speed characteristics, and adherence to industry-standard mounting protocols ensure a seamless and high-performing replacement. For operators seeking to restore or upgrade their SaltDogg® spreader’s auger drive with a component that promises longevity and consistent material delivery even under the most challenging conditions, this hydraulic motor represents an intelligent and indispensable investment.
