CM074P - Hydraulic Motor

Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders. The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate. Choose from a wide range of motors depending on your needs for flow rates, torque and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.

Specifications

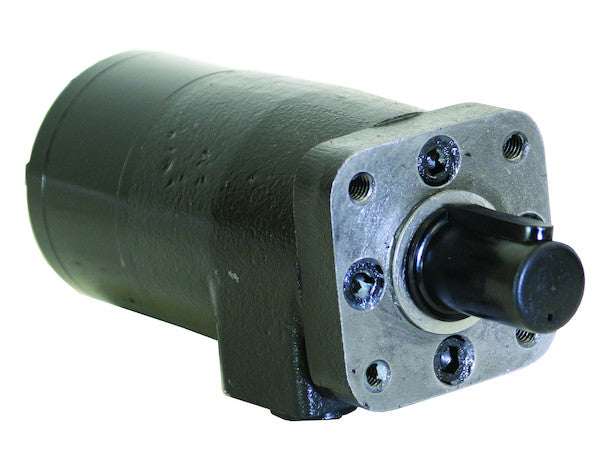

Replacement 4-Bolt 19.2 CIR Direct Drive Hydraulic Motor: Advanced Engineering for Demanding Applications

This replacement 4-Bolt, 19.2 Cubic Inches per Revolution (CIR) direct drive hydraulic motor represents a pinnacle of hydraulic engineering, meticulously designed to offer a robust, efficient, and reliable power solution for a broad spectrum of medium-duty industrial and mobile applications. Engineered by Buyers Products, this motor leverages an industry-proven spool valve design in conjunction with state-of-the-art gerotor technology to deliver exceptional performance characteristics, particularly excelling in scenarios demanding high starting torque and precise control over torque and flow rates.

Foundational Hydraulic Principles and Gerotor Technology

At the core of this hydraulic motor's superior performance lies its sophisticated gerotor design. A gerotor motor, a type of orbital motor, operates on the principle of volumetric fluid displacement through a precisely matched inner and outer gear set. The inner gear, with one less tooth than the outer gear, rotates eccentrically within the outer gear. As hydraulic fluid enters the motor, it is directed into expanding chambers formed between the inner and outer gears, forcing the inner gear to rotate. As the gears continue to turn, these chambers contract, expelling the fluid from the motor. This continuous process converts hydraulic energy into mechanical rotational energy with remarkable efficiency.

The benefits of this design are manifold. Gerotor motors are renowned for their compact size relative to their power output, their smooth and consistent torque delivery across the entire speed range, and their high volumetric efficiency. This inherent design also contributes to their excellent starting torque capabilities, allowing them to overcome significant static loads with minimal pressure build-up. Furthermore, the robust construction of the gerotor set ensures a long operational life, even under challenging conditions. The integration of an industry-proven spool valve design meticulously controls the flow and direction of hydraulic fluid to the gerotor set. This precise commutation mechanism ensures optimal timing for fluid ingress and egress, contributing to the motor's overall efficiency, controlled speed, and responsiveness, making it a highly effective converter of hydraulic power into rotary motion.

Precision Performance Specifications: A Deep Dive

Understanding the detailed specifications of this 19.2 CIR hydraulic motor is critical for optimal system integration and performance maximization. Each parameter has been carefully engineered to deliver a balanced and powerful operational profile:

Displacement (19.2 CIR)

The motor's displacement of 19.2 cubic inches per revolution (CIR) is a fundamental characteristic defining the volume of hydraulic fluid required to complete one full rotation of the output shaft. This specification directly influences the motor's speed and torque output in relation to the incoming flow rate and pressure. A higher displacement generally correlates with higher torque output at lower speeds for a given flow and pressure, making this 19.2 CIR motor particularly well-suited for applications demanding significant rotational force.

Flow Rates and Rotational Speed

The motor is rated for a continuous flow of 15 GPM (Gallons Per Minute) and an intermittent flow of 20 GPM. These flow rates directly dictate the maximum achievable rotational speeds:

• Maximum Speed (Continuous): At a continuous flow of 15 GPM, the motor achieves a maximum continuous speed of 192 RPM. This is the recommended operational speed for sustained periods to ensure longevity and consistent performance.
• Maximum Speed (Intermittent): For shorter durations, with an intermittent flow of 20 GPM, the motor can reach a maximum intermittent speed of 256 RPM. This intermittent rating allows for temporary surges in demand, providing extra power when needed without compromising the motor's integrity, provided that the duty cycle limits are respected.

The relationship between flow, displacement, and speed is expressed by the formula: Speed (RPM) = Flow (GPM) * 231 / Displacement (CIR). This motor's design optimizes this relationship to provide efficient power conversion for its intended applications.

Pressure Ratings and Torque Output

The ability of a hydraulic motor to generate torque is directly proportional to the applied hydraulic pressure and its displacement. This motor is engineered to operate effectively within specific pressure envelopes:

• Operational Pressure (Continuous): Rated for a continuous operational pressure of 1350 PSI (based on the typical interpretation of the "Pressure – Bar" value in the context of other Imperial units), this motor can sustain high torque output over extended periods. This continuous pressure capability translates to a substantial continuous torque rating of 3110 in-lbs (inch-pounds).
• Operational Pressure (Intermittent): For intermittent periods, the motor can withstand up to 1800 PSI. This higher intermittent pressure allows for peak performance and increased torque output, reaching an intermittent torque rating of 3430 in-lbs. This capacity is particularly valuable for overcoming momentary resistances or initiating motion under heavy loads.
• Minimum Starting Torque: A critical specification for applications involving high inertial loads or immediate power demands, this motor boasts impressive starting torque figures. It delivers a minimum starting torque of 2500 in-lbs under continuous pressure and a robust 3430 in-lbs under intermittent pressure. This high starting torque is a hallmark of the gerotor design, ensuring reliable initiation of motion even with significant static resistance.
• Maximum Case Pressure (Without Case Drain): With a maximum case pressure of 1500 PSI without a case drain, the motor's internal integrity is maintained. While a case drain line is often recommended for optimal longevity and to manage internal leakage, the motor's design allows for operation in systems where a dedicated case drain may not be feasible, offering design flexibility, though a case drain is generally advisable for applications at the higher end of the pressure range or with extended duty cycles to prevent excessive pressure build-up within the motor's housing.

Robust Mechanical Design and Material Excellence

The physical construction of this hydraulic motor is paramount to its durability and ease of integration:

Mounting Configuration

The motor features a precise 4-bolt input mount type with a 1.75-inch pilot diameter. This standardized mounting pattern ensures secure and stable attachment to machinery, preventing misalignment and distributing operational stresses effectively across the mounting surface. The 4-bolt configuration provides enhanced rigidity and stability compared to 2-bolt alternatives, particularly beneficial in applications subjected to vibration or dynamic loading.

Shaft Design

Equipped with a 1.00-inch straight shaft and a 0.25-inch keyway, the output shaft is engineered for direct mechanical coupling and efficient torque transmission. A straight shaft is versatile, allowing for easy integration with various types of couplers, pulleys, or gearboxes. The keyway ensures a positive, non-slip connection between the motor shaft and the driven component, crucial for reliable power transfer under high torque loads.

Material Construction

The motor housing is constructed from high-quality cast iron. Cast iron is the material of choice for hydraulic components due to its exceptional strength, rigidity, and inherent damping properties. It effectively absorbs vibrations, reduces noise, and maintains dimensional stability under varying thermal and pressure conditions. Furthermore, cast iron offers excellent resistance to wear and corrosion, contributing significantly to the motor's extended operational lifespan and resilience in harsh environments.

Hydraulic Porting

The motor features 1/2 NPT (National Pipe Taper) port sizes. NPT threads are a widely recognized and utilized standard in hydraulic systems, facilitating straightforward and leak-free connection to hydraulic hoses and tubing. This common porting ensures compatibility with a vast array of hydraulic components and ease of integration into existing or new hydraulic circuits.

Application Versatility and Specific Use Cases

This replacement 4-Bolt, 19.2 CIR direct drive hydraulic motor is an ideal power source for a wide range of medium-duty applications where reliability, high starting torque, and consistent performance are paramount. Its design specifications make it a robust solution for:

• Augers: Whether for drilling earth, mixing concrete, or processing materials, augers require substantial, consistent torque to overcome variable resistance. The motor's high continuous and intermittent torque ratings, coupled with its excellent starting torque, ensure efficient and reliable operation for auger drives.
• Winch Systems: Winches used in towing, lifting, or pulling operations demand significant power, especially high starting torque to overcome static friction and initiate movement of heavy loads. The motor's ability to deliver 2500-3430 in-lbs of starting torque makes it exceptionally well-suited for controlling the precise and powerful motion required in winch applications.
• Cranes: In light to medium-duty crane operations, the motor provides the necessary power for controlled lifting, slewing, and traversing. Its smooth operation and precise control over speed and torque contribute to safer and more efficient material handling.
• Spreaders: For agricultural, municipal, or industrial spreading equipment (e.g., salt spreaders, fertilizer spreaders), consistent rotational force is crucial for uniform material distribution. This motor ensures reliable power delivery, capable of handling varying material densities and flow requirements.
• Compressors: Certain mobile or auxiliary compressor applications benefit from the consistent and efficient power delivery of this hydraulic motor, especially when integrated into existing hydraulic power units on vehicles or equipment.

As a replacement for models like the 101-1007-009, this motor offers seamless interchangeability and an opportunity to upgrade or maintain existing hydraulic systems with a high-performance, durable component.

Operational Considerations and Maintenance for Longevity

To ensure the maximum operational life and peak performance of this hydraulic motor, several operational considerations and routine maintenance practices are highly recommended:

• Hydraulic Fluid Quality: Always use hydraulic fluid that meets or exceeds the manufacturer's specifications. Proper viscosity, cleanliness, and additive packages are critical for lubrication, heat dissipation, and preventing wear.
• Filtration: Maintaining a clean hydraulic system through effective filtration is paramount. Contaminants are the leading cause of premature component failure in hydraulic systems. Regular filter changes are essential.
• System Pressure and Flow Management: Ensure that the hydraulic power unit supplying the motor operates within the specified continuous and intermittent pressure and flow limits. Exceeding these limits can lead to reduced efficiency, increased wear, and potential catastrophic failure.
• Thermal Management: Monitor the operating temperature of the hydraulic fluid. Excessive heat can degrade fluid properties and damage seals. Adequate reservoir sizing, heat exchangers, or coolers may be necessary for demanding applications.
• Mounting Integrity: Periodically inspect mounting bolts for proper torque to prevent vibration, misalignment, and stress on the motor housing and shaft.
• Shaft Alignment: Proper alignment of the motor shaft with the driven component is crucial to prevent premature bearing and seal wear.
• Seal Integrity: Regularly inspect for any signs of external leakage, which could indicate failing seals. Prompt replacement of seals can prevent further damage to the motor or loss of hydraulic fluid.

Adherence to these guidelines will significantly contribute to the motor's reliability and extend its service life, maximizing your investment.

Conclusion

The Replacement 4-Bolt 19.2 CIR Direct Drive Hydraulic Motor from Buyers Products stands as a testament to advanced hydraulic engineering. Its combination of an efficient gerotor mechanism and a precise spool valve design ensures economical, powerful, and compact performance. With robust cast iron construction, a standardized 4-bolt mount, and critical specifications such as 19.2 CIR displacement, high continuous (15 GPM / 192 RPM / 1350 PSI / 3110 in-lbs) and intermittent (20 GPM / 256 RPM / 1800 PSI / 3430 in-lbs) ratings, and exceptional starting torque, it is meticulously engineered to meet the stringent demands of medium-duty applications. Whether powering augers, winches, cranes, or spreaders, this motor provides the reliability, control, and efficiency necessary for optimal operational output. It represents a superior choice for those seeking a high-quality, durable replacement or a new component for their hydraulic systems, ensuring long-term performance and productivity.
