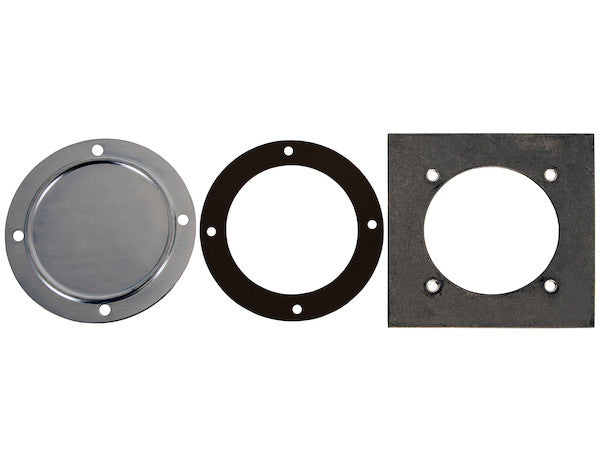

Buyers Products Reservoir Cleanout Filter Flange Assembly provides access for reservoir cleaning and internal suction strainer. The flange only can also be used to mount an HFA5 series return filter.
Specifications
| For Use With | Hydraulic Tanks and Reservoirs |
|---|
Advanced Technical Overview: Reservoir Cleanout Filter Flange Assembly
The Buyers Products Reservoir Cleanout Filter Flange Assembly represents a critical component in the design, maintenance, and operational efficiency of hydraulic systems. This assembly serves a dual fundamental purpose: facilitating essential maintenance procedures for hydraulic reservoirs and providing a versatile mounting interface for filtration components. Understanding its technical specifications, operational advantages, and integration considerations is paramount for engineers, system designers, and maintenance professionals engaged with hydraulic power units across various industries.
Functional Imperatives: Reservoir Cleaning and Internal Suction Strainer Access
Hydraulic reservoirs are the backbone of any hydraulic system, serving not only as a storage vessel for hydraulic fluid but also playing a crucial role in heat dissipation, fluid de-aeration, and contaminant settlement. Over time, despite primary filtration, particulate matter, sludge, and other contaminants inevitably accumulate at the bottom of the reservoir. This accumulation, if unaddressed, can lead to accelerated wear of hydraulic components, degradation of fluid properties, increased system downtime, and ultimately, catastrophic system failure. The Reservoir Cleanout Filter Flange Assembly directly addresses this challenge by providing a dedicated, robust access point.
Traditional methods of reservoir cleaning often involve extensive disassembly, draining the entire system, and potentially disrupting critical operational schedules. The cleanout flange is engineered to simplify this process dramatically. Its design typically incorporates a removable cover or plate, secured by multiple fasteners, which, when removed, exposes a generously sized aperture. This aperture allows for:
- Direct Visual Inspection: Technicians can perform a thorough visual assessment of the reservoir's interior, identifying areas of sludge buildup, corrosion, or other anomalies.
- Manual Contaminant Removal: The opening is sufficiently large to allow for manual scraping, wiping, or vacuuming of settled contaminants and sludge from the reservoir bottom and walls. This is particularly effective for removing larger particles or viscous deposits that might bypass or overload internal filtration systems.
- Internal Suction Strainer Maintenance: Suction strainers, often located at the inlet of the pump, are the first line of defense against larger particulate matter entering the pump. These strainers can become clogged, restricting flow and potentially leading to pump cavitation. The cleanout flange provides direct access to these strainers for inspection, cleaning, or replacement without the need to dismantle the main reservoir structure or drain the entire system volume, significantly reducing maintenance complexity and time.
- Fluid Sampling: While dedicated sampling ports are ideal, the cleanout access can also be used as an alternative for taking representative fluid samples from the reservoir bottom, which often harbors the highest concentration of settled contaminants.
The strategic placement and robust sealing mechanism of the cleanout flange are critical. It must be positioned to allow maximum access to the reservoir's lowest point and corners, where contaminants typically settle. The sealing interface, usually involving a high-quality gasket (e.g., NBR, FKM depending on fluid compatibility and temperature), ensures a leak-free closure, preventing both fluid loss and external contaminant ingress.
Versatility as a Mounting Platform: HFA5 Series Return Filter Integration
Beyond its primary function as a cleanout access, the Buyers Products Flange Assembly exhibits significant versatility by serving as a dedicated mounting point for HFA5 series return filters. This capability transforms a maintenance-centric component into an integral part of the system's active filtration strategy. Return filters are crucial for removing contaminants generated within the system (e.g., wear particles from pumps, valves, cylinders) and those ingested through breathers or rod seals before the fluid returns to the reservoir for recirculation.
The integration of an HFA5 series return filter via this flange offers several engineering advantages:
- Optimized Fluid Path: By positioning the return filter directly on the reservoir, the fluid path from the return line to the filter element is often shorter and more direct, minimizing pressure drops and potential turbulence. This ensures that fluid returning from the system is effectively conditioned before re-entering the main reservoir volume.
- Space Efficiency: For compact hydraulic power units or applications with limited available space, combining the cleanout access with a filter mounting point optimizes the use of valuable real estate on the reservoir surface.
- Simplified Installation and Maintenance: The flange provides a standardized interface for mounting the HFA5 filter housing, streamlining initial assembly and subsequent element replacement. The filter element can typically be accessed and replaced by removing the filter bowl, a process facilitated by the robust design of the flange assembly.
- Enhanced System Cleanliness: Dedicated return line filtration prevents the continuous cycling of contaminated fluid through the system, thereby extending the life of pumps, valves, and actuators, and maintaining optimal fluid properties. The HFA5 series filters are known for their high filtration efficiency and dirt-holding capacity, making them suitable for a wide range of industrial and mobile hydraulic applications.
- Design Flexibility: Engineers have the flexibility to select appropriate filter elements based on the system's required cleanliness levels, fluid viscosity, and flow rates. This adaptability ensures that the filtration system can be tailored precisely to the application's demands.
The compatibility with HFA5 series filters implies a specific bolt pattern, port sizing (typically NPT, BSPP, or SAE flange), and pressure rating for the flange assembly. These details are critical for ensuring proper mechanical and hydraulic integration. When used for filter mounting, the flange must be designed to withstand the operational pressures and flow rates associated with the return line, as well as the dynamic forces imparted by fluid flow and system vibrations. The internal structure might incorporate baffling or diffusion plates to ensure even fluid distribution through the filter element and prevent direct impingement of filtered fluid into the reservoir, which could cause foaming or re-suspension of settled particles.
Technical Specifications and Material Considerations
The "For Use With: Hydraulic Tanks and Reservoirs" specification broadly defines the application domain. However, a deeper technical analysis requires considering specific material choices, sealing technologies, and design principles.
Material Selection:
- Flange Body: Typically constructed from robust materials such as carbon steel (e.g., A36, 1018) or cast iron for general industrial applications. For corrosive environments or specific weight-saving requirements, aluminum alloys or even stainless steel (e.g., 304, 316) might be specified. The material must possess sufficient mechanical strength to withstand internal fluid pressures, external impacts, and the torque applied during fastener tightening.
- Cover Plate: Matches the flange body material for compatibility and structural integrity.
- Fasteners: High-strength alloy steel bolts (e.g., Grade 8.8, 10.9) with appropriate corrosion protection (e.g., zinc plating, black oxide) are standard to ensure secure, leak-free closure.
-
Gaskets/Seals: The choice of sealing material is critical for fluid compatibility, temperature range, and pressure resistance.
- Nitrile Rubber (NBR/Buna-N): Excellent for petroleum-based hydraulic fluids, common in many industrial applications, with a typical temperature range of -40°C to +100°C.
- Fluorocarbon (FKM/Viton): Superior chemical resistance, especially to aggressive synthetic fluids and high temperatures, up to +200°C. More expensive but necessary for certain applications.
- Ethylene Propylene Diene Monomer (EPDM): Suitable for phosphate ester fluids and some brake fluids, not compatible with petroleum-based fluids.
Design and Manufacturing Principles:
- Leak Prevention: Precision machining of mating surfaces and proper torque specifications for fasteners are paramount to prevent fluid leakage. The flange design must accommodate the compression of the gasket uniformly across the sealing area.
- Pressure Rating: The assembly must be rated for the maximum operating pressure of the hydraulic reservoir, which, for atmospheric reservoirs, is typically very low (e.g., 0.1 to 0.5 bar, or even vacuum conditions if the system experiences significant temperature fluctuations). However, if the flange is used for a return filter, it must withstand the back pressure generated by the filter element.
- Corrosion Resistance: Surface treatments such as powder coating, phosphating, or galvanizing are often applied to carbon steel components to protect against environmental corrosion and extend service life, especially in outdoor or harsh industrial environments.
- Ergonomics for Maintenance: The design should consider ease of access for maintenance personnel, allowing for straightforward removal and re-installation of the cover plate or filter housing. This includes appropriate spacing for tools and clear labeling if necessary.
- Mounting Interface: The flange typically includes pre-drilled bolt holes for secure attachment to the reservoir wall. These holes must be precisely dimensioned and spaced to ensure proper alignment and stress distribution.
- Quality Control: Manufacturing processes must adhere to strict quality control standards, including dimensional checks, material certifications, and pressure testing (where applicable) to ensure reliability and performance.
Installation and Integration Best Practices
Proper installation of the Reservoir Cleanout Filter Flange Assembly is crucial for its long-term performance and the overall integrity of the hydraulic system.
- Reservoir Preparation: The mounting surface on the hydraulic reservoir must be flat, clean, and free of burrs or irregularities. Any surface imperfections can compromise the seal.
- Hole Drilling and Tapping: Precision drilling and tapping of mounting holes in the reservoir wall are required. It is essential to use the correct drill bit size and tap for the specified fasteners to achieve optimal thread engagement.
- Gasket Placement: The gasket should be correctly seated without twists or kinks. A thin layer of appropriate gasket sealant (non-hardening type) can be applied to aid sealing, though for many modern gaskets, this is not strictly necessary if surfaces are clean and flat.
- Fastener Tightening Sequence: Fasteners should be tightened in a star pattern and in stages to ensure even compression of the gasket and to prevent distortion of the flange or reservoir wall. A calibrated torque wrench should be used to achieve the manufacturer's specified torque values.
- Fluid Compatibility Check: Before filling the reservoir, ensure that all materials in the assembly (flange, gasket, fasteners) are compatible with the hydraulic fluid being used.
- Post-Installation Leak Check: After filling the reservoir and during initial system operation, thoroughly inspect the flange assembly for any signs of leakage.
- Filter Installation (if applicable): When mounting an HFA5 series return filter, follow the specific installation instructions provided by the filter manufacturer. Ensure the correct filter element is installed and that all seals are properly seated.
Operational Benefits and Economic Impact
The investment in a high-quality Reservoir Cleanout Filter Flange Assembly yields significant operational and economic benefits:
- Extended Component Life: By ensuring access for thorough reservoir cleaning and enabling efficient return line filtration, the assembly helps maintain hydraulic fluid cleanliness, which is directly correlated with the longevity of pumps, valves, cylinders, and other sensitive hydraulic components.
- Reduced Downtime: Simplified reservoir cleaning and filter element replacement translate into shorter maintenance windows and reduced system downtime, leading to higher overall equipment effectiveness (OEE).
- Lower Maintenance Costs: Preventing premature component failures and streamlining maintenance procedures significantly reduces labor costs, parts replacement expenses, and the potential for costly emergency repairs.
- Improved System Reliability: A cleaner hydraulic system operates more predictably and reliably, minimizing the risk of unexpected breakdowns.
- Optimized Fluid Performance: Maintaining fluid cleanliness preserves the lubricating, heat transfer, and power transmission properties of the hydraulic fluid, potentially extending fluid change intervals.
- Compliance and Safety: Regular cleaning and maintenance facilitated by the flange contribute to a safer working environment by reducing the risk of equipment malfunction and fluid contamination issues.
Conclusion
The Buyers Products Reservoir Cleanout Filter Flange Assembly is far more than a simple access panel; it is a strategically engineered component crucial for the long-term health and efficiency of hydraulic systems. Its dual functionality—providing essential access for reservoir maintenance and serving as a robust mounting point for critical return line filtration—underscores its value. By enabling proactive contaminant management and facilitating streamlined maintenance, this assembly plays a pivotal role in maximizing hydraulic system uptime, extending component life, and ultimately delivering significant economic advantages across diverse industrial and mobile applications. Engineers and maintenance managers should recognize this component not as an accessory, but as an indispensable element of a comprehensive hydraulic fluid management strategy.
