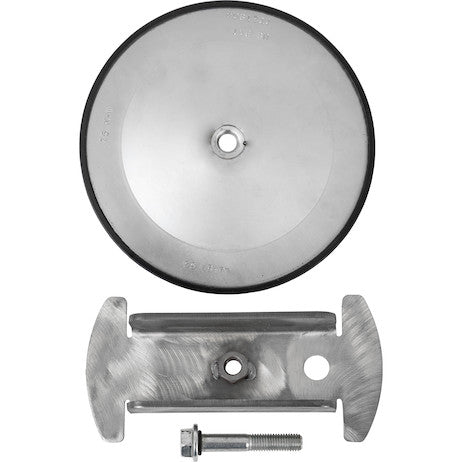

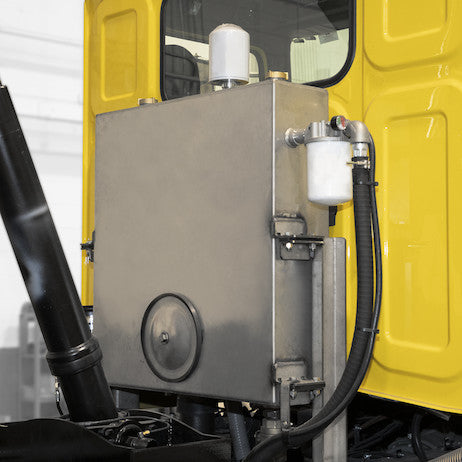

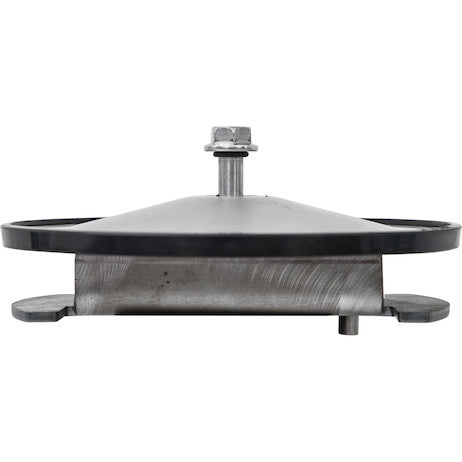

Buyers Products Reservoir Cleanout Plate Assembly provides access to the inside of the tank for cleaning and removing contaminants. The kit includes the stainless steel cover plate, nitrile rubber gasket, zinc plated internal mounting bracket, and stainless steel fastener.
Specifications
| For Use With | Hydraulic Tanks and Reservoirs |
|---|
Technical Overview: 8 Inch Stainless Steel Reservoir Cleanout Plate Assembly
The 8 Inch Stainless Steel Reservoir Cleanout Plate Assembly from Buyers Products represents a critical component for maintaining the operational integrity and longevity of hydraulic systems. Designed for applications involving hydraulic tanks and reservoirs, this assembly provides a robust and reliable means of accessing the internal cavity of a fluid containment vessel for essential maintenance procedures. The core function of this assembly is to facilitate the removal of contaminants, sediment, and accumulated sludge that inevitably form within hydraulic reservoirs over time, directly contributing to system efficiency, component lifespan, and fluid purity.
Design and Material Science
The assembly's construction prioritizes durability, chemical compatibility, and resistance to environmental factors commonly encountered in industrial and mobile hydraulic applications. The primary structural component, the cover plate, is fabricated from stainless steel. Stainless steel, specifically grades such as 304 or 316, is chosen for its superior corrosion resistance, high tensile strength, and excellent formability. In hydraulic systems, where fluids can vary in chemical composition (e.g., mineral oil-based, synthetic, biodegradable), and operating environments may expose components to moisture, salts, or other corrosive agents, stainless steel ensures the long-term structural integrity of the seal and prevents material degradation that could lead to system contamination or failure. Its non-porous surface also minimizes particle adhesion, simplifying cleaning procedures.
The sealing element, a nitrile rubber gasket, is a critical component in maintaining a leak-proof seal. Nitrile butadiene rubber (NBR), commonly known as nitrile, is selected for its excellent resistance to petroleum-based oils, hydraulic fluids, and a wide range of hydrocarbons. It exhibits a broad operating temperature range and possesses good abrasion resistance and compression set characteristics, ensuring that the gasket retains its sealing effectiveness even after prolonged exposure to pressure and temperature variations. The specific durometer (hardness) of the nitrile gasket is optimized to provide sufficient compressibility for a tight seal without requiring excessive clamping force, thereby protecting the integrity of the tank flange and the cover plate itself.
Internal mounting is achieved via a zinc-plated internal mounting bracket. The use of zinc plating on steel components is a widely adopted corrosion protection strategy. Zinc acts as a sacrificial anode, corroding preferentially to the underlying steel, thereby preventing rust formation. This is particularly important for internal components that are submerged or constantly exposed to hydraulic fluid, where rust particles could detach and introduce significant contamination into the hydraulic circuit, leading to premature wear of pumps, valves, and actuators. The bracket's design ensures a secure and stable attachment point for the cover plate from within the tank, distributing clamping forces evenly and preventing stress concentrations.
The assembly is completed with stainless steel fasteners. Consistent with the cover plate, the fasteners are manufactured from stainless steel to ensure uniform corrosion resistance across the exposed components. This prevents galvanic corrosion that could occur if dissimilar metals (e.g., carbon steel fasteners with a stainless steel plate) were used in an electrolyte-rich environment like hydraulic fluid. Stainless steel fasteners also offer high mechanical strength, resisting loosening due to vibration and maintaining the necessary clamping force for the gasket seal over extended operational periods.
Operational Principle and Installation Considerations

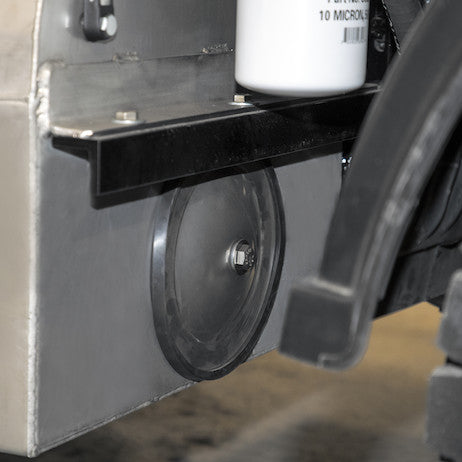

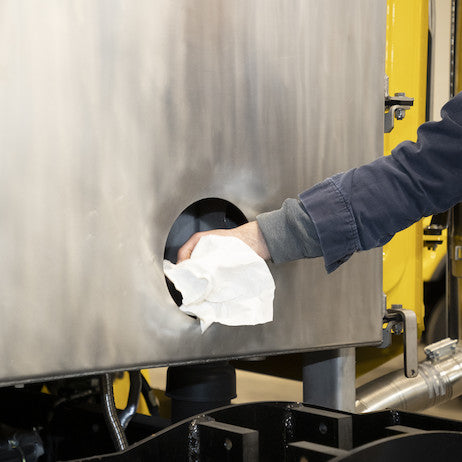

The primary operational principle of the cleanout plate assembly is to provide a detachable, sealed access port. When maintenance is required, the stainless steel fasteners are unthreaded, allowing the cover plate and gasket to be removed. This exposes a large aperture (nominally 8 inches in diameter) into the reservoir, granting technicians direct visual and physical access to the tank's interior. This access is invaluable for:
- Contaminant Removal: Manually scooping out or vacuuming accumulated sludge, metal fines, oxidation byproducts, and other particulate matter that settle at the bottom of the tank.
- Inspection: Visual inspection of the tank walls for signs of corrosion, pitting, cracks, or coating degradation. It also allows for inspection of internal components such as baffles, suction strainers, return line diffusers, and temperature/level sensors.
- Sensor/Filter Element Replacement: Facilitating the replacement of in-tank suction filters, temperature probes, or level switches that may be mounted internally.
- Lining/Coating Maintenance: If a tank features an internal coating, the access allows for repair or reapplication.
- Fluid Changes: While not the primary drainage point, access can aid in thorough fluid changes, ensuring minimal old fluid or contaminants remain.

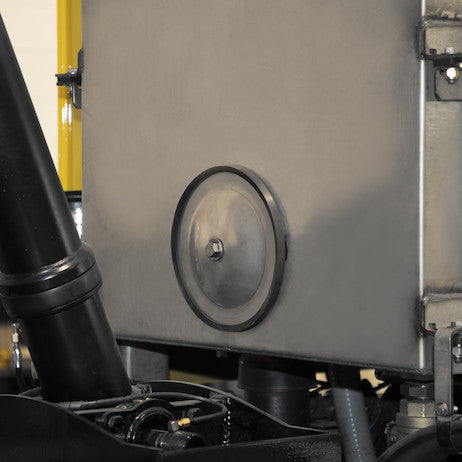

Installation of the 8-inch cleanout plate assembly requires careful consideration to ensure a leak-free and durable connection. The tank wall where the assembly is to be mounted must be prepared with a suitable opening, precisely cut to accommodate the cover plate and provide clearance for the internal mounting bracket. The mating surface on the tank should be flat, clean, and free of burrs or irregularities that could compromise the gasket's seal. A typical installation procedure would involve:
- Tank Preparation: Creating an appropriately sized and shaped aperture in the reservoir wall. This opening must align with the inner dimensions of the gasket and the mounting bracket.
- Surface Cleaning: Thoroughly cleaning the area around the aperture on both the internal and external surfaces of the tank to ensure optimal gasket adhesion and seal integrity.
- Internal Bracket Placement: Inserting the zinc-plated internal mounting bracket into the tank through the prepared opening. The bracket typically features threaded studs or holes that align with the fasteners.
- Gasket Positioning: Placing the nitrile rubber gasket over the external opening, ensuring it is correctly aligned with the bolt holes.
- Cover Plate Attachment: Positioning the stainless steel cover plate over the gasket, aligning its holes with the internal bracket's studs/holes.
- Fastener Torquing: Securing the assembly with the stainless steel fasteners. It is crucial to tighten these fasteners incrementally and in a cross-pattern sequence to ensure even compression of the gasket and to prevent deformation of the cover plate or tank wall. The manufacturer's recommended torque specifications should always be followed to achieve the optimal seal without over-compressing the gasket, which can lead to premature failure.
Importance of Reservoir Cleanliness in Hydraulic Systems
The necessity of a cleanout plate assembly is underpinned by the critical role of fluid cleanliness in hydraulic systems. Hydraulic fluid acts not only as a power transmission medium but also as a lubricant, coolant, and contaminant carrier. Maintaining the purity of this fluid is paramount for several reasons:
- Component Longevity: The vast majority of hydraulic component failures (e.g., pump wear, valve sticking, cylinder seal degradation) are directly attributable to fluid contamination. Particulate matter, even microscopic in size, can cause abrasive wear, erosive wear, and fatigue wear on precision surfaces within pumps, motors, and valves.
- System Efficiency: Contaminants can impede the smooth operation of hydraulic components, leading to increased friction, pressure drops, and reduced power transfer efficiency. Sludge accumulation can restrict flow in the reservoir itself, potentially starving the pump.
- Fluid Life: Water and particulate contaminants accelerate the oxidation and degradation of hydraulic fluid, reducing its effective lifespan and requiring more frequent fluid changes. This increases operational costs and environmental impact.
- Reliability and Uptime: Contamination-induced failures lead to unplanned downtime, costly repairs, and potential production losses. Proactive cleaning via a cleanout plate significantly enhances system reliability.
- Safety: Contaminated fluid can cause erratic component behavior, which may pose safety risks in certain applications.
Even with advanced filtration systems, some degree of contamination will invariably enter and accumulate in the reservoir. External ingress (through breathers, seals, or open ports during maintenance), internal generation (wear particles from pumps, motors, cylinders), and fluid degradation byproducts (sludge, varnish) all contribute to this accumulation. While the system's primary filtration continuously cleans the circulating fluid, the reservoir often acts as a settling basin for heavier contaminants. Periodically accessing and manually removing these settled particles through a cleanout plate assembly is a highly effective supplementary measure to maintain overall system cleanliness and prolong the life of expensive hydraulic components.
Applications
The 8 Inch Stainless Steel Reservoir Cleanout Plate Assembly is suitable for a diverse range of hydraulic applications across various industries, including but not limited to:

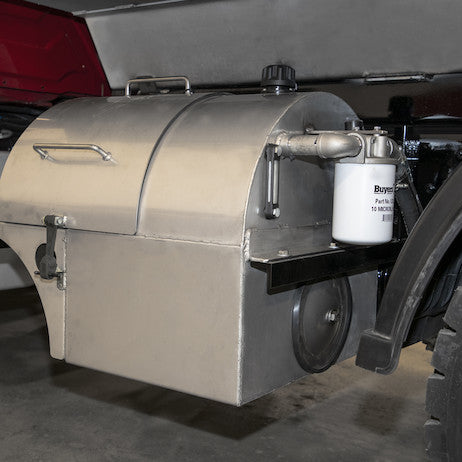

- Mobile Hydraulics: Construction equipment (excavators, loaders, bulldozers), agricultural machinery (tractors, harvesters), municipal vehicles (refuse trucks, snowplows), and forestry equipment. These systems often operate in harsh, dusty, or wet environments, making reservoir cleanliness particularly challenging and critical.
- Industrial Hydraulics: Manufacturing plants, foundries, steel mills, and heavy industrial machinery utilizing hydraulic power units. This includes presses, molding machines, material handling systems, and automated assembly lines.
- Marine Applications: Deck machinery, steering systems, and propulsion controls on commercial and recreational vessels, where saltwater environments demand exceptional corrosion resistance.
- Power Generation: Hydraulic systems in turbines, dam gates, and other control mechanisms.
- Aerospace Ground Support: Hydraulic test stands and ground support equipment.
Its robust construction and material selection make it ideal for environments where high demands are placed on equipment reliability and where maintenance access is a key factor in operational efficiency. The stainless steel construction is particularly advantageous in corrosive environments, ensuring that the cleanout plate itself does not become a source of contamination.
Conclusion
The Buyers Products 8 Inch Stainless Steel Reservoir Cleanout Plate Assembly is more than just an access cover; it is an essential maintenance enabler designed to safeguard the performance and longevity of hydraulic systems. By providing convenient, secure, and leak-proof access to the reservoir's interior, it facilitates critical cleaning, inspection, and maintenance procedures that are indispensable for managing fluid contamination. The careful selection of materials – stainless steel for corrosion resistance and strength, nitrile rubber for superior sealing against hydraulic fluids, and zinc plating for internal component protection – underscores its professional-grade design and suitability for demanding industrial and mobile applications. Investing in such an assembly contributes directly to reduced downtime, lower maintenance costs, extended component life, and enhanced overall system reliability, making it an invaluable component for any well-maintained hydraulic installation.
