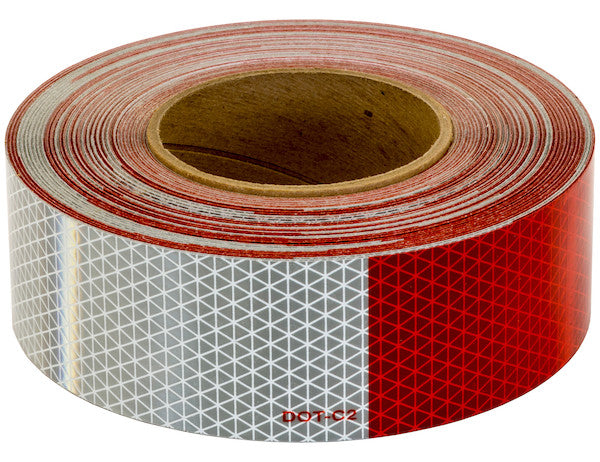

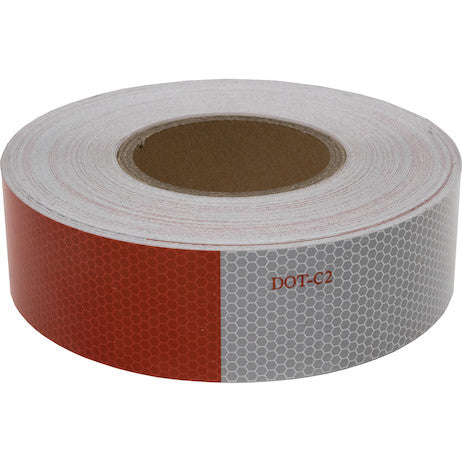

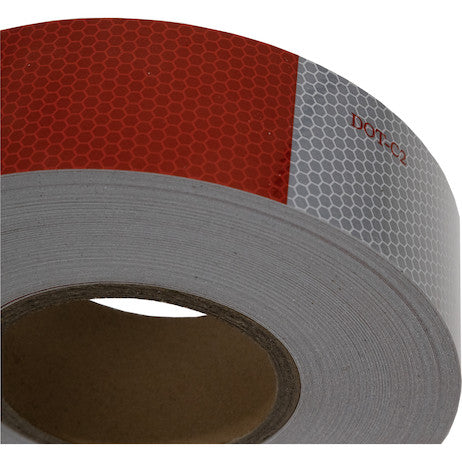

CT150RW - DOT Conspicuity Tape

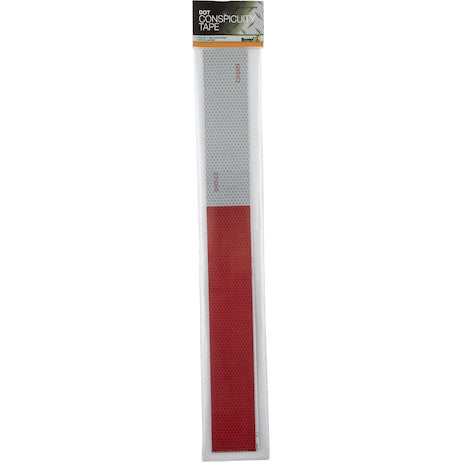

Buyers Products DOT-approved Conspicuity Tape enhances your truck's visibility and detection in traffic. The tape is available in 150-foot rolls or a 5-pack of precut 18-inch lengths in a red-and-white alternating pattern. A transparent exterior film covers the embedded reflective film beneath. Strong adhesive backing will keep the tape in place for up to five years when properly installed. CT150RW: 5-Year Rating CT151RW & CT185RW: 3-Year Rating

Specifications

Advanced Technical Overview: DOT Conspicuity Tape with 5-Year Performance Rating

This technical description elaborates on the superior engineering and operational significance of our 150-foot roll of DOT-approved Conspicuity Tape, featuring an 11-inch red and 7-inch white alternating pattern and a robust 5-year performance rating. Designed for rigorous commercial applications, this product is engineered to surpass the stringent regulatory requirements for enhanced vehicle visibility, directly contributing to road safety and operational compliance.

Regulatory Compliance and Safety Imperatives

The primary function of this conspicuity tape is to ensure full compliance with the Federal Motor Vehicle Safety Standard (FMVSS) 108, specifically addressing retroreflective sheeting requirements for commercial motor vehicles (CMVs), trailers, and semi-trailers. FMVSS 108 mandates specific retroreflective markings to delineate the rear and sides of large vehicles, rendering them more discernible to other road users, particularly under low-light conditions, adverse weather, or from oblique angles. The National Highway Traffic Safety Administration (NHTSA) specifies the precise pattern, color, and minimum photometric performance standards for such materials to effectively mitigate the risk of underride and side-impact collisions, which are disproportionately severe in terms of fatalities and serious injuries.

Our conspicuity tape, with its distinct 11-inch red and 7-inch white pattern, adheres precisely to these regulatory dictates. The alternating red and white segments are not arbitrary; they are prescribed to maximize contrast and recognition against diverse backgrounds and varying ambient light conditions. Red signifies the rearward presence of the vehicle, while white provides a contrasting element that enhances overall visibility and helps observers perceive the vehicle's full dimensions. This standardized pattern ensures universal recognition by drivers, irrespective of their origin or experience, thereby fostering a safer roadway environment across all jurisdictions.

Retroreflective Technology and Material Science

The core technology underpinning this conspicuity tape is its advanced retroreflective construction. Unlike diffuse reflection, where light scatters in multiple directions, or specular reflection, where light bounces off at a predictable angle (like a mirror), retroreflection is the phenomenon of light being returned directly to its source. This tape achieves superior retroreflectivity through a highly specialized arrangement of optical elements.

Multi-Layered Construction

The tape comprises a sophisticated multi-layer architecture engineered for optimal performance and durability:

• Transparent Exterior Film: The outermost layer is a highly durable, optically clear polymer film, typically an acrylic or polycarbonate. This film serves as a critical protective barrier, safeguarding the delicate retroreflective elements from environmental aggressors such as UV radiation, abrasion, impact, moisture ingress, and chemical exposure (e.g., road salts, automotive fluids, cleaning agents). Its transparency is paramount to ensure unimpeded light transmission to and from the reflective components.
• Embedded Retroreflective Elements: Beneath the protective film lies the heart of the tape's performance: an array of microscopic glass beads or prismatic lenses. In the case of higher-performance tapes like this 5-year rated product, advanced prismatic technology is commonly employed. These microprisms are precisely engineered to act as corner cubes, reflecting incident light with exceptional efficiency back along its original path. This embedded design protects the retroreflective optics from dirt and degradation, maintaining consistent performance over the product's lifespan.
• Polymer Matrix: The retroreflective elements are encapsulated within a robust polymer matrix, which binds the components together and contributes to the tape's structural integrity and flexibility.
• Adhesive Layer: The base layer consists of a high-performance pressure-sensitive adhesive (PSA), typically an acrylic-based formulation. This adhesive is engineered for aggressive bonding to a wide range of common vehicle substrates, including painted metals (steel, aluminum), fiberglass reinforced plastic (FRP), and certain composite materials. Its properties include high initial tack for secure placement, exceptional ultimate adhesion for long-term retention, and resistance to shear forces and environmental degradation.

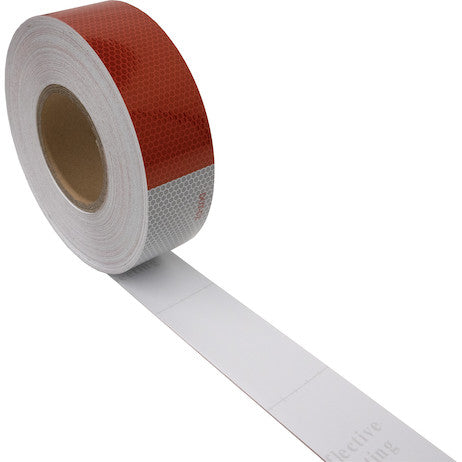

• Release Liner: A removable liner protects the adhesive layer prior to installation, ensuring its cleanliness and preserving its bonding properties.

Photometric Performance (Coefficient of Retroreflection - RA)

The effectiveness of retroreflective material is quantitatively measured by its Coefficient of Retroreflection (RA), expressed in candelas per lux per square meter (cd/lux/m²). This value indicates how much light is returned by a given area of material under specific observation and entrance angles. FMVSS 108 specifies minimum RA values that conspicuity tape must maintain over its service life, across various angles that simulate real-world viewing conditions. Our 5-year rated tape is engineered to consistently meet or exceed these minimum photometric requirements, ensuring that vehicles remain highly visible to other drivers from a significant distance, providing ample time for recognition and reaction.

The sophisticated prismatic technology utilized in this product allows for superior retroreflective brightness across a wider range of observation and entrance angles compared to traditional glass bead formulations. This attribute is critical for enhancing safety, as vehicles are rarely viewed head-on. The tape's ability to maintain high RA values even at acute angles significantly contributes to early detection, particularly when vehicles are approaching from the side or are partially obscured.

Durability and Longevity: The 5-Year Rating

The 5-year rating signifies a guaranteed performance lifespan under normal operating conditions when properly installed. This extended durability is a testament to the superior material science and engineering invested in this product. Key factors contributing to this longevity include:

• UV Resistance: The transparent exterior film and the polymer matrix are formulated with advanced UV stabilizers. These additives prevent degradation, yellowing, and brittleness caused by prolonged exposure to solar radiation, which is a common cause of failure in lesser quality materials. Maintaining optical clarity is paramount for sustained retroreflective performance.
• Weatherability: The tape exhibits exceptional resistance to environmental elements, including extreme temperatures (both high and low), humidity, rain, snow, and ice. The robust adhesive system maintains its bond integrity across a broad temperature range, preventing delamination or cracking.
• Abrasion and Impact Resistance: The tough outer layer provides a high degree of resistance against physical abrasion from road debris, automated vehicle washes, and daily wear and tear, ensuring the embedded reflective elements remain intact and functional.
• Chemical Resistance: The materials are engineered to withstand exposure to common automotive chemicals, cleaning solutions, fuel spills, and road salts without compromise to their retroreflective properties or adhesive bond.
• Adhesive Stability: The high-performance acrylic adhesive is designed for long-term stability, resisting creep, plasticizer migration (from certain substrates), and maintaining its cohesive strength and adhesion over the entire 5-year period.

These combined attributes ensure that the tape maintains its vivid color, structural integrity, and critically, its photometric performance over its rated lifespan, minimizing the need for frequent replacement and thereby reducing overall maintenance costs.

Optimal Installation Procedures for Maximum Performance

Achieving the rated 5-year lifespan and ensuring peak performance of the conspicuity tape is heavily dependent on correct installation. Adherence to best practices is crucial for the adhesive to form a strong, lasting bond and for the retroreflective material to function optimally.

Surface Preparation

The most critical step is thorough surface preparation. The substrate must be:

• Clean: Free from all dirt, dust, grease, wax, oil, road grime, and other contaminants. A two-step cleaning process is often recommended: first, a mild detergent and water wash, followed by a solvent wipe (e.g., isopropyl alcohol or a commercially available surface cleaner approved for use with PSAs) to remove any residues.
• Dry: Completely dry before application. Moisture trapped under the tape can lead to adhesive failure or blistering.
• Smooth: The surface should be as smooth as possible. Rough or textured surfaces can reduce the effective contact area for the adhesive, leading to premature peeling. Any rivets, seams, or irregular surfaces must be carefully managed according to specific guidelines.
• Temperature Controlled: The ambient temperature and the surface temperature of the vehicle should be within the manufacturer's recommended range, typically between 60°F (15°C) and 100°F (38°C). Applying tape outside this range can compromise the adhesive's initial tack and ultimate bond strength. Cold temperatures stiffen the adhesive, reducing its ability to flow and wet out the surface, while excessive heat can lead to premature curing or reduced tack.

Application Process

• Measurement and Alignment: Precisely measure and mark the application areas to ensure regulatory compliance regarding placement and coverage.
• Liner Removal: Slowly peel back a short section of the release liner, exposing the adhesive. Avoid touching the adhesive surface to prevent contamination.
• Initial Placement: Carefully position the tape, applying light pressure to establish initial tack.
• Firm Application: Progressively remove the liner while firmly pressing the tape onto the surface using a squeegee or roller. Apply firm, even pressure from the center outwards to eliminate air bubbles and ensure maximum adhesive wet-out and contact with the substrate. Overlapping segments, if required by regulations for continuous marking, should be done precisely.
• Curing Time: Allow adequate curing time for the adhesive to reach its ultimate bond strength. This typically takes 24-72 hours, during which the vehicle should ideally be kept in a controlled environment and avoid exposure to severe weather or washing.

Operational Benefits and Economic Impact

Investing in high-quality DOT conspicuity tape with a 5-year rating yields significant operational and economic advantages beyond mere regulatory compliance.

• Accident Reduction: The most profound benefit is the statistically proven reduction in collisions. Studies by organizations such as the National Transportation Safety Board (NTSB) and the Insurance Institute for Highway Safety (IIHS) have consistently demonstrated that retroreflective markings significantly decrease the incidence of rear-end and side-impact collisions, particularly those occurring at night or in low visibility. Enhanced visibility provides other drivers with crucial extra seconds to react, leading to fewer severe accidents, injuries, and fatalities.
• Reduced Downtime and Repair Costs: Fewer accidents translate directly to reduced vehicle downtime for repairs, lower insurance claims, and decreased overall maintenance expenses. A 5-year lifespan also means less frequent replacement cycles, further cutting labor and material costs associated with remarking.
• Improved Driver and Public Safety: By making large vehicles more conspicuous, the tape protects not only the occupants of the CMV but also the general motoring public. This commitment to safety enhances a fleet's public image and corporate responsibility profile.
• Regulatory Adherence and Avoidance of Penalties: Maintaining FMVSS 108 compliance prevents costly fines, out-of-service orders, and potential legal liabilities stemming from inadequate vehicle marking.
• Brand Reputation: A fleet that consistently adheres to the highest safety standards, visible through clear and effective conspicuity markings, projects professionalism and reliability, enhancing its brand reputation within the industry and among clients.

Applications and Target Sectors

This 150-foot roll of 11-inch red and 7-inch white DOT Conspicuity Tape is specifically engineered for a broad spectrum of commercial vehicles requiring stringent safety and compliance standards:

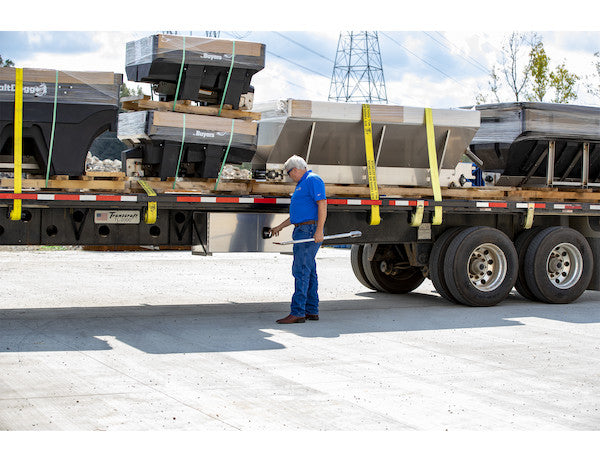

• Long-Haul and Regional Trucking Fleets: Essential for semi-trailers, box trucks, flatbeds, tankers, and refrigerated units operating across state lines and federal highways.
• Construction and Heavy Equipment: Dump trucks, concrete mixers, heavy equipment trailers, and other large vehicles frequently operating in varied lighting conditions and environments.
• Utility Vehicles: Service vehicles, utility trucks, and specialized equipment that may be stationary or moving slowly on roadways, requiring maximum visibility.
• Bus and Coach Fleets: Ensuring the safety of passenger transport vehicles, particularly during night operations or early morning/late evening routes.
• Waste Management and Recycling Fleets: Vehicles making frequent stops and operating in diverse urban and suburban environments benefit immensely from enhanced visibility.

Conclusion

The 150-foot roll of DOT-approved Conspicuity Tape, featuring an 11-inch red and 7-inch white alternating pattern and a 5-year performance rating, represents a critical investment in vehicle safety, regulatory compliance, and operational efficiency. Its advanced retroreflective technology, multi-layered durable construction, and high-performance adhesive system are meticulously engineered to provide superior visibility and sustained performance under the most demanding conditions. By facilitating early detection and accurate perception of large vehicles, this tape significantly reduces collision risks, lowers operational costs, and reinforces a commitment to the highest standards of road safety across the commercial transportation sector.
