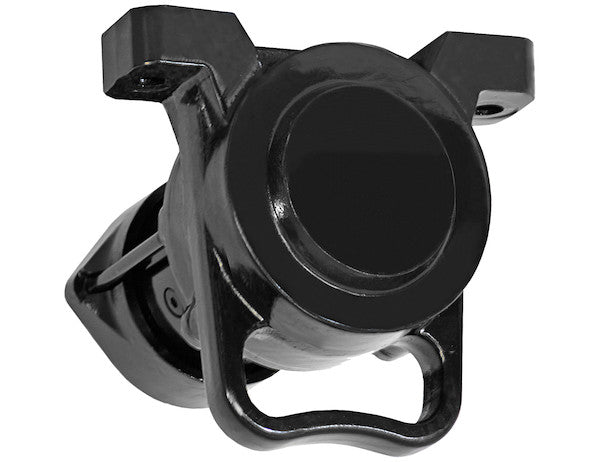

Buyers Products Dump Body Vibrator eliminates the back-breaking task of removing material from your truck. The vibrator shakes out stubborn or excess material, keeping your truck clean and ready for the next round. Permanently lubricated bearings and the 12V motor are O-ring sealed to protect against weather and grime. The Dump Body Vibrators includes mounting kits with everything needed to install them onto your vehicle. Two models are available, based on the dump body size.
Specifications
| Force (lbs) | 3500 |
|---|---|
| Height (in.) | 10.00 |
| Included Wiring Length (ft.) | 50 |
| Length (in.) | 12.00 |
| Max Current | 150 |
| Suggested Dump Body Length (ft) | 13+ |
| Switch Wiring Gauge | 16 |
| Switch Wiring Length | 20 |
| Use With | Dump Bodies |
| Voltage | 12 |
| Weather Resistant (y/n) | Y |
| Width (in.) | 10.00 |
| Wire Gauge | 4 |
Introduction to Advanced Material Discharge Solutions
The Buyers Products 3500 Pound Dump Body Vibrator with Installation Kit represents a sophisticated engineering solution designed to efficiently address the persistent challenges of material discharge from commercial dump bodies. In sectors like construction, mining, and waste management, rapid and complete material evacuation is critical for productivity, cycle time optimization, and operator safety. This robust vibratory unit, precisely engineered for demanding applications, utilizes controlled, high-frequency vibratory force to overcome material adhesion, bridging, and freezing, thereby ensuring a clean, swift, and consistent unloading process without manual intervention.
Principle of Vibratory Material Dislodgement
The efficacy of the Buyers Products dump body vibrator is grounded in fundamental vibratory mechanics. A powerful 12-volt DC electric motor drives an eccentrically weighted shaft, generating a controlled, high-frequency centrifugal force. This mechanical energy efficiently transfers from the vibrator directly to the dump body's structural components. As the vibratory energy resonates through the truck bed, it imparts kinetic energy to the bulk material, significantly reducing the coefficient of friction between particles and the dump body surfaces. This action disrupts internal cohesive forces caused by moisture, static charge, or compaction, preventing bridging, ratholing, and clumping. For frozen materials, the vibration effectively fractures ice bonds. The result is a fluidization of the material mass, enabling free flow and complete gravity-assisted discharge, enhancing operational efficiency and safety.
Engineering Excellence: Key Specifications and Features
3500 Pounds of Concentrated Vibratory Force
A cornerstone of this unit's performance is its substantial 3500 pounds of vibratory force. This output is precisely calibrated to dislodge a wide spectrum of challenging materials, including wet sand, heavy gravel, asphalt, cohesive clays, sticky mud, snow, and ice. Generated by an optimal pairing of motor torque and eccentric weight design, this force ensures efficient material evacuation from dump bodies up to and exceeding 13 feet in length. This capability directly translates to increased operational efficiency by minimizing unloading times.
Robust 12V DC Electrical System and Motor Design
Powered by a high-torque 12-volt DC electric motor, this vibrator integrates seamlessly with standard vehicle electrical systems. Engineered for demanding duty cycles, the motor features a robust armature and high-quality windings to withstand significant electrical and mechanical stresses. Its maximum current draw of 150 amperes underscores its powerful output, requiring appropriate vehicle electrical infrastructure. The 12V DC design simplifies installation and enhances reliability through a widely adopted and proven power standard.
Superior Environmental Protection: O-Ring Sealing and Weather Resistance
Durability in harsh environments is paramount. All critical internal components, including the motor and bearings, are hermetically sealed using high-grade O-rings and gaskets. This sealing system creates an impenetrable barrier against moisture, corrosive chemicals, fine particulate matter, and road grime. Rated as weather-resistant, the unit is designed for sustained performance in rain, snow, sleet, and extreme temperatures, crucial for extending operational lifespan and minimizing failure risk due to contamination, reducing maintenance needs.
Maintenance-Free Operation: Permanently Lubricated Bearings
A significant contributor to the vibrator's low total cost of ownership is the integration of permanently lubricated bearings. These industrial-grade bearings are pre-packed with high-performance, long-life grease and sealed to prevent lubricant loss and external contamination. This design eliminates the need for periodic greasing, a common maintenance task, thereby enhancing reliability, reducing frictional wear, and extending the service life of the vibrator, minimizing downtime and associated labor costs.
Optimized Dimensions
Measuring 12.00 inches in length, 10.00 inches in width, and 10.00 inches in height, the vibrator is designed for compact integration. These dimensions facilitate flexible mounting onto various dump body configurations without impacting vehicle balance or space. The robust construction necessary for continuous vibration is balanced with a manageable footprint, ensuring power and practicality.
Comprehensive Installation Kit with Extended Wiring
The Buyers Products Dump Body Vibrator includes a complete installation kit for professional and secure mounting. This kit features 50 feet of heavy-duty primary power wiring (4 gauge) for ample routing, and 20 feet of 16-gauge switch wiring for remote activation. The extensive wiring minimizes additional purchases and complex splicing, streamlining installation and reducing failure points. The heavy-gauge wiring safely handles the 150-amp maximum current, preventing voltage drop and overheating.
Optimal Application
Designed specifically for use with dump bodies, this 3500-pound unit is ideally suited for applications involving dump bodies 13 feet or longer. This specification ensures that the vibratory force is adequately distributed across the material bed for effective and consistent discharge, especially crucial for larger capacities prone to stubborn material adhesion.
Operational Benefits and Return on Investment (ROI)
Enhanced Productivity and Reduced Cycle Times
Integration of the 3500 Pound Dump Body Vibrator significantly boosts productivity by ensuring rapid and complete material discharge. This acceleration reduces truck idle time at unloading sites, leading to more trips per shift, higher material throughput, and greater operational capacity. Efficiency gains are particularly notable when handling sticky materials like wet aggregate, asphalt, or saturated soil, which typically demand time-consuming manual intervention.
Improved Safety Profile
Eliminating manual material removal methods, such as shoveling, scraping, or dangerous truck rocking, directly enhances workplace safety. Operators avoid risks of falls, sprains, or crush injuries, as well as reduced fatigue. The controlled, automated discharge promotes a safer working environment for all personnel.
Maximized Material Yield and Reduced Carry-Back
The vibrator ensures near 100% material discharge, preventing 'carry-back' – residual material that reduces subsequent payload capacity, accumulates over time, and can cause imbalances or premature dump body wear. Maximizing material yield from each load optimizes resource utilization and reduces waste, leading to direct cost savings.
Preservation of Equipment Integrity
Consistent material discharge prevents long-term accumulation of corrosive or abrasive residues, which can accelerate wear and promote rust. Eliminating manual prying or forceful maneuvers reduces stress on the dump body, hydraulic systems, and chassis, extending vehicle service life and decreasing maintenance costs and downtime.
Installation and Integration Considerations
Strategic Mounting for Optimal Performance

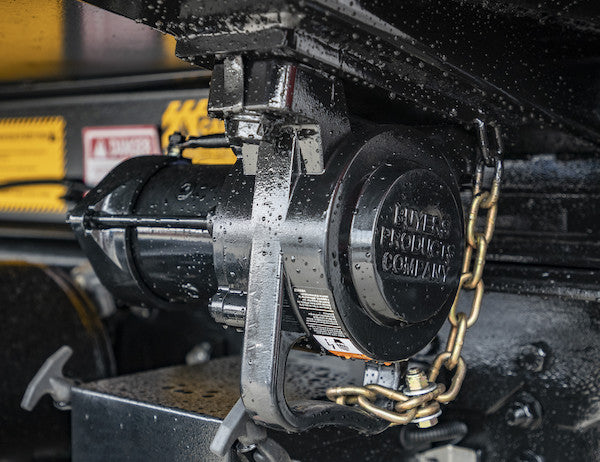

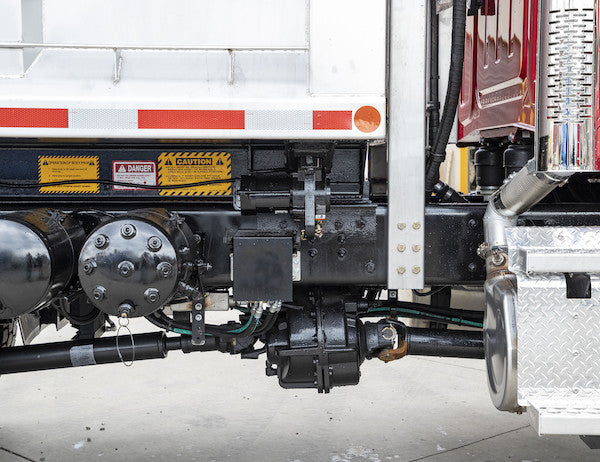

For optimal performance, strategic mounting of the vibrator is crucial. It should be securely bolted to the dump body's structural members, typically on the underside or sidewall, in a location that maximizes energy transfer. For dump bodies 13 feet and longer, placement near the front, where material often adheres most, is recommended. Adherence to manufacturer's guidelines for bolt torque and mounting plate integrity is essential to prevent loosening under continuous vibration.
Electrical System Integration: Powering the Force
Electrical installation is straightforward but requires careful attention due to the high current draw. The 4-gauge power wiring must connect directly to the vehicle's 12V DC power source via a dedicated circuit, protected by a heavy-duty fuse or circuit breaker sized for the 150-amp maximum current. This ensures stable operation and protects against overcurrent. The 16-gauge switch wiring, 20 feet in length, allows convenient and safe placement of the activation switch within the operator's cab for controlled, intermittent use. All connections must be clean, tight, and sealed to prevent corrosion and ensure reliable power.
Conclusion: A Strategic Investment in Operational Excellence
In summary, the Buyers Products 3500 Pound Dump Body Vibrator with Installation Kit is a critical operational upgrade and a strategic investment for any business handling bulk materials. Its robust engineering, featuring a powerful 3500-pound vibratory force, a resilient O-ring sealed 12V DC motor with permanently lubricated bearings, and a comprehensive installation kit, ensures unparalleled reliability and performance in the most demanding conditions. By significantly enhancing unloading efficiency, bolstering safety, maximizing material utilization, and extending equipment lifespan, this vibrator delivers a substantial return on investment through reduced operational costs, increased productivity, and a streamlined workflow. It is an indispensable tool for optimizing bulk material handling processes.
