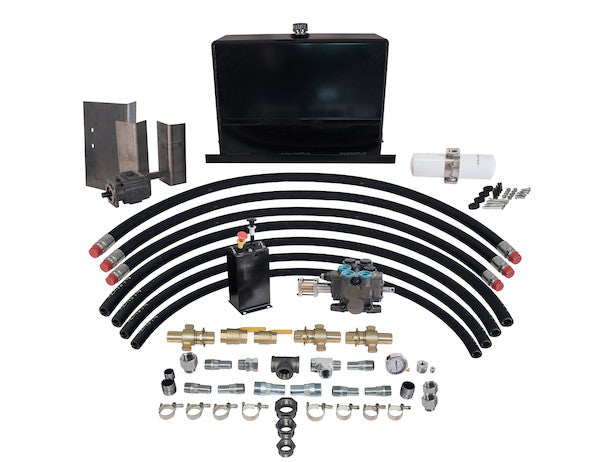

The Dual Pressure Direct Mount Pump Wetline Kit from Buyers Products has everything you need to operate a dump trailer or live floor hydraulic system, including an in-cab pneumatic control console. The wetline kit includes: (1) 50 gal or 70 gal upright steel reservoir or 50 gal side mount reservoir; (1) Frame bracket kit with fasteners; (1) Valve panel; (1) 42 GPM at 1800 RPM valve with main relief preset at 2800 PSI; (1) Port relief set at 2000 PSI; (1) Dowelled 18 GPM pump rated to 3000 PSI (24 GPM pump available for the 50 gal kit); (1) 100 GPM return line filter; (1) Sleek in-cab pneumatic controls with console; (2) Ball valves; (3) Wing type couplers; and all hoses, adapters, clamps, and fittings. Contact Customer Service for assistance.
Specifications
| Direct or Remote Mount | Direct Mount |
|---|---|
| Flow at 1800 RPM | 32.5 |
| Pump Rotation | Counterclockwise |
| Reservoir Material | Carbon Steel |
| Reservoir Position | Upright |
| Reservoir Volume | 50 |
The Buyers Products 50 Gallon Dual Pressure Direct Mount Pump Wetline Kit with Counterclockwise (CCW) 18 Gallons Per Minute (GPM) pump represents a complete, robust, and highly efficient hydraulic solution engineered for demanding commercial applications. Specifically designed for seamless integration with dump trailers and live floor hydraulic systems, this comprehensive wetline kit provides all necessary components for reliable and high-performance operation. Its "dual pressure" capability, "direct mount" configuration, and inclusion of a high-efficiency pump, robust reservoir, sophisticated control system, and all ancillary hardware make it an indispensable asset for businesses requiring dependable hydraulic power on their fleet vehicles. This detailed exposition will delve into the technical specifications, operational advantages, and strategic benefits of implementing this advanced hydraulic system.
Engineered for Peak Performance and Versatility
At the core of this wetline kit's design is its dual-pressure functionality, a critical feature for applications that require varying levels of hydraulic force. Dump trailers, for instance, demand substantial pressure to lift heavy loads, while live floor systems often operate at lower, more consistent pressures for continuous material movement. This kit expertly addresses both requirements, offering a main relief valve preset at 2800 PSI for high-demand tasks and a port relief set at 2000 PSI for operations benefiting from a reduced, controlled pressure. This flexibility optimizes power usage, reduces wear on hydraulic components during lower-pressure operations, and enhances fuel efficiency by preventing the pump from working against unnecessarily high pressures. The integration of a 42 GPM control valve, specified at 1800 RPM, ensures ample capacity to handle the flow from the 18 GPM nominal pump, or even the optional 24 GPM pump, guaranteeing smooth and responsive control across various operational scenarios.
Direct Mount Advantage: Efficiency and Reliability
The "direct mount" pump configuration is a significant technical advantage. Unlike remote mount systems that utilize a drive shaft between the pump and the Power Take-Off (PTO) unit, a direct mount pump interfaces directly with the truck's PTO. This design eliminates the need for universal joints, intermediate bearings, and extended shafts, significantly reducing the number of potential failure points. Key benefits of this direct mounting approach include:
- Reduced Installation Complexity: Fewer components translate to quicker and simpler installation, minimizing downtime and labor costs.
- Enhanced Reliability: The absence of a drive shaft mitigates issues such as vibration, misalignment, and wear associated with rotational components, thereby extending the service life of the pump and PTO.
- Optimized Space Utilization: Direct mounting requires less chassis space, a crucial consideration for modern trucks with increasingly crowded frames.
- Improved Power Transmission: Direct coupling ensures a more efficient transfer of power from the PTO to the pump, minimizing energy losses and maximizing hydraulic output.
The pump specified in this kit is a dowelled 18 GPM unit, rated to 3000 PSI, with a Counterclockwise (CCW) rotation. The CCW rotation is vital for compatibility with the specific PTO output of many commercial truck transmissions, ensuring correct operation and preventing system damage. While the pump is nominally rated at 18 GPM, the system's "Flow at 1800 RPM" is specified at 32.5 GPM. This nuanced distinction is important: the 18 GPM refers to the pump's displacement rating, typically indicating its output at a standard reference RPM. The 32.5 GPM at 1800 RPM represents the optimized effective flow rate of the complete hydraulic system when the truck's engine is operating at 1800 revolutions per minute, taking into account the PTO ratio and the pump's actual output under load. This signifies a robust flow capability, ensuring rapid cycle times for dump operations and consistent, powerful movement for live floors.
Comprehensive Component Integration
This wetline kit is meticulously assembled to provide a holistic hydraulic solution. Each component is selected for its quality, durability, and compatibility, ensuring seamless system performance:
Hydraulic Reservoir: 50 Gallon Upright Carbon Steel
The 50-gallon upright carbon steel reservoir is a fundamental component, serving multiple critical functions:
- Fluid Storage: It provides the necessary volume of hydraulic fluid for the system to operate efficiently, accommodating changes in fluid level as cylinders extend and retract.
- Heat Dissipation: The large surface area of the 50-gallon tank, combined with the thermal properties of carbon steel, aids significantly in dissipating heat generated during hydraulic operation. Effective heat management is crucial for maintaining fluid viscosity, preventing component degradation, and extending the life of the hydraulic oil.
- Fluid Conditioning: The reservoir acts as a settling tank, allowing contaminants and air bubbles to separate from the hydraulic fluid. This de-aeration process prevents cavitation in the pump and ensures clean fluid delivery to the system.
- Durability: Constructed from robust carbon steel, the reservoir is designed to withstand the harsh operating conditions encountered in heavy-duty commercial applications, offering excellent resistance to impact and environmental factors.
- Space Efficiency: The upright configuration is optimized for truck chassis mounting, minimizing the footprint while maximizing fluid capacity.
Advanced Control Valve and Pressure Management
The heart of the hydraulic control lies in the 42 GPM valve, which is rated for substantial flow, far exceeding the 18 GPM pump's nominal output. This significant headroom ensures that the valve does not become a flow restriction point, allowing the system to operate at peak efficiency. The integrated pressure relief mechanisms are paramount for safety and system longevity:
- Main Relief Valve (2800 PSI): This primary relief valve protects the entire hydraulic circuit from over-pressurization. It is set at 2800 PSI, providing ample force for lifting heavy loads in dump trailer applications without exceeding the system's safe operating limits.
- Port Relief Valve (2000 PSI): The dedicated port relief valve, set at 2000 PSI, offers a secondary, lower-pressure setting. This is particularly beneficial for live floor applications or when lighter loads require precise, sustained movement without the need for maximum pressure. It prevents excessive pressure buildup in specific parts of the circuit, reducing power consumption and wear on components during these operations. The dual-pressure capability is a cornerstone of the kit's versatility, enabling optimal performance across diverse tasks.
In-Cab Pneumatic Control Console
Operator control and safety are prioritized with the sleek in-cab pneumatic control console. Pneumatic controls offer distinct advantages over direct hydraulic controls in the cabin:
- Enhanced Safety: By using air pressure to actuate the hydraulic valve, hazardous hydraulic fluid lines are kept out of the vehicle cabin, significantly reducing the risk of leaks and potential injury to the operator.
- Smooth and Responsive Operation: Pneumatic systems provide precise and comfortable control, allowing operators to modulate hydraulic functions with accuracy.
- Ergonomic Design: The console is designed for intuitive use, placing critical controls within easy reach of the operator, thereby reducing fatigue and improving operational efficiency.
High-Capacity Filtration System
A 100 GPM return line filter is integral to the system's longevity and reliability. Hydraulic fluid contamination is a leading cause of component failure. The return line filter ensures that fluid returning to the reservoir after passing through the system is thoroughly cleaned:
- Contaminant Removal: Effectively captures particulate matter, metal shavings, and other debris, preventing them from recirculating through the pump and valves.
- Extended Fluid Life: By keeping the fluid clean, the filter extends the operational life of the hydraulic oil, reducing the frequency of fluid changes and associated maintenance costs.
- Component Protection: Clean fluid dramatically reduces wear and tear on precision components like the pump, valves, and cylinders, thereby prolonging their service life and minimizing costly repairs. The 100 GPM capacity ensures that the filter can handle the full return flow of the system, even under peak operational demands, without causing back pressure or flow restriction.
Complete Installation Hardware and Connectivity
The Buyers Products wetline kit distinguishes itself by providing a comprehensive suite of ancillary components, ensuring that installers have everything required for a professional and efficient setup:
- Frame Bracket Kit with Fasteners: Custom-engineered brackets facilitate secure and precise mounting of the reservoir and other components to the truck chassis, ensuring structural integrity and stability.
- Valve Panel: Provides a robust and organized mounting surface for the control valve, enhancing accessibility for maintenance and reducing clutter.
- Hoses, Adapters, Clamps, and Fittings: A complete assortment of high-quality hydraulic hoses, fittings, and clamps ensures proper fluid conveyance and secure connections throughout the system. These components are selected to withstand high pressures, extreme temperatures, and vibration inherent in heavy-duty truck applications.
- Ball Valves (2): Strategically placed ball valves allow for isolation of sections of the hydraulic circuit, simplifying maintenance, troubleshooting, and making fluid drainage easier without affecting the entire system.
- Wing Type Couplers (3): These quick-disconnect couplers provide a fast, secure, and leak-free connection between the truck's hydraulic system and various trailers (e.g., dump trailers, live floor trailers), offering operational flexibility and rapid attachment/detachment.
Operational Benefits and Performance Metrics
The synergistic design of the 50 Gallon Dual Pressure Direct Mount Wetline Kit translates into significant operational advantages:
- Optimized Cycle Times: The 32.5 GPM effective flow rate at 1800 RPM, coupled with efficient pressure management, ensures rapid deployment and retraction of hydraulic cylinders, maximizing productivity for dump and live floor operations.
- Enhanced Fuel Economy: The dual-pressure capability allows operators to utilize only the necessary pressure, reducing parasitic losses and improving overall fuel efficiency compared to systems constantly running at maximum pressure.
- Reduced Maintenance Burden: High-capacity filtration, robust component selection, and effective heat dissipation extend the life of hydraulic fluid and components, leading to less frequent maintenance and lower long-term operating costs.
- Operator Comfort and Safety: The in-cab pneumatic controls provide a safe and ergonomic operating environment, reducing the risk of accidents and enhancing operator comfort over extended shifts.
- Versatility and Adaptability: The dual-pressure setting and comprehensive component list make this kit highly adaptable for a wide range of dump and live floor trailers, offering a single solution for diverse fleet requirements.
This kit is manufactured by Buyers Products, a brand synonymous with quality and reliability in the heavy-duty equipment sector. Their commitment to engineering excellence is evident in every aspect of this wetline system, from the selection of high-grade materials to the precision in manufacturing and assembly. This ensures that the system not only meets but often exceeds industry standards for performance and durability.
Installation and Maintenance Best Practices
While the kit includes all necessary components for installation, professional installation is highly recommended to ensure optimal performance and adherence to safety standards. Proper sizing of PTO and transmission interface, correct routing of hydraulic lines to prevent chafing or kinking, and meticulous attention to all connection points are crucial. For ongoing maintenance, regular checks of hydraulic fluid levels and quality, timely filter replacements, and periodic inspection of hoses and fittings are essential. Using hydraulic fluid recommended by the manufacturer, appropriate for the operating temperature range, is also critical for maximizing component lifespan and system efficiency.
Conclusion
The 50 Gallon Dual Pressure Direct Mount Pump Wetline Kit CCW 18 Gallons Per Minute from Buyers Products stands as a premier hydraulic solution for commercial truck applications requiring robust and versatile power. Its integrated design, featuring a powerful 18 GPM (32.5 GPM effective flow at 1800 RPM) CCW direct mount pump, a durable 50-gallon carbon steel reservoir, sophisticated dual-pressure valve control, a high-capacity filtration system, and ergonomic in-cab pneumatic controls, delivers unparalleled performance, reliability, and safety. This comprehensive kit minimizes installation complexities, reduces operational costs through enhanced efficiency and reduced maintenance, and provides the adaptability needed for diverse dump trailer and live floor operations. Investing in this Buyers Products wetline kit equips your fleet with a high-performance hydraulic system engineered to meet the rigorous demands of heavy-duty commercial service, ensuring sustained productivity and long-term operational success.
