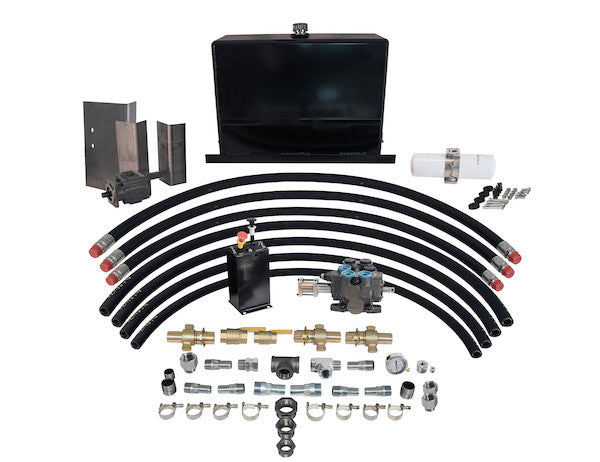

The Dual Pressure Direct Mount Pump Wetline Kit from Buyers Products has everything you need to operate a dump trailer or live floor hydraulic system, including an in-cab pneumatic control console. The wetline kit includes: (1) 50 gal or 70 gal upright steel reservoir or 50 gal side mount reservoir; (1) Frame bracket kit with fasteners; (1) Valve panel; (1) 42 GPM at 1800 RPM valve with main relief preset at 2800 PSI; (1) Port relief set at 2000 PSI; (1) Dowelled 18 GPM pump rated to 3000 PSI (24 GPM pump available for the 50 gal kit); (1) 100 GPM return line filter; (1) Sleek in-cab pneumatic controls with console; (2) Ball valves; (3) Wing type couplers; and all hoses, adapters, clamps, and fittings. Contact Customer Service for assistance.
Specifications
| Direct or Remote Mount | Direct Mount |
|---|---|
| Flow at 1800 RPM | 42 |
| Pump Rotation | Counterclockwise |
| Reservoir Material | Carbon Steel |
| Reservoir Position | Upright |
| Reservoir Volume | 50 |
Advanced Hydraulic Solutions: The 50 Gallon Dual Pressure Direct Mount Wetline Kit with 24 GPM CCW Pump
The 50 Gallon Dual Pressure Direct Mount Pump Wetline Kit with a Counterclockwise (CCW) 24 Gallons Per Minute (GPM) pump represents a pinnacle in integrated hydraulic solutions for heavy-duty commercial vehicle applications. Engineered for robust performance and unparalleled versatility, this comprehensive system provides all necessary components to establish a fully functional and highly efficient hydraulic circuit for demanding operations such as dump trailers and live floor systems. Its technical design prioritizes reliability, precise control, and operational longevity in the most challenging industrial environments.
System Architecture: Direct Mount Efficiency and Dual Pressure Functionality
At the core of this wetline kit’s design is its direct mount configuration. This architecture significantly enhances efficiency by minimizing the number of hydraulic lines and potential leak points between the Power Take-Off (PTO) unit and the hydraulic pump. The direct connection ensures optimal power transmission from the truck’s transmission to the pump, reducing energy losses and improving overall system responsiveness. This integration also contributes to a more compact footprint, crucial for chassis space optimization, and reduces installation complexity and associated labor costs. The robust coupling mitigates vibrations and minimizes wear on critical drivetrain components, extending the service life of both the PTO and the hydraulic pump.
The inclusion of a dual pressure capability is a defining feature, offering operators enhanced control and adaptability. This functionality allows the hydraulic system to operate effectively across a broad spectrum of tasks, each potentially requiring distinct hydraulic force characteristics. For high-demand applications, such as rapidly raising a fully loaded dump trailer, the system can utilize its higher pressure setting, delivering maximum force efficiently. Conversely, for more nuanced operations, like the controlled, continuous movement required by live floor systems, a lower pressure setting can be engaged. This not only optimizes power consumption but also safeguards sensitive hydraulic components and the structural integrity of the actuated equipment by preventing over-pressurization. The ability to switch between these pressure profiles ensures that hydraulic power is precisely matched to the operational requirement, enhancing both safety and efficiency.
Precision Pumping: The 24 GPM Counterclockwise Pump
The heart of the wetline kit is its high-performance 24 GPM dowelled hydraulic pump, engineered to deliver consistent and reliable fluid flow. Rated to a maximum pressure of 3000 PSI, this pump is constructed for durability under continuous heavy-duty use. The "dowelled" designation implies a precision-fit assembly, where dowel pins align components with extreme accuracy, reducing internal leakage and enhancing volumetric efficiency. This precision engineering contributes to a longer operational lifespan and consistent performance over time. The 24 GPM flow rate, specified at typical operating RPMs (e.g., 1800 RPM), is optimized for a wide range of applications, providing ample flow for rapid cycle times in dump applications while maintaining sufficient flow for the continuous demands of live floor systems.
A critical specification is the Counterclockwise (CCW) rotation. This detail ensures compatibility with the vast majority of PTO units found on commercial trucks, providing a seamless interface for power transmission. Incorrect pump rotation can lead to immediate system failure, making this a vital technical consideration. The pump’s robust construction, typically featuring high-strength cast iron housings and precision-machined gears or piston assemblies, ensures resilience against operational stresses, temperature fluctuations, and contaminated environments. Its design focuses on maximizing power output while minimizing noise and vibration, contributing to a more comfortable and productive operating environment.
Advanced Hydraulic Control: The 42 GPM Valve System
Central to the system’s intelligent operation is the hydraulic valve, rated at 42 GPM at 1800 RPM. This flow rating indicates the valve’s capacity to efficiently manage the hydraulic fluid, accommodating the 24 GPM output of the primary pump and providing significant headroom for future system expansion or specific auxiliary functions. The valve is equipped with a main relief preset at 2800 PSI, serving as the primary safety mechanism for the entire hydraulic circuit. This main relief valve prevents system damage by diverting fluid back to the reservoir if the pressure exceeds a safe operating limit, protecting the pump, hoses, and actuators from over-pressurization.
Complementing the main relief is a dedicated port relief set at 2000 PSI. This secondary relief valve offers critical protection for specific components or segments of the hydraulic circuit, particularly valuable in dual-pressure applications or when engaging different hydraulic functions. For instance, in a live floor system where consistent, moderate pressure is required, the 2000 PSI port relief can ensure that excessive pressure surges do not damage the floor drive mechanism. This dual-relief strategy provides a finer degree of pressure management, optimizing performance and extending the life of specialized equipment by tailoring pressure limits to specific tasks rather than relying solely on a single, higher system-wide limit.
Hydraulic Fluid Management: The 50 Gallon Upright Steel Reservoir
The 50-gallon upright carbon steel reservoir is a fundamental component for the effective operation and longevity of the hydraulic system. Its substantial volume serves multiple critical functions: fluid storage, heat dissipation, air separation, and contaminant settling. A 50-gallon capacity ensures an adequate volume of hydraulic fluid for the system's operational demands, particularly during continuous or high-cycle applications, preventing fluid starvation and maintaining consistent pressure. The generous volume also aids in effective heat dissipation, as hydraulic fluid absorbs heat generated by the pump and other components. The large surface area of the reservoir, especially in its upright configuration, facilitates thermal exchange with the ambient air, preventing fluid degradation due to excessive temperatures.
Constructed from robust carbon steel, the reservoir offers exceptional durability and resistance to impact, corrosion, and environmental stressors, ensuring a long service life in demanding conditions. Its upright position is optimized for space efficiency on the truck chassis, providing maximum fluid volume within a minimal footprint. The reservoir typically incorporates internal baffling to promote air separation and inhibit fluid surging, ensuring a steady, non-aerated supply of fluid to the pump. Essential accessories such as a fluid level indicator (sight gauge), a filtered breather cap to prevent contaminant ingress while allowing air exchange, and a drain port for maintenance are standard features that underscore its functional design.
Critical System Safeguard: The 100 GPM Return Line Filter
Maintaining hydraulic fluid cleanliness is paramount for the reliability and longevity of any hydraulic system, and this kit includes a high-capacity 100 GPM return line filter to address this critical need. The return line filter is strategically placed to remove contaminants from the hydraulic fluid as it returns from the actuators and control valves to the reservoir, before it re-enters the primary pumping circuit. This proactive filtration prevents microscopic wear particles, environmental dust, and other impurities from circulating throughout the system, which are primary causes of premature wear in pumps, valves, and cylinders.
A 100 GPM rating indicates the filter's robust capacity to handle the full flow of return fluid, even during peak operational demands, ensuring consistent filtration efficiency. High-quality filter media (typically rated in microns, although not specified, implies a fine filtration capability) traps particles while maintaining acceptable flow rates, preventing back pressure buildup. The inclusion of a return line filter significantly extends the service life of all hydraulic components, reduces maintenance frequency, and optimizes overall system performance by ensuring that the hydraulic fluid remains in pristine condition, maximizing the efficiency of power transmission and control.
Intuitive Control: In-Cab Pneumatic Console
Operator interface and control are seamlessly managed through the sleek, in-cab pneumatic control console. This advanced control system leverages the truck's existing air pressure system to actuate the hydraulic valve, offering significant advantages over mechanical or direct hydraulic controls. Pneumatic controls provide a clean and safe environment inside the truck cab, as no hydraulic lines, and thus no risk of hydraulic fluid leaks, are present. This enhances driver safety and maintains cab cleanliness. The pneumatic system allows for precise and smooth modulation of hydraulic functions, enabling the operator to delicately control the raise and lower actions of a dump body or the continuous movement of a live floor.
The console is ergonomically designed for ease of use, placing critical controls within easy reach of the operator. Its intuitive layout typically includes switches or levers for activating the PTO, engaging the hydraulic pump, selecting between the dual pressure settings, and controlling the direction of hydraulic flow (e.g., raise, hold, lower). The reliability of pneumatic signals, unaffected by electrical interference or fluid viscosity changes, ensures consistent response. This sophisticated control interface empowers operators with confidence and precision, directly contributing to increased productivity and reduced operational errors.
Comprehensive Interconnection: Hoses, Adapters, Fittings, Valves, and Couplers
The kit’s completeness extends to all necessary interconnection components, ensuring a fully integrated and leak-free hydraulic circuit. High-pressure hydraulic hoses are included, selected for their appropriate pressure ratings (e.g., SAE 100R2 or R12 equivalents) and flexibility, capable of withstanding dynamic operational pressures and environmental stresses. These hoses are coupled with a comprehensive array of adapters and fittings, precision-machined to ensure secure, leak-proof connections. Common fitting types like JIC (Joint Industrial Council) 37-degree flare or ORFS (O-Ring Face Seal) are utilized for their superior sealing capabilities and ease of assembly, minimizing potential downtime due to fluid leaks.
Two robust ball valves are incorporated into the system, strategically placed to provide isolation capabilities. These valves are critical for system maintenance, allowing sections of the hydraulic circuit to be isolated without draining the entire system, facilitating component replacement or troubleshooting. Their full-port design ensures minimal pressure drop when open. Furthermore, three wing-type couplers are provided, offering quick-connect and disconnect functionality for external hydraulic attachments. These couplers are designed for heavy-duty use, providing a secure mechanical lock and minimizing fluid loss during connection or disconnection, essential for applications requiring frequent changes of hydraulic implements.
Engineered for Performance and Durability
Every component within this 50 Gallon Dual Pressure Direct Mount Pump Wetline Kit has been meticulously selected and engineered for maximum performance, durability, and compatibility. From the robust carbon steel reservoir and the precision 24 GPM CCW pump to the intelligent dual-pressure valve and the user-friendly pneumatic controls, the system is designed to meet the rigorous demands of commercial trucking. The integrated frame bracket kit with fasteners ensures a secure and vibration-resistant mounting of the reservoir and other components to the truck chassis, crucial for operational stability and longevity.
The combined effect of high-flow capacity, precise pressure control, superior filtration, and intuitive operation results in a hydraulic system that not only enhances the capabilities of dump trailers and live floor systems but also significantly improves operational efficiency and safety. Reduced cycle times, minimized risk of component failure due to over-pressurization or contamination, and an ergonomic operator experience translate directly into higher productivity and lower total cost of ownership over the lifespan of the equipment. This wetline kit is not just a collection of parts; it is a fully integrated, high-performance hydraulic solution engineered for the demands of modern heavy-duty applications, providing unparalleled reliability and control.
