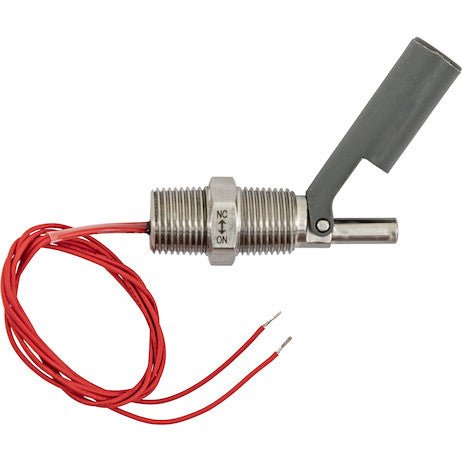

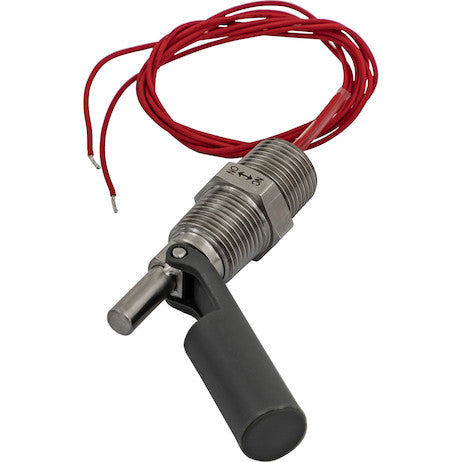

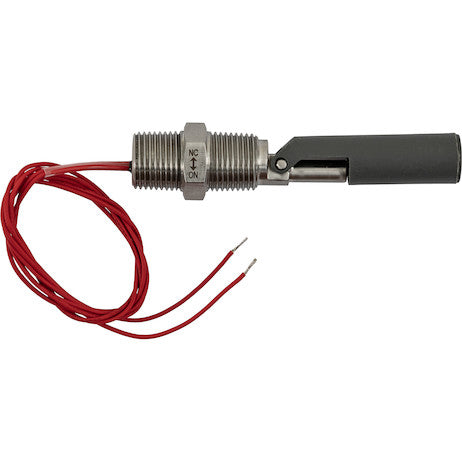

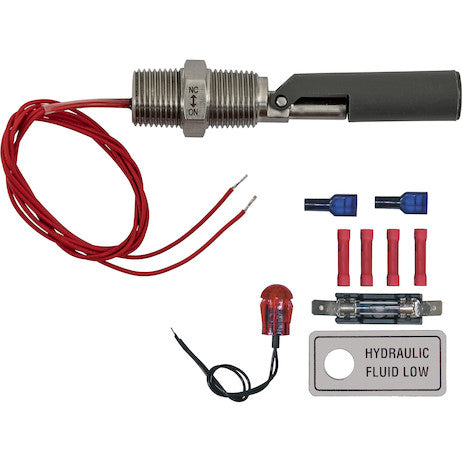

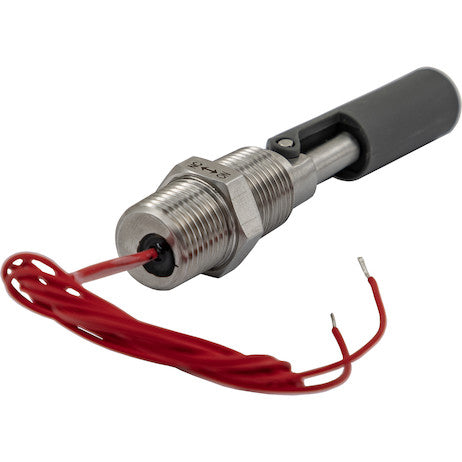

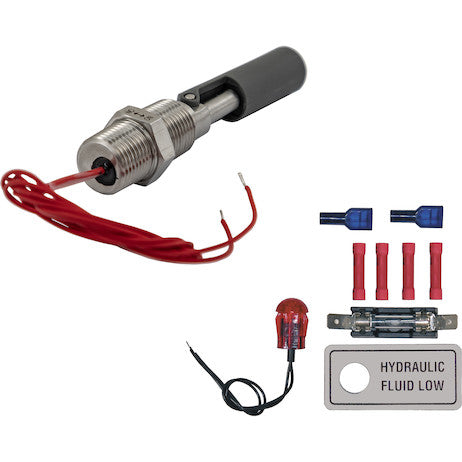

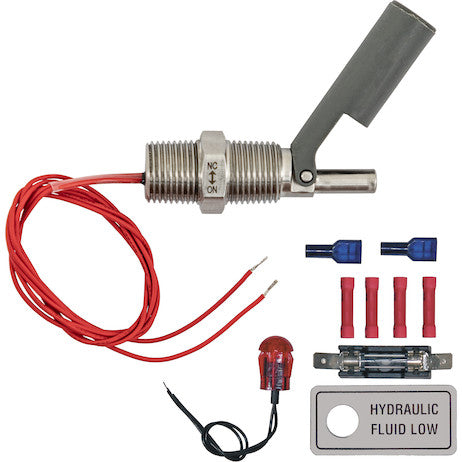

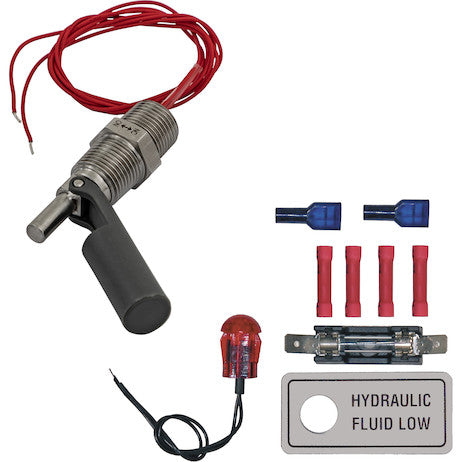

The Buyers Products horizontally mounted level sensor is designed for installation into a 1/2 NPT weld flange or half coupling. Its hex-shaped body allows for easy tightening and is threaded for both interior and exterior mounting options. The sensor can be installed in either a Normally-Open or Normally-Closed orientation, providing flexibility based on the application. It is rated for up to 200VDC or 140VAC with a switching capacity of 0.5A and a carrying capacity of 0.5A.
Specifications
| Adjustable | Yes |
|---|---|
| Indicator Light | Not Included |
| Mount Style | Thru Port |
| Slosh Shield | No |
| Style | Float Ball |
| Thread | 1/2 NPT |
Advanced Technical Overview: Horizontal Float Level Sensor for Precision Fluid Management
The Horizontal Float Level Sensor represents a cornerstone technology in industrial and commercial fluid management, offering robust, reliable, and cost-effective point level detection. Engineered for superior performance in demanding environments, this sensor is meticulously designed to provide precise feedback on liquid levels within various containment vessels, contributing significantly to process automation, safety, and efficiency. Its fundamental operational principle leverages buoyancy and magnetic actuation to deliver a simple yet highly effective electrical switching mechanism, crucial for diverse monitoring and control applications.
At its core, the sensor operates on a straightforward principle: a hermetically sealed reed switch is positioned within the sensor body, while a magnet is encapsulated within a float ball. As the liquid level rises or falls, the float ball moves accordingly. When the liquid level reaches a predetermined point, causing the float to align with the reed switch, the magnetic field activates the switch, completing or breaking an electrical circuit. This direct mechanical interaction, devoid of complex electronic components in the wetted area, confers inherent reliability and suitability for a wide range of liquids, from potable water to industrial lubricants and certain chemicals.
Mechanical Design and Installation Versatility
The mechanical design of this horizontal float level sensor emphasizes both durability and ease of installation. Featuring a hex-shaped body, the sensor facilitates straightforward tightening with standard tools, ensuring a secure and leak-free connection. The 1/2 NPT (National Pipe Taper) threaded connection is a universally recognized standard, enabling direct integration into existing plumbing and tank systems. This threading is compatible with a 1/2 NPT weld flange or a half coupling, providing foundational flexibility for tank wall penetration. The "Thru Port" mount style further indicates its design for insertion through a prepared opening, ensuring a streamlined installation process that minimizes potential leak points and simplifies maintenance.A critical advantage of this sensor's design is its inherent adaptability for both interior and exterior mounting options. Interior mounting places the sensor directly within the tank, allowing for level detection at points deep within the liquid body. This configuration is often preferred for applications where the sensor needs to be protected from external damage or when the internal architecture of the tank supports such placement. Conversely, exterior mounting, facilitated by the sensor's threaded body, allows the primary sensing element to be positioned outside the tank wall, with only the float mechanism extending into the liquid. This can simplify wiring, maintenance, and replacement procedures, particularly in tanks with limited internal access or where the liquid properties might make internal sensor access challenging. The choice between interior and exterior mounting typically depends on tank design, liquid properties, space constraints, and specific application requirements.
Electrical Specifications and Interface Capabilities
The electrical specifications of the Buyers Products Horizontal Float Level Sensor underscore its compatibility with a broad spectrum of control systems. Rated for operation up to 200VDC or 140VAC, it is suitable for both direct current and alternating current circuits commonly found in industrial machinery, automotive systems, and building automation. The relatively high voltage rating provides versatility, allowing integration into various control logic circuits, including those involving PLCs (Programmable Logic Controllers), relays, solenoids, and warning indicators. It is imperative that the application's operating voltage remains within these specified limits to ensure sensor longevity and reliable performance.The sensor features a switching capacity of 0.5A and a carrying capacity of 0.5A. These values are critical parameters that define the maximum current the reed switch can safely interrupt (switching capacity) and continuously conduct (carrying capacity) without degradation. For direct control of low-power devices, such as small indicator lights or solid-state relays, this capacity may be sufficient. However, for applications involving higher inductive or resistive loads, it is generally recommended to interface the float sensor with an intermediate control device, such as a contactor, relay, or PLC input module. This strategy isolates the sensor's delicate reed switch from potentially damaging inrush currents or sustained high loads, thereby extending its operational lifespan and enhancing system reliability. Proper circuit design, including transient suppression for inductive loads, is essential to protect the reed switch from premature failure due to electrical arcing during switching events.
Operational Flexibility: Normally-Open and Normally-Closed Configurations
A key characteristic of this float level sensor is its adjustable nature, specifically the ability to configure it for either Normally-Open (N.O.) or Normally-Closed (N.C.) operation. This flexibility is achieved by orienting the sensor appropriately during installation. In a Normally-Open configuration, the switch contacts are open (no current flow) when the float is at its rest position (e.g., liquid level below the sensor). The contacts close (current flows) when the liquid level rises to activate the float. Conversely, in a Normally-Closed configuration, the switch contacts are closed (current flows) when the float is at rest, and they open when the liquid level activates the float.The choice between N.O. and N.C. depends critically on the desired control logic and, importantly, on fail-safe considerations. For instance, in an overfill prevention system, a Normally-Closed configuration might be preferred. If a wiring fault occurs or the sensor itself fails in a way that breaks the circuit, the system can interpret this as an alarm condition (e.g., "high level detected"), leading to a safe shutdown. This "fail-safe to alarm" principle is crucial in safety-critical applications. For low-level detection to prevent pump dry-running, a Normally-Open configuration might be used to activate a pump when the level is adequate, or a Normally-Closed configuration to shut down a pump when the level drops too low, triggering an alarm if the circuit is interrupted. The "Adjustable: Yes" specification likely refers to this inherent capability to reverse the switching logic simply by changing the mounting orientation, providing unparalleled adaptability for diverse control strategies.
Application Spectrum Across Industries
The utility of a horizontal float level sensor extends across a multitude of industrial, commercial, and OEM applications. Its robust construction and reliable operation make it ideal for:- Hydraulic Systems: Monitoring fluid levels in hydraulic reservoirs to prevent pump cavitation and ensure optimal system performance.
- Lubrication Systems: Detecting low oil levels in sumps or gearboxes, triggering alarms or automatic refills.
- Water and Wastewater Treatment: Controlling pump operations, activating high or low-level alarms in clarifiers, sumps, or holding tanks.
- Chemical Processing: Point level detection in non-aggressive chemical storage tanks, provided the sensor materials (typically stainless steel, polypropylene, or similar industrial plastics for the float and stem) are compatible with the media.
- HVAC Systems: Condensate overflow detection in drip pans, level control in humidifier reservoirs, or make-up water control in cooling towers.
- Fuel Tanks: Signaling critical fuel levels in generators, vehicles, or bulk storage containers, although specific certifications might be required for highly flammable liquids.
- Industrial Washing Equipment: Ensuring adequate water levels for wash cycles and managing detergent concentrations.
- Marine Applications: Bilge level detection and control, or water tank monitoring on vessels.
Advantages of Horizontal Mounting Configuration
While vertical float sensors are common, the horizontal mounting configuration offers distinct advantages in specific scenarios. Firstly, it allows for level detection at precise points along the side wall of a tank, which can be beneficial in vessels with limited top access or intricate internal geometries. For shallow tanks or those where only a specific horizontal layer of liquid needs to be monitored, a horizontal sensor provides a more direct and often simpler installation than a vertical sensor with a long stem. Furthermore, in applications where the liquid surface may experience significant agitation or turbulence, a horizontally mounted float, particularly one installed below the most turbulent zone, can offer more stable and reliable readings compared to a vertically oriented float that might be subject to greater extraneous movement. The absence of a "Slosh Shield" implies that while it may perform adequately in moderately agitated environments, for highly turbulent liquids, additional consideration for placement or external shielding might be necessary.Technical Considerations for Optimal Performance and Longevity
To ensure the long-term reliability and accuracy of the horizontal float level sensor, several technical considerations must be addressed during selection, installation, and operation:- Fluid Compatibility: While not specified in the current description, the material of the float ball and sensor stem is paramount. Common materials include stainless steel (304, 316), polypropylene, nylon, and Buna-N for seals. The selected material must be chemically compatible with the process liquid across the full range of operating temperatures and concentrations. Incompatibility can lead to corrosion, swelling, or dissolution of sensor components, resulting in premature failure or process contamination.
- Specific Gravity (Density) of the Liquid: Float sensors rely on buoyancy. The specific gravity of the process liquid must be sufficient for the float to rise and fall effectively. If the liquid's specific gravity is too low (i.e., less dense than the float material), the float may not actuate correctly. Standard floats are typically designed for liquids with specific gravities greater than 0.7 or 0.8.
- Temperature and Pressure: Although not explicitly listed for this model, all level sensors have maximum operating temperature and pressure limits. Exceeding these limits can compromise the integrity of the sensor's seals, body, and internal components, leading to leaks, erratic operation, or complete failure. It is crucial to verify that the sensor's design specifications align with the expected process conditions.
- Viscosity: Highly viscous liquids can impede the free movement of the float ball, potentially delaying or preventing actuation. In such cases, alternative sensing technologies or specialized float designs may be necessary.
- Presence of Particulates or Coatings: Suspended solids or sticky residues can accumulate on the float and stem, hindering its movement or altering its effective specific gravity. Regular cleaning or selection of self-cleaning sensor designs might be required in such environments.
- Electrical Noise and Grounding: In industrial settings, electrical noise from motors, VFDs (Variable Frequency Drives), and other equipment can interfere with sensor signals. Proper shielding of wiring and adherence to grounding best practices are essential to prevent false readings or erratic behavior.
- Vibration: Excessive mechanical vibration can cause nuisance switching or premature wear on internal components. Secure mounting and, if necessary, vibration dampening measures should be employed.
Maintenance and Life Cycle Management
The Horizontal Float Level Sensor, by virtue of its simple electromechanical design, generally requires minimal maintenance. Periodic visual inspections for signs of wear, corrosion, or material build-up on the float are recommended. In applications with fouling liquids, a routine cleaning schedule for the wetted parts will ensure continued reliable operation. Electrical connections should be checked for integrity and absence of corrosion. Given the 'Style: Float Ball' and no 'Slosh Shield', the design favors environments where agitation is moderate, or the sensor can be strategically placed away from direct flow impacts. The absence of an 'Indicator Light' implies that feedback on the sensor's state must be provided by an external control system or visual inspection of associated indicators.Conclusion
The Buyers Products Horizontal Float Level Sensor is a highly adaptable and dependable solution for point level detection across numerous industrial and commercial applications. Its robust mechanical construction, including the hex-shaped body and 1/2 NPT threading, ensures ease of installation and secure mounting. The electrical specifications, with ratings up to 200VDC or 140VAC and a 0.5A switching/carrying capacity, provide broad compatibility with various control systems, while its adjustable Normally-Open/Normally-Closed orientation offers critical flexibility for diverse operational requirements and fail-safe design considerations. By carefully considering fluid properties, environmental factors, and electrical interface strategies, engineers and system integrators can leverage this sensor to achieve precise, reliable, and cost-effective liquid level management, enhancing both the efficiency and safety of their operations.
