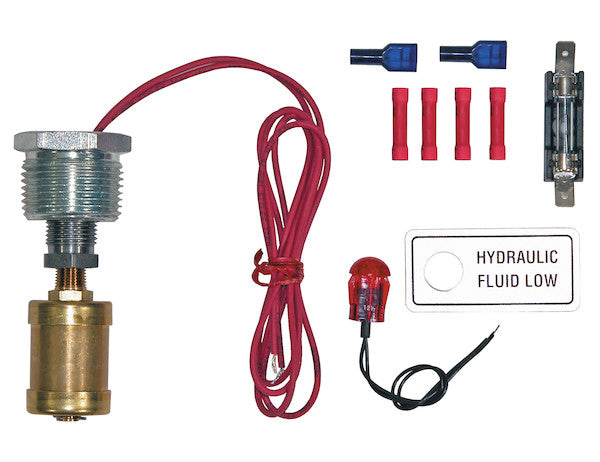

The Oil Level Sensor Kit from Buyers Products helps protect your vehicle's hydraulic system by giving you an in-cab alert, when oil level is too low. The kit includes a slosh shield, which promotes accurate sensing even in more turbulent conditions within the reservoir. Install it in a 1 in. NPT port at the top of your reservoir. The indicator light will press into any 1/2 in. diameter hole.
Specifications
| Adjustable | Yes |
|---|---|
| Indicator Light | Yes |
| Mount Style | Thru Port |
| Slosh Shield | Yes |
| Thread | 1 NPT |
In the demanding world of mobile hydraulics and stationary industrial applications, maintaining optimal fluid levels is not merely a recommendation but a critical prerequisite for operational longevity, efficiency, and safety. The hydraulic system, often considered the heart of heavy machinery, relies fundamentally on the precise quantity and quality of its working fluid. Any deviation from the prescribed oil level can precipitate a cascade of detrimental effects, ranging from diminished performance and accelerated component wear to catastrophic system failure. Recognizing this paramount need, the Buyers Products Oil Level Sensor Kit with Slosh Shield emerges as an indispensable preventative maintenance solution, engineered to provide continuous, reliable monitoring and immediate operator notification regarding hydraulic oil levels.
The Criticality of Hydraulic Oil Level Management
Hydraulic systems operate under stringent conditions, converting mechanical energy into hydraulic power to perform arduous tasks. The hydraulic fluid serves multiple critical functions: transmitting power, lubricating moving parts, transferring heat, and sealing clearances. When the oil level falls below the minimum operational threshold, the system becomes highly susceptible to several acute problems. Insufficient fluid can lead to pump cavitation, a destructive phenomenon where air bubbles form and then collapse within the pump, causing erosion, excessive noise, vibration, and premature pump failure. Furthermore, low oil levels reduce the effective volume available for heat dissipation, leading to elevated operating temperatures that degrade the fluid's properties, diminish its lubricating capabilities, and compromise the integrity of seals and hoses. This cycle of degradation not only curtails the lifespan of individual components but also significantly increases operational costs through unscheduled downtime, emergency repairs, and shortened equipment replacement cycles. The Buyers Products Oil Level Sensor Kit directly addresses these vulnerabilities by offering a proactive defense against such damaging scenarios.
Unveiling the Oil Level Sensor Kit With Slosh Shield
This innovative kit is meticulously designed to integrate seamlessly into a wide array of hydraulic reservoirs, providing an intelligent layer of protection. At its core, the kit comprises a highly responsive oil level sensor, intelligently coupled with an integral slosh shield, and complemented by a clear in-cab indicator light. This tripartite design ensures not only accurate detection but also reliable communication to the operator, enabling timely intervention before minor issues escalate into major operational liabilities. The "adjustable" feature of this sensor provides significant versatility, allowing the user to precisely calibrate the low-level activation point to suit the specific requirements and operating parameters of their hydraulic system, thereby optimizing alert thresholds and preventing nuisance alarms.
The Technical Prowess of the Level Sensing Mechanism
The primary function of the Oil Level Sensor Kit is performed by its robust level sensing mechanism. While the specific internal technology can vary, float switches are commonly employed in such applications due to their simplicity, reliability, and cost-effectiveness. A typical float switch consists of a sealed magnetic reed switch encapsulated within the sensor body and an external float containing a permanent magnet. As the hydraulic fluid level drops, the float descends with the fluid, bringing its magnet into proximity with the reed switch, causing it to change state (e.g., from open to closed or vice-versa). This change in state triggers an electrical signal, which is then transmitted to the indicator light in the vehicle's cab. Engineered for durability, the sensor components are typically constructed from materials resistant to hydraulic fluids, temperature fluctuations, and vibration, ensuring a long and reliable service life in harsh operational environments.
Precision in Motion: The Integral Slosh Shield
One of the distinguishing features and critical enhancements of this kit is the inclusion of an integral slosh shield. Mobile hydraulic systems, by their very nature, operate in dynamic environments characterized by constant motion, sudden stops, accelerations, and uneven terrains. These movements induce significant turbulence and wave action within the hydraulic reservoir, causing the fluid level to fluctuate rapidly and erratically. Without adequate dampening, a standard float sensor would constantly activate and deactivate, leading to "chattering" or false alarms that undermine operator trust and the system's utility. The slosh shield functions as a mechanical baffle, a protective enclosure around the float mechanism. Its design intelligently mitigates the impact of fluid agitation, effectively dampening rapid level changes and stabilizing the float. This allows the sensor to report a more accurate, averaged fluid level, ensuring that the in-cab alert is triggered only when a sustained low-level condition exists, thereby preventing nuisance alarms and maintaining the reliability of the warning system. This engineering detail is paramount for applications where vehicles are in constant motion, such as dump trucks, excavators, forklifts, and agricultural machinery, where the operational environment inherently involves significant fluid disturbance.
The Alert System: In-Cab Indicator Light
The effectiveness of any warning system hinges on its ability to communicate critical information clearly and immediately to the operator. The Buyers Products kit incorporates a dedicated indicator light, designed for prominent installation within the vehicle's cab. This light, engineered to press securely into any standard 1/2 inch diameter hole, provides a visible and unambiguous signal to the operator when the hydraulic fluid level drops to the pre-set minimum. Typically, these indicator lights utilize robust LED (Light Emitting Diode) technology, known for its longevity, low power consumption, and excellent visibility across varying ambient light conditions. The instantaneous illumination of this light serves as an urgent visual cue, prompting the operator to take corrective action, such as refilling the reservoir, inspecting for leaks, or pausing operations to prevent imminent system damage. The direct, in-cab placement ensures that warnings are not overlooked, even amidst the operational complexities and noise typical of heavy equipment.
Robust Integration: Installation and Mounting Considerations
The design of the Oil Level Sensor Kit emphasizes straightforward yet secure integration into existing hydraulic systems. The sensor is engineered for "Thru Port" mounting, meaning it passes through an existing port in the reservoir wall. Specifically, it utilizes a 1 inch NPT (National Pipe Taper) thread. The NPT standard is widely adopted in industrial and mobile applications for its exceptional ability to create a secure, leak-proof seal under pressure without the need for additional sealing compounds if properly torqued. The tapered design ensures that as the male and female threads engage, they wedge together, forming a robust mechanical and fluid-tight connection. Installing the sensor into a 1" NPT port at the top of the reservoir offers several advantages: it allows for easy access for installation and maintenance, minimizes the risk of fluid leakage associated with side-mounted sensors at lower points, and ensures that the sensor's float mechanism is submerged within the fluid column to accurately detect the level. Proper installation involves applying a suitable thread sealant or PTFE tape to the NPT threads before tightening to the manufacturer's specified torque, ensuring both mechanical integrity and a leak-free seal against the hydraulic fluid.
Adjustability for Optimal Performance
A key specification highlighted is the "Adjustable" nature of the sensor. This feature is paramount for tailoring the kit to diverse hydraulic system requirements and operator preferences. While the exact mechanism of adjustability can vary, it commonly involves a design where the float's trigger point relative to the mounting thread can be modified. This might be achieved through a telescoping shaft, adjustable stops, or shims that allow the user to set the precise low-level threshold at which the indicator light activates. For instance, in some systems, a slightly higher warning threshold might be desired to allow more reaction time or to account for specific reservoir geometries or operational tilt angles. Conversely, in others, a lower threshold might be acceptable. This adjustability ensures that the alert is neither too sensitive (causing frequent, unnecessary alerts) nor too delayed (risking damage). It empowers the user to fine-tune the sensor's response, optimizing its protective function for their unique operational context and hydraulic fluid volume.
Electrical System Interfacing and Compatibility
The Oil Level Sensor Kit is designed for seamless integration into vehicle electrical systems. Operating on standard DC voltages commonly found in mobile equipment (typically 12V or 24V DC), the sensor provides a simple open/closed contact signal. The indicator light is also compatible with these voltage ranges. Wiring involves connecting the sensor's output to the indicator light and then connecting the light to a fused power source and ground. It is crucial to use appropriate gauge wiring, protect connections from moisture and physical damage, and ensure proper grounding to prevent electrical interference or malfunction. The robust construction and simple electrical interface make the kit compatible with a vast array of heavy-duty trucks, construction equipment, agricultural machinery, and other vehicles employing hydraulic power. The reliance on a straightforward switch mechanism minimizes the complexity of integration and enhances overall system reliability by reducing potential points of failure often associated with more complex electronic sensors.
Engineered for Durability and Reliability in Harsh Environments
The operational environments for hydraulic equipment are often characterized by extreme temperatures, vibration, shock, exposure to contaminants, and corrosive substances. Recognizing these challenges, the Buyers Products Oil Level Sensor Kit is constructed from materials selected for their resilience and long-term durability. The sensor body and slosh shield are typically made from robust, chemically resistant plastics or corrosion-resistant metals compatible with a wide range of hydraulic fluids, including petroleum-based and synthetic oils. Internal components are sealed against moisture and dust ingress, often achieving high IP (Ingress Protection) ratings. This commitment to robust construction ensures that the sensor maintains its accuracy and functional integrity over extended periods, minimizing maintenance requirements and maximizing operational uptime. The "Mount Style: Thru Port" and "Thread: 1 NPT" also speak to this durability, providing a strong, vibration-resistant mounting solution that withstands the rigors of heavy-duty operation.
Applications Across Diverse Industries
The versatility and robust design of the Oil Level Sensor Kit make it invaluable across a multitude of industries where hydraulic power is paramount. In the **construction industry**, equipment such as excavators, bulldozers, loaders, and cranes benefit immensely from proactive oil level monitoring, preventing costly downtime on critical project timelines. For the **transportation and municipal sectors**, dump trucks, refuse vehicles, snowplows, and service trucks rely on hydraulic systems for various functions; ensuring these systems are properly lubricated extends their operational life and enhances public service delivery. The **agricultural sector** utilizes hydraulic power extensively in tractors, harvesters, and sprayers; the sensor kit protects these vital investments, particularly during peak seasons where reliability is non-negotiable. Furthermore, in **mining, forestry, and marine applications**, where equipment operates under severe conditions and often in remote locations, the ability to preempt hydraulic failures through continuous monitoring provides substantial operational and safety advantages. This kit is a universal solution for any application where a hydraulic reservoir requires dependable low-level detection.
Economic and Operational Advantages
Investing in the Buyers Products Oil Level Sensor Kit with Slosh Shield translates into significant economic and operational benefits. The primary advantage is **preventative maintenance**. By providing an early warning of low oil levels, the kit enables operators to address the issue before it leads to irreversible damage to expensive hydraulic components like pumps, motors, and cylinders. This proactive approach dramatically reduces the incidence of catastrophic failures, minimizing repair costs and extending the lifespan of the entire hydraulic system. **Reduced downtime** is another critical benefit; unscheduled breakdowns are not only costly in terms of repairs but also lead to lost productivity and potential penalties for project delays. The sensor kit helps maintain continuous operation by preventing such disruptions. Furthermore, by ensuring optimal fluid levels, the system operates at peak efficiency, potentially leading to **fuel savings** and reduced energy consumption. Finally, enhanced system reliability contributes to **improved operational safety**, as hydraulic system failures can pose significant hazards to personnel and surrounding infrastructure. This kit is not merely a sensor; it is an investment in the long-term health, efficiency, and safety of hydraulic-powered assets.
Comprehensive Installation Guidelines
To maximize the performance and longevity of the Oil Level Sensor Kit, adherence to proper installation procedures is essential. Firstly, ensure the hydraulic system is de-pressurized and drained to a level below the intended mounting port. Select a suitable 1-inch NPT port, ideally at the top of the reservoir, ensuring that the sensor's float mechanism will be positioned at the desired low-level warning point. Apply an appropriate thread sealant (e.g., pipe thread sealant paste or PTFE tape) to the sensor's 1-inch NPT threads, ensuring full coverage to create a leak-proof seal. Carefully thread the sensor into the port by hand, then tighten with a suitable wrench to the manufacturer's recommended torque specifications. Avoid overtightening, which can damage the threads or the sensor body. For the in-cab indicator light, drill a 1/2-inch diameter hole in a convenient and visible location on the dashboard or control panel, then press the light firmly into place. Wire the sensor to the indicator light, and then connect the light to a fused 12V or 24V DC power source and a reliable ground point, ensuring all electrical connections are secure and protected from environmental factors. Finally, refill the hydraulic reservoir to the correct operating level, start the equipment, and test the sensor's functionality by observing the indicator light as the fluid level is intentionally (and safely) lowered or simulated. The "Adjustable" nature of this sensor allows for final calibration of the trip point post-installation if necessary.
Conclusion
The Buyers Products Oil Level Sensor Kit with Slosh Shield represents a sophisticated yet user-friendly solution for a fundamental requirement in hydraulic system management. Its integrated design, combining an accurate level sensor, an advanced slosh shield for stability, a clear in-cab indicator, and robust mounting, provides unparalleled protection against the detrimental effects of low hydraulic oil levels. By preventing pump cavitation, overheating, and component wear, this kit significantly enhances the reliability, extends the operational life, and reduces the total cost of ownership for hydraulic equipment across diverse applications. For any operator or fleet manager committed to proactive maintenance, operational efficiency, and the long-term health of their hydraulic assets, this sensor kit is not just an accessory, but an essential component for safeguarding critical investments.
