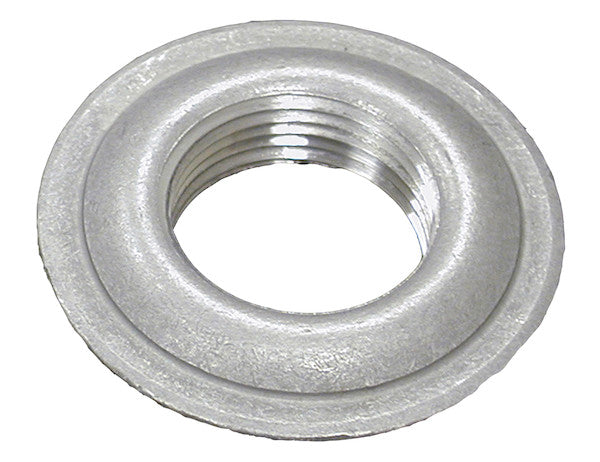

FA025 - 1/4 Inch NPTF Aluminum Stamped Welding Flange

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.

Specifications

The 1/4 Inch NPTF Aluminum Stamped Welding Flange from Buyers Products represents a critical component in the design and fabrication of hydraulic systems, offering a reliable and robust solution for fluid connection points. Engineered for precision and durability, this specific flange is meticulously designed to meet the rigorous demands of industrial and mobile hydraulic applications. Its construction, material composition, and threading specification are optimized to ensure secure, leak-free connections within hydraulic reservoirs, whether for initial system construction or for expanding existing capabilities.

At the core of its utility, a welding flange serves as a secure interface, permitting the integration of threaded components such as valves, gauges, sensors, and other auxiliary equipment into a sealed fluid containment vessel, typically a hydraulic reservoir. The act of welding creates a monolithic bond between the flange and the reservoir wall, providing superior structural integrity and leak prevention compared to mechanical fasteners or adhesive-based solutions. This methodology is particularly vital in high-pressure or high-vibration environments characteristic of hydraulic systems, where system reliability and fluid containment are paramount.

Material Excellence: The Advantages of Aluminum

This specific welding flange is constructed from high-grade aluminum, a material celebrated for its advantageous properties in various engineering applications. Aluminum, a lightweight metal with excellent strength-to-weight ratio, significantly contributes to the overall weight reduction of the hydraulic system, a crucial factor in mobile applications where every pound saved can translate to improved fuel efficiency or increased payload capacity. Beyond its low density, aluminum exhibits exceptional corrosion resistance, primarily due to the formation of a passive oxide layer on its surface when exposed to air. This inherent resistance makes it an ideal choice for hydraulic reservoirs that may operate in corrosive environments or store hydraulic fluids that could otherwise degrade less resistant metals. Furthermore, aluminum offers good thermal conductivity, assisting in the dissipation of heat generated within the hydraulic fluid, thereby contributing to the overall thermal management of the system. Its non-magnetic properties can also be beneficial in certain specialized applications where magnetic interference needs to be minimized. The selection of aluminum for this flange aligns with its intended use in hydraulic reservoirs, offering a balance of performance, durability, and cost-effectiveness for a broad spectrum of industrial and commercial hydraulic requirements.

Manufacturing Precision: The Stamped Construction Process

The term "Stamped" in the product description refers to the manufacturing method employed to produce these flanges. Stamping is a cold-forming process that involves placing a flat sheet of metal, in this case, aluminum, into a stamping press where a die forms it into the desired shape. This method is highly efficient for mass production, offering several distinct advantages. Firstly, stamping ensures high repeatability and consistency in dimensions and form, which is critical for components that need to integrate precisely into assemblies and maintain specific sealing characteristics. This leads to uniform product quality across large batches. Secondly, it is a cost-effective manufacturing process compared to machining from solid stock, as it minimizes material waste and requires less energy per unit produced. This efficiency translates into a more economically priced product without compromising structural integrity or functional performance. Thirdly, the cold-working process of stamping can enhance the material's mechanical properties, such as tensile strength and hardness, through work hardening. The smooth finish typically achieved through stamping is also beneficial, providing an optimal surface for welding and subsequent sealing applications. This manufacturing choice underscores Buyers Products' commitment to delivering high-quality, reliable components while maintaining competitive pricing.

Thread Specification: 1/4 Inch NPTF for Secure Connections

The designation "1/4 Inch NPTF" is a critical technical specification that defines the threading standard of this flange. NPTF stands for National Pipe Taper Fuel, a specific type of NPT (National Pipe Taper) thread designed to create a dry, mechanical seal without the need for additional sealants. The "1/4 Inch" refers to the nominal pipe size, which, in pipe threading standards, does not directly correspond to the actual diameter of the threads but rather to the internal diameter of the pipe it would typically connect to. For a 1/4-inch NPTF thread, the major diameter is approximately 0.540 inches, which directly correlates with the "Size" specification provided as ".540" inches. The taper in NPTF threads means that the threads on both the male and female components are conically shaped, with a taper of 3/4 inch per foot (1 in 16 on the diameter). This taper causes the threads to wedge together as they are tightened, creating a metal-to-metal seal. The "F" in NPTF signifies that these threads are designed for "Fuel" connections, implying a more stringent requirement for leak prevention suitable for fluids, including hydraulic oil, without relying solely on thread sealants, though sealants are often used as an added measure of security. The crests and roots of NPTF threads are designed to interfere with each other when tightened, deforming slightly to ensure a leak-proof connection. This characteristic makes NPTF threads exceptionally well-suited for hydraulic applications where high pressures and the absolute prevention of fluid leakage are paramount. Adherence to NPTF standards ensures interchangeability and compatibility with a vast range of standard hydraulic fittings and components, simplifying system design and maintenance. The 1/4 inch size is a common choice for smaller auxiliary lines, return lines, gauge ports, or sensor connections within a hydraulic circuit, providing adequate flow capacity for these specific functions while maintaining a compact footprint.

Application in Hydraulic Reservoir Systems

Hydraulic reservoirs are fundamental components of any hydraulic system, serving multiple critical functions beyond mere fluid storage. They facilitate heat dissipation, allow for contaminant settling, aid in air separation, and compensate for fluid volume changes due to cylinder extension/retraction and thermal expansion/contraction. The integrity of a reservoir's connections is directly linked to the overall reliability and efficiency of the hydraulic system. This 1/4 Inch NPTF Aluminum Stamped Welding Flange is specifically engineered to provide a robust and durable port for these essential reservoirs.

Fabricating New Hydraulic Reservoirs

When fabricating a new hydraulic reservoir, careful planning is required to integrate all necessary ports for pumps, return lines, suction lines, drain plugs, level gauges, temperature sensors, breathers, and other auxiliary equipment. Welding flanges like this aluminum variant are indispensable for creating these permanent, leak-proof access points. The ability to weld the flange securely into the reservoir wall allows designers and fabricators to customize reservoir designs precisely to application-specific requirements, optimizing fluid dynamics and component placement. The aluminum construction, being lighter than steel, is particularly advantageous in scenarios where the overall weight of the machinery or vehicle is a significant design constraint, without sacrificing the structural integrity of the reservoir. The use of stamped flanges also means a consistent base component for repetitive fabrication tasks, ensuring uniformity across multiple units.

Adding Ports to Existing Reservoirs

Beyond new construction, this welding flange is equally valuable for modifying or upgrading existing hydraulic reservoirs. As hydraulic systems evolve, or as new functionalities (e.g., additional sensors, lubrication lines, or specialized diagnostic tools) are required, adding new ports becomes necessary. The process involves carefully selecting the location on the reservoir wall, preparing the surface, cutting an appropriately sized hole, and then welding the flange into place. This allows for the integration of new components without needing to replace the entire reservoir, offering a cost-effective and efficient solution for system expansion or retrofitting. The robust welded connection ensures that these additions maintain the system's original leak-proof integrity, which is crucial for safety and operational efficiency.

Technical Specifications and Their Implications

Let's delve deeper into the specific dimensions provided and their functional significance:

• Outer Diameter (OD): 1.763 inches
  The outer diameter of the flange defines the total footprint it occupies on the reservoir wall. A larger OD provides a greater surface area for the weld, enhancing the strength and stability of the connection. For this 1/4 inch NPTF flange, an OD of 1.763 inches is appropriately sized to provide ample welding surface without being excessively large, thus allowing for closer spacing of multiple ports if necessary. This dimension is crucial for fabricators to plan the layout of ports on the reservoir accurately, ensuring sufficient clearance between components and welding access.
• Pilot: .623 inches
  The "Pilot" dimension, often referring to a concentric raised or recessed feature on the flange, serves a critical role in alignment and stability during the welding process. A pilot, or shoulder, assists in centering the flange within the prepared hole in the reservoir wall before welding, ensuring that the threaded port is precisely perpendicular to the reservoir surface. This precision is vital for proper connection with mating components and prevents undue stress on fittings. A pilot diameter of .623 inches indicates a specific design for stable seating, guiding the fabricator to drill or cut a corresponding hole that perfectly accommodates this feature for optimal alignment and a strong, consistent weld joint.
• Size: .540 inches
  As previously discussed, the "Size" of .540 inches directly corresponds to the major diameter of a 1/4-inch NPTF thread. This is the largest diameter of the thread and is fundamental to the sealing mechanism of NPTF threads. For fabricators, understanding this dimension confirms the specific thread profile and ensures compatibility with standard 1/4-inch NPTF male fittings. It underscores the precision engineering applied to this component to adhere to recognized pipe thread standards, guaranteeing reliable connections.
• Thickness: .083 inches
  The thickness of the flange material, at .083 inches, is a crucial parameter affecting both the weldability and the structural integrity of the component. An adequate thickness ensures that the flange can withstand the thermal stresses of the welding process without excessive distortion or material degradation. It also contributes to the overall strength of the port, allowing it to withstand the operational pressures and vibrations inherent in hydraulic systems without risk of deformation or failure at the point of connection. While stamped, the chosen thickness provides a robust material foundation for both welding and subsequent service life.
• Finish: Smooth
  A "Smooth" finish is important for several reasons. For welding, a smooth surface free of deep imperfections, scale, or contaminants promotes a cleaner, stronger weld bead and reduces the likelihood of porosity or inclusions. Post-welding, a smooth surface on the sealing face of the flange is essential for establishing a reliable, leak-proof connection with mating NPTF fittings. Any surface irregularities could compromise the metal-to-metal seal characteristic of NPTF threads, leading to potential leaks. Furthermore, a smooth finish generally indicates good manufacturing quality and can be easier to clean, which is important for maintaining hydraulic fluid cleanliness.

Welding Considerations for Aluminum Flanges

Welding aluminum requires specific techniques and considerations due to its unique metallurgical properties, such as high thermal conductivity, low melting point, and the formation of a tenacious oxide layer. For welding this aluminum flange to an aluminum reservoir, common methods include Gas Tungsten Arc Welding (GTAW or TIG) and Gas Metal Arc Welding (GMAW or MIG). TIG welding offers superior precision and control, making it ideal for thinner materials and critical applications where aesthetics and integrity are paramount. MIG welding provides higher deposition rates and is generally faster, suitable for thicker sections or less critical joints. Key considerations for welding include:

• Surface Preparation: Thorough cleaning to remove oil, grease, and the aluminum oxide layer is essential. Brushing with a stainless steel brush, followed by solvent cleaning (e.g., acetone), is typically recommended immediately before welding.
• Filler Material: Selecting the correct aluminum filler wire (e.g., 4043 or 5356 series) that is compatible with both the flange and reservoir material is crucial for achieving a strong, ductile weld.
• Shielding Gas: Pure argon is commonly used as a shielding gas to protect the weld pool from atmospheric contamination.
• Heat Input Control: Aluminum's high thermal conductivity necessitates careful management of heat input to prevent excessive distortion or burn-through, especially on thinner gauge reservoir walls. Preheating might be beneficial for thicker sections to reduce thermal gradients.
• Distortion Control: Proper fixturing and tack welding sequences are vital to minimize distortion during cooling.
• Post-Weld Cleaning: Removing any residual flux or spatter and inspecting the weld for porosity or cracks ensures the long-term integrity of the joint.

Adhering to these best practices ensures a durable, leak-proof, and structurally sound connection, maximizing the performance and lifespan of the hydraulic reservoir and its integrated components.

Advantages, Benefits, and Quality Assurance

The 1/4 Inch NPTF Aluminum Stamped Welding Flange from Buyers Products offers a compelling set of advantages for hydraulic system professionals:

• Corrosion Resistance: The aluminum construction provides excellent resistance to oxidation and corrosion, extending the lifespan of the connection even in challenging environmental conditions.
• Lightweight Design: Contributes to overall system weight reduction, which is beneficial for mobile and transportable hydraulic equipment.
• Robust Connection: Welding offers a permanent, highly secure, and leak-proof seal that can withstand high operating pressures and vibrations inherent in hydraulic systems.
• Cost-Effectiveness: The stamped manufacturing process results in a high-quality component at a competitive price point, offering excellent value.
• Precision Threading: NPTF threads ensure a reliable metal-to-metal seal, reducing reliance on external sealants and simplifying maintenance.
• Versatility: Suitable for a wide array of applications, from fabricating new reservoirs to retrofitting existing ones for new functionalities.
• Standard Compliance: Adherence to NPTF standards ensures broad compatibility with industry-standard fittings and components.

Buyers Products is known for its commitment to quality, ensuring that each stamped welding flange meets stringent specifications for material integrity, dimensional accuracy, and finish. This dedication translates into reliable performance, reduced downtime, and enhanced operational safety for end-users. Rigorous quality control measures during manufacturing ensure that critical dimensions like OD, pilot, and thread size are consistently maintained, guaranteeing ease of installation and dependable service.

Installation Best Practices

For optimal performance and longevity, proper installation of the welding flange is essential. Beyond the welding considerations mentioned, installers should:

• Verify Compatibility: Ensure that the chosen flange size and thread type are compatible with the intended hydraulic fittings and the reservoir material.
• Prepare Reservoir Opening: Precisely cut and deburr the hole in the reservoir wall to match the flange's pilot and overall dimensions.
• Align and Fixture: Accurately align the flange using its pilot feature and secure it with appropriate fixturing to prevent movement during welding.
• Weld According to Standards: Follow established welding procedures for aluminum, ensuring full penetration and a sound, defect-free weld bead.
• Leak Test: After welding, the reservoir should be thoroughly leak-tested under pressure to confirm the integrity of all welded joints before filling with hydraulic fluid.
• Thread Sealing: While NPTF threads are designed for a dry seal, applying a high-quality thread sealant or tape is often recommended as an extra layer of protection against leakage, especially in critical applications.

Conclusion

The 1/4 Inch NPTF Aluminum Stamped Welding Flange from Buyers Products is a meticulously engineered component designed for the demanding environment of hydraulic systems. Combining the inherent advantages of lightweight, corrosion-resistant aluminum with the efficiency and consistency of stamped manufacturing, and featuring the robust, leak-proof NPTF threading standard, this flange provides an optimal solution for creating durable and reliable fluid connections in hydraulic reservoirs. Its precise specifications, including the defined outer diameter, pilot, thread size, and material thickness, reflect a thoughtful design aimed at facilitating ease of fabrication and ensuring long-term operational integrity. Whether for the ground-up construction of new hydraulic systems or the strategic enhancement of existing infrastructure, this welding flange stands as a testament to engineering excellence, offering unmatched performance, reliability, and value for professionals in the hydraulic industry. Choosing this Buyers Products flange means investing in a foundation of quality for your critical hydraulic fluid management systems.
