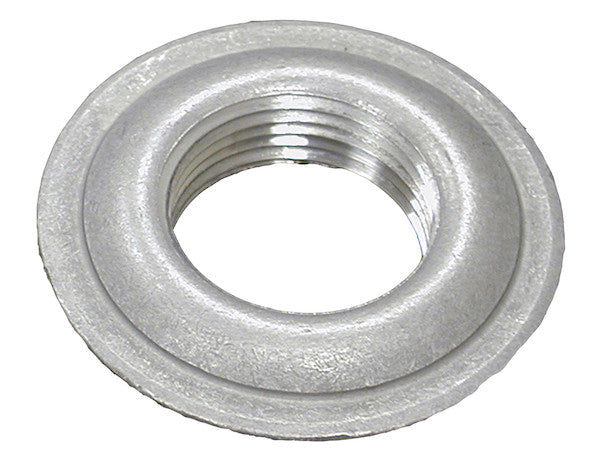

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.
Specifications
| Construction | Stamped |
|---|---|
| Finish | Smooth |
| Material | Aluminum |
| Outer Diameter | 2.365 |
| Pilot | 1.380 |
| Size | 1.315 |
| Thickness | .160 |
The 1 Inch NPTF Aluminum Stamped Welding Flange represents a critical component in the fabrication and modification of hydraulic reservoirs and fluid handling systems. Engineered for precision and durability, this flange provides a robust and reliable interface for fluid conduits, ensuring system integrity and optimal performance. Its specific design and material selection cater to demanding industrial, mobile, and commercial applications where leak-proof connections and corrosion resistance are paramount.
Advanced Material Engineering: High-Grade Aluminum Alloy
This particular welding flange is meticulously constructed from a high-grade aluminum alloy, a material chosen for its exceptional blend of physical and chemical properties. Aluminum offers a distinct advantage over heavier ferrous metals, significantly reducing the overall weight of the hydraulic reservoir assembly without compromising structural strength or operational reliability. This weight reduction is especially beneficial in mobile hydraulic applications, such as those found in construction equipment, agricultural machinery, and transportation vehicles, where minimizing mass contributes to improved fuel efficiency and increased payload capacity. Furthermore, aluminum exhibits superior resistance to corrosion, particularly when exposed to moisture, varying atmospheric conditions, and a wide range of hydraulic fluids. This inherent corrosion resistance extends the lifespan of the flange and the entire reservoir system, reducing maintenance requirements and costly downtime. The smooth finish specified for this flange further enhances its resistance to fouling and allows for easier cleaning and inspection. The specific properties of the chosen aluminum alloy also ensure excellent thermal conductivity, which can aid in the dissipation of heat generated within the hydraulic system, contributing to the overall thermal management of the fluid circuit. The material's ductility and weldability are crucial for the intended application, enabling robust and seamless integration into aluminum reservoirs. The consistent material composition ensures predictable performance under various operational pressures and temperatures, aligning with the rigorous standards expected in hydraulic engineering.
Precision Manufacturing: The Stamping Process
The designation "Stamped" in the product title refers to the manufacturing method employed for this flange. Stamping is a cold-forming process that involves placing a flat sheet of metal, in this case, aluminum, into a stamping press where a tool and die shape the material into the desired form. This method offers several key advantages for producing components like welding flanges. Firstly, it provides exceptional dimensional consistency and repeatability across large production runs. This is critical for ensuring that each flange meets precise specifications, facilitating predictable fitment and reliable performance in a wide array of reservoir designs. Secondly, stamping is a highly efficient and cost-effective manufacturing process, leading to a more economical product without sacrificing quality. The speed of production, coupled with high material utilization, contributes to its overall efficiency. Thirdly, the stamping process can enhance the material's mechanical properties through work hardening, potentially increasing the flange's strength and rigidity in key areas. The smooth finish achieved through stamping not only contributes to the aesthetic quality of the flange but also minimizes surface imperfections that could act as stress concentrators or interfere with proper welding adhesion. The uniform thickness of 0.160 inches, achieved through precise stamping, ensures consistent weld joint integrity and structural stability when integrated into a reservoir wall. This controlled manufacturing technique underscores a commitment to producing components that are not only functional but also engineered for long-term reliability and performance in demanding hydraulic environments.
Thread Specification: 1 Inch NPTF (National Pipe Taper Fuel)
The 1 Inch NPTF thread specification is a cornerstone feature of this welding flange, denoting its critical role in creating secure, leak-proof connections in fluid power systems. NPTF stands for National Pipe Taper Fuel, a dryseal pipe thread standard specifically designed to create a seal without the need for additional sealants like PTFE tape or liquid compounds, though these are often used as an extra precaution. The "taper" in NPTF signifies that both the male and female threads have a slight taper, causing them to wedge together as they are tightened. This mechanical interference, combined with specific crest and root truncation, creates a metal-to-metal seal that is highly effective against fluid leakage, especially crucial in high-pressure hydraulic applications where even minor seepage can lead to significant system failures, environmental contamination, or safety hazards. The "1 Inch" designation refers to the nominal pipe size, which corresponds to an approximate internal diameter (ID) of the mating pipe or hose fitting, facilitating system design and component selection. The actual thread dimensions are precisely standardized to ensure interchangeability and consistent sealing performance. The pilot dimension of 1.380 inches and the size (bore) of 1.315 inches are engineered to perfectly accommodate the 1-inch NPTF thread, providing optimal material engagement for welding and ensuring the necessary internal diameter for unrestricted fluid flow, minimizing pressure drops and turbulence within the fluid circuit. This dryseal capability is particularly advantageous in applications where chemical compatibility with sealants is a concern or where ease of assembly and disassembly without sealant residue is desired. The reliability of NPTF connections makes this flange an indispensable element for maintaining the operational integrity of hydraulic reservoirs and associated piping.
Precise Dimensional Design and Its Implications
The specific dimensions of this 1 Inch NPTF Aluminum Stamped Welding Flange have been meticulously engineered to ensure optimal functionality and seamless integration into various hydraulic reservoir designs. The **Outer Diameter (OD) of 2.365 inches** provides a substantial surface area for welding, distributing the stress of the connection evenly across the reservoir wall. This ample OD ensures a robust and structurally sound weld joint, critical for maintaining the pressure integrity of the reservoir and preventing premature fatigue or failure under dynamic operating conditions. The **Pilot diameter of 1.380 inches** serves a crucial role in accurately centering the flange during the welding process. This precise piloting ensures concentricity of the port, which is vital for proper alignment with mating fittings and for maintaining smooth, unimpeded fluid flow. Misaligned ports can introduce turbulence, increase pressure drop, and potentially lead to cavitation, all of which compromise system efficiency and longevity. The **Size, or bore, of 1.315 inches** is directly correlated with the 1-inch NPTF thread, representing the internal flow path through the flange. This dimension ensures that the nominal 1-inch flow capacity is maintained, minimizing restrictions and facilitating efficient fluid transfer between the reservoir and external components. Maintaining an appropriate bore size is essential for preventing bottlenecks in the hydraulic circuit, which can lead to overheating, reduced pump efficiency, and accelerated component wear. Finally, the **Thickness of 0.160 inches** provides the necessary material for a strong, full-penetration weld, while also contributing to the overall structural rigidity of the flange. This thickness is carefully balanced to offer sufficient material for welding without adding excessive weight, aligning with the benefits of using aluminum. The combination of these precise dimensions ensures that the flange not only fits correctly but also performs reliably under the demanding conditions characteristic of hydraulic systems, contributing to the longevity and efficiency of the entire fluid power assembly.
Applications and Versatility in Hydraulic Systems
The 1 Inch NPTF Aluminum Stamped Welding Flange is a highly versatile component, primarily designed for critical applications within hydraulic fluid management systems. Its core utility lies in facilitating the creation and modification of hydraulic reservoirs, which are fundamental components storing the working fluid for hydraulic power units. One primary application is in the **fabrication of custom hydraulic reservoirs**. Engineers and manufacturers often require bespoke reservoir designs to fit specific spatial constraints, fluid volume requirements, or operational demands of unique machinery. This flange allows for the integration of precisely sized and threaded ports into these custom-built tanks, serving various functions such as:
- **Suction Ports:** Essential for connecting the hydraulic pump to the reservoir, ensuring a clean and unrestricted flow of fluid to the pump inlet. Proper sizing and placement are critical to prevent cavitation.
- **Return Ports:** Where hydraulic fluid returns to the reservoir after performing work in the system. These ports often require diffusers to minimize turbulence and aeration within the reservoir.
- **Drain Ports:** Positioned at the lowest point of the reservoir to facilitate complete fluid drainage during maintenance or fluid replacement.
- **Fill Ports:** For adding or replenishing hydraulic fluid, often located at the top of the reservoir and sometimes integrated with breathers or filters.
- **Sensor Ports:** For mounting various sensors, such as level indicators, temperature probes, or pressure transducers, which provide crucial operational data for system monitoring and control.
- **Auxiliary Ports:** For connecting auxiliary lines, bypass circuits, or specialized filtration systems.
Beyond new fabrication, the flange is equally invaluable for **adding or modifying ports on existing hydraulic reservoirs**. This could be necessary for upgrading a system, adding new functionalities (e.g., an additional return line for a new auxiliary attachment), repairing a damaged port, or reconfiguring a reservoir for a different application. The ability to weld new ports provides a robust and permanent solution, maintaining the structural integrity of the reservoir, unlike bolt-on or thread-in adapters that might be less secure or prone to leakage over time. The aluminum construction makes it particularly suitable for existing aluminum reservoirs, ensuring metallurgical compatibility and optimal weld quality. In mobile equipment, where hydraulic systems are constantly exposed to vibrations, temperature fluctuations, and harsh environmental conditions, the integrity of every connection is paramount. The NPTF thread, combined with a properly executed weld, offers a secure, leak-free connection that can withstand these stresses. Furthermore, the smooth finish and stamped construction mean there are no rough edges or burrs that could contaminate the hydraulic fluid, maintaining system cleanliness, which is vital for the longevity of hydraulic pumps, valves, and cylinders. This versatility positions the 1 Inch NPTF Aluminum Stamped Welding Flange as an essential component for system designers, fabricators, and maintenance professionals in a wide array of industries, from heavy machinery and material handling to marine and industrial automation.
Welding Considerations for Aluminum Flanges
The successful integration of the 1 Inch NPTF Aluminum Stamped Welding Flange into a hydraulic reservoir relies heavily on proper welding techniques specific to aluminum. Aluminum alloys require specialized welding processes compared to steel or stainless steel due to their distinct metallurgical properties, including high thermal conductivity, low melting point, and the formation of a tenacious oxide layer.
- **Process Selection:** Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW), is generally the preferred method for welding aluminum flanges onto reservoirs. TIG welding offers superior control over the heat input and weld puddle, resulting in high-quality, clean, and aesthetically pleasing welds with minimal spatter. Metal Inert Gas (MIG) welding, or Gas Metal Arc Welding (GMAW), can also be used, especially for thicker materials and faster production, but typically requires more skill to achieve the same level of precision and finish as TIG for thin-gauge aluminum.
- **Surface Preparation:** Meticulous surface preparation is paramount. The natural oxide layer on aluminum has a much higher melting point than the base metal and must be removed prior to welding. This typically involves mechanical cleaning (e.g., stainless steel wire brushing or sanding) followed by chemical cleaning with appropriate solvents to remove oils, grease, and other contaminants. Any impurities can lead to porosity, incomplete fusion, and weakened welds.
- **Filler Material:** The selection of the correct aluminum filler rod or wire is critical. For most common aluminum alloys used in reservoirs, filler materials like ER4043 or ER5356 are frequently used. ER4043 is suitable for general-purpose welding, offering good corrosion resistance and ductility. ER5356 provides higher tensile strength and is often chosen when color match after anodizing is a consideration. The choice depends on the specific base aluminum alloy of the reservoir and the desired weld characteristics.
- **Shielding Gas:** Argon is the most common shielding gas for TIG and MIG welding aluminum, providing an inert atmosphere to protect the weld puddle from atmospheric contamination, which can cause porosity and embrittlement. For thicker materials, an argon-helium mix can be used to increase heat input and improve penetration.
- **Heat Management:** Aluminum's high thermal conductivity means heat dissipates quickly, potentially requiring higher amperage settings and preheating for thicker sections. However, excessive heat can lead to distortion, burn-through, and a reduction in mechanical properties in the heat-affected zone (HAZ). Proper technique involves balancing heat input to achieve full penetration without overheating the surrounding material, especially given the flange's 0.160-inch thickness.
- **Jigging and Clamping:** Effective jigging and clamping are essential to prevent distortion during welding, particularly for thinner reservoir walls. These measures help maintain dimensional accuracy and ensure the flange remains properly aligned throughout the cooling process.
Adherence to these welding best practices ensures that the 1 Inch NPTF Aluminum Stamped Welding Flange forms a structurally integral and leak-proof connection to the hydraulic reservoir, critical for the long-term reliability and performance of the entire fluid power system. The smooth finish of the stamped flange aids in achieving a clean weld bead and minimizes areas where contaminants could accumulate, further contributing to system longevity.
Benefits and Operational Advantages
The deployment of the 1 Inch NPTF Aluminum Stamped Welding Flange offers a multitude of operational benefits and advantages that contribute significantly to the overall efficiency, reliability, and longevity of hydraulic systems:
- **Superior Leak Prevention:** The dryseal NPTF thread design, combined with a professional weld, provides an inherently secure and leak-proof connection. This is paramount in hydraulic systems where even minute leaks can lead to fluid loss, environmental contamination, safety hazards, reduced system pressure, and compromised performance. Eliminating leakage ensures consistent system operation and minimizes fluid replenishment costs.
- **Enhanced System Durability and Longevity:** Constructed from high-grade aluminum, the flange offers excellent corrosion resistance, especially vital in environments prone to moisture, chemicals, or salt exposure. This inherent resistance extends the service life of the port connection and, by extension, the entire hydraulic reservoir, reducing the frequency of maintenance and replacement.
- **Weight Reduction:** The use of aluminum significantly reduces the overall weight of the reservoir assembly compared to steel alternatives. This is a critical advantage in mobile hydraulic applications where weight savings directly translate to improved fuel economy, increased payload capacity, and reduced structural stress on the host vehicle or machinery.
- **Cost-Effectiveness:** The stamping manufacturing process allows for high-volume, consistent production at a competitive cost. This efficiency is passed on to the end-user, providing a high-quality, technically advanced component at an economically viable price point, optimizing project budgets without compromising on critical performance attributes.
- **Optimized Fluid Flow:** The precisely engineered 1-inch NPTF bore (1.315 inches) ensures an unobstructed and efficient fluid path. This minimizes pressure drops and turbulence within the system, which can otherwise lead to energy loss, cavitation, and premature wear of hydraulic components like pumps and valves. Maintaining laminar flow contributes to the overall hydraulic system efficiency.
- **Ease of Fabrication and Modification:** The weld-in design simplifies both new reservoir construction and the modification of existing tanks. Its uniform dimensions and smooth finish facilitate straightforward integration and secure welding, providing fabricators with a reliable component that streamlines assembly processes.
- **Broad Compatibility:** With a standard 1-inch NPTF thread, this flange is compatible with a vast array of readily available hydraulic fittings, hoses, and pipes, simplifying component selection and ensuring seamless integration into diverse hydraulic circuit designs. This standardization enhances flexibility in system configuration and maintenance.
- **Resistance to Vibration and Shock:** When properly welded, the flange forms an integral part of the reservoir, offering excellent resistance to the mechanical stresses caused by vibration and shock inherent in many hydraulic applications. This robust connection is less prone to loosening or fatigue failures compared to mechanical fastening methods.
- **Thermal Management:** Aluminum's high thermal conductivity aids in dissipating heat from the connection area, contributing positively to the thermal balance of the hydraulic fluid. While minor, this property can assist in preventing localized overheating at critical connection points.
In summary, the 1 Inch NPTF Aluminum Stamped Welding Flange is not merely a fitting; it is a strategically designed component that enhances the structural integrity, operational reliability, and economic viability of hydraulic systems across various industrial and mobile applications. Its technical specifications and manufacturing precision ensure a dependable solution for fluid conveyance requirements.
Quality Assurance and System Integration
The integrity of any hydraulic system hinges on the quality and reliability of its individual components. The 1 Inch NPTF Aluminum Stamped Welding Flange is manufactured under stringent quality control protocols to ensure it meets the demanding specifications required for hydraulic applications. Each flange undergoes rigorous checks to confirm dimensional accuracy, material composition, and finish quality. This commitment to quality ensures that every flange will perform consistently and reliably, reducing the risk of premature failure and contributing to the overall safety and efficiency of the fluid power system. When integrating this flange, considerations extend beyond the immediate weld joint. The design facilitates seamless connections with a wide array of hydraulic hoses, tubes, and fittings that typically utilize 1-inch NPTF connections. This standardized interface simplifies the plumbing of complex hydraulic circuits, allowing for easy adaptation to various flow rates and pressure requirements. The robust nature of the welded connection means that subsequent components, such as valves, pumps, or actuators, can be securely attached, forming a cohesive and stable system. The material compatibility of aluminum means that when used with other aluminum components in the hydraulic circuit, galvanic corrosion is minimized, further extending system life. Ultimately, the careful selection and precise manufacturing of this welding flange contribute to creating hydraulic systems that are not only high-performing but also long-lasting and dependable under the most challenging operational conditions.
