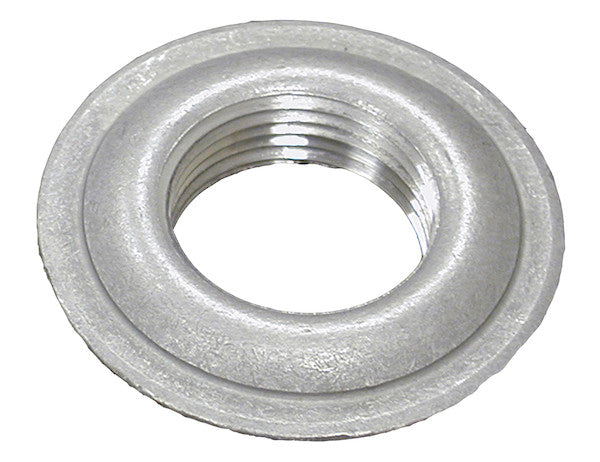

FA150 - 1-1/2 Inch NPTF Aluminum Stamped Welding Flange

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.

Specifications

The 1-1/2 Inch NPTF Aluminum Stamped Welding Flange represents a critical component in the fabrication and modification of hydraulic fluid reservoirs, particularly where a lightweight, corrosion-resistant, and robust connection point is paramount. Engineered by Buyers Products, this specific flange leverages the inherent advantages of aluminum combined with a precision stamping process and the reliability of NPTF threading to deliver an optimal solution for demanding industrial and mobile hydraulic applications. Its design is meticulously tailored to facilitate secure, leak-proof integration into hydraulic systems, ensuring longevity and operational integrity.

Material Science: The Engineering Advantages of Aluminum

The selection of aluminum for this welding flange is grounded in its superior metallurgical properties, which align perfectly with the rigorous demands of hydraulic systems. Aluminum's low density translates into significant weight savings compared to traditional steel components, a crucial benefit for mobile hydraulic applications where reduced mass directly impacts fuel efficiency and payload capacity. Beyond its lightweight nature, aluminum boasts exceptional inherent corrosion resistance. It forms a stable, passive oxide layer that effectively shields the underlying metal from environmental degradation, negating the need for extensive coatings often required by ferrous metals. This natural protection is especially valuable in outdoor, marine, or corrosive industrial environments, preserving system integrity over extended operational periods.

Furthermore, aluminum's higher thermal conductivity, while a secondary consideration for a flange, indirectly contributes to overall hydraulic system thermal management when integrated into an aluminum reservoir. This aids in dissipating heat and maintaining optimal fluid temperatures, thereby preventing fluid degradation and extending component lifespan. Specific aluminum alloys, typically from the 5000 or 6000 series, are chosen for this flange due to their optimal balance of formability, weldability, and strength-to-weight ratio. These alloys possess the necessary ductility for the stamping process while providing robust structural integrity to withstand typical hydraulic system pressures and vibrations. The consistently smooth finish inherent to stamped aluminum also significantly enhances weld quality by minimizing surface irregularities.

Manufacturing Excellence: Precision Stamping Process

The "Stamped" construction method employed for this flange signifies a highly efficient and precise manufacturing technique. It involves forming the aluminum sheet metal into the desired shape using a press, die, and punch. This process is highly valued for its capability to produce components with exceptional dimensional consistency, high repeatability, and an excellent surface finish, all at a competitive unit cost. For a critical component like a welding flange, these attributes are indispensable. Dimensional consistency ensures perfect mating with corresponding pipes and fittings, and uniform alignment across multiple installations. High repeatability is crucial for large-scale production environments and for fabricators relying on predictable component characteristics for efficient assembly.

Compared to forging or machining from solid stock, stamping offers distinct advantages for this application. While forging yields extremely strong parts, its higher tooling costs are typically reserved for components demanding specific internal grain structures. Machining, offering maximum precision, is often more material-intensive and time-consuming. Stamping minimizes material waste through optimized nesting patterns and a rapid production cycle, translating into a cost-effective solution. The smooth, uniform surface achieved through stamping is particularly beneficial for welding, promoting superior weld penetration and reducing the likelihood of porosity or inclusions. This controlled manufacturing process ensures the flange's thickness and geometry are consistent, directly enhancing the quality and strength of the resultant welded joint.

Thread Technology: 1-1/2 Inch NPTF Dryseal Standard

The "1-1/2 Inch NPTF" designation is a fundamental aspect of this flange's design, indicating a specific thread standard engineered for pressure-tight hydraulic connections without the reliance on external sealants. NPTF, or National Pipe Taper Fuel, is a specialized variant of the National Pipe Taper (NPT) thread, distinguished by its "dryseal" capability. Unlike standard NPT threads that require thread sealants to prevent spiral leakage paths, NPTF threads create a metal-to-metal interference fit. This precise engagement occurs at the crest, root, and flanks of the mating threads, effectively forming a seal under compression. This dryseal feature, defined by ASME B1.20.3, is paramount in hydraulic systems where contamination from thread sealants could lead to valve blockages, pump damage, or filter occlusion, ultimately compromising system reliability and performance.

The "1-1/2 Inch" refers to the Nominal Pipe Size (NPS), a standardized designation for pipes and fittings, not a direct measurement of internal or external diameter. This standard ensures interchangeability across various manufacturers. For a 1-1/2 inch NPTF connection, the thread form incorporates a taper of 3/4 inch per foot (1 in 16 relative to the axis). This taper is crucial, as it facilitates the progressive compression of threads upon engagement, establishing the necessary interference for a dryseal. The precision required in manufacturing these threads is exceptionally high; even minor deviations can compromise the dryseal integrity, leading to leaks. This flange is manufactured to stringent tolerances, guaranteeing optimal thread engagement and a robust, leak-free connection, thereby safeguarding the hydraulic system from fluid loss and ingress of contaminants, both critical for sustained operational efficiency and safety.

Application Focus: Welding Flanges for Hydraulic Reservoirs

The primary utility of this 1-1/2 Inch NPTF Aluminum Stamped Welding Flange lies in the critical domain of hydraulic fluid reservoir fabrication and modification. Hydraulic reservoirs are essential components, serving functions such as fluid storage, heat dissipation, air separation, and accommodating fluid volume changes. The robust and leak-proof integration of ports into these reservoirs is fundamental to the overall performance, reliability, and safety of any hydraulic system. Welding flanges offer a permanent and exceptionally strong method for connecting hydraulic lines, sensors, filters, and other auxiliary components to the reservoir. The welding process creates a unified, monolithic bond between the flange and the reservoir wall, effectively eliminating potential leak paths often associated with mechanical fasteners alone.

For new hydraulic reservoir builds, these flanges provide pre-threaded, standardized connection points, which significantly streamline both the design and assembly processes. In the context of existing reservoirs, they facilitate the addition of new ports for system upgrades, sensor integration, or maintenance access, all without compromising the structural integrity of the tank. Given its aluminum construction, this flange is particularly well-suited for welding to aluminum reservoirs, a prevalent choice in weight-sensitive applications such as mobile machinery. Successful aluminum welding typically employs TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) processes, requiring specialized expertise, precise equipment settings, and compatible filler materials that match the specific aluminum alloys of both the flange and the reservoir. The smooth finish of the stamped flange is highly conducive to producing clean, strong welds, as it minimizes surface imperfections that could lead to defects. The integrity of these welded connections is paramount for preventing fluid leaks, which can result in environmental contamination, system performance degradation, and safety hazards. Buyers Products ensures fabricators can achieve the robust connections necessary for reliable hydraulic operations through this high-quality, precisely manufactured component.

Detailed Specifications and Engineering Relevance

The comprehensive specifications of the 1-1/2 Inch NPTF Aluminum Stamped Welding Flange are fundamental engineering parameters, each contributing significantly to its functional performance, ease of integration, and overall reliability.

• Construction: Stamped: This method ensures exceptional material efficiency, cost-effectiveness, and, most importantly, highly consistent dimensional accuracy. Such consistency is vital for repeatable fabrication processes and establishes a uniform base for welding, leading to stronger, more reliable joints.
• Finish: Smooth: The smooth surface, a direct attribute of the stamping process, is critical for optimal weld quality. It facilitates superior weld penetration and minimizes the risk of inclusions or porosity by eliminating surface irregularities. This attribute is paramount for achieving leak-proof, high-integrity welds essential in hydraulic applications.
• Material: Aluminum: Specifies the use of aluminum, chosen for its lightweight properties, inherent corrosion resistance, and favorable thermal characteristics. This makes it an ideal choice for mobile and outdoor hydraulic applications, particularly when integrated with aluminum reservoirs.
• Outer Diameter (OD): 3.28 inches: This dimension defines the physical footprint and the area available for welding. A 3.28-inch OD provides substantial surface area for a robust, circumferential weld to the reservoir wall, ensuring both strong mechanical attachment and effective leak prevention. It also governs the minimum spacing required when multiple ports are installed.
• Pilot: 1.995 inches: The pilot diameter serves as a crucial alignment feature, precisely centering the flange within a pre-cut hole in the reservoir wall prior to welding. This precision positioning is critical for accurate system layout and preventing misalignment of connected piping or hoses. The 1.995-inch diameter ensures a snug fit, facilitating stable placement and minimizing potential for errors during the welding process.
• Size: 1.900 inches: This "Size" specification typically refers to the internal bore diameter of the flange, likely just prior to or encompassing the NPTF threading. For a 1-1/2 Inch NPTF connection, the nominal internal flow path is approximately 1.5 inches. A dimension of 1.900 inches indicates ample material surrounding the NPTF thread for structural integrity and proper thread engagement. Furthermore, it ensures an adequate internal diameter for unrestricted fluid flow, aligning with typical flow requirements for a 1-1/2 inch nominal pipe size in hydraulic applications, thereby minimizing pressure drop and cavitation.
• Thickness: .268 inches: The flange thickness, at .268 inches (approximately 6.8mm), is a fundamental structural parameter. This thickness provides the necessary rigidity and strength to withstand forces encountered during welding, thread engagement, and subsequent operational pressures and vibrations within the hydraulic system. It ensures the flange can be securely welded without warping and that the NPTF threads maintain their integrity under cyclic loading, contributing significantly to the longevity and reliability of the welded joint.

Key Benefits and Value Proposition

The 1-1/2 Inch NPTF Aluminum Stamped Welding Flange delivers a compelling value proposition for hydraulic system designers and fabricators:

1. Superior Corrosion Resistance: Aluminum construction inherently resists rust and corrosion, prolonging the lifespan of the hydraulic reservoir and its components, particularly in challenging environments.
2. Lightweight Design: Significant weight reduction enhances fuel efficiency and increases payload capacity for mobile hydraulic equipment.
3. Reliable Dryseal Connections: NPTF threads create a metal-to-metal seal, eliminating sealants, preventing system contamination, and ensuring leak-proof performance critical for hydraulic integrity.
4. Consistent Quality and Precision: The stamping process guarantees highly repeatable dimensions and a smooth finish, simplifying fabrication, optimizing welding, and ensuring consistent system performance.
5. Ease of Fabrication and Integration: Designed for welding with a pilot feature for precise alignment, it provides a straightforward, robust method for adding or modifying ports on hydraulic reservoirs for new builds or upgrades.
6. Cost-Effectiveness: Efficient stamped manufacturing minimizes material waste and production time, offering an economical solution without compromising quality or performance.
7. Durability and Longevity: Robust design and material selection ensure the flange withstands demanding hydraulic operational conditions, providing long-term reliability and reduced maintenance.

Installation and Best Practices for Optimal Performance

Optimal performance of the 1-1/2 Inch NPTF Aluminum Stamped Welding Flange hinges on adherence to proper installation practices. Prior to welding, both the flange and the reservoir surface must undergo meticulous cleaning to eradicate oxides, oils, and contaminants that can compromise weld quality. For aluminum, this typically involves mechanical preparation (e.g., wire brushing) followed by chemical cleaning (e.g., acetone degreasing). Appropriate joint preparation, potentially including beveling the reservoir hole edge, may be required to ensure full weld penetration. The selection of the correct aluminum filler wire (e.g., 4043 or 5356, matched to base alloys) and precise welding parameters (current, voltage, travel speed) for TIG or MIG processes are essential for achieving a strong, ductile, and leak-proof weld.

During welding, the integrated pilot feature significantly aids in maintaining accurate alignment. Careful management of heat input is crucial to prevent warping or distortion. Post-welding, a thorough visual inspection for porosity, cracks, or insufficient penetration is mandatory. Pressure testing the reservoir is a standard quality assurance measure to confirm the integrity of all welded connections. When assembling mating components, proper NPTF thread engagement is vital for achieving the dryseal. While sealants are not strictly required, a thin application of a compatible hydraulic thread lubricant can facilitate assembly and prevent galling with aluminum threads. Over-tightening should be avoided to prevent thread damage or cracking, as the dryseal relies on precise interference, not excessive torque.

Conclusion

The 1-1/2 Inch NPTF Aluminum Stamped Welding Flange by Buyers Products stands as an exemplary component for critical hydraulic reservoir applications. Its meticulously engineered design, encompassing lightweight and corrosion-resistant aluminum, a precision stamping manufacturing process, and the advanced dryseal NPTF threading standard, ensures a reliable, high-performance, and cost-effective solution. By facilitating robust, leak-proof connections, this flange directly contributes to the operational efficiency, safety, and longevity of hydraulic systems across diverse industries. Fabricators and OEM manufacturers seeking uncompromising quality and ease of integration will find this flange an indispensable asset for their hydraulic system designs.
