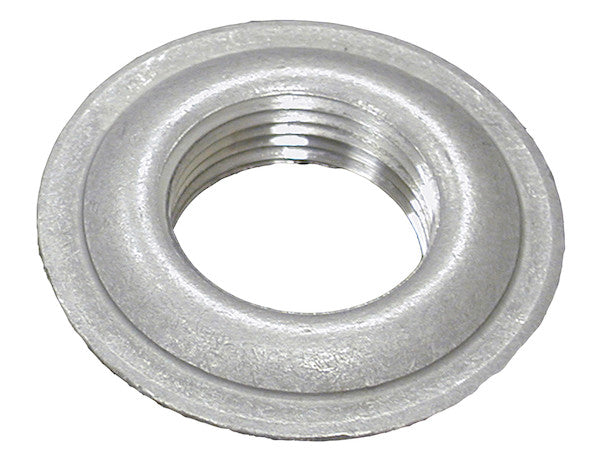

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.
Specifications
| Construction | Stamped |
|---|---|
| Finish | Smooth |
| Material | Aluminum |
| Outer Diameter | 3.840 |
| Pilot | 2.470 |
| Size | 2.375 |
| Thickness | .530 |
The 2 Inch NPTF Aluminum Stamped Welding Flange represents a critical component engineered for the demanding requirements of hydraulic system fabrication and modification. As detailed in its specifications, this flange is meticulously crafted from aluminum using a stamping process, featuring precise dimensions of a 3.840-inch outer diameter, a 2.470-inch pilot, a 2.375-inch bore size, and a .530-inch thickness. Its NPTF (National Pipe Taper Fuel) threading ensures a robust, dryseal connection, crucial for maintaining system integrity and preventing leaks in high-pressure fluid transfer applications, particularly within hydraulic reservoirs.
Advanced Material Science: Aluminum for Superior Performance
The strategic selection of aluminum for this welding flange offers critical advantages. Its excellent strength-to-weight ratio significantly reduces system mass, vital for mobile hydraulic equipment, allowing substantial weight savings without compromising structural integrity. Aluminum also exhibits exceptional corrosion resistance due to a rapidly forming, self-repairing passive oxide layer. This inherent protection is paramount in hydraulic systems exposed to various fluids and environmental elements, offering lower maintenance costs and extended operational lifespans compared to ferrous metals.
Aluminum's weldability is another key differentiator. Utilizing specialized techniques, it forms strong, durable, leak-proof metallurgical bonds, fundamental for secure integration into aluminum reservoirs. Its ductility and formability, beneficial in stamping, ensure precise shaping, consistent production, uniform finish, and dimensional accuracy.
Precision Manufacturing: The Stamping Process
The "Stamped" manufacturing method is celebrated for its efficiency, consistency, and cost-effectiveness. Forming flat aluminum sheet with a press and die offers distinct advantages over casting or machining.
It enables high-volume production with exceptional repeatability and tight tolerances. Each flange is nearly identical in dimensions and mechanical properties, crucial for predictable fitment, ease of installation, and reliable performance. Stamping is also highly material-efficient. Precise cutting minimizes waste, leading to lower raw material costs and reduced environmental impact. Stamped components typically exhibit a superior surface finish and improved grain structure. Cold working enhances material strength and fatigue resistance, while the "Smooth" finish indicates optimal preparation for welding, ensuring an ideal substrate for a strong metallurgical bond.
Engineered for Connection: The Welding Flange Design
This "Welding Flange" is designed for permanent, welded integration into vessels like hydraulic reservoirs, creating a highly secure, leak-proof, and robust connection point. It forms a monolithic structure with the parent material, unlike bolted flanges.
Its primary advantage is superior structural integrity and leak prevention, critical in high-pressure/high-vibration hydraulic environments. The direct metallurgical bond eliminates potential leak paths common with gasket compression or bolt loosening. For hydraulic applications, where fluid leaks pose significant risks, a welded connection's reliability is paramount.
The flange's robust thickness (.530") and outer diameter (3.840") provide ample material for a strong, full-penetration weld. The precise "Pilot" diameter (2.470") facilitates accurate alignment to the reservoir opening prior to welding, ensuring the 2-inch NPTF port is correctly positioned. This piloting feature is invaluable for efficient fabrication, minimizing rework, and meeting stringent design specifications.
The Integrity of NPTF Threading: National Pipe Taper Fuel
The "NPTF" designation signifies National Pipe Taper Fuel, a critical thread standard for superior dryseal performance in fluid power, distinct from standard NPT (National Pipe Taper) threads.
Both NPT and NPTF threads are tapered, creating an interference fit. However, NPT threads require sealant to fill helical leak paths. NPTF threads, or "Dryseal Pipe Threads," are engineered for a metal-to-metal seal without external sealants. This is achieved through tighter control over thread geometry, where male thread crests crush into female thread roots, creating an interference fit along crest, root, and flanks. This "dryseal" characteristic is paramount for:
- **Absolute Leak Prevention:** Essential in hydraulic systems and fuel lines.
- **Contamination Avoidance:** Eliminates sealant contamination risks.
- **High-Pressure Environments:** Provides enhanced pressure containment.
The "2 Inch" designation refers to the nominal pipe size, indicating compatibility with 2-inch nominal pipe threads. Actual NPTF thread dimensions, defined by ASME B1.20.3, ensure interoperability. Integrating a 2-inch NPTF port into an aluminum welding flange provides a high-flow, secure, and contaminant-free connection, vital for efficient and reliable hydraulic system operation.
Precision in Dimensions: Outer Diameter, Pilot, Bore, and Thickness
The detailed specifications for this 2 Inch NPTF Aluminum Stamped Welding Flange are precisely engineered for optimal fit, function, and performance within a hydraulic system:
- **Outer Diameter (OD): 3.840 inches.** Defines the total external diameter and weld footprint, ensuring an ample and stable weld zone for a strong, continuous weld bead capable of withstanding operational stresses.
- **Pilot Diameter: 2.470 inches.** A critical concentric boss for accurate alignment. It fits into a corresponding hole on the reservoir wall, ensuring precise centering and preventing misalignment during welding, minimizing angular distortion.
- **Size (Bore): 2.375 inches.** While nominally a "2 Inch NPTF" flange, this refers to the bore diameter, facilitating hydraulic fluid flow. It's calibrated with the NPTF thread profile to ensure optimal flow rates for a 2-inch line while maintaining dryseal characteristics.
- **Thickness: .530 inches.** This critical parameter influences structural integrity and pressure rating. The .530-inch thickness provides robust material to withstand high internal pressures and dynamic external stresses. It also ensures sufficient material for a strong, full-penetration weld without excessive heat distortion, contributing to the connection's overall rigidity and longevity.
These precise dimensions, combined with the stamping manufacturing method, guarantee a component that is dimensionally consistent and structurally sound, offering optimal performance in demanding applications.
Application Excellence: Enhancing Hydraulic Reservoirs
The primary application for this 2 Inch NPTF Aluminum Stamped Welding Flange is the fabrication or modification of hydraulic reservoirs. Reservoirs are fundamental, multi-functional components, storing fluid, accommodating expansion, separating air, dissipating heat, and settling contaminants. Their integrity and proper design, especially connection points, are vital for overall system efficiency, reliability, and safety.
This welding flange provides an ideal solution for creating permanent, high-integrity 2-inch NPTF ports in custom aluminum reservoirs. Its aluminum construction perfectly matches reservoir materials, facilitating homologous welding and preventing galvanic corrosion. For existing reservoirs needing additional ports, this flange offers reliable integration. The NPTF dryseal thread is particularly beneficial, eliminating pipe sealants that could contaminate sensitive hydraulic fluid.
In hydraulic systems, secure, leak-free ports are paramount. Leaks lead to fluid loss, reduced pressure, contaminant ingress, and safety hazards. The robust weld, combined with the dryseal NPTF connection, provides superior protection. Hydraulic systems operate under significant pressure and endure vibration and temperature fluctuations. The strong metallurgical bond and inherent strength of the stamped aluminum flange ensure the connection reliably withstands these demanding conditions, extending reservoir and system service life.
Installation Best Practices and Quality Assurance
Optimal performance from the 2 Inch NPTF Aluminum Stamped Welding Flange hinges on stringent installation procedures and robust quality assurance protocols. Meticulous surface preparation for welding aluminum components involves thorough cleaning to remove contaminants. Pre-heating may be necessary depending on material thickness to ensure proper fusion and minimize distortion.
Recommended welding techniques, proper aluminum filler material, and shielding gas are critical for strong, porosity-free welds; skilled welders are essential. Post-weld inspection and testing are crucial: visual inspection for defects, and for critical applications, non-destructive testing (NDT) like dye penetrant or radiographic inspection. Leak testing (hydrostatic or pneumatic) is vital to confirm sealed integrity. For NPTF connections, proper thread engagement and absence of cross-threading during assembly are also critical.
Buyers Products ensures these flanges are produced under strict quality control, including raw material verification, adherence to dimensional tolerances, and inspection. Compliance with industry standards (ASME, ASTM) underpins reliability. Material traceability further assures consistent quality, providing confidence in its suitability for demanding industrial applications.
Conclusion: The Foundation of Reliable Hydraulic Systems
The 2 Inch NPTF Aluminum Stamped Welding Flange is a foundational element for constructing and enhancing high-performance hydraulic systems. Its purposeful design, combining the lightweight and corrosion-resistant properties of aluminum with the precision of stamping and the superior dryseal capabilities of NPTF threads, culminates in a product engineered for exceptional reliability. Whether integrating new ports into an existing system or serving as a cornerstone for custom reservoir fabrication, this flange offers a robust, leak-proof, and durable connection solution. Its adherence to strict dimensional and material specifications, coupled with the advantages of its manufacturing process, makes it an indispensable choice for engineers and fabricators demanding uncompromising quality and long-term performance in their hydraulic applications.
