Buyers Products Steel Weld-On Bullet Hinge with Grease Fitting (also known as a lift-off hinge) is ideal for trailer doors/gates and tool cabinets. The hinge is constructed from steel with a brass pin and bushing. They are available in multiple sizes to fit your application. Please contact Customer Service for further information.

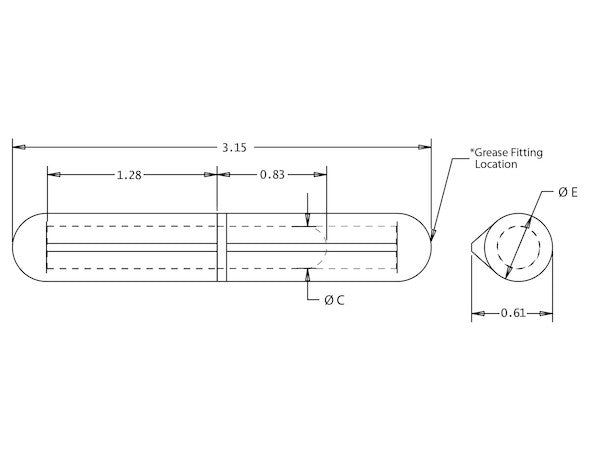

Specifications
| Bushing Material | Brass |
|---|---|
| Diameter (in.) | 0.51 |
| Hinge Length (in.) | 3.15 |
| Pin Diameter (in.) | 0.32 |
| Pin Length A (in.) | 1.28 |
| Pin Length B (in.) | 0.08 |
| Pin Material | Brass |
| Thickness (in.) | 0.61 |
| With Grease Fitting (y/n) | Yes |
Advanced Technical Overview: The Buyers Products Steel Weld-On Bullet Hinge with Brass Pin/Bushing/Grease Fitting .61 x 3.15 Inch
The Buyers Products Steel Weld-On Bullet Hinge represents a robust and meticulously engineered solution for demanding industrial, commercial, and heavy-duty applications. This component, distinguished by its .61 inch thickness and 3.15 inch length, is not merely a mechanism for articulation but a critical structural element designed for exceptional durability, ease of maintenance, and reliable performance in environments where standard hinges would rapidly fail. As a "lift-off hinge," its design inherently offers distinct operational advantages, enabling the swift and effortless removal of doors, gates, or access panels without requiring the disassembly of the hinge itself. This feature is paramount in applications demanding regular access for maintenance, material handling, or security protocols.
Material Science and Structural Integrity: The Steel Body
The primary construction of the hinge body from high-grade steel is a deliberate choice driven by the need for superior mechanical strength and resilience. Steel, particularly carbon steel, offers an unparalleled combination of tensile strength, yield strength, and impact resistance, making it ideally suited for applications subject to heavy loads, dynamic stresses, and potential external impacts. The .61-inch thickness of the hinge body further contributes to its formidable structural integrity, ensuring minimal deflection and deformation even under significant operational forces. The choice of steel also provides an excellent substrate for welding. Weld-on hinges establish a permanent, monolithic bond with the parent material of the door or frame, eliminating potential points of failure associated with fasteners, such as bolt loosening due to vibration, shear forces, or tampering. This integration results in a joint that often exceeds the strength of the surrounding material, offering enhanced security and longevity. Furthermore, steel's inherent hardness contributes to the overall rigidity of the assembly, ensuring stable and predictable movement throughout its operational lifespan. While the hinge is supplied as bare steel to facilitate direct welding, its robust composition allows for various post-installation protective treatments, such as painting, powder coating, or galvanization, to enhance corrosion resistance in specific environmental conditions.
Precision Engineering: The Brass Pin and Bushing System
At the core of this hinge's superior performance lies its meticulously engineered pivot mechanism, comprising a brass pin and a brass bushing. This material pairing is a testament to sound engineering principles, specifically chosen for its tribological advantages over homogeneous material combinations (e.g., steel-on-steel). The brass pin, with a diameter of 0.32 inches and a total length optimized for secure engagement, acts as the primary pivot. Brass, an alloy of copper and zinc, is renowned for its low coefficient of friction, inherent lubricity, and excellent wear resistance when interacting with other metals, particularly steel. This characteristic significantly reduces the frictional forces generated during hinge articulation, leading to smoother operation and a substantial reduction in heat generation and material degradation over repetitive cycles.
Complementing the brass pin is the brass bushing, an equally critical component responsible for distributing radial and axial loads evenly, minimizing point contact stresses, and precisely guiding the rotational movement. The bushing's material composition mirrors that of the pin, establishing a homogeneous bearing surface that optimizes the self-lubricating properties of brass. This brass-on-brass interface within the steel body creates a highly efficient plain bearing system. Unlike hardened steel components that may gall or seize without constant, external lubrication, the brass combination exhibits intrinsic anti-friction properties. This synergy extends the operational life of the hinge significantly by mitigating wear on both the pin and the housing, reducing the likelihood of slop or binding over time. The precision manufacturing of these components ensures tight tolerances, which are essential for consistent performance, minimal play, and optimal load distribution across the bearing surfaces.
Optimized Performance: The Integrated Grease Fitting
A distinctive and highly beneficial feature of this bullet hinge is the incorporation of a grease fitting, commonly known as a Zerk fitting. This inclusion elevates the hinge from a passive mechanical component to an actively maintainable system, designed for extended operational life under arduous conditions. The grease fitting provides a convenient and effective port for introducing lubricant (grease) directly into the bearing surfaces of the pin and bushing. Regular lubrication via this fitting serves several critical functions:
- Friction Reduction: The primary role of grease is to create a hydrodynamic film between the rotating pin and the stationary bushing. This film dramatically reduces metal-on-metal contact, thereby lowering frictional resistance and energy expenditure during articulation.
- Wear Prevention: By separating the moving parts, grease prevents abrasive wear, adhesive wear, and pitting, which are common causes of premature hinge failure. This significantly prolongs the service life of both the brass pin and bushing.
- Corrosion Protection: Grease acts as a barrier, sealing the internal bearing components from environmental contaminants such as moisture, dust, dirt, and corrosive agents. This is particularly vital in outdoor or industrial settings where exposure to harsh elements is common.
- Load Distribution: The viscous nature of grease helps to distribute applied loads more evenly across the bearing surfaces, preventing localized stress concentrations and ensuring smoother operation under varying loads.
- Noise Reduction: Properly lubricated hinges operate silently, eliminating squeaks and groans that can arise from dry or worn bearing surfaces.
- Contaminant Purge: When fresh grease is pumped into the fitting, it forces old, contaminated grease out, effectively purging accumulated debris and wear particles from the bearing assembly.
The presence of a grease fitting transforms the hinge into a highly maintainable asset, allowing for proactive maintenance rather than reactive repairs. This translates directly into reduced downtime, lower replacement costs, and consistent performance over a prolonged operational period, a critical consideration for fleet managers and industrial operators.
Dimensional Specifications and Manufacturing Precision
The precise dimensional specifications provided—0.61 inch thickness, 3.15 inch hinge length, 0.51 inch overall diameter, and 0.32 inch pin diameter—are crucial for application suitability and installation accuracy. The 0.61-inch thickness denotes a substantial body, correlating directly to high load-bearing capacity and robust structural support. The 3.15-inch length ensures adequate contact area for secure welding and proper leverage during operation, while the overall diameter dictates the physical footprint and aesthetic integration. Precision manufacturing to these exact tolerances is paramount. Any deviation could lead to misalignment issues, uneven load distribution, increased friction, or premature wear. The engineering intent behind these dimensions is to strike an optimal balance between material usage, strength, weight, and operational efficiency, ensuring that the hinge performs reliably within its designed parameters.
Versatile Applications and Industry Suitability
The robust construction and integrated features of this Buyers Products bullet hinge make it exceptionally versatile across a multitude of heavy-duty applications, extending well beyond conventional trailer doors and tool cabinets:
- Commercial and Utility Trailers: Ideal for cargo trailers, flatbeds, livestock trailers, and utility service vehicles where heavy doors or ramps require secure, durable, and easily removable hinges.
- Agricultural Equipment: Used on access panels, safety guards, or gates for farm machinery, cultivators, and harvesting equipment, where exposure to dirt, moisture, and vibration is constant.
- Construction Machinery and Enclosures: Suitable for heavy equipment access doors, engine covers, and control panel enclosures on excavators, bulldozers, and loaders, demanding components that withstand harsh operational environments.
- Industrial and Marine Environments: For industrial enclosures, machine guards, security gates in manufacturing facilities, or even in certain marine applications where robust, easily lubricated components are essential (though additional corrosion protection for the steel body may be required in direct saltwater exposure).
- Custom Fabrication and OEM Projects: Its weld-on design and durable construction make it a preferred choice for original equipment manufacturers (OEMs) and custom fabricators creating bespoke heavy-duty structures, gates, and access points.
- Security and Storage Cabinets: For large, heavy-duty storage units, safes, or security enclosures where both structural integrity and the option for quick door removal are beneficial.
The "lift-off" capability is particularly valuable in scenarios where rapid access or removal of hinged elements is necessary for maintenance, inspection, or reconfiguration without affecting the permanent structural components.
Installation and Maintenance Guidelines
Proper installation and routine maintenance are critical to realizing the full design life and performance benefits of the Steel Weld-On Bullet Hinge.
Installation:
- Surface Preparation: Ensure that the welding surfaces on both the hinge and the application (door/frame) are clean, free from paint, rust, oil, and other contaminants. Proper surface preparation is essential for a strong, defect-free weld.
- Alignment: Precise alignment of multiple hinges on a single door or gate is paramount. Misalignment can lead to binding, excessive stress, and premature wear. Utilize clamps and leveling tools to maintain correct positioning during the welding process.
- Welding Procedure: Employ appropriate welding techniques and consumables suitable for steel. A qualified welder should perform the installation to ensure full penetration and structural integrity of the weld. Avoid overheating the hinge components, especially near the brass pin/bushing, to prevent material degradation.
- Post-Weld Treatment: After cooling, inspect welds for quality. Apply appropriate protective coatings (e.g., rust-inhibiting primer and paint) to the exposed steel surfaces of the hinge and surrounding weld area to prevent corrosion.
Maintenance:
- Lubrication Schedule: Establish a regular lubrication schedule based on the application's duty cycle, environmental conditions, and frequency of use. For heavy-duty or high-frequency applications, weekly or monthly lubrication may be appropriate. For lighter use, quarterly or bi-annual lubrication could suffice.
- Grease Type: Use a high-quality, general-purpose lithium-based or synthetic grease suitable for extreme pressure (EP) applications, as recommended by lubricant manufacturers for industrial bearings. Avoid mixing incompatible greases.
- Application: Use a standard grease gun to inject grease into the fitting until a slight resistance is felt or until old grease is purged from around the bushing, indicating fresh lubricant has permeated the bearing area.
- Inspection: Periodically inspect the hinges for signs of wear, corrosion, or structural damage to the welds. Address any issues promptly to prevent further damage or failure.
Durability, Reliability, and Longevity: A Holistic Engineering Approach
The Buyers Products Steel Weld-On Bullet Hinge embodies a comprehensive engineering approach to durability and reliability. The integration of robust steel construction, a low-friction brass pin and bushing system, and a proactive lubrication mechanism via the grease fitting collectively contributes to an exceptionally long service life. This hinge is designed not just to function but to endure in challenging operational environments where continuous performance is non-negotiable. Its ability to withstand shock loads, resist abrasive wear, and maintain smooth articulation under heavy use translates into significant long-term value for the end-user. By minimizing friction and preventing corrosion through intelligent material selection and ease of maintenance, the hinge dramatically reduces the likelihood of unscheduled downtime and the associated costs of repair or replacement, offering a superior return on investment over its operational lifespan.
Conclusion
The Buyers Products Steel Weld-On Bullet Hinge with Brass Pin/Bushing/Grease Fitting, measuring .61 x 3.15 inches, is a meticulously designed and manufactured component tailored for the most demanding applications. Its foundation in heavy-gauge steel provides unmatched structural strength and secure weldability. The heart of its operation, the brass pin and bushing system, delivers smooth, low-friction articulation with inherent wear resistance. Crucially, the integrated grease fitting transforms this hinge into a maintainable asset, allowing for easy, proactive lubrication that significantly extends its operational life, prevents corrosion, and ensures consistent performance. This hinge is not merely a functional part; it is a long-term investment in reliability, efficiency, and safety for trailers, industrial machinery, custom fabrications, and any application requiring a durable, high-performance, and maintainable lift-off hinge solution. Its precise dimensions and robust construction affirm its position as a superior choice for professionals seeking uncompromising quality and longevity in their mechanical assemblies.
